Memorandum

Date     June 5, 2014

To          Boston Region Metropolitan Planning Organization

From    Mark S. Abbott
MPO Staff

Re          Safety and Operations Analyses at Selected Boston Region MPO Intersections, FFY 2013: Western Avenue (Route 107) at Washington Street (Route 129) in Lynn

1         Introduction

This memorandum summarizes safety and operations analyses and proposes improvement strategies for the intersection of Western Avenue (Route 107) at Washington Street (Route 129) in Lynn. The intersection and its location are shown in Figure 1.

The location was approved for study by the Boston Region MPO following a selection process for four locations from a short list of 21 intersections based on a series of criteria including, high EDPO (Equivalent Property Damage Only) crash rating, the number of pedestrian and bicycle crashes, transit significance, regional significance, and implementation potential.1

The four locations approved for study are:

This location was one of three intersections in Lynn that met all five criteria in the intersection selection process. In the interest of geographic equity, only one of the three Lynn intersections was selected, and Lynn’s preference was to study the intersection of Western Avenue at Washington Street at this time.



Figure 1 is titled “Western Avenue Route 107) at Washington Street (Route 129), Lynn.” It is an aerial photo of the intersection; the two roadways that form the intersection are labeled in the photo: Western Avenue, which is numbered Route 107 at that location, and Washington Street, which is numbered Route 129 at that location. There is also an inset map in the corner of the photo that shows where the intersection is located within the city of Lynn.

This memo contains the following sections:

It also includes technical appendices that describe the methods and provide the data that were applied in the study, as well as detailed reports of the intersection capacity analyses.

2         existing conditions

Western Avenue (Route 107), running in the north-south direction, is an urban principal arterial that runs entirely through the city of Lynn. It is a state-numbered route that is owned by the City of Lynn and has one lane in each direction in the vicinity of the study intersection at Washington Street. However, the southbound approach is being used as a two-lane approach, with a left/through lane and a de facto right-turn lane to Washington Street.

Washington Street (Route 129) is another city-owned roadway that is classified as an urban principal arterial; it runs from Boston Street, west of Western Avenue, to the Lynnway. It is also a one-lane roadway in each direction.

The intersection of Western Avenue and Washington Street is signalized, and it is marked as one travel lane on all approaches, as shown in Figure 2. Pedestrian signals and cross walks are provided on all intersection approaches. There are sidewalks on both sides of Western Avenue and Washington Street; they are approximately 8-to-10-feet wide in the vicinity of the intersection. Wheelchair ramps are provided at each side of each corner. There are no provisions for bicycles.

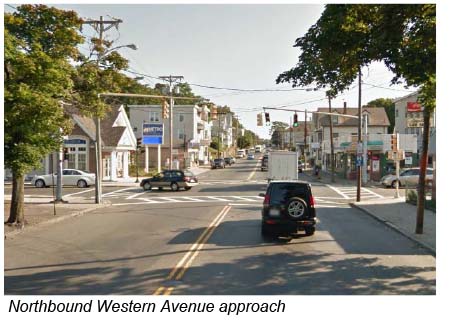

This is a photo taken from the perspective of a driver in the northbound lane of Western Avenue approaching the intersection. The shows the traffic signal at the intersection and some nearby buildings.

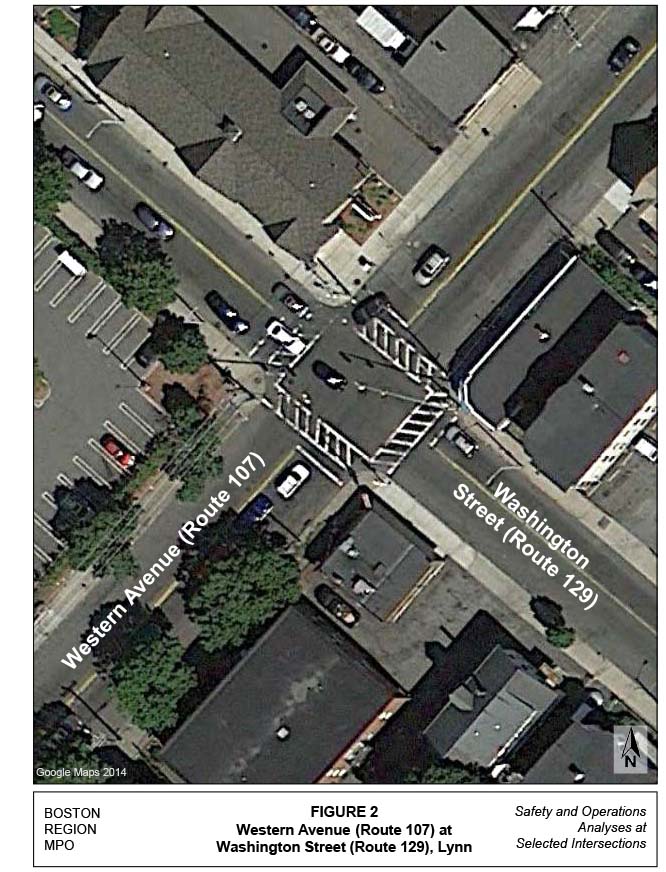

Figure 2 it titled “Western Avenue (Route 107) at Washington Street (Route 129), Lynn.” It is an aerial photo that is an enlarged version of Figure 1, showing a smaller area, but in more detail.

The signal heads are all standard three-face signal heads mounted overhead on two mast arms, which are located on the northeast and southwest corners of the intersection. Additional post-mounted signal heads are located on the northwest and southwest corners. There are utility poles on each corner of the intersection, which provide street lighting at the intersection.

The land use at the four corners of the intersection is commercial, with a Stop and Shop plaza located in the southwest quadrant. A sub (sandwich) shop is located on the southeast corner, with its entrance and small parking area located on Washington Street. A small convenience store is located on the northeast corner. A bank is located on the northwest corner, with a driveway located on Washington Street and its drive-through teller exit located on Western Avenue, approximately 35 feet from the stop line (see photo at right).

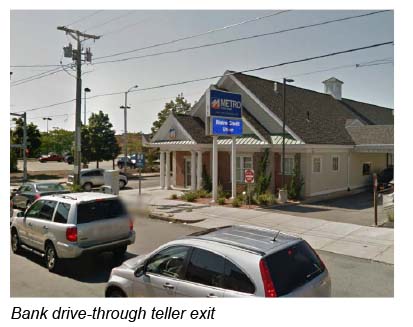

This is a photo of the driveway for exiting the bank’s drive-through teller window. The exit is located on Western Avenue, approximately 35 feet from the stop line.

As you move away from the intersection along both Western Avenue and Washington Street, the land use changes to residential housing, both single-family and multi-family dwellings. The residential nature of both Western Avenue and Washington Street is associated with relatively high pedestrian use of the intersection. Observations of the intersection indicated that a number of residents cross Western Avenue in order to access the Stop and Shop plaza.

This is a photo of a bus shelter for the bus stop that is located at the southeast corner of the intersection.

There are a number of Massachusetts Bay Transportation Authority (MBTA) bus routes that travel through the intersection. MBTA bus Routes 424, 434, and 450 travel north-south along Western Avenue. The bus stop in the northbound direction is located at the southeast corner of the intersection. Even though the bus stop is located at the intersection, it does not interfere significantly with traffic operations, since the approach is wide enough to allow vehicles to move around the stopped buses. The southbound bus stop on Western Avenue is located approximately 125 feet south of the intersection. There is a bus shelter at that stop. There is also a bus route on Washington Street, MBTA Route 435, which travels through the intersection. The two closest bus stops for Route 435 are located approximately 150 feet east of the intersection and 180 feet west of the intersection. The current locations of the bus stops do not impact the safe operations of the intersection, roadway, or buses.

3         issues and concerns

Two major issues, probably related, were identified for the intersection. First, it has a high number of crashes and a relatively high number of pedestrian and bicycle crashes. Second, the intersection is very congested during the AM and PM peak hours.

Based on the field observations and crash and traffic data analyses, the issues and concerns for the intersection can be summarized as:

4         Crash Data Analysis

Table 1 summarizes the crash statistics at the intersection based on the MassDOT Registry of Motor Vehicles (RMV) 2007–11 crash data. On average, approximately 21 crashes occurred at the intersection each year. About 26 percent of the total crashes (for the five-year period) resulted in personal injuries. Crash types consist of 38 percent angle collisions, 24 percent rear-end collisions, 16 percent single-vehicle collisions, 15 percent sideswipe collisions, 4 percent head-on collisions, and 2 percent unknown.

In the five-year period, there were five pedestrian crashes and five bicycle crashes.

About 35 percent of the total crashes occurred during peak periods, which indicates that many of the crashes might be related to stop-and-go traffic conditions at the intersection. Analyzing crash rates 2 is another effective tool for examining the relative safety of a location. Based on the crash data and the turning-movement counts collected in the fall of 2012 by MPO staff, the crash rate for this intersection was calculated as 2.42 (see Appendix A). This is much higher than the average crash rate for signalized locations in MassDOT Highway Division District 4, which is estimated to be 0.77. 3

Table 1

Western Avenue at Washington Street—Crash Summary





2007

2008

2009

2010

2011

Total

Average

Crash severity

Blank

Blank

Blank

Blank

Blank

Blank

Blank

Property damage only

12

17

13

12

13

67

13.4

Personal injury

7

12

4

2

2

27

5.4

Fatality

0

0

0

0

0

0

0

Collision type

Blank

Blank

Blank

Blank

Blank

Blank

Blank

Not reported

3

1

2

2

1

9

1.8

Angle

7

14

5

6

8

40

8.0

Rear-end

4

8

3

6

4

25

5.0

Side-swipe

2

3

4

4

3

16

3.2

Head-on

1

1

0

1

1

4

0.8

Single-vehicle

6

4

6

1

0

17

3.4

Roadway conditions

Blank

Blank

Blank

Blank

Blank

Blank

Blank

Not reported

2

0

0

0

0

2

0.4

Wet or icy pavement

3

7

10

4

3

27

5.4

Weather conditions

Blank

Blank

Blank

Blank

Blank

Blank

Blank

Dark/light

10

17

7

3

5

42

8.4

Clear

13

22

7

12

13

67

13.4

Cloudy

7

4

7

1

1

20

4.0

Rain

2

4

4

1

2

13

2.6

Snow

1

0

1

2

0

4

0.8

Crashes during weekday peak periods1

5

8

11

6

6

36

7.2

Crashes involving pedestrian(s)

1

2

2

0

0

5

1.0

Crashes involving bicyclist(s)

1

1

2

1

0

5

1.0

Total crashes

23

30

19

16

16

104

20.8

1 Peak periods are defined as 7:00–10:00 AM and 3:30–6:30 PM.

5         Intersection Capacity Analysis

MPO staff collected turning-movement counts at the intersection on Thursday, October 25, 2012. The weather was cloudy and chilly with no rain during the counts. The data were recorded in 15-minute intervals during peak traffic periods in the morning, from 7:00 to 9:00, and in the evening, from 4:00 to 6:00.

The peak-hour traffic volumes in each of the two periods were then determined, and the associated turning movements and pedestrian crossings were used for the intersection’s capacity analysis.

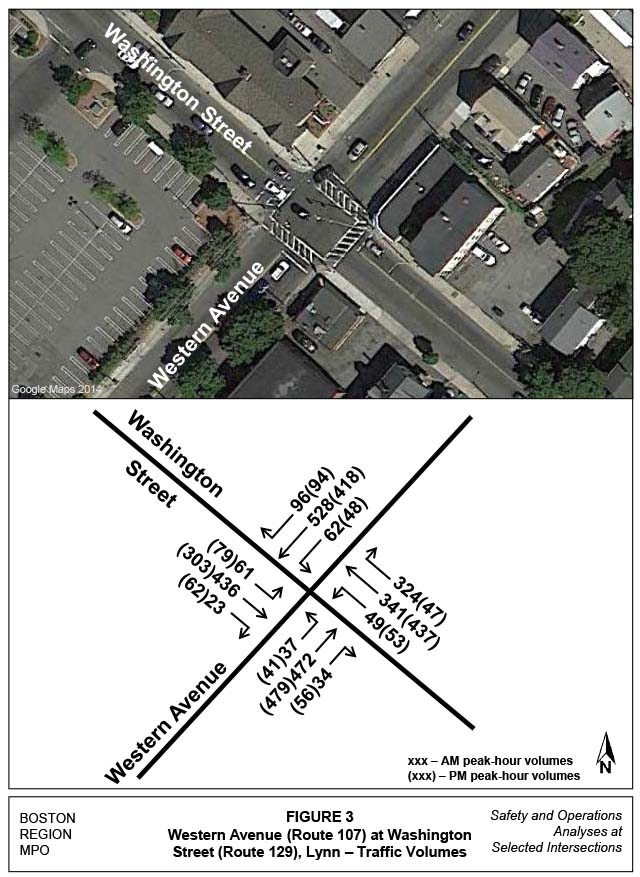

Figure 3 shows the observed vehicular turning-movement counts for the AM and PM peak hours. The intersection carried about 2,460 vehicles in the AM peak hour, from 7:15 to 8:15, and about 2,120 vehicles in the PM peak hour, from 4:45 to 5:45 (see Appendix B for detailed 15-minute breakdowns for passenger vehicles, various heavy vehicles, pedestrians, and bicycles in the peak periods and the peak hours).

There were 70 and 149 pedestrians crossing the intersection during the AM and PM peak hours, respectively. The highest number of pedestrian crossings occurred on the northbound approach, crossing Western Avenue to and from the Stop and Shop plaza. The next-highest occurred on the westbound approach across Washington Street, also to and from the Stop and Shop plaza.

Heavy vehicles accounted for about 3.4 percent of the total entry traffic in the AM peak hour and about 1.1 percent in the PM peak hour. The through movements on the northbound and southbound Western Avenue approaches carried the highest percentage of heavy-vehicle traffic at the intersection.

Based on the counts and manual traffic signal timing, the intersection was modeled as a fully actuated isolated intersection. Table 2 summarizes Synchro4 analysis results for existing conditions in the AM and PM peak hours. In the existing conditions, the southbound Western Avenue approach was analyzed with a de facto right-turn lane.



Figure 3 is titled “Western Avenue (Route 107) at Washington Street (Route 129), Lynn – Traffic Volumes.” It is actually two figures. The top half is an aerial photo of the intersection and the bottom half is a schematic diagram of the intersection with the turning-movement volumes written on the diagram where they occurred, for both the AM peak hour and for the PM peak hour.

TABLE 2

Intersection Capacity Analysis of Existing Conditions

Street Name

Approach/Movement

LOS1

Delay per Vehicle

Western Avenue

NB – Left/through/right

B (C)

19.7 (30.1)

Western Avenue

SB – Left/through

C (C)

23.3 (22.6)

Western Avenue

SB – Right

A (A)

5.8 (7.0)

Washington Street

EB – Left/through/right

F (F)

315.5 (147.1)

Washington Street

WB – Left/through/right

F (F)

133.2 (112.9)

Overall

Blank

F (E)

112.9 (73.0)

1 LOS = level of service. The LOS for the AM peak hour is the first letter. The LOS for the PM peak hour is in parentheses.



The analysis indicates that the intersection operates at a level of service (LOS) F in the AM peak hour, with an average delay of nearly two minutes per vehicle. In the PM peak hour, the intersection is estimated to operate at LOS E, with an average delay of more than a minute per vehicle. Under existing conditions at the intersection, the Washington Street approaches operate with a failing level of service of LOS F in both peak hours. Detailed analysis parameters and results for the AM and PM peak hours are in Appendix C.

6         Improvement alternatives

The intersection’s signal equipment is fairly updated; however, there are a few opportunities to improve existing operations using the current intersection approach widths.

MPO staff tested a number of traffic signal alternatives with various layout modifications, including one with no changes. To simplify the analysis, this memo presents only two alternatives: one with no layout changes and one with modifications that are considered to be able to provide substantial operational improvements with the least impact to the surroundings of the alternatives considered.

The two alternatives are:

Tables 3 and 4 summarize the capacity analyses for existing conditions and for two improvement alternatives, in both the AM and PM peak hours. Using Synchro’s signal optimization function, MPO staff identified that there should be a cycle length of 120 seconds, including an exclusive 20-second pedestrian signal phase. This 20-second exclusive pedestrian phase should help to improve pedestrian safety, as it would provide adequate walk and clearance time for crossing the intersection. Figure 4 shows the existing and proposed signal timings and phasing for the intersection, and Table 5 provides a description of the movements and phases.



TABLE 3
Intersection Capacity Analysis of Level-of-Service for
Existing Conditions and Alternatives

Blank

Blank

Existing Conditions

Alternative 1

Alternative 2

Street Name

Approach

LOS1

LOS

LOS

Western Avenue

NB – Left/through/right

B(C)

E(E)

E(E)

Western Avenue

SB – Left/through

C(C)

D(D)

D(D)

Western Avenue

SB – Right

A(A)

B(A)

B(A)

Washington Street

EB – Left

N/A

N/A

C(C)

Washington Street

EB – Through/right

F(F)

D(E)

C(E)

Washington Street

WB – Left/through/right

F(F)

E(E)

E(E)

Overall

Blank

F(E)

E(D)

D(D)

1   LOS = level of service. The LOS for the AM peak hour is the first letter. The LOS for the PM peak hour is in parentheses.













TABLE 4
Intersection Capacity Analysis of Delay for
Existing Conditions and Alternatives

Blank

Blank

Existing Conditions

Alternative 1

Alternative 2

Street Name

Approach

Delay1

Delay

Delay

Western Avenue

NB – Left/through/right

19.7 (30.1)

73.7 (65.3)

64.9 (70.3)

Western Avenue

SB – Left/through

23.3 (22.6)

46.9 (37.4)

43.9 (38.4)

Western Avenue

SB – Right

5.8 (7.0)

18.2 (8.6)

18.1 (8.9)

Washington Street

EB – Left

N/A

Na

23.7 (29.0)

Western Avenue

EB – Through/right

315.5 (147.1)

67.2 (66.0)

37.6 (31.3)

Washington Street

WB – Left/through/right

133.2 (112.9)

37.6 (57.3)

74.4 (79.2)

Overall

Blank

112.9 (73.0)

55.4 (54.7)

52.0 (54.5)

1  The delay for the AM peak hour is the first number. The delay for the PM peak hour is in parentheses.





TABLE 5
Intersection Signal Phasing for
Existing Conditions and Alternatives

Blank

Blank

Existing Conditions

Alternative 1

Street Name

Approach

Phases

Phases

Western Ave

NB - All

4

4

Western Ave

SB - All

8

8

Washington St

EB – Left

-

1

Washington St

EB - All

6

6

Washington St

WB - All

2

2

Pedestrian

All

9

9







FIGURE 4
Intersection Signal Timings and Phasing for
Existing Conditions and Alternatives

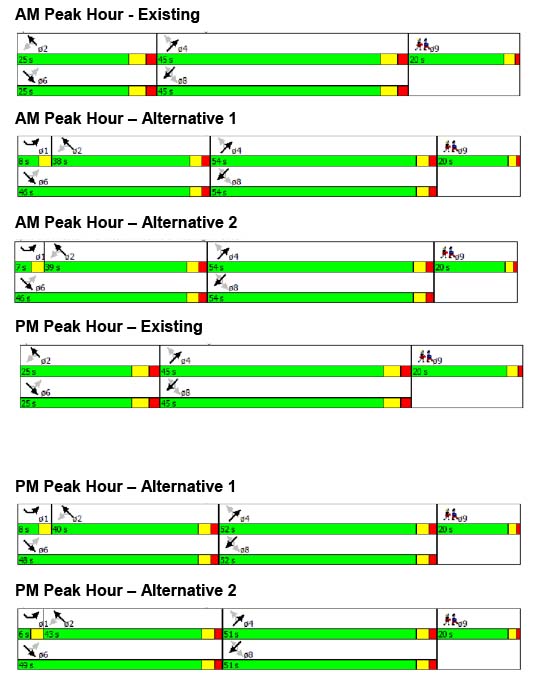

This figure shows the existing and proposed signal timings and phasing for the intersection for existing conditions and for Alternatives 1 and 2 for the AM peak hour and for the PM peak hour.

Alternative 1, retiming the signal using the existing geometry, would improve the overall LOS E and LOS D in the AM and PM peak hours, respectively. However, this would cause increased delays on the Western Avenue approaches, but it would be necessary in order to improve the Washington Street approaches.

Alternative 2, which includes the retiming and restriping of the Western Avenue southbound approach and the Washington Street eastbound approach, would improve the operations to LOS D in both peak hours. It would also reduce the overall delays to less than one minute per vehicle and would not impact the Western Avenue approaches as severely as Alternative 1.

Detailed signal timing settings and analysis results for the two alternatives in both the AM and PM peak hours are shown in Appendices D and E.

7         RECOMMENDATIONS AND DISCUSSION

The study intersection has a high number of crashes and is very congested during the peak hours. The above analyses indicate that many crashes cold be related to the congested conditions at the intersection.

Nevertheless, the congestion at the intersection is not easy to mitigate at one approach without impacting one of the other approaches. Because of this, MPO staff recommend a comprehensive approach to improving the intersection’s safety and operations based on the signal improvements in Alternative 2, described and analyzed in Section 6.

The intersection upgrade in Alternative 2 should include the following items:







FIGURE 5

Proposed Four-Section Signal Head with Flashing Yellow Arrow for Left-Turn Protected-Permitted Operation

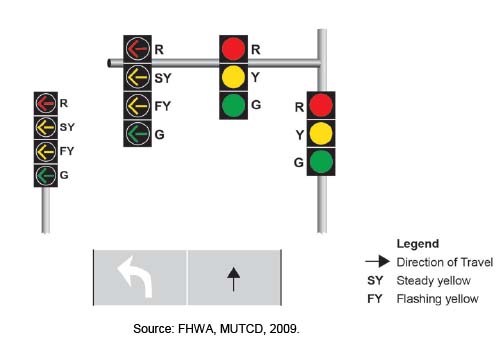

This figure is a picture of the recommended types of signal sections. One section would be located at the far left corner of the intersection; two would hang from a mast arm directly over the intersection, and one would be mounted on a post at the right side of the roadway.





FIGURE 6

MUTCD Sign R10-15: Turning Vehicles Yield to Pedestrians

This figure is a picture of the sign that would indicate to drivers who are planning to turn right that they must yield to pedestrians.

All of the improvements recommended above, except for the wheelchair ramp reconstruction, could be considered low-cost short-term improvements. These improvements should improve operations and safety at the intersection, not only for vehicles but also for pedestrians and bicyclists.

MSA/msa











1  Mark Abbott and Chen-Yuan Wang, memorandum to Boston Region MPO, “Safety and Operations Analyses at Selected Intersections—FFY 2013, Task 1: Intersection Selection Procedure,” November 1, 2012

2 Crash rates are estimated based on crash frequency (crashes per year) and vehicle exposure (traffic volumes or miles traveled). Per MassDOT guidance, crash rates are expressed as “crashes per million entering vehicles” for intersection locations and as “crashes per million miles traveled” for roadway segments.

3The average crash rates estimated by the MassDOT Highway Division (as of January 23, 2013) are based on a database that contains intersection crash rates submitted to MassDOT as part of the review process for an Environmental Impact Report or Functional Design Report.

4  Synchro Version 8 is developed and distributed by Trafficware Ltd. The software can perform capacity analyses and traffic simulation (when combined with SimTraffic) for an individual intersection or for a series of intersections.

5 Federal Highway Administration (FHWA), Manual on Uniform Traffic Control Devices (MUTCD), 2009.





APPENDIX A. Crash Rate Worksheet. Crash rates for the intersection are shown on MassDOT’s Intersection Crash Rate worksheet.





APPENDIX B. Turning-Movement Count Data. Two pages of tables showing results of counts of “all vehicles” for the AM peak hour, the AM peak period, the PM peak hour, and the PM peak period.





APPENDIX C. Synchro Analysis. Tables of data (24 pages) generated by the Synchro 8 analysis of the intersection under various conditions.
