DRAFT FOR THE MPO, June 6, 2024
Appendix A: Project Prioritization and Scoring
Appendix B: Greenhouse Gas Monitoring and Evaluation

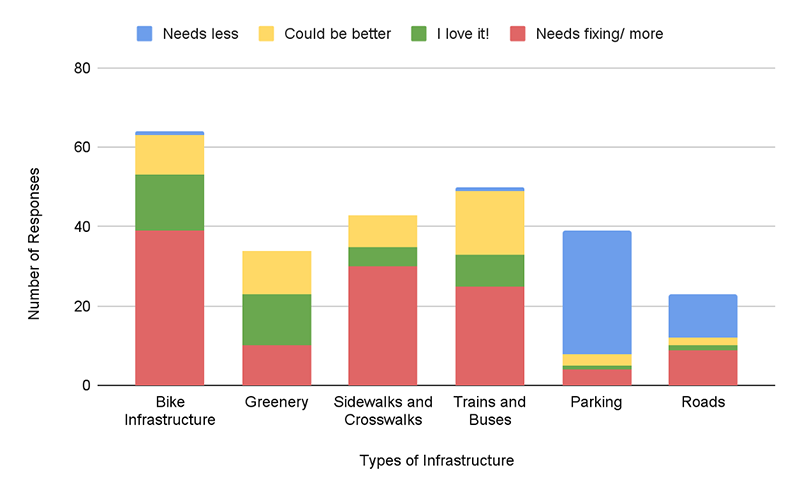

Appendix C: Public Engagement and Public Comments

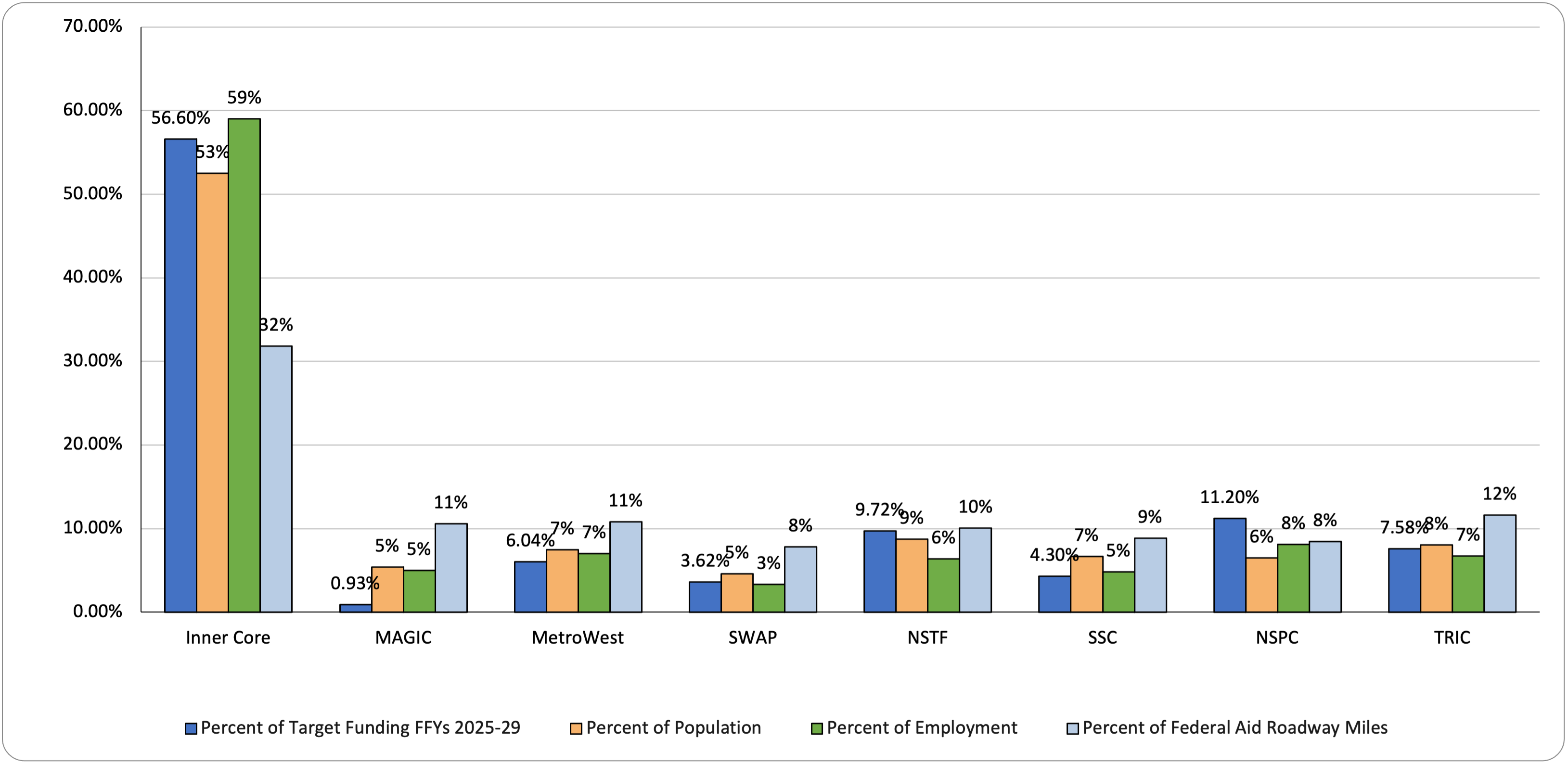

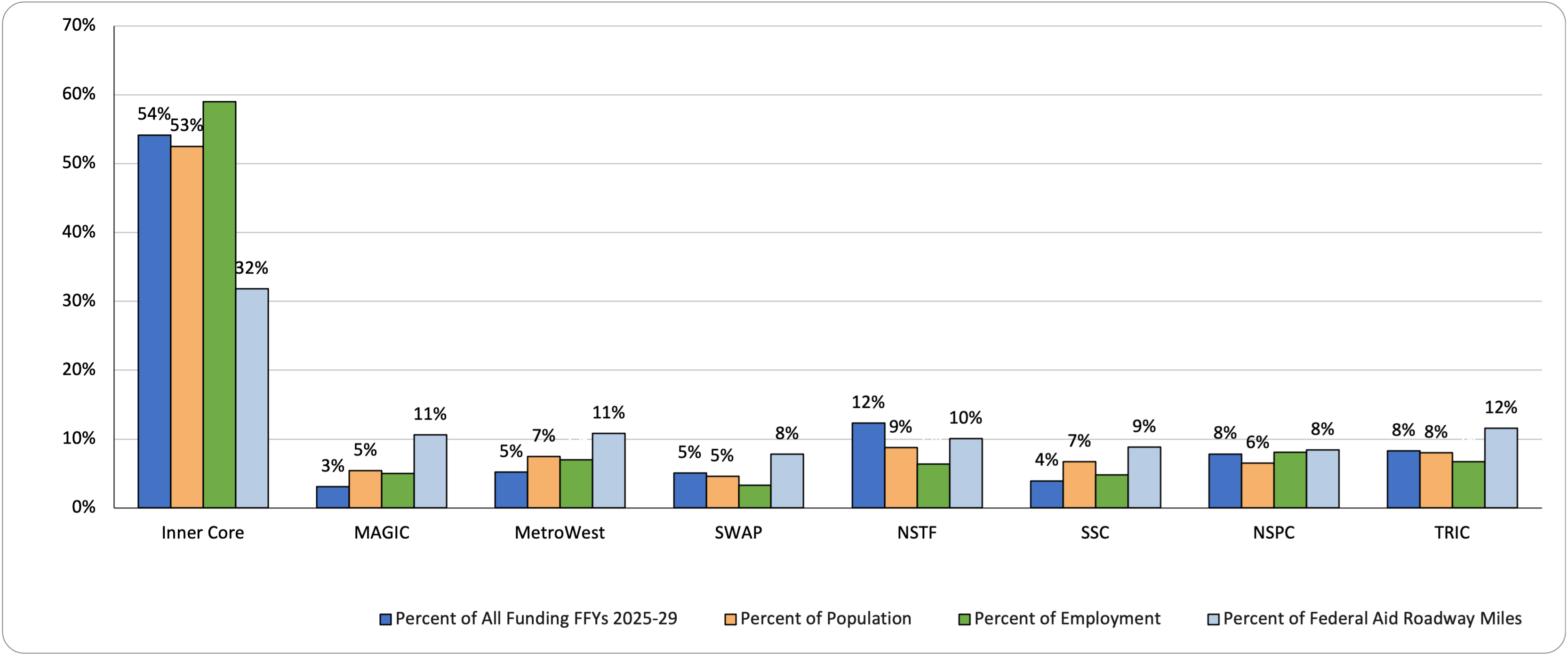

Appendix D: Geographic Distribution of TIP Funding
Appendix E: Regulatory and Policy Framework
Appendix F: Boston Region Metropolitan Planning Organization Membership
Appendix G: Operations and Maintenance Summary
As described in Chapter 2, the Transportation Improvement Program (TIP) development and project prioritization and funding process consists of numerous phases and is supported by several different funding sources. This appendix includes information about transportation projects that the Boston Region Metropolitan Planning Organization (MPO) considered for funding through the Highway Discretionary (Regional Target) Program in the federal fiscal years (FFYs) 2025–29 TIP.
To be considered for funding by the MPO, a project must fulfill certain basic criteria. Projects evaluated through the MPO’s Bicycle Network and Pedestrian Connections, Complete Streets, and Intersection Improvements investment programs must meet these criteria:
For projects evaluated through the MPO’s Transit Transformation Program, the following criteria apply:
For projects evaluated through the MPO’s Community Connections Program, the following criteria apply:
If a project meets the above criteria, it is presented to the MPO board in the Universe of Projects (Table A-1) to be considered for funding. This project list is presented to the MPO board in November and provides a snapshot of information available on projects at that stage in the TIP development. Some projects that get evaluated for funding may not appear in the Universe, as more project information may become available following the compilation of the Universe. In addition, some projects that appear on the Universe list may not be evaluated each year if these projects are not actively being advanced by municipal or state planners or if they are not at the minimum required level of design for evaluation. Community Connections projects are not typically included in the Universe because proponents of those projects apply for funding through a discrete application process, the submission deadline for which is after the presentation of the Universe to the MPO board.
Once a proponent provides sufficient design documentation for a project in the Universe and the municipality or state is actively prioritizing the project for funding, the project can be evaluated by MPO staff. The evaluation criteria used to score projects are based on the MPO’s goals and objectives. After the projects are evaluated, the scores are shared with project proponents, posted on the MPO’s website, and presented to the MPO board for review and discussion. The scores for projects evaluated during development of the FFYs 2025–29 TIP for programming in the MPO’s Bicycle Network and Pedestrian Connections, Complete Streets, and Intersection Improvements programs are summarized in Table A-3. No projects were evaluated for inclusion in the Major Infrastructure investment program during the development of the FFY 2025-29 TIP. Scores for projects that applied for funding through the MPO’s Community Connections Program during the FFYs 2025–29 TIP cycle are summarized in Table A-4.
Following the adoption of Destination 2050 in July 2023, the MPO revised the TIP evaluation criteria to better align with the MPO’s updated goals, objectives, and investment programs, including a new resilience goal area. These new criteria were employed during the project selection process for the FFYs 2025-29 TIP. The final criteria were informed by robust public engagement conducted during the development of Destination 2050 and developed through an update process that engaged MPO members, staff, and external stakeholders. The most significant update to the criteria for the FFYs 2025-29 TIP was the development of new and broader resilience evaluation metrics to align with the resilience goal area in Destination 2050 and elevate resilience to equal consideration in project prioritization alongside other goal-focused TIP criteria. This update created separate criteria for different project types within the Community Connections program given the diverse array of first-and-last mile projects that can be funded through the program.
The project selection criteria for each investment program are shown in separate tables in this appendix as follows: Bicycle Network and Pedestrian Connections (Table A-5); Complete Streets (Table A-6); Intersection Improvements (Table A-7); and Transit Transformation (Table A-8).
Community Connections project selection criteria are shown in separate tables in this appendix as follows: Bicycle Lanes (A-9); Bicycle Racks (A-10); Bikeshare Support (A-11); Microtransit Pilots (A-12); and Wayfinding Signage (A-13).
Archived project evaluation criteria for all investment programs, which were discontinued in October 2023 after the FFYs 2024–28 TIP cycle, are shown in Tables A-14 and A-15.
In addition to project scores, several other factors are taken into consideration by the MPO when selecting projects for funding. Table A-2 describes many of these elements, including the relationships between the MPO’s FFYs 2025–29 Regional Target projects and the MPO’s Long-Range Transportation Plan (LRTP), studies and technical assistance conducted by MPO staff through the Unified Planning Work Program (UPWP), the federally required performance measures discussed in Chapter 4, and Massachusetts’ modal plans. These projects are listed by MPO investment program. More details about each of these projects are available in the funding tables and project descriptions included in Chapter 3. Performance-related information for the FFYs 2025–29 Regional Target projects is included in Chapter 4, and information about greenhouse gas (GHG) emissions for these projects is available in Appendix B.
Table A-1
FFYS 2025–29 TIP Universe of Projects
This table contains unprogrammed projects in the Boston region that may be considered for evaluation in the FFYs 2025-29 TIP cycle. Not all projects listed in this table will be evaluated for funding in the FFYs 2024-28 TIP, as projects must be approved by the Project Review Committee and proponents must submit sufficient project documentation prior to scoring. The MPO has also established a policy to prioritize projects that have reached the 25% design submission stage for funding. This list is subject to change as more project information is received. | |||||||||||||
Key | |||||||||||||
Evaluated for FFYs 2024-28 TIP | |||||||||||||
New project in TIP universe for FFYs 2025-29 TIP | |||||||||||||
In 2024-28 universe, not evaluated | |||||||||||||
Municipality | Project Proponent | Project Name | PROJIS | Design Status (as of 10/6/21) | Year Added to Universe | Cost Estimate | MAPC Subregion | Highway District | MPO Investment Program | Notes | Limits | MAPIT? | Previous Evaluation Score |
Inner Core | |||||||||||||
Complete Streets | |||||||||||||
Boston | Boston | Reconstruction of Albany Street | N/A | Pre-PRC | 2021 | N/A | 6 | Pursuing 2022 PRC approval. | N/A | ||||
Boston | MassDOT | Reconstruction on Gallivan Boulevard (Route 203), from Neponset Circle to East of Morton Street Intersection | 606896 | PRC approved (2012) | 2018 | $11,500,000 | ICC | 6 | Complete Streets | Resulted from FFY 2012 Addressing Priority Corridors MPO Study | N/A | ||
Boston | MassDOT | Improvements on Morton Street (Route 203), from West of Gallivan Boulevard to Shea Circle | 606897 | PRC approved (2012) | 2018 | $11,500,000 | ICC | 6 | Complete Streets | Resulted from FFY 2012 Addressing Priority Corridors MPO Study | N/A | ||
Boston | Boston | Roadway Improvements along Commonwealth Avenue (Route 30), from Alcorn Street to Warren/Kelton Streets (Phase 3 & Phase 4) | 608449 | 25% submitted (9/28/2017) | 2017 or earlier | $31,036,006 | ICC | 6 | Major Infrastructure | Last scored for FFYs 2020-24 TIP. | 56 | ||
Boston | MassDOT | Intersection & Signal Improvements at VFW Parkway and Spring Street | 607759 | 25% Package Received - R1 (3/09/2022) | 2022 | $4,526,907 | 6 | N/A | |||||
Boston | MassDOT | Boston - Gallivan Boulevard (Route 203) Safety Improvements, From Washing | 610650 | PRC approved (2019) | 2019 | $5,750,000 | ICC | 6 | Complete Streets | Priority for District 6. Road safety audit being initiated. | N/A | ||
Brookline | Brookline | Boylston Street (High Street to Brington Road) Complete Streets Improvements | N/A | Pre-PRC | 2022 | $3,500,000 | 6 | Ped crossings, bike lanes, street trees. Design through Toole with some facilitation from MassDOT. Three options were pushed through and endorsed by the Select Board. Town met with District 6 to run through this. Should be in PRC soon. | N/A | ||||
Brookline | Brookline | Davis Street Path Restoration and Reconstruction of the Davis Street Path Bridge over MBTA | N/A | Pre-PRC | 2022 | $12,000,000 | 6 | Conceptual stage. Brookline is investigating avenues to use federal discretionary grant funding to advance this project. Potential for bundling with Boylston Street work above. | N/A | ||||
Chelsea | Chelsea | Reconstruction of Spruce Street, from Everett Avenue to Williams Street | 610675 | PRC approved (2019) | 2019 | $5,408,475 | ICC | 6 | Complete Streets | N/A | |||
Chelsea | Chelsea | Reconstruction of Everett Avenue and 3rd Street, from Broadway to Ash Street | N/A | Pre-PRC | 2020 | N/A | 6 | N/A | |||||
Chelsea | Chelsea | Reconstruction of Marginal Street | N/A | Pre-PRC | 2019 | N/A | ICC | 6 | Complete Streets | N/A | |||
Lynn, Salem | MassDOT | Reconstruction of Route 107 | 608927 | PRC approved (2017) | 2020 | $38,155,000 | 4 | N/A | |||||
Malden | Malden | Broadway Corridor Reconstruction | N/A | Pre-PRC | 2022 | N/A | 4 | Malden is currently holding community meetings to discuss this project, with the most recent one being held 10.25.2022. | N/A | ||||
Melrose | Melrose | Reconstruction of Lebanon Street, from Lynde Street to Malden City Line | 612534 | PRC approved (2/10/2022) | 2020 | $3,742,432 | 4 | N/A | |||||
Newton | Newton | Reconstruction of Washington Street, from Church Street to Chestnut Street | N/A | Pre-PRC | 2020 | N/A | 6 | N/A | |||||
Revere | Revere | Reconstruction of Ocean Ave, Revere Street, and Revere Beach Boulevard | N/A | Pre-PRC | 2020 | N/A | 4 | Project at conceptual stage with schematics, needs full design - investigating roundabout. Key East/West connection. | N/A | ||||
Winthrop | Winthrop | Reconstruction & Improvements on Route 145 | N/A | PRC approved (2019) | 2019 | $7,565,512 | ICC | 6 | Complete Streets | N/A | |||
Intersection Improvements | |||||||||||||
Boston, Brookline | Boston, Brookline | Mountfort St. & Commonwealth Ave. Connection | 608956 | PRC approved (2017) | 2018 | $916,883 | ICC | 6 | Intersection Improvements | Preliminary design. | N/A | ||
Lynn | Lynn | Intersection Safety Improvements at Boston Street at Hesper & Hamilton Streets | N/A | Pre-PRC | 2023 | $3,000,000 | 4 | Based on 3/3/2023 meeting with Lynn. | |||||
Medford | Medford | Intersection Improvements at Main Street and South Street | 611974 | PRC approved (2021) | 2019 | $8,498,000 | ICC | 4 | Intersection Improvements | Project location studied by CTPS. Priority for municipality. Design is in progress, and eventually the City will work with MassDOT to fund construction. | N/A | ||
Newton | MassDOT | Route 16 at Quinobequin Road | 612613 | PRC approved (2/10/2022) | 2022 | $4,350,000 | 6 | Reconfiguration of the interchange may result in consideration of this project for the LRTP. | |||||
Quincy | MassDOT | Intersection Improvements at Route 3A (Southern Artery) and Broad Street | 608569 | PRC approved (2016) | 2020 | $2,900,000 | 6 | Priority for District 6. | N/A | ||||
Quincy | Quincy | Intersection Improvements at Willard Street and Ricciuti Drive | 610823 | 25% Package Received - R1 (1/27/2023) | 2020 | $1,145,580 | 6 | 25% design complete. PM is Kathy Dougherty. | N/A | ||||
Quincy | Quincy | Merrymount Parkway Phase II | N/A | Pre-PRC | 2022 | N/A | 6 | December PRC. Intersection improvement at Merrymount Parkway and Furnace Brook Parkway. Parks Department is leading the work - David Murphy (617-376-1251). Will include bridge replacement. | N/A | ||||
Bicycle and Pedestrian | |||||||||||||
Belmont | Belmont | Belmont Community Path Phase 2 | N/A | Pre-PRC | 2023 | TBD | 4 | akoumoutsos@tooledesign.com reached out 3/16/2023 to discuss initiation and funding through MassDOT | |||||
Boston | Boston | Fenway Multi-Use Path Phase III | N/A | Pre-PRC | 2021 | N/A | 6 | Project at conceptual stage. | N/A | ||||
Brookline | Brookline | Beacon Street Bridle Pathway | N/A | Pre-PRC | 2022 | N/A | 6 | Project in conceptual design through Toole, receipt of a MassTrails grant in 2020 for feasibility study. Limits would be Audubon Circle to Cleveland Circle. | N/A | ||||
Everett, Somerville | DCR | Mystic River Bicycle and Pedestrian Crossing | 612004 | PRC approved (2021) | 2021 | $38,218,334 | 4 | N/A | |||||
Malden | Malden | Spot Pond Brook Greenway | 613088 | Pre-PRC - 25% design | 2022 | $3,250,000 | 4 | Application obtained for 2024-2028. | |||||
Medford | Medford | Wellington Phase 4 Shared Use Path | 613082 | Pre-PRC | 2022 | $1,195,000 | 4 | ID # is not yet in PINFO. Initiated on 11/3/2022. Includes an earmark and Gaming Commission money. | N/A | ||||
Medford | Medford | MacDonald Park Pedestrian Bridge | N/A | Pre-PRC | 2022 | $800,000 | 4 | In DCR park, City is requesting expansion of bridge to 10-12feet in width to coordinate with shared use pathway. | N/A | ||||
Major Infrastructure | |||||||||||||
Boston, Chelsea | Boston | Bridge Rehabilitation and Fender Pier Replacement, Meridian Street Over Chelsea Creek (Andrew P. McArdle Bridge) | 600637 | PRC Approved (2/10/2022) | 2021 | $97,538,787 | 6 | N/A | |||||
Cambridge | DCR | Intersection Improvements at Fresh Pond Parkway/Gerry's Landing Road, from Brattle Street to Memorial Drive | 609290 | PRC approved (2018) | 2019 | $7,000,000 | ICC | 6 | Intersection Improvements | Short-term improvements being initiated. | N/A | ||
Revere, Malden | MassDOT | Improvements on Route 1 (NB) Add-A-Lane | 610543 | PRC approved (2019) | 2019 | $7,210,000 | ICC | 4 | Major Infrastructure | Project is not programmed in Destination 2040. It is located on a regionally significant roadway. If this work includes capacity-adding elements, and it is programmed in the TIP, it will need to be included in Destination 2050. | N/A | ||
Newton | MassDOT | Traffic Signal and Safety Improvements at Interchange 127 (Newton Corner) | 609288 | PRC approved (2018) | 2019 | $14,000,000 | ICC | 6 | Intersection Improvements | N/A | |||
Medford | Medford | Roosevelt Circle Interchange Reconfiguration | N/A | Pre-PRC | 2022 | TBD | 4 | As discussed on 11.4.2022 with the City of Medford, the City is looking to reconfigure the ramps and adjacent local roadways to improve traffic safety following the results of a RSA along this corridor. Includes improvements for bicycle, pedestrian, and transit access. Given the state of repair on the bridges, this may be coordinated with bridge rehabilitation work for these structures over I-93. | N/A | ||||
Boston | Boston | Cambridge Street Bridge Replacement - Charlestown | 612989 | PRC approved (12/21/2022) | 2022 | $15,400,000 | 6 | City wants this programmed to advertise this before Rutherford Avenue enters construction. This is a difficult bridge under I-93 and next to Sullivan Square. | N/A | ||||
Revere | Revere | Route 1A Improvement and Reconfiguration | N/A | Pre-PRC | 2022 | $9-12,000,000 | 4 | Project is in conceptual design stage. The priority is to reconfigure the loop ramps at the General Edwards Bridge to facilitate redevelopment of the area, for which there are already parcel developments planned. The reconfiguration will entail construction of a new roundabout and improved pedestrian crossings to improve access to the riverfront and Point of Pines area along Revere. Per the City, this reconfiguration is intended to work with the Lynnway Multimodal Corridor improvements, but will also not impact construction for the General Edwards Bridge replacement. | N/A | ||||
Revere, Saugus | Revere, Saugus | Roadway Widening on Route 1 North (Phase 2) | 611999 | PRC approved (2021) | 2021 | $2,397,600 | 4 | Project is not programmed in Destination 2040. It Is on a regionally-significant roadway and would add roadway capacity. If programmed in the TIP, this project will also need to be included in Destination 2050. Robins Road to Route 99 interchange are the limits. | N/A | ||||
Community Connections | |||||||||||||
Belmont | Belmont | Belmont BlueBikes Expansion | N/A | N/A | 2022 | $250,000 | 4 | Belmont is currently evaluating potential revenue streams to cover operational costs and match prior to submitting an application for this project. | N/A | ||||
Lynn | Lynn | Transit Signal Priority - Bus Upgrades for Lynn Route 107 | N/A | N/A | 2022 | TBD | 4 | Indicated in November 8th email to Ethan from Aaron Clausen | N/A | ||||
Waltham | Waltham | Waltham BlueBikes/Bikeshare Expansion | N/A | N/A | 2022 | TBD | 4 | Indicated in November 8th email to Ethan from Catherine Cagle. | N/A | ||||
Minuteman Advisory Group on Interlocal Coordination | |||||||||||||
Complete Streets | |||||||||||||
Bedford | Bedford | Roadway Reconstruction of Route 4/225 (The Great Road) | 612739 | PRC approved (5/12/2022) | 2022 | $10,899,448 | 4 | Limits appear to go from North Road to match line near Loomis Street. SRTS project completed in the area under 608000. | N/A | ||||
Intersection Improvements | |||||||||||||
Littleton | Littleton | Intersection Improvements at Route 119/Beaver Brook Road | 610702 | PRC approved (2020) | 2020 | $3,120,110 | ICC | 3 | Intersection Improvements | MassDOT agreed to fund design after 25% design approved. As of October 2022, the project remains in preliminary design. | N/A | ||
Bicycle and Pedestrian | |||||||||||||
Bedford | Bedford | Minuteman Bikeway Extension, From Loomis Street to Concord Road (Route 62) | 607738 | 47 | 2022 | $11,218,186 | N/A | 4 | Cost increase to $11,218,186. Initial targeted advertisement date of 8/13/22. | Local concerns about permitting. Previously programmed in FY23-27, dropped due to public opposition. Failed to achieve 2/3rds majority in town meeting on 11.14.2022. | N/A | ||
Concord | Concord | Assabet River Multi-Use Trail and Bridge Construction | 612870 | PRC approved (8/29/2022) | 2020 | $8,280,000 | MAGIC | 4 | Major Infrastructure | Project was originally a new Pedestrian Bridge with a $2-3.6M price range. Scope has increased to include improvements for a multi-use trail alongside the bridge. Cost has increased accordingly, and is now in preliminary design. Project location runs between the West Concord MBTA Station and the Concord Meadows Corporate Center with a hookup to the Southern Terminus of the Bruce Freeman. | N/A | ||
Stow | Stow | Stow - Assabet River Rail Trail Construction | 613096 | PRC approved, in design. | 2022 | TBD | 3 | Project Info # is being reserved for this project's construction. Recent earmark recipient for design under FFY22 House THUD bill (Rep. Lori Trahan). Design line item added to FFY23-27 in AM2 and is retaining a project ID # S12749. | |||||
Major Infrastructure | |||||||||||||
Acton | MassDOT | Intersection Improvements at Route 2 and Route 27 Ramps | 610553 | PRC approved (2019) | 2020 | $3,480,000 | 3 | Project not programmed in LRTP (meets MPO roadway classification requirement). Priority for District 3 and Town of Acton. Project has had surveying and MSA design contracts opened for it. MassDOT appears to be tracking as a Traffic Safety improvement. | N/A | ||||
Concord | Concord | Reconstruction & Widening on Route 2, from Sandy Pond Road to Bridge over MBTA/B&M Railroad | 608015 | PRC approved (2014) | 2019 | $8,000,000 | MAGIC | 4 | Major Infrastructure | Project is not programmed in Destination 2040. It is on a regionally significant roadway and includes roadway widening elements. If programmed in the TIP, this project should also be included in Destination 2050. | N/A | ||
Lexington | Lexington | Route 4/225 (Bedford Street) and Hartwell Avenue | N/A | Pre-PRC | 2019 | $30,557,000 | MAGIC | 4 | Major Infrastructure | Project is programmed in Destination 2040 (FFYs 2030-34). The project is expected to include work on the I-95 Interchange with Route 4/225. If this work includes capacity-adding elements, it will need to be included in Destination 2050. | N/A | ||
Community Connections | |||||||||||||
Concord, Lexington, Lincoln | Concord | Battle Road Shuttle Pilot | N/A | N/A | 2022 | TBD | 4 | Erin Stevens in Concord indicated interest in two shuttle options, an extension of a 2022 Summer Pilot for local service and a more regional service that would involve operations in Lexington and Lincoln. See email from 12/5/2022 to Ethan Lapointe. | N/A | ||||
Lexington | Lexington | Lexington Shuttle | N/A | N/A | 2022 | TBD | 4 | May be a component of the Concord project listed above. Outreach from Lexington on 12/5/2022 was somewhat vague, but expressed an interest in service. Lexington receives MBTA service. | N/A | ||||
MetroWest Regional Collaborative | |||||||||||||
Complete Streets | |||||||||||||
Wellesley | Wellesley | Route 135 Reconstruction (Natick Town Line to Weston Road) | N/A | Pre-PRC | N/A | TBD | TBD | 6 | PNF submitted. Discussing 10.14.2022. | N/A | |||
Holliston | Holliston | Reconstruction of Concord Street (Route 126) | N/A | Pre-PRC | 2021 | N/A | 3 | Added through subregional outreach. Project is municipal priority, as it's tied to necessary below-grade sewer work. 10/12/22: MaPIT is showing that a project was initiated back on 7.14.2020 for this stretch for resurfacing and related work, assuming $600K in total cost (likely lowball). | N/A | ||||
Intersection Improvements | |||||||||||||
Framingham | MassDOT | Roundabout Construction at Salem End Road, Badger Road and Gates Street | 609280 | PRC approved (2018) | 2019 | $2,520,000 | MWRC | 3 | Intersection Improvements | N/A | |||
Weston | Weston | Intersection Improvements - Signalization of Route 20 at Highland Street | N/A | Pre-PRC | 2021 | N/A | 6 | Added through subregional outreach. | N/A | ||||
Holliston | Holliston | Route 16 Washington Street at Whitney Street | N/A | Pre-PRC | 2022 | $500,000 | 3 | Result of 12/20/2022 phone call between Ethan Lapointe and Robert Walker (Highway Superintendent). Looking for signal installation. | |||||
Bicycle and Pedestrian | |||||||||||||
Weston | MassDOT | Weston - Shared Use Path Construction on Route 30 | 612602 | PRC Approved (2/10/2022) | 2022 | $1,050,000 | 6 | Meant to connect into Project 608954. District 6 priority to ensure that the shared-use-path there ties in to the rest of the bicycle network and concludes at a logical terminus. | N/A | ||||
Natick | Natick | Cochituate Rail Trail Extension, from MBTA Station to Mechanic Street | 610691 | 25% Design Received (11/21/2022) | 2020 | $6,690,043 | NSPC | 3 | Bicycle and Pedestrian | Final section of Cochituate Rail Trail Extension. Imminent 25% design submittal. Applicant applied for FFY2024-2028 TIP funding. | N/A | ||
Major Infrastructure | |||||||||||||
Framingham | Framingham | Intersection Improvements at Route 126/135/MBTA and CSX Railroad | 606109 | PRC approved (2010) | 2019 | $115,000,000 | MWRC | 3 | Major Infrastructure | Project is programmed in Destination 2040 (FFYs 2030-34). May need to be pushed back with LRTP rewrite. Consultant said that depressing Route 135 may be the solution. | N/A | ||
North Suburban Planning Council | |||||||||||||
Complete Streets | |||||||||||||
Burlington | Burlington | Town Center Complete Streets Improvements | N/A | Pre-PRC | 2021 | N/A | 4 | Complete Streets upgrades along Route 3A from Bedford Street to Arthur Woods Avenue. The scope of work would be additive to existing resurfacing planned under 610704, and would focus mostly on paint. There is potential for widening if the town's design includes a multimodal path while maintaining the current number and width of vehicle lanes. Organized opposition to bike lanes under 610704. Backlash against some public support. In public hearing for 610704, appx 30 people came out against. Likely to manifest in this project as well. D4 and MassDOT are aware of this project. Town is working with Northeastern University to have grad students on project and review plans. Ethan has contact info for students (one is in OPMI). | Route 3A (Bedford Street to Arthur Woods Avenue) | N/A | |||
Lynnfield | Lynnfield | Reconstruction of Summer Street | 609381 | PRC approved (2019) | 2019 | $21,521,921 | NSPC | 4 | Complete Streets | Not yet at 25% design. Bayside Engineering handling design, Norman Brown (781-932-3201, nbrown@baysideengineering.com) is PM. Culvert and turtle crossings. Town may consider descoping and phasing the project due to cost, per 12/20/2022 conversation with PM. | Summer Street (Lynnfield Town Hall to Route 129). | N/A | |
Reading | Reading | Reading Downtown Improvement Project | N/A | Pre-PRC | 2020 | $7-$8 million | 4 | Project at conceptual stage. | N/A | ||||
Stoneham | Stoneham | Reconstruction of South Main Street, from Town Center to South Street | N/A | Pre-PRC | 2021 | N/A | 4 | N/A | |||||
Wakefield | Wakefield | Envision Wakefield - Main Street Improvements | 610545 | 25% Design Complete | 2020 | $16,581,200 | 4 | Main St (Nahant to Water) and Water Street (Main to Cyrus) removed from project and bundled in 607329. 25% design incorporates some retention of angled parking in order to appease older public, but focus is on bike parking. Strong public input from youth during town meetings led to approval. Key sticking point in FFY 2023-2027 Scoring was project cost ~$26M. Bundling of some bike improvements into other nearby state highway projects has reduced budget to $16.5M as of the FFY2024-2028 funding round. | Main Street (Water Street to Salem Street) | Yes | 41.8 | ||
Winchester | Winchester | Town Center Complete Streets Improvements | N/A | Pre-PRC | 2021 | N/A | 4 | N/A | |||||
Intersection Improvements | |||||||||||||
Stoneham | Stoneham | Intersection Improvements at Main Street (Route 28), Franklin Street, and Central Street | N/A | Pre-PRC | 2020 | N/A | 4 | Project at conceptual stage. | N/A | ||||
Bicycle and Pedestrian | |||||||||||||
Stoneham, Wakefield | Stoneham, Wakefield | Mystic Highlands Greenway Project | N/A | Pre-PRC | 2021 | N/A | 4 | N/A | |||||
Community Connections | |||||||||||||
North Reading | North Reading | North Reading Human Services Transportation | N/A | N/A | 2022 | 4 | Significant paratransit consideration. Losing Merrimack Valley interdistrict service as North Reading falls between the MBTA and MVRTA. | N/A | |||||
North Shore Task Force | |||||||||||||
Complete Streets | |||||||||||||
Beverly, Manchester-by-the-Sea | MassDOT | Resurfacing and Related Work on Route 127 | 607707 | PRC approved (2013) | 2018 | $2,300,000 | NSTF | 4 | Complete Streets | Still in preliminary design. | N/A | ||
Danvers | Danvers | Reconstruction on Collins Street, from Sylvan Street to Centre and Holten Streets | 602310 | 75% submitted (3/5/2010) | 2017 or earlier | $5,183,121 | NSTF | 4 | Complete Streets | Updated 75% design submission needed for project to move forward. Last scored for FFYs 2020-24 TIP. | Collins Street (Sylvan Street to Centre Street/Holten Street) 0.7 miles. 42.5566, -70.9539 | Yes | 46 |
Ipswich | Ipswich | Reconstruction of County Road, from South Main Street to East Street | 611975 | PRC approved (2021) | 2020 | $5,653,500 | 4 | On 10/7/2022, Frank Ventimiglia mentioned that a bridge within the project limits has had a lane closed by MassDOT. Structure IDs are I01005, main concern is Ipswich - 2PN which is an 1861-built historic stone arch mill bridge. Currently functioning as a one-way. OFF SYSTEM BRIDGE. MassDOT contact is Ryan Wilcox. Town had approached as a traffic safety project with the bridge as a focal point. Pier degradation and cracking. Structure is under evaluation for a statewide bridge preservation contract. | County Road (South Main Street to East Street) | Y | 45.4 | ||
Ipswich | Ipswich | Argilla Roadway Reconstruction and Adaptation (Crane Estate to Crane Beach) | 612738 | PRC Approved (5/12/2022) | 2021 | $4,628,419 | 4 | Municipal priority for funding. On 10/7/2022, Frank Ventimiglia at Ipswich DPW expressed an interest in pursuing MDP funding to support this project. | Argilla Road (Crane Estate to Crane Beach) | Y | N/A | ||
Marblehead | Marblehead | Bridge Replacement, M-04-001, Village Street over Marblehead Rail Trail (Harold B. Breare Bridge) | 612947 | PRC approved (9/15/2022) | 2019 | N/A | NSTF | 4 | Major Infrastructure | Per 10.11 email with C Quigley, the project received a PRC and a PROJIS ID in September 2022 after a PNF was submitted 8/2022. | N/A | ||
Manchester-by-the-Sea | Manchester-by-the-Sea | Pine Street - Central Street (Route 127) to Rockwood Heights Road | N/A | Pre-PRC; PNF submitted (12/27/16) | 2017 or earlier | N/A | NSTF | 4 | Complete Streets | N/A | |||
Manchester-by-the-Sea | Manchester-by-the-Sea | Bridge Replacement, M-02-001 (8AM), Central Street (route 127) over Saw Mill Brook | 610671 | PRC approved (2019) | 2019 | $4,350,000 | NSTF | 4 | Complete Streets | 34.8 | |||
Rockport | Rockport | Roadway Reconstruction of Route 127A (Thatcher Road) | 612737 | PRC Approved (1/23/2023) | 2023 | $12,058,173 | 4 | Added to Universe in January 2023 based on PRC results. PM is Marie Rose. Sea level rise risk, talk to Judy | Route 127A, Thatcher Road (Red Fox Lane to Seaview Street) | ||||
Salem | MassDOT | Reconstruction of Bridge Street (Route 107), from Flint Street to Washington Street | 612990 | PRC Approved (1/24/2023) | 2017 or earlier | $12,067,500 | 4 | Project is not programmed in Destination 2040. It is on a regionally significant roadway and would add roadway capacity. If it is programmed in the TIP, it will need to be programmed in Destination 2050. | N/A | ||||
Wenham | Wenham | Safety Improvements on Route 1A | 609388 | 25% Approved (9/10/2021) | 2019 | $3,629,036 | NSTF | 4 | Complete Streets | Dan Wilk (daniel.wilk@state.ma.us) is MassDOT PM. Working with Bayside Engineering as design consultant. MassDOT may fund this for construction in full, and Wenham is paying for design. Bayside currently responding to 25% comments. Drainage for abutters is holding this up. | N/A | ||
Wenham | Wenham | Roadway Reconstruction on Larch Row and Dodges Row | N/A | Pre-PRC | 2019 | $800,000 | NSTF | 4 | Complete Streets | Project at conceptual stage. | N/A | ||
Intersection Improvements | |||||||||||||
Essex | Essex | Targeted Safety Improvements on Route 133 (John Wise Avenue) | 609315 | PRC approved (2019) | 2019 | $2,135,440 | NSTF | 4 | Intersection Improvements | N/A | |||
Bicycle and Pedestrian | |||||||||||||
Peabody, Salem | Peabody, Salem | Riverwalk Project | N/A | Pre-PRC | 2021 | N/A | 4 | MVP grant issued for project design. | N/A | ||||
Marblehead | Marblehead | B2B Bikeway Design - Marblehead | N/A | Pre-PRC | 2022 | $140,000 | 4 | Earmark. May be added via amendment. | |||||
Peabody, Salem | Peabody, Salem | B2B Bikeway Design - Peabody/Salem | N/A | Pre-PRC | 2022 | $600,000 | 4 | Earmark. May be added via amendment. | |||||
Major Infrastructure | |||||||||||||
Beverly | Beverly | Interchange Reconstruction at Route 128/Exit 19 at Brimbal Avenue (Phase II) | 607727 | PRC Approved (2014) | 2021 | N/A | NSPC | 4 | Intersection Improvements | Project is not programmed in Destination 2040. Is on a regionally-significant roadway, and would expand the interchange. If this project is programmed in the TIP and adds roadway capacity, this project will need to be included in Destination 2050. | N/A | ||
South Shore Coalition | |||||||||||||
Complete Streets | |||||||||||||
Holbrook | Holbrook | Corridor Improvements and Related Work on South Franklin Street (Route 37) from Snell Street to King Road | 608543 | PRC approved (2017) | 2018 | $4,000,200 | SSC | 5 | Complete Streets | N/A | |||
Hull | Hull | Nantasket Avenue Redesign | N/A | Pre-PRC | 2023 | TBD | 5 | Includes redevelopment of existing gravel squares in front of Nantasket Beach for additional facilities/recreational zones/open space | |||||
Rockland | Rockland | Corridor Improvements on VFW Drive/Weymouth Street | 612605 | PRC approved (2/10/2022) | 2021 | $13,047,281 | 5 | PNF entered in Jan 2022 | N/A | ||||
Weymouth | MassDOT | Reconstruction on Route 3A, Including Pedestrian and Traffic Signal Improvements | 608231 | PRC approved (2016) | 2017 or earlier | $10,780,100 | SSC | 6 | Complete Streets | Pre-25% package submitted in July 2021. | N/A | ||
Weymouth | MassDOT | Resurfacing and Related Work on Route 3A | 608483 | PRC approved (2016) | 2018 | $2,400,000 | SCC | 6 | Complete Streets | N/A | |||
Intersection Improvements | |||||||||||||
Cohasset | Cohasset | Intersection Improvements at Route 3A and King Street | N/A | Pre-PRC | 2021 | N/A | 5 | Added through subregional outreach. | N/A | ||||
Hull | Hull | Intersection Improvements at George Washington Boulevard and Barnstable Road/ Logan Avenue | N/A | Pre-PRC | 2021 | N/A | 5 | Added through subregional outreach. | N/A | ||||
South West Advisory Planning Committee | |||||||||||||
Complete Streets | |||||||||||||
Bellingham | Bellingham | South Main Street (Route 126) - Elm Street to Douglas Drive Reconstruction | N/A | Pre-PRC; PNF submitted (3/13/17) | 2017 or earlier | N/A | SWAP | 3 | Complete Streets | Project would dovetail ongoing project 608887, rehab on Route 126 from Douglas Drive to Route 140. | No | N/A | |
Bellingham | Bellingham | Bellingham - Roadway Rehabilitation of Route 126 (Hartford Road), from 800 North of the I-495 NB off ramp to Medway T/L, including B-06-017 | 612963 | PRC Approved (9/15/2022) | 2022 | $10,950,000 | 3 | Applied for FFY2024-2028. BRMPO issued a full corridor study in 2011. | |||||
Franklin | MassDOT | Resurfacing and Intersection Improvements on Route 140, from Beaver Street to I-495 Ramps | 607774 | PRC approved (2014) | 2018 | $4,025,000 | SWAP | 3 | Complete Streets | Yes | N/A | ||
Hopkinton | Hopkinton | West Main Street Reconstruction and Shared Use Path | N/A | Pre-PRC | 2022 | $15,000,000 | 3 | Priority is a shared use path under I-495 along W Main Street EB to link into existing trail networks and SUP in downtown area and commercial campuses west of I-495. Includes a large roundabout at Lumber Street/Parkwood Drive and West Main Street due to frequent crashes. | West Main Street (South Street to Wood Street) | No | N/A | ||
Medway | Medway | Improvements on Route 109 West of Highland Street | N/A | Pre-PRC | 2021 | N/A | 3 | Project at conceptual stage. Ethan will verify. There is a project from Richard Rd. heading WB to Highland Street, which conflicts with the name of this project. It was initiated in Nov. 2021. | TBD | Maybe? | N/A | ||
Milford | MassDOT | Resurfacing and Related Work on Route 16 | 612091 | PRC approved (2021) | 2021 | $4,192,500 | 3 | No | N/A | ||||
Millis | Millis | Town Center Improvements | N/A | Pre-PRC | 2020 | N/A | 3 | Project at conceptual stage. | No | N/A | |||
Wrentham | Wrentham | Resurfacing and Related Work on Route 1 | 608497 | PRC approved (2016) | 2020 | N/A | 5 | 25% design anticipated July 2022. | Yes | N/A | |||
Intersection Improvements | |||||||||||||
Medway | Medway | Traffic Signalization at Trotter Drive and Route 109 | N/A | Pre-PRC | 2021 | N/A | 3 | Project at conceptual stage. | No | N/A | |||
Sherborn | Sherborn | Intersection Improvements at Route 16 and Maple Street | N/A | Pre-PRC | 2021 | N/A | 3 | Project at conceptual stage. | No | N/A | |||
Wrentham | Wrentham | Intersection Improvements on Route 1A at North and Winter Street | 610676 | PRC Approved (12/19/2019) | 2020 | $2,649,000 | 5 | No | N/A | ||||
Wrentham | Wrentham | Intersection Improvements at Randall Road and Route 1A | N/A | Pre-PRC | 2020 | $2,649,000 | 5 | Project at conceptual stage. | No | N/A | |||
Wrentham | Wrentham | Intersection Improvements at Route 1A and Route 140 | N/A | Pre-PRC | 2020 | N/A | 5 | Project at conceptual stage. | No | N/A | |||
Bicycle and Pedestrian | |||||||||||||
Franklin | Franklin | Southern New England Trunk Trail (SNETT) Extension, from Grove Street to Franklin Town Center | N/A | Pre-PRC | 2021 | N/A | 3 | Project at conceptual stage. | No | ||||
Hopkinton | Hopkinton | Campus Trail Connector, Shared Use Trail Construction | 611932 | PRC approved (9/24/2020) | 2020 | $1,750,700 | NSTF | 3 | Bicycle and Pedestrian | No | N/A | ||
Norfolk, Walpole, and Wrentham | Norfolk | Metacomet Greenway | N/A | Pre-PRC | 2021 | N/A | 5 | Project at conceptual stage. Feasibility analysis complete. Pilot development will start with Hill to Pine Street through old rail bed ROW. Includes bridge over Route 115 due to traffic concerns. | No | N/A | |||
Sherborn | Sherborn | Upper Charles River Trail Extension to Framingham City Line | N/A | Pre-PRC | 2021 | N/A | 3 | Project at conceptual stage. | No | N/A | |||
Major Infrastructure | |||||||||||||
Bellingham | MassDOT | Ramp Construction & Relocation, I-495 at Route 126 (Hartford Avenue) | 604862 | PRC approved (2006) | 2017 or earlier | $13,543,400 | SWAP | 3 | Major Infrastructure | High priority for District 3 | No | N/A | |
Three Rivers Interlocal Council | |||||||||||||
Complete Streets | |||||||||||||
Canton, Milton | MassDOT | Roadway Improvements on Route 138 | 608484 | PRC approved (2016) | 2020 | $18,467,500 | 6 | Milton also in ICC subregion. Project a high priority for the TRIC subregion. District is working to refine scope. Nine miles in length, may require phasing. | York Street to Truman Highway. Appx 9 miles. | Yes | N/A | ||
Canton | Canton | Lower Randolph Reconstruction (Route 138, Turnpike Avenue to Colts Crossing) | N/A | Pre-PRC | 2023 | TBD | 6 | Emerged in discussions following application of Randolph and York Street Signal Installation for FFY 2024-2028 STIP. Sidewalk installation, bike lanes, crosswalks, roadway rehabilitation, signal improvements at the Route 138 and, potentially, York Street intersection. Crosswalks near Ponkapoag Pond trailhead. | Randolph Street from Route 138 to Colts Crossing. | No | N/A | ||
Medfield | Medfield | Reconstruction of Route 109 (Millis T/L to Hartford Street) | N/A | Pre-PRC | 2021 | N/A | 3 | Added through subregional outreach. Working with Ann Sullivan and Arthur Frost at D3, BETA is design consultant. | MIllis T/L to Hartford St. | Maybe? | N/A | ||
Milton | MassDOT | Reconstruction on Granite Avenue, from Neponset River to Squantum Street | 608406 | 25% submitted (2/10/2017) | 2017 or earlier | $3,665,146 | TRIC | 6 | Complete Streets | Milton also in ICC subregion. | No | N/A | |
Milton | Milton | Adams Street Improvements, from Randolph Avenue to Eliot Street | 610820 | PRC approved (4/30/2020) | 2020 | $1,799,330 | 6 | Milton also in ICC subregion. Preliminary design. | Randolph Avenue to Eliot Street at Neponset River. Appx. 0.10 miles. -42.2703, -71.0679 | No | N/A | ||
Needham | Needham | Reconstruction of Highland Avenue, from Webster Street to Great Plains Avenue | 612536 | PRC approved (10/21/2021) | 2021 | $10,402,402 | 6 | Needham also in ICC subregion. | No | N/A | |||
Dover, Needham | Dover, Needham | Centre Street Bridge Replacement | N/A | Pre-PRC | 2022 | N/A | 6 | Historic-eligible, needs replacement as it is 1850's era. | No | N/A | |||
Westwood | Westwood | Reconstruction of Canton Street (East Street Rotary and University Avenue) | 608158 | 25% Package Received (2/18/2022) | 2017 or earlier | $19,047,306 | TRIC | 6 | Complete Streets | Priority for municipality. MassDOT expresses concerns regarding project readiness due to scope fluctuations. PINFO includes bridge rehab work. Application submitted for FFY2024-2028. | 1.9 miles | Yes | N/A |
Intersection Improvements | |||||||||||||
Canton | Canton | Signal Installation at Randolph Street and York Street | N/A | Pre-PRC | 2022 | $500,000 | 6 | Application submitted for FFY 2024-2028 TIP. Municipality requested $50,000 against a total estimate of $500,000. Significant funding in local mitigation fund for match. | Randolph Street at York Street | Yes | N/A | ||
Foxborough | Foxborough | Intersection Signalization at Route 140/Walnut Street and Route 140/I-95 (SB Ramp) | 612740 | PRC Approved (5/12/2022) | 2021 | $11,902,600 | 5 | Added through subregional outreach. Town has advanced design outside of TIP process. District supports project. Budget has increased from original $5M estimate in 2021. | No | N/A | |||
Medfield | Medfield | Intersection Improvements at Route 27 and West Street | 612807 | PRC Approved (5/12/2022) | 2021 | $3,987,500 | 3 | Added through subregional outreach. | No | N/A | |||
Bicycle and Pedestrian | |||||||||||||
Canton | Canton | Warner Trail Extension, from Sharon to Blue Hills Reservation | N/A | Pre-PRC | 2021 | N/A | 6 | Added through subregional outreach. Feasibility study currently underway. | No | N/A | |||
Major Infrastructure | |||||||||||||
Canton, Westwood | MassDOT | Interchange Improvements at I-95 / I-93 / University Avenue / I-95 Widening | 87790 | 25% submitted (7/25/14) | 2017 or earlier | $202,205,994 | TRIC | 6 | Major Infrastructure | Project not programmed in Destination 2040. IIt is on a regionally-significant roadway and adds roadway capacity. If programmed in the TIP, this project would also need to be included in Destination 2050. Last scored for FFYs 2020-24 TIP. Regional priority, potential discretionary grant project via MassDOT for State Highway funding. | No | 47 |
Table A-2
FFYs 2025–29 Regional Target Projects and Their Relationships to Plans and Performance Measures
ID | Project Name | MPO Investment Program | Project Description | MPO Muncipalities | Programming Year (FFY) | Planning Relationships | Relationoships to Performance Measures | |||||||||||||||||||||||||||||||||||
610544 | Peabody–Multi-Use Path Construction of Independence Greenway at Interstate 95 and Route 1 | Bicycle and Pedestrian | Construct a new multi-use paved path along the abandoned railbed between two existing segments of the Independence Greenway in Peabody and create a connection to the existing Border to Boston trailhead at Lowell Street. | Peabody | 2025 | This project will extend the MassDOT Off-Street High Comfort Bike Network, as identified in the 2019 Massachusetts Bicycle Plan. | This project will create nearly two miles of multi-use trail, connect other segments of the Independence Greenway, and create a link to the Border to Boston trail. By connecting these sections of the regional bike network, this project is expected to increase non-SOV travel. Improved signalization near ramps to Route 1 may help facilitate motorized and nonmotorized traffic flow and reduce PHED on this NHS corridor. This project is also expected to improve safety for bicyclists and pedestrians and to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
S12700 | CATA ON DEMAND MICROTRANSIT SERVICE EXPANSION – ROCKPORT AND LANESVILLE | Community Connections | Expand existing CATA On Demand microtransit service to Rockport and to an additional neighborhood in Gloucester, and to help customers reach a wider array of essential destinations. | Gloucester, Rockport | 2023–25 | N/A | This project may increase non-SOV travel by expanding CATA’s microtransit service to new areas and supporting its ability to serve customers beyond those commuting to transit or specific employment centers. It may reduce PHED and improve reliability on the NHS by providing an alternative to SOV travel on NHS routes in Gloucester and Rockport. This project is expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
S12701 | MWRTA CATCHCONNECT MICROTRANSIT SERVICE EXPANSION – HUDSON AND MARLBOROUGH | Community Connections | Expand MWRTA’s CatchConnect microtransit service to Hudson and Marlborough, which will support connections to MWRTA’s fixed-route network. | Hudson, Marlborough | 2023–25 | N/A | This project may increase non-SOV travel by expanding microtransit service to new areas. It may reduce PHED and improve reliability on the NHS by providing an alternative to SOV travel on NHS routes in Hudson and Marlborough. This project is expected to help reduce CO2 emissions. | |||||||||||||||||||||||||||||||||||
S12703 | Montachusett Regional Transit Authority (MART) –MART Microtransit Service | Community Connections | Establish an on-demand microtransit service that will serve Bolton, Boxborough, Littleton, and Stow. | Bolton, Boxborough, Littleton, and Stow | 2023–25 | N/A | This project may increase non-SOV travel by providing a new transit option. It may reduce PHED and improve reliability on the NHS by providing an alternative to SOV travel on NHS routes in Boxborough, Bolton, Littleton, and Stow. It is expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
S12699 | STONEHAM- SHUTTLE SERVICE | Community Connections | Create a fixed route shuttle service to connect to job centers and MBTA bus services in Stoneham. | Stoneham | 2023–25 | N/A | This project may increase non-SOV travel by providing new transit options and creating additional connections to existing MBTA bus service. | |||||||||||||||||||||||||||||||||||
S12697 | WATERTOWN- PLEASANT STREET SHUTTLE SERVICE EXPANSION | Community Connections | Expand the operating period for the fixed-route Pleasant Street shuttle service from Watertown to Harvard Square Station in Cambridge. | Watertown | 2023–25 | N/A | This project may increase non-SOV travel by providing new transit options and creating additional connections to existing MBTA bus and rapid transit service at Harvard Square Station in Cambridge. | |||||||||||||||||||||||||||||||||||
606453 | Boston–Improvements on Boylston Street | Complete Streets | Improve the roadway cross section, signals, and bicycle and pedestrian accommodations in the project corridor. | Boston | 2026 | N/A | The project area overlaps a 2017–19 HSIP all-mode crash cluster location, a 2010–19 HSIP bicycle crash cluster location, and a 2010–19 HSIP pedestrian crash cluster location. The project is expected to improve safety performance, including for bicyclists and pedestrians. It will improve more than two lane miles of substandard NHS pavement, will address reliability needs on an unreliable NHS segment, and may also reduce PHED on that segment. It will improve substandard sidewalks and add bicycle lanes in the project corridor; these features are expected to increase non-SOV travel. The project is also expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
610932 | Brookline–Rehabilitation of Washington Street | Complete Streets | Replace signals, reconstruct sidewalks and pavement, and provide protected bicycle facilities and dedicated bus pull-out spaces in the Washington Street corridor between Washington Square and Brookline Village. | Brookline | 2028 | N/A | The project area overlaps two 2010–19 HSIP bicycle crash cluster locations and a 2010–19 HSIP pedestrian crash cluster location. The project is expected to improve safety performance, including for bicyclists and pedestrians. It will improve substandard sidewalks, implement bicycle lanes, upgrade signals to include TSP, and add bus shelters to the corridor; these features are expected to increase non-SOV travel. The project is expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
611983 | Chelsea–Park and Pearl Street Reconstruction | Complete Streets | Improve safety and mobility on Park and Pearl Street by improving signals and roadway geometry, reconstructing sidewalks, and adding bicycle facilities. | Chelsea | 2027 | N/A | The project area overlaps a 2017–19 HSIP all-mode crash cluster location, a 2010–19 HSIP bicycle crash cluster location, and two 2010–19 HSIP pedestrian crash cluster locations. The project is expected to improve safety performance, including for bicyclists and pedestrians. The project will reconstruct sidewalks, improve bicycle amenities, and implement TSP; these features are expected to increase non-SOV travel. The project is expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
609257 | Everett– Rehabilitation of Beacham Street, from Route 99 to Chelsea City Line | Complete Streets | Reconstruct Beacham Street to reduce vehicular collisions and improve bicycle and pedestrian travel. | Everett | 2027 | N/A | This project is expected to improve transportation safety, including for bicyclists and pedestrians. It will improve substandard sidewalks and include a shared-use path—both features may encourage non-SOV travel and improve safety performance. The project is expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
605168 | Hingham–Intersection Improvements at Route 3A/Summer Street Rotary | Complete Streets | Improve multimodal access between Hingham Center, residential areas, and Hingham Harbor and make safety improvements, including by establishing a small roundabout at the intersection of Route 3A and Summer Street. | Hingham | 2026 | This project location was studied in “Summer Street/George Washington Boulevard Subregional Priority Roadway Study in Hingham and Hull” (CTPS, 2016). | The project is expected to improve safety performance, including for bicyclists and pedestrians. It will improve more than a lane mile of substandard pavement on the NHS, and the geometric improvements included in the project are expected to help reduce delay and potentially PHED on the NHS. The project is expected to improve substandard sidewalks, add new sidewalks, and add bicycle accommodations, including a shared-use path. These features may support increases in non-SOV travel. The project is also expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
605743 | Ipswich–Resurfacing and Related Work on Central and South Main Streets | Complete Streets | Reconstruct the roadway between Mineral Street and Poplar Street to improve the roadway surface. Make minor geometric improvements at intersections, include pedestrian crossings, and improve sidewalks. | Ipswich | 2027–28 | N/A | The project is expected to improve safety performance, including for bicyclists and pedestrians. It will improve more than a lane mile of substandard pavement on the NHS. It will upgrade substandard sidewalks, and it is expected to add bicycle lanes; both features may encourage non-SOV travel. The project is also expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
609252 | Lynn–Rehabilitation of Essex Street | Complete Streets | Make key bicycle and pedestrian safety improvements and operational improvements, such as signal upgrades, in the project corridor. | Lynn | 2026–27 | N/A | The project area overlaps five 2017–19 all-mode HSIP crash cluster locations and three 2010–19 HSIP pedestrian crash cluster locations. The project is expected to improve safety performance, including for bicyclists and pedestrians. Planned improvements to signals and roadway geometry in the corridor may help improve reliability on nearby unreliable NHS segments and may also reduce PHED on those segments. It is expected to reconstruct substandard sidewalks and add bicycle lanes; these features are expected to increase non-SOV travel. This project is also expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
609246 | Lynn– Reconstruction of Western Avenue | Complete Streets | Reconstruct Western Avenue between Centre Street and Eastern Avenue. Improve signal timing, intersection design, and bus stop locations. Implement bicycle and ADA-compliant pedestrian improvements. | Lynn | 2028–30 | N/A | The project area overlaps five 2017–19 all-mode HSIP crash cluster locations, two 2010–19 HSIP pedestrian crash cluster locations and one 2010–19 HSIP bicycle crash cluster location. The project is expected to improve safety performance, including for bicyclists and pedestrians, and it will improve nearly 4 lane miles of substandard pavement on the NHS. The signal improvements included in the project are expected reduce delay and may help reduce PHED and improve reliability on the NHS. It will reconstruct sidewalks and add bike lanes, TSP, and bus amenities; these features are expected to increase non-SOV travel. This project is also expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
608045 | Milford–Rehabilitation on Route 16, from Route 109 to Beaver Street | Complete Streets | Improve vehicular safety and traffic flow through the implementation of a road diet, additional roadway reconstruction, bicycle and pedestrian accommodations, and enhanced signalization on Route 16 (East Main Street) from Route 109 (Medway Road) to Beaver Street. | Milford | 2026 | N/A | The project area overlaps a 2017–19 all-mode HSIP crash cluster location, and the project is expected to improve safety performance, including for bicyclists and pedestrians. The project is also expected to upgrade substandard sidewalks, add new sidewalks, and add shared-use paths; these features are expected to increase non-SOV travel. | |||||||||||||||||||||||||||||||||||
609432 | Salem–Peabody- Boston Street Improvements | Complete Streets | Incorporate complete streets elements and a separated bicycle path into the corridor. Add a new signal at Boston Street and Aborn Street and upgrade existing signals at other intersections along the corridor. | Salem | 2027 | N/A | The project area overlaps a 2010–19 HSIP pedestrian crash cluster location, and the project is expected to improve safety performance, including for bicyclists and pedestrians. It is expected to improve more than a lane mile of substandard NHS pavement. The project includes signal and geometry improvements and is expected to reduce delay, which may reduce PHED and improve reliability on the NHS. It will implement sidewalks on both sides of the corridor and add separated bicycle facilities; these features are expected to increase non-SOV travel. This project is expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
610662 | Woburn–Roadway and Intersection Improvements at Woburn Common, Route 38 (Main Street), Winn Street, Pleasant Street, and Montvale Avenue | Complete Streets | Improve safety and congestion within the Woburn Common area by making safety and operational improvements, reconfiguring the Woburn Common rotary, and reconstructing and realigning roadways. The project will also reconstruct sidewalks, add bike lanes, and upgrade or add signals in the area. | Woburn | 2029 | N/A | The project area overlaps a 2017–19 all-mode HSIP crash cluster location and a 2010–19 HSIP pedestrian crash cluster location. The project is expected to improve safety performance, including for bicyclists and pedestrians. It is expected to improve nearly two lane miles of substandard pavement on the NHS. Signal and geometric improvements included in the project may improve reliability on unreliable NHS segments within the project area and potentially reduce PHED. The project will reconstruct sidewalks to support pedestrian safety and mobility. It is also expected to include bicycle accommodations and to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
608436 | Ashland–Rehabilitation and Rail Crossing Improvements on Cherry Street | Intersection Improvements | Improve the safety features on Cherry Street and Main Street to establish a Federal Railroad Administration Quiet Zone surrounding the railroad crossings on those two roadways. Install roadway medians, enhance existing railroad crossing signals and gates, reconstruct pavement, construct sidewalks, and improve drainage in the project area. | Ashland | 2028 | N/A | The project is expected to improve safety performance at a railroad crossing location, including for bicyclists and pedestrians. | |||||||||||||||||||||||||||||||||||
608067 | Woburn–Intersection Reconstruction at Route 3 (Cambridge Road) and Bedford Road and South Bedford Street | Intersection Improvements | Reconstruct the intersection and all traffic signal equipment. Enhance roadway geometry to provide exclusive turn lanes for intersection approaches. Reconstruct existing sidewalks, construct new sidewalks, and add bicycle lanes and ADA-compliant bus stops, where feasible. | Woburn | 2025 | N/A | The project is expected to improve safety performance, including for bicyclists and pedestrians. The project is expected to improve existing sidewalks and add new sidewalks at the intersection, as well as add new bike lanes; all of these features may encourage non-SOV travel. The geometric improvements included in the project are expected to help reduce delay and potentially PHED on nearby NHS routes. The project is expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
605857 | Norwood–Intersection Improvements at Route 1 and University Avenue/Everett Street | Intersection Improvements | Upgrade traffic signals and make associated geometric improvements at the intersection of Route 1, University Avenue and Everett Street. Construct an additional travel lane in each direction on Route 1, lengthen left-turn lanes, upgrade pedestrian crossings and bicycle amenities, and rehabilitate sidewalks. | Norwood, Westwood | 2026 | The Route 1 corridor in Norwood is identified as a priority bottleneck in the Destination 2040 Needs Assessment. This location was studied in “Route 1 at Everett Street and University Avenue” (CTPS, 2014). | The project area overlaps a 2017–19 all-mode HSIP crash cluster location and the project is expected to improve safety performance, including for bicyclists and pedestrians. It is expected to improve nearly three lane miles of pavement on the NHS. Signal and geometric improvements included in the project may improve reliability on unreliable NHS segments within the project area and potentially reduce PHED. The project will improve substandard sidewalks and add new sidewalks and bicycle accommodations, all of which may encourage non-SOV travel. It is expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
608940 | Weston–Intersection Improvements at Boston Post Road (Route 20) at Wellesley Street | Intersection Improvements | Address safety, congestion, and connectivity concerns at the intersection of Route 20, Boston Post Road, and Wellesley Street by installing a new signal system, implementing geometric improvements, replacing and adding sidewalks, and adding bicycle lanes. | Weston | 2026 | This project intersects a priority bottleneck location identified in the Destination 2040 Needs Assessment. | The project area overlaps a 2017–19 all-mode HSIP crash cluster location and the project is expected to improve safety performance, including for bicyclists and pedestrians. Signal and geometric improvements included in the project may improve reliability on unreliable NHS segments within the project area and potentially reduce PHED. The project will improve and add sidewalks and add bicycle lanes; these features may encourage non-SOV travel. It is expected to reduce CO2 and other transportation-related emissions. | |||||||||||||||||||||||||||||||||||
607981 | Somerville–McGrath Boulevard Reconstruction | Major Infrastructure: Roadway | Remove the existing McCarthy Viaduct and replace it with an at-grade urban boulevard. Rationalize intersections, improve signalization, and create off-street pedestrian and bicycle facilities. Improve bus operations by installing floating/in-lane bus stops, transit signal priority, and bus queue-jump lanes at key intersections. | Somerville | 2027–30 | This project is included in Destination 2050, the MPO’s LRTP. This project changes network capacity and is considered regionally significant for air quality modeling. | The project area overlaps a 2017–19 all-mode HSIP crash cluster location, a 2010–19 HSIP pedestrian crash cluster location, and a 2010–19 HSIP bicycle crash cluster location. It is expected to improve safety performance, including for bicyclists and pedestrians. It will improve one NHS bridge and improve more than four lane miles of substandard pavement on the NHS. The geometric and signal improvements included in the project may reduce PHED and improve reliability on this portion of the NHS network. The project will improve bus operations and amenities, reconstruct and reconfigure sidewalks, and add off-street bicycle and pedestrian facilities; these features are expected to increase non-SOV travel. It was analyzed as part of a set of recommended LRTP projects, and MPO staff estimate that this set will decrease CO2 emissions in the region compared to a no-build scenario. | |||||||||||||||||||||||||||||||||||
613088 | MALDEN - SPOT POND BROOK GREENWAY | Bicycle Network and Pedestrian Connections | The Spot Pond Brook Greenway is a proposed shared-use path connecting Malden's Oak Grove neighborhood with the Northern Strand Community Trail and Malden River via downtown Malden. The 1.1 mile, 11 foot wide shared-use path will replace existing sidewalk infrastructure and narrow roadway widths to accommodate the new bicycle/pedestrian facility on existing right-of-way. The project will also install wayfinding signage on existing roadway facilities to connect the northern terminus of the path at Coytemore Lea Park with the Oak Grove MBTA station. | MALDEN | 2028 | This project includes sections of the Mystic Highlands Greenway, a regional trail connection initiative. | This project includes a 2017-19 bicycle HSIP crash cluster location and will improve the safety of bicyclists and pedestrians throughout the project area. The project will also improve connectivity to MBTA bus and rail transit facilities. | |||||||||||||||||||||||||||||||||||
610691 | NATICK- COCHITUATE RAIL TRAIL EXTENSION, FROM MBTA STATION TO MECHANIC STREET | Bicycle Network and Pedestrian Connections | Construction of a shared-use bridge to connect the Cochituate Rail Trail to Route 27. Improvements to multimodal connectivity at Natick Center commuter rail station. Project would be the final extension of the Cochituate Rail Trail. | NATICK | 2028 | This project finalizes the Cochituate Rail Trail with a direct connection into a new MBTA Natick Center Commuter Rail Station. The development of the project coordinated with the MBTA and with MassDOT, which at the time of project evaluation was implementing additional bicycle network enhancements as part of its Route 27 reconstruction. | This project constructs a new grade-separated facility as part of the Cochituate Rail Trail to establish safe pedestriana nd bicycle connections between MBTA Commuter Rail facilities and downtown Natick into the Cochituate Rail Trail. | |||||||||||||||||||||||||||||||||||
608158 | WESTWOOD- NORWOOD- RECONSTRUCTION OF CANTON STREET TO UNIVERSITY DRIVE, INCLUDING REHAB OF N-25-032=W-31-018 | Complete Streets | The project will install new pedestrian sidewalks on the west side of the roadway and a shared-use path on the east side of the roadway. These facilities are being constructed where no dedicated facilities currently exist to improve multimodal accessibility to area residences, employment centers, and open space. Bridge N25032 will be replaced for improved multimodal access and freight rail clearance beneath. The project improves roadway geometry for all vehicles, including visibility improvements on five curves for stopping sight distance, the addition of truck apron turn lanes, and median installation. High-visibility crosswalks and rectangular rapid flashing beacons (RRFBs) will be added in seven locations. New medians will function as pedestrian refuges. New or relocated street lighting will be mounted on utility poles. Reflective signing and markers will be improved. | WESTWOOD | 2027–28 | N/A | This project replaces the deck of an NHS bridge structure and improves the clearance of the superstructure to facilitate freight movement. The project creates safe pedestrian and bicycle facilities along Canton Street, which lacks any facilities at the time of project programming. These multimodal facilities improve access to nearby transit facilities at the Route 128 / University Park MBTA and Amtrak station. | |||||||||||||||||||||||||||||||||||
612989 | BOSTON- BRIDGE PRESERVATION, B-16-066 (38D), CAMBRIDGE STREET OVER MBTA | Complete Streets | Replace superstructure of a major bridge over the MBTA Orange Line, commuter rail, Amtrak lines, and Interstate 93. Pursue state-of-good-repair investments to avoid closures and limit impacts to nearby projects (for example, projects on Mystic Avenue, Maffa Way, Rutherford Avenue, and McGrath Highway). Enhance multimodal accessibility for a key link to Sullivan Square MBTA station, including expanding bus facility access. | BOSTON | 2027 | This project is consistent with the City of Boston's Sullivan Square Design Project. This project is also listed in the Boston Region MPO's Long Range Transportation Plan, Destination 2050. | This project replaces the deck and superstructure of an NHS bridge structure over MBTA, Amtrak, and freight rail and beneath Interstate 93. The new bridge will support a westbound bus lane to facilitate improved transit connectivity between Boston's Charlestown neighborhood and Somerville. | |||||||||||||||||||||||||||||||||||
613145 | WAKEFIELD- COMPREHENSIVE DOWNTOWN MAIN STREET RECONSTRUCTION | Complete Streets | Complete Streets enhancements to improve pedestrian and bicycle safety along a major local economic generator. Traffic signal upgrade at the intersection of Church and Salem Streets with geometry adjustments to improve turn radii and reduce emergency response times. Pedestrian signal upgrades, new crosswalks, pedestrian refuge islands, installation of a shared-use-path, and new pedestrian lighting. Partial closure of Common Street to thru-traffic to improve pedestrian accessibility for Upper and Lower Common open space. | WAKEFIELD | 2028 | This project includes sections of the Mystic Highlands Greenway, a regional trail connection initiative. | This project implements complete streets enhancements and traffic calming measures along a section of NHS roadway to complement investments in transit-oriented-development in Wakefield. These investments are also part of a larger regional investment in trails and bicycle paths for the Mystic Highlands Greenway, and the project provides for connectivity into the future Wakefield-Lynnfield Rail Trail. | |||||||||||||||||||||||||||||||||||
S12807 | MWRTA CATCHCONNECT MICTROTRANSIT EXPANSION PHASE 2 – FRAMINGHAM AND NATICK EXTENDED HOURS | Community Connections | Expansion of the CatchConnect microtransit program within the municipalities of Framingham and Natick on weeknights during evening hours. CatchConnect would be available within these communities between approximately 7:30 PM and 10:30 PM Monday through Friday, providing a supplemental public transportation resource following the conclusion of traditional fixed-route service. | MWRTA | 2024-2026 | Expansion of microtransit services in underserved transit areas is highlighted in the MPO's Coordinated Public Transit and Human Services Transportation (HST) Plan. CTPS has also conducted studies regarding MicroTransit with favorable recommendations for MWRTA in the past. | This project will reduce CO2 emissions by reducing SOV travel by providing for expanded service hours and area for microtransit. | |||||||||||||||||||||||||||||||||||
609532 | CHELSEA- TARGETED SAFETY IMPROVEMENTS AND RELATED WORK ON BROADWAY, FROM WILLIAMS STREET TO CITY HALL AVENUE | Intersection Improvements | The project will include corridor wide safety improvements targeted at reducing incidents for all users. Standard safety countermeasures such as improved signage, lighting, traffic calming streetscape elements, curb extensions, signal upgrades (where applicable) and other countermeasures may be incorporated. In addition, it is expected that the corridor’s pavement, sidewalks and bus transit amenities will be improved or replaced. | MassDOT | 2026 | N/A | This project is located at a Top 200 crash location and will implement safety improvements for all users of the roadway. The project will reduce CO2 emissions. | |||||||||||||||||||||||||||||||||||
S12819 | JACKSON SQUARE STATION ACCESSIBILITY IMPROVEMENTS | Transit Transformation | Includes construction of new elevator, modernization of existing elevator, lighting improvements, and various state of good repair improvements to the station. | MBTA | 2024-2025 | This project is part of the MBTA's larger System-Wide Accessibility project portfolio. | This project provides for the maintenance and modernization of existing rapid transit facilities to encourage mode shift and support system reliability for the MBTA's Orange Line. | |||||||||||||||||||||||||||||||||||
S12974 | MBTA- CENTRAL SQUARE STATION ACCESSIBILITY IMPROVEMENTS (CAMBRIDGE) | Transit Transformation | This project will construct two redundant elevators and modernize the existing outbound elevator. The current elevator is one of the most unreliable elevators in the MBTA system. The opposite, inbound elevator was fully modernized in 2020. | MBTA | 2025 | This project is part of the MBTA's larger System-Wide Accessibility project portfolio. | This project maintains and improves the accessibility of a rapid transit facility on the MBTA's Red Line. Improvements are focused on one of the most unreliable elevators in the transit system. | |||||||||||||||||||||||||||||||||||
S12975 | MBTA– SYSTEMWIDE PEDAL AND PARK MODERNIZATION (ALEWIFE, ASHMONT, BRAINTREE, DAVIS SQUARE, FOREST HILLS, MALDEN CENTER, NUBIAN, OAK GROVE, ROUTE 128, SALEM, SOUTH STATION, WOLLASTON, WONDERLAND) | Transit Transformation | This project updates 15 MBTA Pedal & Park facilities systemwide to provide a more inclusive, accessible, efficient, and user-friendly standard of bike and micromobility parking, wayfinding, and bike maintenance equipment. The project improves Pedal and Park facilities at transit stations across nine municipalities. | MBTA | 2025 | N/A | This project improves intermodal access between persons who use bicycles for transportation and the transit system while also maintaining existing facilities. | |||||||||||||||||||||||||||||||||||
S12976 | MBTA– NUBIAN SQUARE ACCESSIBILITY AND OPERATIONAL IMPROVEMENTS (BOSTON) | Transit Transformation | This project will construct accessible passenger platforms at Nubian Station to reverse direction of MBTA buses and leverage the City of Boston's street network improvements for increased service efficiency. The project improves signals, striping, and adjusts the curb. | MBTA | 2025 | This project is consistent with the aims of the MBTA's Bus Network Redesign | This project reduces travel times and improves safety for bus riders and other users of Nubian Station in Boston's Roxbury neighborhood. | |||||||||||||||||||||||||||||||||||
S12986 | RAIL TRANSFORMATION - EARLY ACTION ITEMS - READING STATION AND WILBUR INTERLOCKING | Transit Transformation | Addition of a turn track at Reading Station and improvements to the siding at Wilbur Interlocking on the Lowell Line to enable 30 minute headways in the short term and higher frequencies with electrified rolling stock. • Improvements would reduce conflicts with freight and the Amtrak Downeaster while facilitating bus integration. | MBTA | 2024–25 | This project implements early term action items for a new program in the MBTA's 2024-2028 Capital Investment Plan. | This project maintains commuter rail facilities and provides for additional signal and track improvements to increase the capacity of rail infrastructure. These capacity enhancements allow for reductions in headways and establish a foundation for future electrification efforts for the rail network. | |||||||||||||||||||||||||||||||||||
S12985 | COLUMBUS AVE BUS LANE PHASE II | Transit Transformation | Building on Phase 1, Phase 2 of the project includes bus-only lanes, transit signal priority, improvements to bus stops and shelters along Columbus Ave. and Tremont St., and enhanced pedestrian and bicycle connections. • New project elements include green infrastructure to promote traffic calming and reduce impervious surfaces. | MBTA | 2021, 2024–25 | This project builds upon completed Phase 1 work along Columbus Avenue that was performed by the MBTA and City of Boston. | The project improves bus transit along Columbus Avenue in Boston to provide for rapid and reliable connectivity for bus routes running parralel to the MBTA's Orange Line facilities. This project also establishes connections into those facilities for buses, and improves bicycle and pedestrian safety along the route. | |||||||||||||||||||||||||||||||||||
S12820 | BIKESHARE STATE OF GOOD REPAIR SET-ASIDE | Community Connections | This line item sets aside funding to support Bikeshare investments within the Community Connections program. Example uses of this set-aside include bikeshare system expansion, as well as replacement and upgrades to existing stations. | CTPS | 2026–29 | This funding implements a recommendation that will be made in the MPO's upcoming LRTP, Destination 2050, regarding the establishment of dedicated funding to support Bikeshare investment throughout the region. | This line item will ensure the maintenance and modernization of existing bikeshare infrastructure within the Boston Region while providing additional funding resources for expansion into neighboring municipalities. | |||||||||||||||||||||||||||||||||||
613319 | SUDBURY-FRAMINGHAM-BIKE PATH CONSTRUCTION OF BRUCE FREEMAN RAIL TRAIL, FROM THE SUDBURY DIAMOND RAILROAD CROSSING TO EATON ROAD WEST | Bicycle Network and Pedestrian Connections | Phase 3 of the Bruce Freeman Rail Trail (BFRT) spans approximately 1.3 miles from Eaton Road W in Framingham to the Sudbury Diamond Railroad Crossing. The proposed trail will be a 10 foot paved shared-use path along the former railroad corridor with 2 foot dense graded crushed stone shoulders. Sidewalks and pedestrian curb ramps at the at-grade intersection of the trail and Route 20 are proposed to be updated to create an ADA compliant and accessible crossing at the existing signalized intersection of Nobscot Rd/Route 20. A parking lot is also being proposed along Nobscot Road, approximately 550 feet south of Route 20. Other work includes fixing or replacing culverts and stream crossings where necessary and implementing safety fencing along the trail where necessary. This project is funded across two Federal Fiscal Years starting in FFY 2029. | Sudbury | 2029–30 | N/A | This line item will expand the regional trail network and create a linkage for further trail extensions into the City of Framingham, the first phase of which is planned for implementation in MassDOT's Statewide Highway Program. | |||||||||||||||||||||||||||||||||||
612963 | BELLINGHAM- ROADWAY REHABILITATION OF ROUTE 126 (HARTFORD ROAD), FROM 800 NORTH OF THE I-495 NB OFF RAMP TO MEDWAY TL, INCLUDING B-06-017 | Complete Streets | The project includes roadway rehabilitation along 1.5 miles of Route 126, improved pedestrian and bicycle accommodations with full bilateral sidewalks and a shared-use path, and improvements to the bridge over Hopping Brook (B-06-017). An existing traffic signal at Maple Street will be upgraded and a new signal installed at Pearl Street. The project not only improves drainage throughout the project area but will incorporate improvements for better conveyance of Stall Brook under Route 126 for riverine flood mitigation. This project is funded across two Federal Fiscal years starting in FFY 2029. | Bellingham | 2029–30 | This project is consistent with a 2011 study and report titled "Route 126 Corridor: Transportation Improvement Study" that reviewed roadway conditions between Framingham, Ashland, Holliston, Medway, and Bellingham. | This project improves the condition of roadways and bridges in the Boston Region while incorporating safe shared use path connections near to areas frequented by vulnerable roadway users, including schoolchildren. The project upgrades existing safety infrastructure and installs a new signal. The project also incorporates improvements to resiliency by expanding culverts for riverine flood mitigation. | |||||||||||||||||||||||||||||||||||
612738 | IPSWICH- ARGILLA ROAD ROADWAY RECONSTRUCTION | Complete Streets | This project will reconstruct and elevate Argilla Road between the Crane Estate driveway and Crane Beach parking lot entrance in order to protect against sunny day and King Tide coastal flood conditions through 2100. The project will widen an existing culvert and introduce new culverts in order to improve horizontal transmission of floodwaters and the marsh beneath the roadway, limiting contamination of sensitive environmental areas and further reducing the possibility for floodwaters to overtop the roadway. The project will incorporate a stabilized shoulder and embankment using native plantings to mitigate scoring and erosion while providing a safer shoulder to improve access without damaging the nearby marsh. The project also incorporates intersection safety and geometry improvements at the driveway to the Crane Estate. This project will be funded across two Federal Fiscal Years starting in FFY 2029. | Ipswich | 2029–30 | N/A | The primary focus of this project is in bolstering the resilience of the regional transportation system to ensure access to open space. The project also incorporates additional traffic safety improvements. | |||||||||||||||||||||||||||||||||||
610823 | QUINCY- INTERSECTION IMPROVEMENTS AT WILLARD STREET AND RICCIUTI DRIVE | Intersection Improvements | This project will reconstruct the intersection of Willard Street and Ricciuti Drive near the Interstate 93 off ramp to provide a signalized intersection and shared use path for safer connectivity to Quincy Quarries and housing along Ricciuti Drive. The work will adjust intersection geometry including moving the curb line, reconstructing sidewalk, moving drainage structures, and updating ADA compliance for ramps in the area. | Quincy | 2026 | N/A | This project primarily focuses on improving safety for vulnerable users and mitigating hazards at locations near to limited access highways. The project incorporates expansion of safe bicycle infrastructure near to nearby trails and greenways. | |||||||||||||||||||||||||||||||||||
S12972 | MWRTA- PROCUREMENT OF THREE 29 FOOT BUSES | Transit Transformation | MWRTA | 2025 | This project is consistent with the MWRTA's Comprehensive Regional Transit Plan (2020). | This line item will support improvements to the accessiblity of MWRTA's transit services and the transition of its fleet towards low-no emission vehicles. | ||||||||||||||||||||||||||||||||||||
S12971 | MWRTA- BLANDIN HUB EQUITABLE REDESIGN INITIATIVE | Transit Transformation | This project will design and engineer improvements to the MetroWest Regional Transit Authority's Blandin Hub facility, the MWRTA's primary operations and maintenance building and a key passenger transportation hub. The Blandin Hub may be upgraded to feature an ADA-accessible driver dispatch and driver area within the operations facility, upgrades to electrical systems and HVAC energy recovery, restrooms, and driver amenities for a new training facility and expanded vehicle bays. The design will expand the customer waiting and transfer area to include a weather-enclosed waiting space in addition to other rider amenities. | MWRTA | 2025–26 | This project is consistent with the MWRTA's Comprehensive Regional Transit Plan (2020). | This project will design transformative improvements for passenger facility and MWRTA employee operations at its Blandin Hub. These improvements will enhance the accessibility, comfort, and efficiency of MWRTA's facility while also enabling improvements towards clean energy generation and fleet conversion goals held by the MWRTA. | |||||||||||||||||||||||||||||||||||
S12970 | CATA - VEHICLE REPLACEMENT (4 VEHICLES) | Transit Transformation | This project will replace four vehicles in CATAs bus fleet that have reached the end of their useful life, with two vehicles reaching the end of their lifecycle in 2022 and two in 2023. The vehicles will be procured using an existing option for purchase of diesel electric hybrid buses. | CATA | 2025-26 | This project is consistent with CATA's Comprehensive Regional Transit Plan (2020). | This project will facilitate the transition of vehicles in CATA's fleet towards cleaner sources of energy while also maintaing a robust state of operability. | |||||||||||||||||||||||||||||||||||
S12969 | CATA - CATA GLOUCESTER FACILITY MODERNIZATION | Transit Transformation | This project will modernize and weatherize CATA's operating facility in Gloucester with plumbing and HVAC upgrades, fuel system storage and hose replacements, repair or replacement of facility windows and garage doors, emergency power supply replacement, and culvert repair to ensure continued access to the facility. | CATA | 2025 | This project is consistent with CATA's Comprehensive Regional Transit Plan (2020). | This project improves the state of good repair and energy efficiency of the primary transit facility for the Cape Ann Transportation Authority. | |||||||||||||||||||||||||||||||||||
S12968 | CATA - FARE UPGRADES FOR ADA AND DIAL-A-RIDE CUSTOMERS | Transit Transformation | This project will incorporate cashless payment for ADA and dial-a-ride customers of CATA's services to improve accessibility for the system. | CATA | 2025 | This project is consistent with CATA's Comprehensive Regional Transit Plan (2020) and the Boston Region MPO's Coordinated Public Transit, Human Services Transportation Plan. | This line item provides funding to support access to transit services for persons with disabilities. | |||||||||||||||||||||||||||||||||||
S12981 | NORFOLK-WRENTHAM-WALPOLE- SHARED-USE PATH INSTALLATION (METACOMET GREENWAY) [DESIGN ONLY] | Bicycle and Pedestrian | This project will design over 3 miles of new shared use pathways in the communities of Norfolk, Walpole, and Wrentham. Construction of this project would be delivered under Project #613644, and is expected to be advertised for construction as early as FFY 2030. Depending on the findings of design development, implementation may commence under separate phases of the project over multiple years. | Norfolk, Walpole, Wrentham | 2025 | This project is a joint effort between three municipalities to advance design for a regional greenway. | The project designs improvements to the regional trails system in an area where multimodal access is currently limited. The proposed trails connect to areas of planned housing development. This project was selected in the FFYs 2025 Project Design Pilot in the FFY2025–29 TIP in an effort to bolster the readiness of projects that would eventually seek construction funding in the TIP. | |||||||||||||||||||||||||||||||||||
S12982 | FRAMINGHAM- CHRIS WALSH TRAIL PHASE 2 [DESIGN ONLY] | Bicycle and Pedestrian | This project will fund design of the second phase of the Chris Walsh Aqueduct Trail along Farm Pond in the City of Framingham. This second phase would bring the planned trail across a former MWRA aqueduct into Framingham MBTA Station to provide connectivity to transit modes and Framingham's downtown. The project is expected to advertise for construction as early as FFY 2030. | Framingham | 2025 | N/A | The project designs improvements to develop safe, accessible connections between existing and planned housing and the regional transit system via Framingham Station. This project was selected in the FFYs 2025 Project Design Pilot in the FFY2025–29 TIP in an effort to bolster the readiness of projects that would eventually seek construction funding in the TIP. | |||||||||||||||||||||||||||||||||||
S12983 | SHERBORN- RECONSTRUCTION OF ROUTE 27 AND ROUTE 16 [DESIGN ONLY] | Intersection Improvements | This project will design improvements to various intersections and a rail grade crossing in downtown Sherborn to improve safety for all roadway users. Construction for this project is expected to advertise as early as FFY 2030. | Sherborn | 2025 | N/A | This project will design complete streets and rail grade crossing improvements to improve safety for all users. This project was selected in the FFYs 2025 Project Design Pilot in the FFY2025–29 TIP in an effort to bolster the readiness of projects that would eventually seek construction funding in the TIP. The Town of Sherborn had not been programmed for a regionally prioritized project in over 15 years at the time of application to the Project Design pilot, and the programming of this project indicates advancement towards improving the accessibility of TIP funding through the Project Design Pilot. | |||||||||||||||||||||||||||||||||||
S12984 | HOLLISTON- INTERSECTION IMPROVEMENTS AT ROUTE 16 AND WHITNEY STREET [DESIGN ONLY] | Intersection Improvements | This project will design the signalization of the intersection of Route 16 and Whitney Street in Holliston. The project will also develop improvements to safety for users of the Upper Charles River Rail Trail where it crosses Route 16 near by, and extend sidewalk along Route 16 westward to Locust Avenue. This project is expected to advertise for construction as early as FFY 2030. | Holliston | 2025 | N/A | This project will design a targeted safety improvement project at the intersection of Route 16 and Whitney Street in order to reduce conflicts between vulnerable roadway users and commercial vehicles. This project was selected in the FFYs 2025 Project Design Pilot in the FFY2025–29 TIP in an effort to bolster the readiness of projects that would eventually seek construction funding in the TIP. The Town of Holliston had not been programmed for a regionally prioritized project in over 15 years at the time of application to the Project Design pilot, and the programming of this project indicates advancement towards improving the accessibility of TIP funding through the Project Design Pilot. | |||||||||||||||||||||||||||||||||||
S12980 | MARLBOROUGH- RECONSTRUCTION OF GRANGER BOULEVARD [DESIGN ONLY] | Complete Streets | This line item funds design for complete streets, traffic safety, and transit improvements along Route 20, Granger Boulevard in Marlborough between Mechanic Street and Main Street. This project is expected to be advertised for construction as early as FFY 2030 under Project #612285. | Marlborough | 2025 | N/A | This project designs improvements near an area of affordable housing and directly abuts a bus stop serving three routes from the MetroWest Regional Transit Authority. The proposed concept, which will be designed under this line item, improves safety for all users and overall transportation system accessibility. This project was selected in the FFYs 2025 Project Design Pilot in the FFY2025–29 TIP in an effort to bolster the readiness of projects that would eventually seek construction funding in the TIP. | |||||||||||||||||||||||||||||||||||
S12979 | ARLINGTON- BROADWAY COMPLETE STREETS DESIGN | Complete Streets | This project will design a reconfiguration of Broadway in Arlington between Alewife Brook Parkway and Massachusetts Avenue for improved access by persons who walk, bike, roll, or use transit. The design will also investigate methods for improving stormwater management and mitigating urban heat island impacts. This project may be ready to advertise for construction as early as FFY 2030. | Arlington | 2025 | N/A | The proposed project would design a complete street that complements improvements proposed elsewhere by neighboring municipalities and other state and regional agencies. The project incorporates resiliency measures alongside improvements to connectivity to a regional network of safe bicycle paths. The project complements bus improvements and directly abuts an adopted district for by-right multifamily zoning in the Town of Arlington. This project was selected in the FFYs 2025 Project Design Pilot in the FFY2025–29 TIP in an effort to bolster the readiness of projects that would eventually seek construction funding in the TIP. | |||||||||||||||||||||||||||||||||||
S12977 | FRAMINGHAM- PRELIMINARY DESIGN OF INTERSECTION IMPROVEMENTS AT ROUTE 126/135/MBTA & CSX RAILROAD | Major Infrastructure | This project provides design funding for an initial stage of a major intersection improvement project at Route 126 and 135 and the MBTA and CSX Railroad tracks. Design funding will be used to develop and identify alternatives to address congestion at the location, including possibilty of grade crossing removal. This project would advance design for a separate project #606109, and is also listed in the MPO's Long Range Transportation Plan, Destination 2050. | Framingham | 2026 | This project is also listed in the Boston Region MPO's Long Range Transportation Plan, Destination 2050. | This project was programmed in FFY 2026 to support the advancement of preliminary design work by the City of Framingham in conjunction with necessary stakeholder engagement activities to account for changes in transit and land uses around the project area. The project focuses on improving transit access, reducing congestion, and improving safety for all users near a major commuter rail station. | |||||||||||||||||||||||||||||||||||
S12978 | LEXINGTON- DESIGN OF SAFETY IMPROVEMENTS AT THE INTERSTATE 95 AND ROUTE 4/225 INTERCHANGE | Major Infrastructure | This project provides design funding for an initial stage of improvements at the Interstate 95 and Route 4/225 Interchange in Lexington. The design will investigate and develop improvements at the interchange that, when implemented, will enable further traffic calming work to be conducted on Route 4/225, Hartwell Avenue, and Wood Street. This project is listed in the MPO's Long Range Transportation Plan, Destination 2050. | Lexington | 2026 | This project is also listed in the Boston Region MPO's Long Range Transportation Plan, Destination 2050. | This project was programmed in FFY 2026 to develop, in coordination with MassDOT, a preliminary design on the first stage of the Route 4/225 Hartwell Avenue and Wood Street Project listed in the MPO's Long Range Transportation Plan. Designing this first component would determine a potential configuration of the interchange and other nearby facilities. Once changes to user safety are implemented as part of state of good repair improvements for the bridge and ramps, additional improvements along Hartwell Avenue and Wood Street could be made. | |||||||||||||||||||||||||||||||||||
S12965 | ARLINGTON- INSTALLATION OF 123 BICYCLE RACKS AND RELATED MATERIALS | Community Connections | This project will install 123 bike racks (246 spaces total) at commercial centers, schools, parks, fields, and playgrounds around Arlington. Some planned locations include Arlington Center, Ed Burns Arena, Spy Pond Field, Arlington High School, and other parks, open space locations, and middle and primary schools throughout the town. | Arlington | 2025 | N/A | The project improves, expands, and replaces bicycle infrastructure at key areas in the Town of Arlington to promote usage of bicycles, including among children that may attend any of the many schools served by this project. | |||||||||||||||||||||||||||||||||||
S12958 | BOSTON- BLUEBIKES STATION REPLACEMENT AND ELECTRIFICATION, 12 STATIONS | Community Connections | This project will replace 10 aging bike-share stations, with two stations selected to pilot electrification to lower operational costs of battery swaps for newly adopted e-bikes. For the replacements, Boston selected five high-use stations (10,000 or more trips per year) and five stations that are in areas close to low-income housing and/or in census tracts with a high number of car-free households, and will identify two stations to pilot integration into the electrical grid. | Boston | 2025 | N/A | This project improves the state of good repair of the existing bikeshare system to ensure continued access to bikeshare and empower municipalities to utilize local resources towards supporting operating costs for the bikeshare system. | |||||||||||||||||||||||||||||||||||
S12959 | BOSTON- REPURPOSING SINGLE SPACE PARKING METER POLES FOR 1600 BICYCLE RACKS | Community Connections | The City of Boston proposes the installation of 1,600 bike racks (3,200 bike parking spaces). These racks are fabricated to slide over existing parking meter poles as part of an ongoing effort by the City to replace all 6,000 single-space parking meters in Boston with multi-space meter kiosks. This project would dramatically increase bicycle parking in Boston’s busiest commercial and job centers. | Boston | 2025 | N/A | This project strategically repurposes parking infrastructure in an ongoing modernization effort by the City of Boston to improve bicycle parking accomodations at a large volume of sites across the city. | |||||||||||||||||||||||||||||||||||
S12961 | BROOKLINE- BLUEBIKES STATE OF GOOD REPAIR, 3 STATIONS AND 62 PEDAL BIKES | Community Connections | The Town of Brookline will replace three Bluebikes stations at Beacon and Centre Streets, Beacon at Tappan Street, and Brookline Village–Station Street, as the stations have reached the end of their useful life. The stations at Coolidge Corner and Brookline Village have the greatest ridership within Brookline’s network. These sites offer connections to multiple MBTA Green Line stations and bus routes, including the C and D Branches of the Green Line and the Route 66 and 65 high-frequency bus routes. The project will also replace 62 pedal bicycles that have reached the end of their useful life. | Brookline | 2025 | N/A | This project improves the state of good repair of the existing bikeshare system to ensure continued access to bikeshare and empower municipalities to utilize local resources towards supporting operating costs for the bikeshare system. | |||||||||||||||||||||||||||||||||||
S12960 | CAMBRIDGE- BLUEBIKES STATE OF GOOD REPAIR, 8 STATIONS AND 65 PEDAL BIKES | Community Connections | The City of Cambridge will replace eight Bluebikes Stations that have reached the end of their useful life. These stations include Central Square at Massachusetts Avenue and Essex Street, Lafayette Square at Massachusetts Avenue and Main Street, Lower Cambridgeport at Magazine Street, One Broadway/Kendall Square at Main Street, Harvard University Housing at Peabody Terrace, Harvard University River Houses at DeWolfe Street, Linear Park at Massachusetts Avenue and Cameron Avenue, and Porter Square Station. The City further proposes the replacement of 65 pedal bicycles that have reached the end of their useful life. | Cambridge | 2025 | N/A | This project improves the state of good repair of the existing bikeshare system to ensure continued access to bikeshare and empower municipalities to utilize local resources towards supporting operating costs for the bikeshare system. | |||||||||||||||||||||||||||||||||||
S12963 | CHELSEA-REVERE- REGIONAL ON DEMAND MICROTRANSIT PILOT PROJECT | Community Connections | The Cities of Chelsea and Revere will implement a microtransit service that will provide regional, low-cost, on-demand transportation across a 6.5 square mile zone in Chelsea and Revere. The service will offer convenient pick-up and drop-off services that align with riders’ schedules, filling first- and last-mile gaps in the existing transit system and ensuring accessibility to critical destinations, such as grocery stores, healthcare facilities, places of employment, and educational institutions. The applicants estimate 58 passenger trips per day with electric vehicles. As a Microtransit Pilot Project, the project is proposed for funding across three years with $499,649 in FFY 2025, $450,278 in FFY 2026, and $463,807 in FFY 2027. | Chelsea, Revere | 2025 | N/A | This project provides new transit service to reduce transportation-related emissions by promoting shifts away from single occupancy vehicles. | |||||||||||||||||||||||||||||||||||
S12966 | MALDEN- CANAL STREET BICYCLE LANES | Community Connections | This project will implement a new separated bicycle lane along Canal Street from Medford Street to Centre Street in Malden. The on-road bicycle lanes on this moderately trafficked street will connect users to commercial sites, recreational facilities, public assets, and transit facilities. The project further expands the developing Malden Bike Network and provides connectivity to the planned Spot Pond Brook Greenway project (#613088). | Malden | 2025 | N/A | This project implements safe bicycle lanes to improve connectivity to local urban trails and mirror improvements proposed by neighboring municipalities. | |||||||||||||||||||||||||||||||||||
S12694 | REVERE- BLUEBIKES EXPANSION TO NORTHERN STRAND (SALEM STREET AT NORTH MARSHALL STREET) AND GRISWOLD PARK | Community Connections | The City of Revere will install new Bluebikes stations at Griswold Fields at Washington and Malden, and at North Marshall and Salem Street. The project will also procure an additional 40 pedal bicycles for the Bluebikes network. The North Marshall and Salem Street site is adjacent to the Northern Strand Community Trail, which connects Everett to Lynn with 11 miles of continuous off-road paved surface. The City of Revere has two trailheads, and its main trail head is 1/10 of a mile from the city’s second Amazon Distribution Center. | Revere | 2025 | N/A | This project expands the regional bikeshare system to promote non-single-occupancy modes of transportation, and does so near the urban trail network in Revere. | |||||||||||||||||||||||||||||||||||
S12967 | SCITUATE- INSTALLATION OF 25 BICYCLE RACKS | Community Connections | The Town of Scituate will procure 25 bicycle racks providing 50 spaces in North Scituate Village and Scituate Harbor, which are commercial hubs and public open-space facilities. The town centers are hubs for pedestrians and are linked by sidewalks to various areas of open space and recreation, along with shops, grocery stores, and co-working spaces. | Scituate | 2025 | N/A | This project improves bicycle parking in a community in need of additional resources to accomodate and promote bicycle use. | |||||||||||||||||||||||||||||||||||
S12962 | SOMERVILLE- BLUEBIKES STATE OF GOOD REPAIR, 13 STATIONS | Community Connections | The City of Somerville proposes replacing 13 Bluebikes stations that have reached the end of their useful life. These stations include Somerville City Hall, Union Square Station, Beacon Street at Washington Street, Conway Park, Wilson Square, Davis Square, Ball Square, Powder House Circle/Nathan Tufts Park, Packard Avenue, Teele Square, 191 Beacon Street, Perry Park, and Broadway at Mount Pleasant Street. | Somerville | 2025 | N/A | This project improves the state of good repair of the existing bikeshare system to ensure continued access to bikeshare and empower municipalities to utilize local resources towards supporting operating costs for the bikeshare system. | |||||||||||||||||||||||||||||||||||
Notes: HSIP cluster locations are identified by MassDOT. Substandard pavement and sidewalk designations are based on data provided by MassDOT and project proponents and on MPO assessments conducted for TIP evaluations. The estimated lane miles of substandard NHS pavement improved is based on MPO staff’s assessment of pavement condition in the project area and their assessment of the portion of the project on the NHS. The IRI thresholds used to classify pavement are based on the TIP criteria the MPO adopted in 2020: less than 95 is good, 95 to 170 is fair, and greater than 170 is poor. | ||||||||||||||||||||||||||||||||||||||||||
* The MPO is contributing funds to this project, which is generally funded by MassDOT or the MBTA. | ||||||||||||||||||||||||||||||||||||||||||
AAB = Architectural Access Board. ADA = Americans with Disabilities Act. CATA = Cape Ann Transportation Authority. CO2 = carbon dioxide. CTPS = Central Transportation Planning Staff. FFY = federal fiscal year. HSIP = Highway Safety Improvement Program. IRI = International Roughness Index. MassDOT = Massachusetts Department of Transportation. MBTA = Massachusetts Bay Transportation Authority. MCRT = Mass Central Rail Trail. MPO = metropolitan planning organization. MWRTA = MetroWest Regional Transit Authority. N/A = not applicable. NHS = National Highway System. PHED = peak hours of excessive delay. SOV = single-occupancy vehicle. TSP = transit signal priority. | ||||||||||||||||||||||||||||||||||||||||||
Source: Boston Region MPO staff. | ||||||||||||||||||||||||||||||||||||||||||
Table A-3
FFYs 2025–29 TIP Project Evaluation Results: Bicycle Network and Pedestrian Connections, Complete Streets, Intersection Improvements, and the Transit Transformation Investment Programs
Bicycle Network and Pedestrian Connections Program | |||||||||||||||||||||
Proponent | Project Number | Project Name | MAPC Subregion | Project Status | Project Cost | Total Score | Total Base Score | Total Scaled Equity Score | Safety | Safety Equity Score | Mobility and Reliability | Mobility and Reliability Equity Score | Access and Connectivity | Access and Connectivity Equity Score | Resilience | Resilience Equity Score | Clean Air and Healthy Communities | Clean Air and Healthy Communities Equity Score | |||
Cambridge | 613568 | Cambridge-New Bridge and Shared-Use Path Construction over Fitchburg Line at Danehy Park Connector [DESIGN ONLY] | ICC | PRC Approved (12/19/2023) | Design: $3,000,000 | 78.1 | 72.5 | 5.6 | 14 | 3.5 | 14 | 2.5 | 15.5 | 2.5 | 14 | 2 | 15 | 3.5 | |||
Framingham | N/A | Framingham- Chris Walsh Trail (Phase 2) [DESIGN ONLY] | MWRC | Preliminary Design | Design: $850,000 Construction: $14,300,000 | 79.9 | 69.5 | 10.4 | 15 | 8 | 13.5 | 6 | 15 | 5 | 13 | 1 | 13 | 6 | |||
Hudson | N/A | Hudson- Massachusetts Central Rail Trail Construction [DESIGN ONLY] | MAGIC | Preliminary Design | Design: $909,700 | 62.7 | 57.5 | 5.2 | 11.5 | 3.5 | 10.5 | 2 | 12.5 | 2 | 10 | 2 | 13 | 3.5 | |||
Norfolk, Wrentham, Walpole | 613644 | Norfolk-Wrentham-Walpole- Shared-Use Path Installation (Metacomet Greenway) [DESIGN ONLY] | SWAP, TRIC | Preliminary Design | Design: $1,550,000 Construction: $19,754,350 | 65 | 59.5 | 5.5 | 11 | 3.5 | 12 | 2.5 | 13.5 | 1.75 | 10 | 2 | 13 | 4 | |||
Sudbury | 613319 | Sudbury-Framingham- Bike Path Construction of Bruce Freeman Rail Trail, from the Sudbury Diamond Railroad Crossing to Eaton Road West | MAGIC | PRC Approved (6/01/2023) | $8,820,000 | 50.5 | 47 | 3.5 | 12 | 3.5 | 8.5 | 1.75 | 10.5 | 0.5 | 7 | 1 | 9 | 2 | |||
100 | 80 | 20 | 16 | 15 | 17 | 16 | 16 | ||||||||||||||
Complete Streets Program | |||||||||||||||||||||
Proponent | Project Number | Project Name | MAPC Subregion | Project Status | Project Cost | Total Score | Total Base Score | Total Scaled Equity Score | Safety | Safety Equity Score | Mobility and Reliability | Mobility and Reliability Equity Score | Access and Connectivity | Access and Connectivity Equity Score | Resilience | Resilience Equity Score | Clean Air and Healthy Communities | Clean Air and Healthy Communities Equity Score | |||
Acton | N/A | Acton- Great Road, from Harris Street to Davis Road Intersections, Complete Streets Project [DESIGN ONLY] | MAGIC | Preliminary Design | Design: $860,000 Construction: $8,600,000 | 45.4 | 41 | 4.4 | 10 | 4 | 14 | 3 | 8 | 1.5 | 1 | 0 | 8 | 2.5 | |||
Arlington | N/A | Arlington- Broadway Complete Streets [DESIGN ONLY] | ICC | Preliminary Design | Design: $1,395,000 | 80.1 | 72.5 | 7.6 | 16 | 4 | 16 | 5 | 10.5 | 2.5 | 13 | 2 | 17 | 5.5 | |||
Boston | N/A | Boston- Reconstruction of Bennington Street, Porter Street to Wood Island Busway [DESIGN ONLY] | ICC | Preliminary Design | Design: $1,500,000 Construction: $15,000,000 | 76.2 | 66 | 10.2 | 9.5 | 4.5 | 17.5 | 6.75 | 11 | 3.75 | 14 | 3 | 14 | 7.5 | |||
Bellingham | 612963 | Bellingham- Roadway Rehabilitation of Route 126 (Hartford Road) from 800 Feet North of the Interstate 495 Northbound Off-Ramp to Medway Town Line, including B-06-017. | SWAP | PRC Approved (9/15/2022) | $13,900,000 | 54.3 | 50 | 4.3 | 7.5 | 2 | 12.5 | 3.25 | 14 | 2.5 | 7 | 0.5 | 9 | 2.5 | |||
Malden | N/A | Malden- Route 60 Improvement Project [DESIGN ONLY] | ICC | Preliminary Design | Design: $2,600,000 Cosntruction: $21,201,687 | 71.15 | 62 | 9.15 | 14.5 | 6 | 17 | 6.375 | 12.5 | 3.75 | 10 | 3 | 8 | 3.75 | |||
Malden | N/A | Malden- Commercial Street Reconstruction [DESIGN ONLY] | ICC | Preliminary Design | Design: $935,000 Construction: $7,250,000 | 62.25 | 54 | 8.25 | 13 | 5.25 | 15 | 5.625 | 10 | 2.25 | 5 | 3 | 11 | 4.5 | |||
Marlborough | 612285 | Marlborough- Reconstruction of Granger Boulevard [DESIGN ONLY] | MWRC | PRC Approved (6/24/2021) | Design: $1,215,000 Construction: $12,145,000 | 79.9 | 70 | 9.9 | 14 | 6 | 17 | 6.75 | 13 | 3.75 | 13 | 3 | 13 | 5.25 | |||
Ipswich | 612738 | Ipswich- Argilla Road Ecological Tidal Restoration Project | NSTF | PRC Approved (5/12/2022) | $6,600,000 | 37.9 | 35.5 | 2.4 | 2.5 | 0.5 | 7 | 0.5 | 7 | 1.5 | 11 | 1 | 8 | 2.5 | |||
Salem | N/A | Salem- Broad Street and Dalton Parkway Corridor Project [DESIGN ONLY] | NSTF | Preliminary Design | Design: $1,068,780 Construction: $2,500,000 | 60.1 | 54.5 | 5.6 | 13.5 | 4 | 16 | 4 | 12 | 2.5 | 3 | 0.5 | 10 | 3 | |||
Southborough | 612962 | Southborough- Reclamation of Marlborough Road (Route 85) and Framingham Road from Marlborough C.L to Route 30 [DESIGN ONLY] | MWRC | Preliminary Design | Design: $1,315,000 Construction: $13,153,146 | 52.5 | 52.5 | 4.7 | 8 | 2 | 11 | 3.5 | 8.5 | 0.75 | 11 | 2 | 14 | 3.5 | |||
100 | 80 | 20 | 16 | 19 | 15 | 14 | 16 | ||||||||||||||
Intersection Improvements Program | |||||||||||||||||||||
Proponent | Project Number | Project Name | MAPC Subregion | Project Status | Project Cost | Total Score | Total Base Score | Total Scaled Equity Score | Safety | Safety Equity Score | Mobility and Reliability | Mobility and Reliability Equity Score | Access and Connectivity | Access and Connectivity Equity Score | Resilience | Resilience Equity Score | Clean Air and Healthy Communities | Clean Air and Healthy Communities Equity Score | |||
Burlington | 613641 | Burlington- Intersection Improvements at Route 3A/Cambridge Street and Winn Street [DESIGN ONLY] | NSPC | PRC Approved (12/19/2023) | Design: $1,700,000 Construction: $9,557,295 | 71 | 64.5 | 6.5 | 21.5 | 4.5 | 16.5 | 4.25 | 12.5 | 2.5 | 5 | 1.5 | 9 | 3.5 | |||
Holliston | N/A | Holliston- Intersection Improvements at Route 16 and Whitney Street [DESIGN ONLY] | MWRC | Preliminary Design | Design: $250,000 Construction: $2,500,000 | 42.8 | 39.5 | 3.3 | 19 | 5 | 9 | 1.5 | 5.5 | 0.75 | 4 | 1 | 2 | 0 | |||
Sherborn | N/A | Sherborn- Reconstruction of Route 27 and Route 16 [DESIGN ONLY] | SWAP | Preliminary Design | Design: $900,000 Construction: $9,000,000 | 81.8 | 75 | 6.8 | 22 | 5 | 16 | 4 | 15 | 2.5 | 13 | 2 | 9 | 3.5 | |||
Quincy | 610823 | Quincy- Intersection Improvements at Willard Street and Ricciuti Drive | ICC | 75% Design | $1,812,839 | 41.1 | 36 | 5.1 | 16.5 | 6 | 11 | 5.25 | 4.5 | 0.75 | -1 | -2.25 | 5 | 3 | |||
100 | 80 | 20 | 25 | 18 | 14 | 12 | 11 | ||||||||||||||
Transit Transformation Program | |||||||||||||||||||||
Proponent | Project Number | Project Name | MAPC Subregion | Project Status | Project Cost | Total Score | Total Base Score | Total Scaled Equity Score | Safety | Safety Equity Score | Mobility and Reliability | Mobility and Reliability Equity Score | Access and Connectivity | Access and Connectivity Equity Score | Resilience | Resilience Equity Score | Clean Air and Healthy Communities | Clean Air and Healthy Communities Equity Score | |||
CATA | N/A | CATA- Fare Upgrades for ADA and Dial-A-Ride Customers | NSTF | N/A | $65,000 | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | |||
CATA | N/A | CATA- CATA Gloucester Facility Modernization | NSTF | N/A | $1,293,000 | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | |||
CATA | N/A | CATA - Vehicle Replacement (4 Vehicles) | NSTF | N/A | $2,460,000 | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | |||
MWRTA | N/A | MWRTA- Procurement of Three 29 Foot Buses | MWRC | N/A | $1,980,000 | 52.2 | 47 | 5.2 | 9 | 2 | 14 | 4 | 12 | 4 | 6 | 0.5 | 6 | 2.5 | |||
MWRTA | N/A | MWRTA- Blandin Hub Equitable Redesign Initiative | MWRC | N/A | $2,500,000 | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | |||
100 | 79 | 21 | 16 | 16 | 16 | 16 | 15 | ||||||||||||||
Community Connections Program | |||||||||||||||||||||
Proponent | Project Name | MAPC Subregion | Project Cost | Cost/Point | Total Score | Connectivity | Regional and Interlocal Coordination | Plan Implementation | Transportation Equity | Climate Change Mitigation | Performance Management | ||||||||||
Arlington | Arlington- Installation of 123 Bicycle Racks and Related Materials | ICC | $90,878 | $1,220 | 74.5 | 15 | 9 | 18 | 9.5 | 13 | 10 | ||||||||||
Boston | Boston- Bluebikes State-of-Good Repair, Twelve Stations | ICC | $590,348 | $7,717 | 76.5 | 18 | 8 | 14 | 12.5 | 14 | 10 | ||||||||||
Boston | Boston- Installation of 1600 Bicycle Racks | ICC | $379,470 | $4,628 | 82 | 18 | 8 | 18 | 11 | 17 | 10 | ||||||||||
Brookline | Brookline- Bluebikes State-of-Good Repair, Three Stations and 62 Pedal Bicycles | ICC | $200,000 | $2,985 | 67 | 16 | 8 | 6 | 7 | 13 | 9 | ||||||||||
Cambridge | Cambridge- Bluebikes State-of-Good Repair, Eight Stations and 65 Pedal Bicycles | ICC | $385,456 | $5,627 | 68.5 | 17 | 8 | 12 | 8.5 | 14 | 9 | ||||||||||
Chelsea, Revere | Chelsea-Revere- Regional On-Demand Microtransit Pilot Project | ICC | $499,649 | $9,296 | 53.75 | 13 | 11 | N/A | 11.25 | 11.5 | 7 | ||||||||||
Malden | Malden- Canal Street Bicycle Lanes | ICC | $81,250 | $1,585 | 51.25 | 9 | 7 | 12 | 8.25 | 8 | 7 | ||||||||||
Revere | Revere- Bluebikes Expansion, Four Stations and 40 Pedal Bicycles | ICC | $169,000 | $2,661 | 63.5 | 17 | 6 | 10 | 7.5 | 14 | 9 | ||||||||||
Scituate | Scituate- Installation of 25 Bicycle Racks | SSC | $22,800 | $501 | 45.5 | 9 | 8 | 16 | 4.5 | 2 | 6 | ||||||||||
Somerville | Somerville- Bluebikes State-of-Good Repair, Thirteen Stations | ICC | $278,127 | $4,120 | 67.5 | 14 | 8 | 16 | 7.5 | 13 | 9 | ||||||||||
Abbreviations | |||||||||||||||||||||
ADA = Americans with Disabilities Act. CATA = Cape Ann Transportation Authority. MWRTA = MetroWest Regional Transit Authority. N/A = not applicable. PRC = MassDOT's Project Review Committee. | |||||||||||||||||||||
Metropolitan Area Planning Council (MAPC) Subregions: ICC = Inner Core Committee. MAGIC = Minuteman Advisory Group on Interlocal Coordination. MWRC = MetroWest Regional Collaborative. NSPC = North Suburban Planning Council. NSTF = North Shore Task Force. SSC = South Shore Coalition. SWAP = SouthWest Advisory Planning Committee. TRIC = Three Rivers Interlocal Council. |
Table A-4
FFYs 2025–29 TIP Project Evaluation Results: Community Connections Program
Proponent | Project Name | MAPC Subregion | Project Cost | Cost/Monthly Passenger Trip | Total Score | Connectivity | Coordination | Plan Implementation | Transportation Equity | Mode Shift and Demand Projection | Fiscal Sustainability | |||
Concord | Concord Workforce Shuttle** | MAGIC | $369,911 | $155 | 71 | 13 | 15 | 6 | 6 | 21 | 10 | |||
MWRTA | CatchConnect Microtransit Expansion Phase 2** | MWRC | $402,500 | $93 | 90 | 17 | 15 | 15 | 9 | 24 | 10 | |||
North Reading | North Reading Demand-Response Shuttle Pilot Program** | NSPC | $77,637 | $348 | 77.25 | 16.25 | 15 | 9 | 9 | 18 | 10 | |||
Revere | Revere On-Demand Shuttle Service** | ICC | $980,976 | $30 | 57 | 17 | 0 | 3 | 12 | 15 | 10 | |||
Boston | Boston Electric BlueBikes Adoption | ICC | $1,020,000 | $21 | 84 | 17 | 15 | 6 | 12 | 24 | 10 | |||
Cambridge | Cambridge Electric BlueBikes Adoption | ICC | $352,575 | $13 | 81 | 17 | 15 | 6 | 9 | 24 | 10 | |||
Canton | Canton Center Bicycle Racks | TRIC | $10,000 | $12 | 72 | 14 | 9 | 12 | 6 | 21 | 10 | |||
Canton | Canton Public Schools Bike Program | TRIC | $22,500 | $4 | 38 | 13 | 0 | 6 | 6 | 3 | 10 | |||
Lynn | Broad Street Corridor Transit Signal Priority | ICC | $297,800 | $2 | 88 | 17.5 | 12 | 13.5 | 12 | 23 | 10 | |||
Medford | Medford Bicycle Parking—Tier 1 | ICC | $29,600 | $12 | 84 | 17 | 12 | 12 | 9 | 24 | 10 | |||
Medford | Medford Bluebikes Expansion | ICC | $118,643 | $53 | 78 | 17 | 15 | 3 | 9 | 24 | 10 | |||
Possible Points | Possible Points | 100 | 18 | 15 | 15 | 18 | 24 | 10 | ||||||
*This project was not recommended for moving forward at TIP Readiness Days until the project is formally intiated through MassDOT's system and goes through the Project Review Committee. Staff are actively working with the project proponent and MassDOT District 6 to initiate this project. | ||||||||||||||
**The proponents for these shuttle projects requested funding for FFY 2024 and additional years. Concord requested $139,749 in FFY 2024, $122,165 in FFY 2025, and $107,997 in FFY 2026. The MWRTA requested $140,000 in FFY 2024, $132,500 in FFY 2025, and $130,000 in FFY 2026. North Reading requested $41,787 in FFY 2024 and $35,850 in FFY 2025. Revere requested $356,825 in FFY 2024, $338,521 in FFY 2025, and $285,630 in FFY 2026. The figures in the Cost/Monthy Passenger Trip column only show the cost per monthly user for the first year of funding. |
Table A-5
FFYs 2025–29 TIP Project Evaluation Criteria: Bicycle Network and Pedestrian Connections Program
Project Name | PROJECT NAME | |
Municipality/Proponent | PROJECT PROPONENT(S) | |
Project Type | Bicycle Network and Pedestrian Connections | |
Scoring Criteria | Base Score | Equity Multiplier? |
Equity: Facilitate an inclusive and transparent transportation-planning process and make investments that eliminate transportation-related disparities borne by people in disadvantaged communities. | ||
An equity multiplier (EM) is applied to criteria that the MPO has identified through public outreach and data analysis as critical transportation needs or where there exist disparities that negatively impact equity populations. These criteria are denoted by a check mark on the right side of this scorecard. Each project’s multiplier is based on the percent of the population in the project area that belongs to each of the MPO’s six equity populations in the project area relative to their region wide averages. The higher the share of equity populations in the project area, the higher the multiplier. To calculate a final Transportation Equity score, a project's raw equity multiplier is scaled to 20 points and then added to the base score (out of 80 possible points) as shown at the bottom of this scorecard. | ||
Safety: Achieve zero transportation-related fatalities and serious injuries and improve safety for all users of the transportation system. | ||
The project design has a significant effect on improving safety for all users. Disqualifying - The project design does not improve safety for all users, or hinders user safety. 1 - The design of the project has a minor impact on improving safety for a limited number of potential facility users. 2 - The design of the project has a moderate effect on improving safety for all users of the facility, or improvements are primarily directed towards either pedestrians or micromobility, not both. 3 - The design of the project has a high effect on improving safety for all potential users of the facility, including the creation of entirely new facilities. | 3 | Yes |
The project addresses a statewide Top 5% Bicycle Crash Cluster or Top 5% Pedestrian Crash Cluster. 0 - The project does not address a Top 5% Bicycle Crash Cluster or Top 5% Pedestrian Crash Cluster. 2 - The project addresses a Top 5% Bicycle Crash Cluster and/or a Top 5% Pedestrian Crash Cluster. | 2 | Yes |
The proposed design provides for physical separation of facility users from other forms of traffic, and prevents obstruction. 0 - The proposed design either affords no physical separation for the facility, or the separation is horizontal and striped only. 1 - The proposed design has some physical separation for the facility in the form of a flexible barrier, but does not adequately prevent obstruction (ie: parking in bicycle lane). 2 - The proposed design affords full physical separation of the facility and its users from other forms of traffic, including vertical separation and fixed barriers. | 2 | Yes |
Where vehicles and pedestrians or micromobility users share a facility, the project improves the safety of interactions between these users. 0 - The project does not take steps to reduce conflict and hazards between vulnerable users and vehicles. 1 - The project makes some steps towards reducing conflicts and hazards between vulnerable users and vehicles, such as flexible posts. 2 - The project reduces conflicts and hazards between vehicles and vulnerable users where they currently exist, or eliminates these hazards entirely. | 2 | |
The project connects to existing pedestrian or micromobility facilities. 0 - The project does not connect to any current pedestrian or micromobility facilities, and the applicant does not provide any information as to how future connections may be made. 1 - The project does not connect to any current pedestrian or micromobility facilities, but the applicant describes how future connections will be made and any action to date towards those connections. 2 - The project connects to other micromobility or pedestrian facilities, including painted bike lanes or sidewalks. 3 - The project connects to safe micromobility and pedestrian facilities, or functions as an extension of an existing facility. | 3 | |
The project improves safety and accessibility for people with disabilities. Disqualifying - The proposed project introduces potentially unsafe elements for people with disabilities. Alternatively, the project does not address identifiable issues with Americans with Disabilities Act Compliance in the Project Area. 0 - The project makes no significant improvements or creates incidental enhancements to safety for people with disabilities. 1 - The project makes minor improvements to safety for people with disabilities. 2 - The project makes significant improvements to safety for people with disabilities. | 2 | Yes |
The project effectively addresses safety for transit operations and users. 0 - The project makes no significant improvements or creates incidental benefits to safety for transit operations or transit users. 1 - The project makes minor improvements to safety for transit operations or transit users. 2 - The project makes significant improvements to safety for transit operations or transit users. | 2 | |
Mobility and Reliability: Support easy and reliable movement of people and freight. | ||
The applicant thoroughly describes deficiencies in the current design of the corridor or intersection, and how the project addresses these deficiencies. 0 - The proposed project includes minor improvements to roadway mobility, or focuses primarily on the preservation of existing assets. 1 - The project primarily upgrades existing active transportation infrastructure within the current right of way and street footprint that addresses some of the deficiencies along the corridor. 2 - The project upgrades and modernizes infrastructure, including improvements that create active transportation connections where none currently exist. 3 - The project thoroughly addresses deficiencies in a corridor o |
3 | |
The project improves pedestrian safety near a high-utility corridor to promote walking. 0 - The project does not involve significant pedestrian safety improvements. 1 - The project improves pedestrian safety on a corridor with moderate utility. 2 - The project improves pedestrian safety on a high utility corridor. | 2 | Yes |
The project improves safety near a high-utility corridor for other active transportation modes other than walking. 0 - The project does not involve significant safety improvements for other active transportation modes. 1 - The project improves active transportation safety for other active transportation modes on a corridor with moderate utility. 2 - The project improves active transportation safety for other active transportation modes on a high utility corridor. | 2 | Yes |
The applicant details how the facility may be maintained and upgraded throughout its useful life, including plans to ensure accessibility of the facility year round by users (ex: snow plowing, root management). 0 - The applicant does not describe their approach towards maintaining and supporting the asset. 1 - The applicant describes the process by which the asset may be maintained, and access supported. 2 - The applicant describes the process by which the asset may be maintained and access supported, and includes a plan for future improvements to the asset or along the network. | 2 | |
The project improves travel time reliability by investing in measures that reduce dependence on single-occupancy-vehicle trips. 0 - The project does not improve travel time reliability, or does not significantly invest in non-SOV transportation modes. 1 - The project has some impact on travel time reliability through minor investments in non-SOV transportation modes. 2 - The project has some impact on travel time reliability through moderate investments in non-SOV transportation modes. 3 - The project has a significant impact on travel time reliability through rigorous investments in non-SOV transportation modes. | 3 | Yes |
The project invests in safe pedestrian facilities. 0 - The project does not invest in pedestrian facilities, or establishes facilities that are disconnected from other pedestrian infrastructure with no plans for connections. 1 - The project makes some investments in pedestrian facilities, such as beacons and sidewalks, but investments are limited to the immediate project area (ex: intersection). 2 - The project makes comprehensive investments in new and upgraded pedestrian facilities in the project area, and establishes safe connections to a greater pedestrian network. | 2 | |
The project includes complementary investments from bikeshare facilities. 0 - No bikeshare facilities are present along the route or near the asset. 1 - Bikeshare facilities are present along the route or near the asset. | 1 | |
Access and Connectivity: Provide transportation options and improve access to key destinations to support economic vitality and high quality of life. | ||
The project serves sites targeted for future development (Up to 2 points). 0 - The project does not serve a site targeted for future development. 1 - The project serves a site for future development. 2 - The project serves a site targeted for future development that includes transit-supportive mixed-use or residential sites. | 2 | |
The project serves sites included within a municipal Section 3A 'MBTA Communities' zoning district or other transit oriented development. (Up to 2 points). 0 - The project does not serve a TOD or MBTA Communities site. 1 - The project is near to or indirectly serves a TOD or MBTA Communities site. 2 - The project directly intersects with or serves a TOD or MBTA Communities site. | 2 | Yes |
The project serves existing employment and population centers (Up to 3 points). 0 - The project does not serve an existing employment or population center. 1 - The project serves an existing employment or population center. 2 - The project serves an existing employment and population center. 3 - The project serves an existing employment and population center with significant affordable housing opportunities. | 3 | Yes |
The project addresses safety concerns near to key public community assets. 0 - The project is not near to any key public community assets. 1 - The project addresses safety concerns near to one or more community assets. 2 - The project addresses safety concerns near key public community assets with a large population of vulnerable users, such as schools, libraries, or senior centers. | 2 | |
The project is a product of or fulfills recommendations identified in a regional or statewide study. 0 - The project is not consistent with or the applicant does not cite a regional or statewide corridor study or Road Safety Audit. 1 - The project is thematically consistent with a regional or statewide study, such as a corridor study or Road Safety Audit. 2 - The project is explicitly called for in a regional or statewide study, such as a corridor study or Road Safety Audit. | 2 | |
The project is listed in the Massachusetts Priority Trails Network. 0 - The project is not included in the MassDOT Priority Trails Network. 1 - The project is included in the MassDOT Priority Trails Network | 2 | |
The project involves collaboration between multiple municipalities. 0 - Only one municipality is involved in the project. 1 - One or more municipalities are involved in the project. | 1 | |
The asset can be safely accessed by non-SOV modes of transportation. 0 - Access to the asset is predominantly conducted by SOV modes. 1 - Access to the asset can be performed by walking, but facilities are either unsafe or are located in lower volume areas. 2 - Access to the asset can be performed by a variety of methods, including by transit. | 2 | |
The project improves navigability at or along the work area through signage. 0 - No signage improvements are incorporated into the project. 1 - Signage improvements, which may include interpretive signage, are included in the proposed project. | 1 | |
(Penalty) The project applicant is an MBTA Community not in compliance with Section 3A. 0 - The municipality is in compliance with or not subject to Section 3A. -5 - The municipality is not in compliance with Section 3A. | 0 | |
Resilience: Provide transportation that supports sustainable environments and enables people to respond and adapt to climate change and other changing conditions. | ||
The project reduces the risk of flooding in the project area through adaptation and resilience improvements. 0 - The project does not address flooding. 1 - The project reduces flood risk using structural adaptation/gray infrastructure. 2 - The project reduces flood risk using nature-based adaptation/green infrastructure, or a combination of green and gray infrastructure. | 2 | Yes |
The project reduces the risk of extreme temperatures by reducing pavement cover, planting shade trees, providing shade structures, increasing green space, etc. 0 - The project does not address extreme temperatures. 1 - The project reduces extreme temperature risk using structural adaptation/gray infrastructure. 2 - The project reduces extreme temperature risk using nature-based adaptation/green infrastructure, or a combination of green and gray infrastructure. | 2 | Yes |
The project implements recommendations or addresses needs identified in the respective municipality's Hazard Mitigation Plan, Municipal Vulnerability Plan, or Climate Adaptation Plan. 0 - The project does not address needs or recommendations. 2 - The project addresses needs or recommendations. | 2 | |
The project improves stormwater infrastructure beyond MassDEP's MS4 standard. 0 - The project meets minimum standards. 1 - The project includes one design element to go above minimum stormwater improvement standards (adopts stormwater BMPs, prepares pollution and/or erosion prevention plan, adopts environmentally sensitive site design practices, is expected to remove high amounts of TSS, etc.). 2 - Project adopts more than one design element to go above minimum stormwater improvement standards. | 2 | |
The project applicant demonstrates regional coordination or partnership on resilience improvements and project impacts with neighboring municipalities, environmental or EJ advocacy groups, local community organizations, regional or state agencies, etc. 0 - The applicant does not demonstrate regional coordination. 1 - The applicant demonstrates regional coordination with neighboring municipalities and/or regional or state agencies. 2 - The applicant demonstrates regional coordination with neighboring municipalities, regional or state agencies AND local community organizations/advocacy groups. | 2 | |
The applicant details the expected useful life of the improvements, provides a plan for maintenance of resilience improvements, and/or references current and future climate conditions. 0 - Applicant does not reference current and future climate conditions and does not provide a plan for maintenance. 1 - Applicant references current and future climate conditions AND/OR provides a plan for maintenance. | 2 | |
The project proposes improvements and reduces climate risk along evacuation routes and/or roadways that provide emergency access to critical facilities such as police stations, fire stations, and hospitals. 0 - The project does not propose improvements to an evacuation route or along roadways that provide emergency access to critical facilities. 1 - The project proposes improvements along an evacuation route OR along a roadway that provide emergency access to critical facilities. 2 - The project proposes improvements along an evacuation route AND along a roadway that provide emergency access to critical facilities. | 2 | |
The project design is expected to address multiple hazards and/or provide multiple environmental benefits such as risk reduction, ecological restoration, aquatic connectivity, improved water quality, groundwater recharge, etc. 0 - Project design is not expected to address multiple hazards or provide multiple environmental benefits. 1 - Project design is expected to address multiple hazards or provide multiple environmental benefits. 2 - Project design is expected to address multiple hazards and provide multiple environmental benefits. | 2 | |
(Penalty) The project is located in an existing or projected flood zone and/or the project site has flooded in the past and the applicant does not specify how the project will address flooding. 0 - Project is not located in an existing or projected flood zone and site has not flooded in the past OR project is located in a flood zone and the applicant specifies how the project will address flooding. -3 - Project is located in an existing or projected flood zone or site has flooded in the past and the project does not specify how it will address flooding. | 0 | Yes |
(Penalty) The project is located in an area that is vulnerable to extreme heat and the applicant does not specify how the project will address heat. 0 - The project is not located in an area vulnerable to extreme heat OR project is located in a vulnerable area and the applicant specifies how the project will address heat. -3 - The project is located in an area vulnerable to extreme heat and the project does not specify how it will address heat. | 0 | Yes |
Clean Air and Healthy Communities: Provide transportation free of greenhouse gas emissions and air pollutants and that supports good health. | ||
The project includes design elements aimed at reducing the amount of Single-Occupancy-Vehicle (SOV) trips (Up to 3 points). Disqualifying - The project does not provide effective reductions in the amount of Single Occupancy Vehicle trips 1 - The project provides some reductions in Single Occupancy Vehicle trips, but the extent is unclear or the primary usage of the facility will be for recreation. 2 - The project reduces Single Occupancy Vehicle trips to a moderate or greater extent, and includes viable non-recreational uses for the facility. 3 - The project not only includes reductions in Single Occupancy Vehicle trips by improving facilities for pedestrians and micromobility users, but complementing connections for other non-car modes such as transit or other trails.. | 3 | |
The project reduces greenhouse gas emissions (Up to 3 points). 0 - The project does not support a reduction in greenhouse gas emissions. 1 - The project supports a reduction in greenhouse gas emissions primarily by reducing travel time delay. 3 - The project includes a variety of elements aimed at reducing emissions such as low or no emission mobility improvements, innovative technologies or methods, and travel demand management. | 3 | |
The project is expected to have a positive impact on adjacent communities and natural areas through low impact design, pavement reduction, nature-based adaptation, and other improvements that protect air/water/soil quality, provide ecological restoration and functioning, improve aquatic connectivity, etc. -1 - The project is expected to have a negative impact on adjacent communities or natural areas. 0 - The project is not expected to impact adjacent communities or natural areas. 2 - The project is expected to have a positive impact on adjacent communities or natural areas. 3 - The project specifies native species for any added vegetation or green space. | 3 | Yes |
The proposed project incorporates or will incorporate a meaningful community outreach and engagement process (Up to 3 points). 0 - The proposed project will incorporate all legally required community outreach and engagement necessary for the use of federal funding. 1 - The proposed project will incorporate additional community outreach and engagement as necessary, including public meetings within the served municipality or municipalities. 2 - The proposed project has already |
3 | |
The project effectively engages all community members in its outreach strategy and access for the service, specifically persons with disabilities or those with limited English proficiency (Up to 2 points). 0 - The project performs all legally required measures to ensure compliance with the Americans with Disabilities Act and Title VI of the Civil Rights Act. 1 - The applicant has identified a strategy to bring community members of all abilities and language proficiencies into the project outreach process and to ensure their access to services. 2 - The applicant has implemented an effective strategy to engage community members of all abilities and language proficiencies into the project engagement process and into offered services, while also identifying areas for potential improvement. | 2 | Yes |
The project improves access to open space or sites for active recreation. 0 - The project does not improve access to open space or sites for active recreation. 2 - The project does improve access to open space or sites for active recreation. | 2 | Yes |
BONUSES | ||
CAHQ: Pursuant to the improvement of the capacity of the transit asset or supportive facilities to capture/process/treat carbon emissions, the project utilizes nature-based solutions to improve air quality/treatment. | 1 | |
CAHQ: Pursuant to the improvement of the capacity of the transit asset or supportive facilities to capture/process/treat contaminated water, the project utilizes nature-based solutions to improve water quality or treatment. | 1 | |
Resilience: The project design is expected to address multiple hazards and/or provide multiple environmental benefits such as risk reduction, ecological restoration, aquatic connectivity, improved water quality, groundwater recharge, etc. 0 - Project design is not expected to address multiple hazards or provide multiple environmental benefits. 1 - Project design is expected to address multiple hazards OR provide multiple environmental benefits. 2 - Project design is expected to address multiple hazards AND provide multiple environmental benefits. | 2 | |
Resilience: The project design includes provision of educational material for the public related to environmental improvements and aspects of the project/area. 0 - Project will not provide educational material. 1 - Project will provide educational material. | 1 | |
Resilience: The primary purpose of the project is to improve resilience and reduce risk to climate hazards. 0 - The primary purpose of the project is not resilience. 1 - The primary purpose of the project is resilience. | 1 | |
Resilience: The project proponents have used RMAT's Climate Resilience Design Standards Tool to demonstrate the value of resilience improvements in the project area. 0 - Proponents have not shared results from RMAT's Climate Resilience Design Standards Tool. 1 - Proponents have shared results from RMAT's Climate Resilience Design Standards Tool. | 1 |
Table A-6
FFYs 2025–29 TIP Evaluation Criteria: Evaluation Criteria: Complete Streets Program
Project Name | PROJECT NAME | |
Municipality/Proponent | PROJECT PROPONENT(S) | |
Project Type | Complete Streets | |
Scoring Criteria | Base Score | Equity Score |
Equity: Facilitate an inclusive and transparent transportation-planning process and make investments that eliminate transportation-related disparities borne by people in disadvantaged communities. | ||
An equity multiplier (EM) is applied to criteria that the MPO has identified through public outreach and data analysis as critical transportation needs or where there exist disparities that negatively impact equity populations. These criteria are denoted by a check mark on the right side of this scorecard. Each project’s multiplier is based on the percent of the population in the project area that belongs to each of the MPO’s six equity populations in the project area relative to their region wide averages. The higher the share of equity populations in the project area, the higher the multiplier. To calculate a final Transportation Equity score, a project's raw equity multiplier is scaled to 20 points and then added to the base score (out of 80 possible points) as shown at the bottom of this scorecard. | ||
Safety: Achieve zero transportation-related fatalities and serious injuries and improve safety for all users of the transportation system. | ||
The project addresses a location with severe crashes. +2 EPDO value of 100 or more +1 EPDO value of less than 100 +0 No EPDO value" | 2 | Yes |
The project addresses a location with a high frequency of crashes. +2 Crash rate between 0.78 or greater +1 Crash rate between 0.20 and 0.78 +0 Crash rate below 0.20 | 2 | Yes |
The project addresses a statewide Top Crash Location. 0 - The project does not address a Top 200 Crash Cluster, Top 5% Intersection Crash Cluster, Top 5% Bicycle Crash Cluster, or Top 5% Pedestrian Crash Cluster. 1 - The project addresses one of the following: a Top 5% Intersection Crash Cluster, a Top 5% Bicycle Crash Cluster, or Top 5% Pedestrian Crash Cluster. 2 - The project addresses two of the following: a Top 5% Intersection Crash Cluster, a Top 5% Bicycle Crash Cluster, or a Top 5% Pedestrian Crash Cluster. 3 - The project addresses three or more Intersection, Bicycle, and/or Pedestrian Crash Clusters, or contains a Statewide Top 200 Crash Location. | 3 | |
The project addresses a truck-related safety issue. 0 - The project does not directly address truck safety in the project area. 1 - The project directly addresses truck safety in the project area, including improving the safety of vulnerable users navigating in mixed traffic with trucks. | 1 | |
The project effectively addresses safety for micromobility users. -2 - The project introduces potentially unsafe elements for micromobility users. 0 - The project makes no significant improvements or creates incidental benefits to safety for micromobility users. 1 - The project makes minor improvements to safety for micromobility users. 2 - The project makes significant improvements to safety for micromobility users. | 2 | |
The project effectively addresses safety for pedestrians. - 2 - The project introduces potentially unsafe elements for pedestrians. 0 - The project makes no significant improvements or creates incidental benefits to safety for pedestrians. 1 - The project makes minor improvements to safety for pedestrians. 2 - The project makes significant improvements to safety for pedestrians. | 2 | Yes |
The project effectively addresses safety for people with disabilities. - 5 - The proposed project introduces potentially unsafe elements for people with disabilities. Alternatively, the project does not address identifiable issues with Americans with Disabilities Act Compliance in the Project Area. 0 - The project makes no significant improvements or creates incidental enhancements to safety for persons with disabilities. 1 - The project makes minor improvements to safety for people with disabilities. 2 - The project makes significant improvements to safety for people with disabilities. | 2 | Yes |
The project effectively addresses safety for transit operations and users. 0 - The project makes no significant improvements or creates incidental benefits to safety for transit operations or transit users. 1 - The project makes minor improvements to safety for transit operations or transit users. 2 - The project makes significant improvements to safety for transit operations or transit users. | 2 | |
Mobility and Reliability: Support easy and reliable movement of people and freight. | ||
The applicant thoroughly describes deficiencies in the current design of the corridor or intersection, and how the project addresses these deficiencies. 0 - The proposed project includes minor improvements to roadway mobility, or focuses primarily on the preservation of existing assets. 1 - The project primarily upgrades existing infrastructure within the current right of way and street footprint that addresses some of the deficiencies along the corridor. 2 - The project focuses on upgrades and modernization of infrastructure, including improvements to accessibility by non-SOV modes, both within the current street footprint or beyond existing right of way. 3 - The project thoroughly addresses deficiencies in the design of the corridor or intersection, and also addresses potential deficiencies elsewhere on a corridor. | 3 | |
The project addresses an unreliable corridor with significant travel time delay. 0 - The project does not address an unreliable corridor. 1 - The project improves the safety along an unreliable corridor, but the benefits of the improvements are difficult to quantify. 2 - The project significantly improves the safety of travel along an unreliable corridor. Travel time delay may be improved due to a reduced crash frequency. 3 - The project thoroughly improves the safety of travel along an unreliable corridor, and directly reduces travel time delay through the proposed street design. | 3 | |
The project improves travel time reliability by investing in measures that reduce dependence on single-occupancy-vehicle trips. 0 - The project does not improve travel time reliability, or does not significantly invest in non-single occupancy vehicle transportation modes. 1 - The project has some impact on travel time reliability through minor investments in non-single occupancy vehicle transportation modes. 2 - The project has some impact on travel time reliability through moderate investments in non-single occupancy vehicle transportation modes. 3 - The project has a significant impact on travel time reliability through rigorous investments in non-single occupancy vehicle transportation modes. | 3 | |
The project invests in safe pedestrian facilities. 0 - The project does not invest in pedestrian facilities, or establishes facilities that are disconnected from other pedestrian infrastructure with no plans for connections. 1 - The project makes some investments in pedestrian facilities, such as beacons and sidewalks, but investments are limited to the immediate project area (ex: intersection). 2 - The project makes comprehensive investments in new and upgraded pedestrian facilities in the project area, and establishes safe connections to a greater pedestrian network. | 2 | Yes |
The project invests in safe micromobility facilities. 0 - The project does not invest in bicycle facilities, or proposed facilities do not offer significant levels of safety (ex: painted bicycle lanes with no separation). 2 - The project invests in safe bicycle facilities. | 2 | Yes |
The project invests in safe transit facilities. 0 - The project does not invest in any transit facilities. 1 - The project makes some transit-supportive investments (ex: bumpouts near bus stops). 2 - The project directly invests in transit facilities (ex: transit signal priority). | 2 | Yes |
The project improves pedestrian safety near a high-utility corridor to promote walking. 0 - The project does not involve significant pedestrian safety improvements. 1 - The project improves pedestrian safety on a corridor with moderate utility. 2 - The project improves pedestrian safety on a high utility corridor. | 2 | Yes |
The project improves safety near a high-utility corridor for other active transportation modes other than walking. 0 - The project does not involve significant safety improvements for other active transportation modes. 1 - The project improves active transportation safety for other active transportation modes on a corridor with moderate utility. 2 - The project improves active transportation safety for other active transportation modes on a high utility corridor. | 2 | Yes |
Access and Connectivity: Provide transportation options and improve access to key destinations to support economic vitality and high quality of life. | ||
The project serves sites targeted for future development (Up to 3 points). 0 - The project does not serve a site targeted for future development. 1 - The project serves a site for future development. 2 - The project serves a site targeted for future development that includes transit-supportive mixed-use or residential sites. 3 - The project serves a site or sites targeted for future development that include transit-supportive mixed-use or residential sites, and are included as part of compliance with Section 3A of the Massachusetts Zoning Act from the community in which it is located. | 3 | |
The project serves existing employment and population centers (Up to 3 points). 0 - The project does not serve an existing employment or population center. 1 - The project serves an existing employment or population center. 2 - The project serves an existing employment and population center. 3 - The project serves an existing employment and population center, or a population center that has significant affordable housing opportunities. | 3 | Yes |
The project addresses safety concerns in multiple locations. 0 - Project improvements are concentrated at a specific site. 1 - The applicant details how the project is expected to have network improvements at other sites along the corridor. 2 - The project directly addresses multiple concerns at different locations. | 2 | |
The project addresses safety concerns near to key public community assets. 0 - The project is not near to any key public community assets. 1 - The project is near to one or more community assets. 2 - The project addresses safety concerns near key public community assets with a large population of vulnerable users, such as schools, libraries, or senior centers. | 2 | Yes |
The project is a product of or fulfills recommendations identified in a regional or statewide study. 0 - The project is not consistent with or the applicant does not cite a regional or statewide corridor study or Road Safety Audit. 1 - The project is thematically consistent with a regional or statewide study, such as a corridor study or Road Safety Audit. 2 - The project is explicitly called for in a regional or statewide study, such as a corridor study or Road Safety Audit. | 2 | |
The project involves collaboration between multiple municipalities. 0 - Only one municipality is involved in the project. 1 - One or more municipalities are involved in the project. | 1 | |
The project is near to or on a primary thoroughfare for regional freight travel. 0 - The project is not listed on a roadway with significant freight volumes. 1 - The project is on a roadway with significant freight volumes. | 1 | |
The project improves navigability at or along the work area through signage. 0 - No signage improves are incorporated into the project. 1 - Signage improvements, which may include interpretive signage, are included in the proposed project. | 1 | |
(Penalty) The project applicant is an MBTA Community not in compliance with Section 3A. 0 - The municipality is in compliance with or not subject to Section 3A. -5 - The municipality is not in compliance with Section 3A. | 0 | |
Resilience: Provide transportation that supports sustainable environments and enables people to respond and adapt to climate change and other changing conditions. | ||
The project reduces the risk of flooding in the project area through adaptation and resilience improvements. 0 - The project does not address flooding. 1 - The project reduces flood risk using structural adaptation/grey infrastructure. 2 - The project reduces flood risk using nature-based adaptation/green infrastructure, or a combination of green and gray infrastructure. | 2 | Yes |
The project reduces the risk of extreme temperatures by reducing pavement cover, planting shade trees, providing shade structures, increasing green space, etc. 0 - The project does not address extreme temperatures. 1 - The project reduces extreme temperature risk using structural adaptation/grey infrastructure. 2 - The project reduces extreme temperature risk using nature-based adaptation/green infrastructure, or a combination of green and gray infrastructure. | 2 | Yes |
The project implements recommendations or addresses needs identified in the respective municipality's Hazard Mitigation Plan, Municipal Vulnerability Plan, or Climate Adaptation Plan. 0 - The project does not address needs or recommendations. 2 - The project addresses needs or recommendations. | 2 | |
The project improves stormwater infrastructure beyond MassDEP's MS4 standard. 0 - The project meets minimum standards. 1 - The project includes one design element to go above minimum stormwater improvement standards (adopts stormwater BMPs, prepares pollution and/or erosion prevention plan, adopts environmentally sensitive site design practices, is expected to remove high amounts of TSS, etc.). 2 - Project adopts more than one design element to go above minimum stormwater improvement standards. | 2 | |
The project applicant demonstrates regional coordination or partnership on resilience improvements and project impacts with neighboring municipalities, environmental or EJ advocacy groups, local community organizations, regional or state agencies, etc. 0 - The applicant does not demonstrate regional coordination. 1 - The applicant demonstrates regional coordination with neighboring municipalities and/or regional or state agencies. 2 - The applicant demonstrates regional coordination with neighboring municipalities, regional or state agencies AND local community organizations/advocacy groups. | 2 | |
The applicant details the expected useful life of the improvements, provides a plan for maintenance of resilience improvements, and/or references current and future climate conditions. 0 - Applicant does not reference current and future climate conditions and does not provide a plan for maintenance. 1 - Applicant references current and future climate conditions OR provides a plan for maintenance. 2 - Applicant references current and future climate conditions AND provides a plan for maintenance. | 2 | |
The project proposes improvements and reduces climate risk along evacuation routes and/or roadways that provide emergency access to critical facilities such as police stations, fire stations, and hospitals. 0 - The project does not propose improvements to an evacuation route or along roadways that provide emergency access to critical facilities. 1 - The project proposes improvements along an evacuation route OR along a roadway that provide emergency access to critical facilities. 2 - The project proposes improvements along an evacuation route AND along a roadway that provide emergency access to critical facilities. | 2 | |
(Penalty) The project is located in an existing or projected flood zone and/or the project site has flooded in the past and the applicant does not specify how the project will address flooding. 0 - Project is not located in an existing or projected flood zone and site has not flooded in the past OR project is located in a flood zone and the applicant specifies how the project will address flooding. -3 - Project is located in an existing or projected flood zone or site has flooded in the past and the project does not specify how it will address flooding. | 0 | Yes |
(Penalty) The project is located in an area that is vulnerable to extreme heat and the applicant does not specify how the project will address heat. 0 - The project is not located in an area vulnerable to extreme heat OR project is located in a vulnerable area and the applicant specifies how the project will address heat. -3 - The project is located in an area vulnerable to extreme heat and the project does not specify how it will address heat. | 0 | Yes |
Clean Air and Healthy Communities: Provide transportation free of greenhouse gas emissions and air pollutants and that supports good health. | ||
The project includes design elements aimed at reducing the amount of Single-Occupancy-Vehicle (SOV) trips (Up to 3 points). 0 - The project does not support a reduction in single occupancy vehicle trips. 1 - The project provides indirect support to reductions in single occupancy vehicle trips through supportive infrastructure for transit or active transportation, such as signage, web applications, educational campaigns, or personnel improvements. 3 - The project supports a reduction in the amount of single occupancy vehicle trips by improving the condition or accessibility of existing transit or active transportation assets. | 3 | Yes |
The project reduces greenhouse gas emissions (Up to 3 points). 0 - The project does not support a reduction in greenhouse gas emissions. 1 - The project supports a reduction in greenhouse gas emissions primarily by reducing travel time delay. 3 - The project includes a variety of elements aimed at reducing emissions such as low or no emission mobility improvements, innovative technologies or methods, and travel demand management. | 3 | |
The project is expected to have a positive impact on adjacent communities and natural areas through low impact design, pavement reduction, nature-based adaptation, and other improvements that protect air/water/soil quality, provide ecological restoration and functioning, improve aquatic connectivity, etc. -3 - The project is expected to have a negative impact on adjacent communities or natural areas. 0 - The project is not expected to impact adjacent communities or natural areas. 2 - The project is expected to have a positive impact on adjacent communities or natural areas. 3 - The project is expected to have a positive impact AND specifies appropriate plant species for any added vegetation or green space (native species, flood/drought tolerant, diverse range of species, etc.). | 3 | Yes |
The proposed project incorporates or will incorporate a meaningful community outreach and engagement process (Up to 3 points). 0 - The proposed project will incorporate all legally required community outreach and engagement necessary for the use of federal funding. 1 - The proposed project will incorporate additional community outreach and engagement as necessary, including public meetings within the served municipality or municipalities. 2 - The proposed project has already been subject to community outreach and engagement, and the applicant will continue to engage stakeholders in the project process as it develops. 3 - The proposed project is the result of a rigorous community engagement process, and the proposed scope of work reflects the feedback or input received by the applicant from the community. The applicant will continue to engage stakeholders in the process, and the applicant has novel or innovative strategies to improve community engagement. | 3 | |
The project effectively engages all community members in its outreach strategy and access for the service, specifically people with disabilities or those with limited English proficiency (Up to 2 points). 0 - The project performs all legally required measures to ensure compliance with the Americans with Disabilities Act and Title VI of the Civil Rights Act. 1 - The applicant has identified a strategy to bring community members of all abilities and language proficiencies into the project outreach process and to ensure their access to services. 2 - The applicant has implemented an effective strategy to engage community members of all abilities and language proficiencies into the project outreach process and into offered services, while also identifying areas for potential improvement. | 2 | Yes |
The project improves access to open space or sites for active recreation. 0 - The project does not improve access to open space or sites for active recreation. 2 - The project does improve access to open space or sites for active recreation. | 2 | |
BONUSES | ||
CAHQ: Pursuant to the improvement of the capacity of the transit asset or supportive facilities to capture/process/treat carbon emissions, the project utilizes nature-based solutions to improve air quality/treatment. | 1 | |
CAHQ: Pursuant to the improvement of the capacity of the transit asset or supportive facilities to capture/process/treat contaminated water, the project utilizes nature-based solutions to improve water quality or treatment. | 1 | |
Resilience: The project design is expected to address multiple hazards and/or provide multiple environmental benefits such as risk reduction, ecological restoration, aquatic connectivity, improved water quality, groundwater recharge, etc. 0 - Project design is not expected to address multiple hazards or provide multiple environmental benefits. 1 - Project design is expected to address multiple hazards OR provide multiple environmental benefits. 2 - Project design is expected to address multiple hazards AND provide multiple environmental benefits. | 2 | |
Resilience: The project design includes provision of educational material for the public related to environmental improvements and aspects of the project/area. 0 - Project will not provide educational material. 1 - Project will provide educational material. | 1 | |
Resilience: The primary purpose of the project is to improve resilience and reduce risk to climate hazards. 0 - The primary purpose of the project is not resilience. 1 - The primary purpose of the project is resilience. | 1 | |
Resilience: The project proponents have used RMAT's Climate Resilience Design Standards Tool to demonstrate the value of resilience improvements in the project area. 0 - Proponents have not shared results from RMAT's Climate Resilience Design Standards Tool. 1 - Proponents have shared results from RMAT's Climate Resilience Design Standards Tool. | 1 |
Table A-7
FFYs 2025–29 TIP Evaluation Criteria: Intersection Improvements Program
Project Name | PROJECT NAME | |
Municipality/Proponent | PROJECT PROPONENT(S) | |
Project Type | Intersection Improvements | |
Scoring Criteria | Base Score | Equity Score |
Equity: Facilitate an inclusive and transparent transportation-planning process and make investments that eliminate transportation-related disparities borne by people in disadvantaged communities. | ||
An equity multiplier (EM) is applied to criteria that the MPO has identified through public outreach and data analysis as critical transportation needs or where there exist disparities that negatively impact equity populations. These criteria are denoted by a check mark on the right side of this scorecard. Each project’s multiplier is based on the percent of the population in the project area that belongs to each of the MPO’s six equity populations in the project area relative to their region wide averages. The higher the share of equity populations in the project area, the higher the multiplier. To calculate a final Transportation Equity score, a project's raw equity multiplier is scaled to 20 points and then added to the base score (out of 80 possible points) as shown at the bottom of this scorecard. | ||
Safety: Achieve zero transportation-related fatalities and serious injuries and improve safety for all users of the transportation system. | ||
The project addresses a location with severe crashes. +3 EPDO value of 300 or more +2 EPDO value of 100 to 299 +1 EPDO value of less than 100 +0 No EPDO value" | 3 | Yes |
The project addresses a location with a high frequency of crashes. +3 Crash rate of 1.36 or greater +2 Crash rate between 0.78 and 1.36 +1 Crash rate between 0.20 and 0.78 +0 Crash rate below 0.20 | 3 | Yes |
The project addresses a statewide Top Crash Location. 0 - The project does not address a Top 200 Crash Cluster, Top 5% Intersection Crash Cluster, Top 5% Bicycle Crash Cluster, or Top 5% Pedestrian Crash Cluster. 1 - The project addresses one of the following: a Top 5% Intersection Crash Cluster, a Top 5% Bicycle Crash Cluster, or Top 5% Pedestrian Crash Cluster. 2 - The project addresses two of the following: a Top 5% Intersection Crash Cluster, a Top 5% Bicycle Crash Cluster, or a Top 5% Pedestrian Crash Cluster. 3 - The project addresses three or more Intersection, Bicycle, and/or Pedestrian Crash Clusters, or contains a Statewide Top 200 Crash Location. | 3 | |
The project addresses a location identified in the Boston Region MPO Regional Safety Action Plan. 0 - The project does not address locations in the Regional Safety Action Plan. 1 - The project is located on the high injury network (HIN), but is not directly identified in the Regional Safety Action Plan. 2 - The project is located on the high injury network (HIN) and is identified in the Regional Safety Action Plan. | 2 | |
The project addresses a truck-related safety issue. 0 - The project does not directly address truck safety in the project area. 1 - The project directly addresses truck safety in the project area, including improving the safety of vulnerable users navigating in mixed traffic with trucks. | 1 | |
The project makes comprehensive safety improvements for all road users. 0 - The project makes no significant improvements to safety for all road users. 1 - The project makes some minor improvements to safety for automobiles. 2 - The project makes some moderate improvements to safety, but these improvements are primarily directed for automobiles. 3 - The project makes some minor improvements to the safety of vulnerable roadway users and automobiles. 4 - The project makes some moderate improvements to the safety of vulnerable roadway users, but improvements are primarily directed at automobiles. 5 - The project makes comprehensive improvements for all roadway users, such that all users may navigate through the corridor safely, including the elimination of mixed traffic between vulnerable users and automobiles where practicable. | 5 | |
The project effectively addresses safety for micromobility users. -2 - The project introduces potentially unsafe elements for micromobility users. 0 - The project makes no significant improvements or creates incidental benefits to safety for micromobility users. 1 - The project makes minor improvements to safety for micromobility users. 2 - The project makes significant improvements to safety for micromobility users. | 2 | |
The project effectively addresses safety for pedestrians. - 2 - The project introduces potentially unsafe elements for pedestrians. 0 - The project makes no significant improvements or creates incidental benefits to safety for pedestrians. 1 - The project makes minor improvements to safety for pedestrians. 2 - The project makes significant improvements to safety for pedestrians. | 2 | Yes |
The project effectively addresses safety for persons with disabilities. - 5 - The proposed project introduces potentially unsafe elements for persons with disabilities. Alternatively, the project does not address identifiable issues with Americans with Disabilities Act Compliance in the Project Area. 0 - The project makes no significant improvements or creates incidental enhancements to safety for persons with disabilities. 1 - The project makes minor improvements to safety for persons with disabilities. 2 - The project makes significant improvements to safety for persons with disabilities. | 2 | Yes |
The project effectively addresses safety for transit operations and users. 0 - The project makes no significant improvements or creates incidental benefits to safety for transit operations or transit users. 1 - The project makes minor improvements to safety for transit operations or transit users. 2 - The project makes significant improvements to safety for transit operations or transit users. | 2 | |
Mobility and Reliability: Support easy and reliable movement of people and freight. | ||
The applicant thoroughly describes deficiencies in the current design of the corridor or intersection with regard to safety, and how the project addresses these deficiencies. 0 - The proposed project has minor improvements to roadway safety, or focuses primarily on the preservation of existing assets. 1 - The project primarily upgrades existing infrastructure within the current right of way and street footprint that addresses some of the deficiencies along the corridor. 2 - The project focuses on upgrades and modernization of infrastructure, including improvements to accessibility by non-SOV modes, both within the current street footprint or beyond existing right of way. 3 - The project thoroughly addresses deficiencies in the design of the corridor or intersection, and also addresses potential deficiencies elsewhere on a corridor. | 3 | |
The project addresses an unreliable corridor with significant travel time delay. 0 - The project does not address an unreliable corridor. 1 - The project improves the safety along an unreliable corridor, but the benefits of the improvements are difficult to quantify. 2 - The project significantly improves the safety of travel along an unreliable corridor. Travel time delay may be improved due to a reduced crash frequency. 3 - The project thoroughly improves the safety of travel along an unreliable corridor, and directly reduces travel time delay through the proposed street design. | 3 | |
The project improves travel time reliability by investing in measures that reduce dependence on single-occupancy-vehicle trips. 0 - The project does not improve travel time reliability, or does not significantly invest in non-SOV transportation modes. 1 - The project has some impact on travel time reliability through minor investments in non-SOV transportation modes. 2 - The project has a significant impact on travel time reliability through rigorous investments in non-SOV transportation modes. | 2 | |
The project invests in safe pedestrian facilities. 0 - The project does not invest in pedestrian facilities, or establishes facilities that are disconnected from other pedestrian infrastructure with no plans for connections. 1 - The project makes some investments in pedestrian facilities, such as beacons and sidewalks, but investments are limited to the immediate project area (ex: intersection). 2 - The project makes comprehensive investments in new and upgraded pedestrian facilities in the project area, and establishes safe connections to a greater pedestrian network. | 2 | Yes |
The project invests in safe micromobility facilities. 0 - The project does not invest in bicycle facilities, or proposed facilities do not offer significant levels of safety (ex: painted bicycle lanes with no separation). 2 - The project invests in safe bicycle facilities. | 2 | Yes |
The project invests in safe transit facilities. 0 - The project does not invest in any transit facilities. 1 - The project makes some transit-supportive investments (ex: bumpouts near bus stops). 2 - The project directly invests in transit facilities (ex: transit signal priority). | 2 | Yes |
The project improves pedestrian safety near a high-utility corridor to promote walking over single occupancy vehicle trips. 0 - The project does not involve significant pedestrian safety improvements. 1 - The project improves pedestrian safety on a corridor with moderate utility. 2 - The project improves pedestrian safety on a high utility corridor. | 2 | Yes |
The project improves safety near a high-utility corridor for other active transportation modes. 0 - The project does not involve significant safety improvements for other active transportation modes. 1 - The project improves active transportation safety on a corridor with moderate utility. 2 - The project improves active transportation safety on a high utility corridor. | 2 | Yes |
Access and Connectivity: Provide transportation options and improve access to key destinations to support economic vitality and high quality of life. | ||
The project serves sites targeted for future development (Up to 3 points). 0 - The project does not serve a site targeted for future development. 1 - The project serves a site for future development. 2 - The project serves a site targeted for future development that includes mixed-use or residential sites. 3 - The project serves a site or sites targeted for future development that includes mixed-use or residential sites, and are included as part of compliance with Section 3A of the Massachusetts Zoning Act from the community in which it is located. | 3 | |
The project serves existing employment and population centers (Up to 3 points). 0 - The project does not serve an existing employment or population center. 1 - The project serves an existing employment or population center. 2 - The project serves an existing employment and population center. 3 - The project serves an existing employment and population center, or a population center that has significant affordable housing opportunities. | 3 | Yes |
The project addresses safety concerns in multiple locations. 0 - Project improvements are concentrated at a specific site. 1 - The applicant details how the project is expected to have network improvements at other sites along the corridor. 2 - The project directly addresses multiple concerns at different locations. | 2 | |
The project addresses safety concerns near to key public community assets. 0 - The project is not near to any key public community assets. 1 - The project addresses safety concerns near key public community assets with a large population of vulnerable users, such as schools, libraries, or senior centers. | 1 | Yes |
The project is a product of or fulfills recommendations identified in a regional or statewide study. 0 - The project is not consistent with or the applicant does not cite a regional or statewide corridor study or Road Safety Audit. 1 - The project is thematically consistent with a regional or statewide study, such as a corridor study or Road Safety Audit. 2 - The project is explicitly called for in a regional or statewide study, such as a corridor study or Road Safety Audit. | 2 | |
The project involves collaboration between multiple municipalities. 0 - Only one municipality is involved in the project. 1 - One or more municipalities are involved in the project. | 1 | |
The project is near to or on a primary thoroughfare for regional freight travel. 0 - The project is not listed on a roadway with significant freight volumes. 1 - The project is on a roadway with significant freight volumes. | 1 | |
The project improves navigability at or along the work area. 0 - No signage improves are incorporated into the project. 1 - Signage improvements, which may include interpretive signage, are included in the proposed project. | 1 | |
Resilience: Provide transportation that supports sustainable environments and enables people to respond and adapt to climate change and other changing conditions. | ||
The project reduces the risk of flooding in the project area through adaptation and resilience improvements. 0 - The project does not address flooding. 1 - The project reduces flood risk using structural adaptation/grey infrastructure. 2 - The project reduces flood risk using nature-based adaptation/green infrastructure, or a combination of green and gray infrastructure. | 2 | Yes |
The project reduces the risk of extreme heat by reducing pavement cover, planting shade trees, providing shade structures, increasing green space, etc. 0 - The project does not address extreme heat. 1 - The project reduces extreme heat risk using structural adaptation/grey infrastructure. 2 - The project reduces extreme heat risk using nature-based adaptation/green infrastructure, or a combination of green and gray infrastructure. | 2 | Yes |
The project implements recommendations or addresses needs identified in the respective municipality's Hazard Mitigation Plan, Municipal Vulnerability Plan, or Climate Adaptation Plan. 0 - The project does not address needs or recommendations. 2 - The project addresses needs or recommendations. | 2 | |
The project improves stormwater infrastructure beyond MassDEP's MS4 standard. 0 - The project meets minimum standards. 1 - The project includes one design element to go above minimum stormwater improvement standards (adopts stormwater BMPs, prepares pollution and/or erosion prevention plan, adopts environmentally sensitive site design practices, is expected to remove high amounts of TSS, etc.). 2 - Project adopts more than one design element to go above minimum stormwater improvement standards. | 2 | |
The project applicant demonstrates regional coordination or partnership on resilience improvements and project impacts with neighboring municipalities, environmental or EJ advocacy groups, local community organizations, regional or state agencies, etc. 0 - The applicant does not demonstrate regional coordination. 1 - The applicant demonstrates regional coordination with neighboring municipalities and/or regional or state agencies. 2 - The applicant demonstrates regional coordination with neighboring municipalities, regional or state agencies AND local community organizations/advocacy groups. | 2 | |
The applicant details the expected useful life of the improvements, provides a plan for maintenance of resilience improvements, and/or references current and future climate conditions. 0 - Applicant does not reference current and future climate conditions and does not provide a plan for maintenance. 1 - Applicant references current and future climate conditions AND/OR provides a plan for maintenance. | 1 | |
The project proposes improvements and reduces climate risk along evacuation routes and/or roadways that provide emergency access to critical facilities such as police stations, fire stations, and hospitals. 0 - The project does not propose improvements to an evacuation route or along roadways that provide emergency access to critical facilities. 1 - The project proposes improvements along an evacuation route OR along a roadway that provide emergency access to critical facilities. | 1 | |
(Penalty) The project is located in an existing or projected flood zone and/or the project site has flooded in the past and the applicant does not specify how the project will address flooding. 0 - Project is not located in an existing or projected flood zone and site has not flooded in the past OR project is located in a flood zone and the applicant specifies how the project will address flooding. -3 - Project is located in an existing or projected flood zone or site has flooded in the past and the project does not specify how it will address flooding. | 0 | Yes |
(Penalty) The project is located in an area that is vulnerable to extreme heat and the applicant does not specify how the project will address heat. 0 - The project is not located in an area vulnerable to extreme heat OR project is located in a vulnerable area and the applicant specifies how the project will address heat. -3 - The project is located in an area vulnerable to extreme heat and the project does not specify how it will address heat. | 0 | Yes |
Clean Air and Healthy Communities: Provide transportation free of greenhouse gas emissions and air pollutants and that supports good health. | ||
The project includes design elements aimed at reducing the amount of Single-Occupancy-Vehicle (SOV) trips (Up to 2 points). 0 - The project does not support a reduction in SOV trips. 1 - The project provides indirect support to reductions in SOV trips through supportive infrastructure for transit or active transportation, such as signage, web applications, educational campaigns, or personnel improvements. 2 - The project supports a reduction in the amount of SOV trips by improving the condition or accessibility of existing transit or active transportation assets. | 2 | Yes |
The project includes design elements aimed at reducing greenhouse gas emissions (Up to 3 points). 0 - The project does not support a reduction in greenhouse gas emissions. 1 - The project supports a reduction in greenhouse gas emissions primarily by reducing travel time delay. 2 - The project includes a variety of elements aimed at reducing emissions such as low or no emission mobility improvements, innovative technologies or methods, and travel demand management. | 2 | |
The project is expected to have a positive impact on adjacent communities and natural areas through low impact design, pavement reduction, nature-based adaptation, and other improvements that protect air/water/soil quality, provide ecological restoration and functioning, improve aquatic connectivity, etc. -3 - The project is expected to have a negative impact on adjacent communities or natural areas. 0 - The project is not expected to impact adjacent communities or natural areas. 2 - The project is expected to have a positive impact on adjacent communities or natural areas. 3 - The project is expected to have a positive impact AND specifies appropriate plant species for any added vegetation or green space (native species, flood/drought tolerant, diverse range of species, etc.). | 3 | Yes |
The proposed project incorporates or will incorporate a meaningful community outreach and engagement process (Up to 3 points). 0 - The proposed project will incorporate all legally required community outreach and engagement necessary for the use of federal funding. 1 - The proposed project will incorporate additional community outreach and engagement as necessary, including public meetings within the served municipality or municipalities. 2 - The proposed project has already been subject to community outreach and engagement, and the applicant will continue to engage stakeholders in the project process as it develops. 3 - The proposed project is the result of a rigorous community engagement process, and the proposed scope of work reflects the feedback or input received by the applicant from the community. The applicant will continue to engage stakeholders in the process, and the applicant has novel or innovative strategies to improve community engagement. | 3 | |
The project proposes design elements aimed at improving water quality and reducing pollutant runoff to adjacent water resources. (Up to 1 point). 0 - The project does not propose any measures that address water quality, or contaminants generated by the facility or along the transit route. 1 - The project directly improves water quality through technologies or strategies that improve treatment capacity or limit contamination, including investment in expanded stormwater treatment facilities or reductions in impervious surfaces. | 1 | Yes |
BONUSES | ||
CAHQ: Pursuant to the improvement of the capacity of the transit asset or supportive facilities to capture/process/treat carbon emissions, the project utilizes nature-based solutions to improve air quality/treatment. | 1 | |
CAHQ: Pursuant to the improvement of the capacity of the transit asset or supportive facilities to capture/process/treat contaminated water, the project utilizes nature-based solutions to improve water quality or treatment. | 1 | |
Resilience: The project design is expected to address multiple hazards and/or provide multiple environmental benefits such as risk reduction, ecological restoration, aquatic connectivity, improved water quality, groundwater recharge, etc. 0 - Project design is not expected to address multiple hazards or provide multiple environmental benefits. 1 - Project design is expected to address multiple hazards OR provide multiple environmental benefits. 2 - Project design is expected to address multiple hazards AND provide multiple environmental benefits. | 2 | |
Resilience: The project design includes provision of educational material for the public related to environmental improvements and aspects of the project/area. 0 - Project will not provide educational material. 1 - Project will provide educational material. | 1 | |
Resilience: The primary purpose of the project is to improve resilience and reduce risk to climate hazards. 0 - The primary purpose of the project is not resilience. 1 - The primary purpose of the project is resilience. | 1 | |
Resilience: The project proponents have used RMAT's Climate Resilience Design Standards Tool to demonstrate the value of resilience improvements in the project area. 0 - Proponents have not shared results from RMAT's Climate Resilience Design Standards Tool. 1 - Proponents have shared results from RMAT's Climate Resilience Design Standards Tool. | 1 |
Table A-8
FFYs 2025–29 TIP Evaluation Criteria: Transit Transformation Program
Project Name | PROJECT NAME | |
Municipality/Proponent | PROJECT PROPONENT(S) | |
Project Type | Transit Transformation | |
Scoring Criteria | Base Score | Equity Score |
Equity: Facilitate an inclusive and transparent transportation-planning process and make investments that eliminate transportation-related disparities borne by people in disadvantaged communities. | ||
An equity multiplier (EM) is applied to criteria that the MPO has identified through public outreach and data analysis as critical transportation needs or where there exist disparities that negatively impact equity populations. These criteria are denoted by a check mark on the right side of this scorecard. Each project’s multiplier is based on the percent of the population in the project area that belongs to each of the MPO’s six equity populations in the project area relative to their region wide averages. The higher the share of equity populations in the project area, the higher the multiplier. To calculate a final Transportation Equity score, a project's raw equity multiplier is scaled to 20 points and then added to the base score (out of 80 possible points) as shown at the bottom of this scorecard. | ||
Safety: Achieve zero transportation-related fatalities and serious injuries and improve safety for all users of the transportation system. | ||
The proposed project addresses a documented operational safety issue (Up to 4 Points). -2 - The project does not incorporate improvements to operational safety at a facility with documented safety incidents. 0 - The project does not incorporate improvements to operational safety, and the involved facility or facilities do not have documented safety issues or risks. 2 - The project performs preventative maintenance on a facility to mitigate the emergence of safety hazards at the facility. 4 - The project directly addresses documented safety hazards that are already present at the facility, in addition to preventative maintenance. | 5 | |
The proposed project improves the safety of users within the transit facility (Up to 2 Points). 0 - The project does not incorporate safety improvements for users in the design, or does not involve a rider-facing facility. 1 - In maintaining a state of good repair for the facility, the project mitigates the future emergence of safety hazards for users. 2 - The project directly addresses known user safety issues at stations through capital investment. | 4 | Yes |
The proposed project improves the safety of users traveling to and from transit facilities (Up to 2 Points). 0 - The proposed project does not impact safety for users traveling to and from transit facilities. 1 - The proposed project makes minor safety improvements for users traveling to and from transit facilities, or improvements are not primarily directed towards vulnerable users. 2 - The proposed project makes significant improvements for users traveling to and from transit facilities, including improvements for vulnerable users. | 3 | |
The proposed project supports dedicated rights of way for transit, or mitigates interference from other facility users (Up to 2 Points). 0 - The project does not address any shared right of way 1 - The project makes minor improvements to safety on existing rights of way used by transit operators. 2 - The project makes significant improvements to safety on existing rights of way used by transit operators, or creates new dedicated right of way for transit vehicles. | 2 | |
The proposed project improves system responsiveness during emergency events (Up to 2 Points). 0 - The proposed project does not improve emergency response times. 1 - The proposed project makes improvements to emergency response times within the facility 2 - The proposed project makes improvements to emergency response times within and beyond the facility | 2 | |
Mobility and Reliability: Support easy and reliable movement of people and freight. | ||
The project reduces transit passenger delay (Up to 5 points) | 5 | Yes |
The project invests in new transit assets or expanded service (Up to 5 points) | 5 | Yes |
The project performs state of good repair improvements that extend the useful life of the facility (Up to 2 points) 0 - The project does not incorporate state of good repair improvements for existing facilities. 1 - The project incorporates state of good repair improvements for existing facilities. 2 - The project incorporates state of good repair improvements for existing facilities, and the proposed mobilization and construction strategy avoids closures to transit facilities or disruptions to transit operations. | 2 | |
The project improves intermodal connections, and the ability of users to navigate those connections. | 2 | |
The project improves conditions for personnel that support transit operations (Up to 2 points). 0 - The project does not directly incorporate improvements for personnel involved in transit operations. 1 - The project incorporates improvements for non-customer-facing transit operations personnel. 2 - The project incorporates improvements for customer-facing transit personnel. | 2 | |
Access and Connectivity: Provide transportation options and improve access to key destinations to support economic vitality and high quality of life. | ||
The project serves sites targeted for future development (Up to 3 points). -3 - The project does not serve a site targeted for future development due to noncompliance with Section 3A of the Massachusetts Zoning Act from the community in which it is located. 0 - The project does not serve a site targeted for future development. 1 - The project serves a site for future development. 2 - The project serves a site targeted for future development that includes transit-supportive mixed-use or residential sites. 3 - The project serves a site or sites targeted for future development that include transit-supportive mixed-use or residential sites, and are included as part of compliance with Section 3A of the Massachusetts Zoning Act from the community in which it is located. | 3 | |
The project serves existing employment and population centers (Up to 3 points). 0 - The project does not serve an existing employment or population center. 1 - The project serves an existing employment or population center. 2 - The project serves an existing employment and population center. 3 - The project serves an existing employment and population center, or a population center that has significant affordable housing opportunities. | 3 | Yes |
The project invests in pedestrian connections to transit facilities or routes (Up to 4 points). -1 - The project does not invest in pedestrian connections to transit facilities, and no pedestrian connections are present. The applicant has sufficient jurisdiction or authority to provide such improvements. 0 - The project does not invest in pedestrian connections to transit facilities or routes, but connections to the facilities and routes exist and are in fair or better condition. Or, if a lack of connectivity exists, it is due to a lack of jurisdiction on the behalf of the applicant to improve. 1 - The project improves the condition of an existing pedestrian facility in the project area. 3 - The project adds a new, safe pedestrian connection for transit access in the project area. | 3 | Yes |
The project invests in bicycle connections to transit facilities or routes (Up to 4 points). -1 - The project does not invest in bicycle connections to transit facilities, and no pedestrian connections are present. The applicant has sufficient jurisdiction or authority to provide such improvements. 0 - The project does not invest in bicycle connections to transit facilities or routes, but connections to the facilities and routes exist and are in fair or better condition. Or, if a lack of connectivity exists, it is due to a lack of jurisdiction on the behalf of the applicant to improve. 2 - The project improves the condition of an existing bicycle facility in the project area. 3 - The project improves the condition and user safety of an existing bicycle facility in the project area. 4 - The project adds a new, safe bicycle connection for transit access in the project area. | 3 | |
The project improves ADA accessibility for transit facilities or routes (Up to 4 points). -2 - The project does not invest in ADA accessibility upgrades for a facility where deficiencies can be identified. 0 - The project does not invest in ADA accessibility upgrades for a facility or route. 2 - The project invests in ADA accessibility upgrades for a transit facility. 4 - The project invests in ADA accessibility upgrades for a transit facility or routes and improves ADA accessibility for connecting features (ie: sidewalks). | 4 | Yes |
Resilience: Provide transportation that supports sustainable environments and enables people to respond and adapt to climate change and other changing conditions. | ||
The project reduces the risk of flooding in the project area through adaptation and resilience improvements. 0 - The project does not address flooding. 1 - The project reduces flood risk using structural adaptation/grey infrastructure. 2 - The project reduces flood risk using nature-based adaptation/green infrastructure, or a combination of green and gray infrastructure. 3 - The project adopts green infrastructure and specifies appropriate plant types for any added vegetation (native species, flood/drought tolerant, diverse range of species, etc.) | 3 | Yes |
The project reduces the risk of extreme heat by reducing pavement cover, planting shade trees, providing shade structures, increasing green space, etc. 0 - The project does not address extreme heat. 1 - The project reduces extreme heat risk using structural adaptation/grey infrastructure. 2 - The project reduces extreme heat risk using nature-based adaptation/green infrastructure, or a combination of green and gray infrastructure. 3 - The project adopts green infrastructure and specifies appropriate plant types for any added vegetation (native species, flood/drought tolerant, diverse range of species, etc.) | 3 | Yes |
The project implements recommendations or addresses needs identified in the respective municipality's Hazard Mitigation Plan, Municipal Vulnerability Plan, or Climate Adaptation Plan. 0 - The project does not address needs or recommendations. 2 - The project addresses needs or recommendations. | 2 | |
The project improves stormwater infrastructure beyond MassDEP's MS4 standard. 0 - The project meets minimum standards. 1 - The project includes one design element to go above minimum stormwater improvement standards (adopts stormwater BMPs, prepares pollution and/or erosion prevention plan, adopts environmentally sensitive site design practices, is expected to remove high amounts of TSS, etc.). 2 - Project adopts more than one design element to go above minimum stormwater improvement standards. | 2 | |
The project applicant demonstrates regional coordination or partnership on resilience improvements and project impacts with neighboring municipalities, environmental or EJ advocacy groups, local community organizations, regional or state agencies, etc. 0 - The applicant does not demonstrate regional coordination. 1 - The applicant demonstrates regional coordination with neighboring municipalities and/or regional or state agencies. 2 - The applicant demonstrates regional coordination with neighboring municipalities, regional or state agencies AND local community organizations/advocacy groups. | 2 | |
The project addresses risk to rider health and safety posed by climate hazards. 0 - The project does not address risk to rider health and safety posed by climate hazards. 3 - The project proposes improvements that will reduce risk to rider health and safety posed by climate hazards. | 3 | |
The applicant details the expected useful life of the improvements and provides a plan for maintenance of resilience improvements beyond the construction phase. 0 - The applicant does not provide a maintenance plan and/or clear information as to the expected useful life of the asset. 1 - The applicant does provide a maintenance plan and/or clear information as to the expected useful life of the asset. | 1 | Yes |
(Penalty) The project is located in an existing or projected flood zone and/or the project site has flooded in the past and the applicant does not specify how the project will address flooding. 0 - Project is not located in an existing or projected flood zone and site has not flooded in the past OR project is located in a flood zone and the applicant specifies how the project will address flooding. -3 - Project is located in an existing or projected flood zone or site has flooded in the past and the project does not specify how it will address flooding. | 0 | Yes |
(Penalty) The project is located in an area that is vulnerable to extreme heat and the applicant does not specify how the project will address heat. 0 - The project is not located in an area vulnerable to extreme heat OR project is located in a vulnerable area and the applicant specifies how the project will address heat. -3 - The project is located in an area vulnerable to extreme heat and the project does not specify how it will address heat. | 0 | Yes |
Clean Air and Healthy Communities: Provide transportation free of greenhouse gas emissions and air pollutants and that supports good health. | ||
The project supports a reduction in the amount of Single-Occupancy-Vehicle (SOV) trips for a given area (Up to 3 points). 0 - The project does not support a reduction in SOV trips. 1 - The project provides indirect support to reductions in SOV trips through the implementation of transit-supportive infrastructure, such as signage, web applications, education campaigns, or personnel improvements. 2 - The project supports a reduction in the amount of SOV trips by improving the condition or accessibility of existing transit assets, or reliability of existing service. 3 - The project supports a reduction in the amount of SOV trips by improving the accessibility or capacity of existing transit assets, making investments that improve the frequency or capacity of service, or expand service area or hours of operation for transit. | 3 | Yes |
The project directly supports a reduction in Greenhouse Gas Emissions from transit operations or facilities (Up to 3 points). 0 - The project does not support a reduction in Greenhouse Gas Emissions from transit operations or facilities, or the support is indirect. 1 - The project supports reductions in Greenhouse Gas Emissions from transit operations or facilities through an investment in low emission technologies. 2 - The project supports reductions in Greenhouse Gas Emissions from transit operations or facilities through investments in both low emission technologies and no emission technologies. 3 - The project invests exclusively in the adoption and installation of zero-emission technologies or facility electrification. | 3 | Yes |
The project is expected to have a positive impact on adjacent communities and natural areas through low impact design, pavement reduction, nature-based adaptation, and other improvements that protect air/water/soil quality, provide ecological restoration and functioning, improve aquatic connectivity, etc. -1 - The project is expected to have a negative impact on adjacent communities or natural areas. 0 - The project is not expected to impact adjacent communities or natural areas. 1.5 - The project is expected to have a positive impact on adjacent communities or natural areas. 3 - The project specifies native species for any added vegetation or green space. | 3 | |
The project proposes design elements aimed at removing air pollutants and improving air quality. (Up to 2 points). 0 - The project does not propose any measures that address air quality. 2 - The project proposes design elements that remove air pollutants and improve air quality. | 2 | |
The project proposes design elements aimed at improving water quality and reducing pollutant runoff to adjacent water resources. (Up to 2 points). 0 - The project does not propose any measures that address water quality, or contaminants generated by the facility or along the transit route. 2 - The project directly improves water quality through technologies or strategies that improve treatment capacity or limit contamination, including investment in expanded stormwater treatment facilities or reductions in impervious surfaces. | 2 | |
The proposed project incorporates or will incorporate a meaningful community outreach and engagement process (Up to 3 points). 0 - The proposed project will incorporate all legally required community outreach and engagement necessary for the use of federal funding. 1 - The proposed project will incorporate additional community outreach and engagement as necessary, including public meetings within the served municipality or municipalities. 2 - The proposed project has already been subject to community outreach and engagement, and the applicant will continue to engage stakeholders in the project process as it develops. 3 - The proposed project is the result of a rigorous community engagement process, and the proposed scope of work reflects the feedback or input received by the applicant from the community. The applicant will continue to engage stakeholders in the process, and the applicant has novel or innovative strategies to improve community engagement. | 3 | Yes |
BONUSES | ||
CAHQ: Pursuant to the improvement of the capacity of the transit asset or supportive facilities to capture/process/treat carbon emissions, the project utilizes nature-based solutions to improve air quality/treatment. | 1 | |
CAHQ: Pursuant to the improvement of the capacity of the transit asset or supportive facilities to capture/process/treat contaminated water, the project utilizes nature-based solutions to improve water quality or treatment. | 1 | |
Resilience: The project design is expected to address multiple hazards and/or provide multiple environmental benefits such as risk reduction, ecological restoration, aquatic connectivity, improved water quality, groundwater recharge, etc. 0 - Project design is not expected to address multiple hazards or provide multiple environmental benefits. 1 - Project design is expected to address multiple hazards OR provide multiple environmental benefits. 2 - Project design is expected to address multiple hazards AND provide multiple environmental benefits. | 2 | |
Resilience: The project design includes provision of educational material for the public related to environmental improvements and aspects of the project/area. 0 - Project will not provide educational material. 1 - Project will provide educational material. | 1 | |
Resilience: The primary purpose of the project is to improve resilience and reduce risk to climate hazards. 0 - The primary purpose of the project is not resilience. 1 - The primary purpose of the project is resilience. | 1 | |
Resilience: The project proponents have used RMAT's Climate Resilience Design Standards Tool to demonstrate the value of resilience improvements in the project area. 0 - Proponents have not shared results from RMAT's Climate Resilience Design Standards Tool. 1 - Proponents have shared results from RMAT's Climate Resilience Design Standards Tool. | 1 |
Table A-9
FFYs 2025–29 TIP Community Connections Program Project Evaluation Criteria: Bicycle Lanes
Evaluation Criteria for the FFYs 2025 Community Connections Program: Bicycle Racks Applications | ||
Scoring Criteria | Max Points | |
Connectivity: Improve first- and last-mile connections to key destinations. | ||
Work locations are near to existing areas of concentrated development or public spaces. | 0 - The proposed work locations are not near to a moderate density of residential housing, commercial businesses, or public facilities. 1 - The proposed work locations are near to some mid-density residential, commercial, or mixed use developments, or public facilities/open space. 2 - The proposed work locations are near to mid-high density residential, commercial, or mixed use developments, or public facilities/open space. 3 - The proposed work locations are near to a combination of mid-high density residential, commercial, or mixed use developments and public facilities and open space. | 3 |
Work locations are near to planned developments or public spaces. | 0 - No planned developments or public realm improvements are sited near the work locations. 1 - Proposed developments in the project area are limited. 2 - Numerous developments are proposed at or near work locations for the project, and include enabling land uses. 3 - All work locations are near to areas of planned development, and the types of development are supportive to demand for cycling. Alternatively, full credit may also be earned if some of the work locations are near designated areas for Transit Oriented Development, including zones for compliance with Section 3A of the Massachusetts Zoning Act. | 3 |
Work locations for the project are situated near to transit facilities. | 0 - Proposed work locations are not located near transit stations. 1 - At least one of the proposed work locations is within 300 feet of a transit facility. 2 - At least one of the proposed work locations is sited directly at or on a transit facility. 3 - At least one of the proposed work locations is sited directly at or on a transit facility, and the RTA/owner of the facility has provided written support for the project. | 3 |
Work locations for the project complement transit operating routes. | 0 - Proposed work locations are not near transit routes. 1 - Only one work location in the project is located near a transit route with limited accessibility or utility to and from that point. 2 - One work location in the project is located near a major transit route, but the location provides some utility to and from that point. Or, more than one work location is near a transit route, but the locations are not well connected to one another. 3 - The proposed work locations effectively mirror one or more transit routes, and improve accessibility to and from that route. | 3 |
The work location or locations are safely accessible by walking. | 0 - Proposed work locations are not near safe pedestrian infrastructure, such as sidewalks and crosswalks. 1 - Less than half of proposed work locations are near safe pedestrian infrastructure. 2 - More than half of proposed work locations are near safe pedestrian infrastructure. 3 - All work locations are near safe, pedestrian-accessible sites that include signalized crosswalks and continuous sidewalks. | 3 |
The work location or locations are near to safe bicycle-supportive infrastructure. | 0 - Proposed work locations are not near safe bicycle infrastructure. 1 - Most proposed work locations are near bicycle infrastructure that does not provide physical separation for users. 2 - Most proposed work locations are near bicycle infrastructure that provides some on-road separation for users. 3 - Most or all work locations are near bicycle infrastructure that provides full physical separation, including vertical or horizontal separation, for users. | 3 |
Connectivity Score | 18 | |
Regional and Interlocal Coordination | ||
The project includes a substantial public engagement process. | 0 - The municipality or municipalities applying for the project are the primary stakeholders in the project development process. 1 - The municipality or municipalities have engaged their communities for the purpose of implementing the proposed improvements, specifically entities responsible for ensuring the continuing operations of the project (ROW, local operating costs, etc.) 2 - The municipality or municipalities have held public meetings on the proposed project, in addition to the above. 3 - The municipality or municipalities have engaged stakeholders in their communities for the purpose of soliciting feedback to improve the planning and prioritization of the project, in addition to the above. 4 - The project involves a rigorous public engagement process that addresses multiple public and private groups at the local level. The public engagement process specifically led to the identification of sites included in the project. | 4 |
The project demonstrates collaboration between different components of the municipality for site prioritization. | 0 - The applicant is not working with other business units within the municipality as part of the project. 1 - The applicant has received support from elected officials within the municipality for the project beyond the budget process. 2 - In addition to the above, the selection of sites as part of the project was performed in consultation with other municipal units, including for example school committees, Councils on Aging, Parks Departments, etc. | 2 |
The project demonstrates collaboration between multiple municipalities. | 0 - No direct support from other municipalities is provided. 1 - The applicant is a regional organization providing bicycle parking for one or more municipalities. 2 - The project involves collaboration between one or more municipalities. | 2 |
The project demonstrates collaboration with other state or federal agencies. | 0 - The project does not involve any direct coordination with state or federal agencies in a manner unrelated to the TIP process. 1 - The project involves a state or federal facility, and support for the applicant to improve that facility has been provided by the facility owner. The owner is not otherwise involved in the project. 2 - The project is a direct partnership between a municipality and a state or federal agency, which may be demonstrated through providing bicycle racks at State/National Parks, publicly-accessible state/federal buildings (including universities), or other facilities. | 2 |
Project demonstrates collaboration across multiple sectors | 0 - No direct support from private entities is listed. 2 - The project proponent coordinated with the private sector in the development of the project as part of selecting site areas. 4 - The project includes extensive support between the public and private sectors, including private funding contributions. | 4 |
Project collaborators submit letters of support to MPO | 0 - The applicant has not attached letters of support. 2 - Letters of support are attached to demonstrate fulfillment of the above criteria. | 2 |
Coordination Score | 16 | |
Plan Implementation: Support local, regional, and statewide planning efforts. | ||
Project is included in local plans or studies | 0 - The project is not included in any local plans or studies. 2 - The project is thematically consistent with the contents of a local plan or study, but the applicant does not cite those documents. 4 - The project is thematically consistent with the contents of a local plan or study, and those documents are cited by the applicant. 6 - The project is explicitly called for in the contents of a local plan or study. | 6 |
Project is included in regional plans or studies, including those created by the Boston Region MPO and Metropolitan Area Planning Council | 0 - The project is not included in any regional plans or studies. 2 - The project is thematically consistent with the contents of a regional plan or study, but the applicant does not cite those documents. 4 - The project is thematically consistent with the contents of a regional plan or study, and the applicant cites those documents. Alternatively, the applicant developed this project or identified the need being addressed by the project through direct consultation with MAPC or a similar body. 6 - The project is explicitly called for in the contents of a regional plan or study, or is located at a regionally significant junction for the Bluebikes network as identified by MAPC or a similar entity. | 6 |
Project is included in statewide plans or studies | 0 - The project is not included in any statewide plans or studies. 2 - The project is included in a statewide planning document, but is not cited by the applicant. 4 - The project is included in a statewide planning document cited by the applicant. | 4 |
Project acts as an 'anchor' for development of a sustainable bicycle network. | 0 - The project does not add racks to an area of at least low-moderate utility. 1 - The project expands into an area of low-moderate utility, or add racks where none currently exist to an area of low utility. 2 - The project expands into an area of moderate or greater utility. | 2 |
Plan Implementation Score | 18 | |
Transportation Equity: Ensure that all people receive comparable benefits from, and are not disproportionately burdened by, MPO investments, regardless of race, color, national origin, age, income, ability, or sex. | ||
Project serves one or more transportation equity populations, as identified by the Boston Region MPO | Each population's index scores are based on the percent of the population group within the service area relative to the MPO regional average. For example, the higher percentage, the higher the index. Equity Score Look-up Table If the sum of the Indices Greater than… …And Less Than… The Project Score is… 0 1 0 0.99 6 3 5.99 11 6 10.99 16 9 15.99 21 12 20.99 27 18 | 18 |
The project expands or maintains direct access to a safe bicycle facility. | 0 - Work locations for the project are not near to a safe bicycle facility. 1 - Work locations for the project are near to a safe bicycle facility. | 1 |
The project serves a community with a low rate of automobile ownership. | 0 - The project does not install bicycle racks in an area with low rates of automobile ownership. 1 - The project installs bicycle racks in an area with a low rate of automobile ownership. | 1 |
Transportation Equity Score | 20 | |
Climate Change Mitigation | ||
For new racks, does the project further promote mode shift? For repair/replacement projects, how many users utilize the facility? | 0 - The extent to which the project creates new trips is unclear or lacks sufficient supporting information. For rack repair/replacement projects, the applicant does not provide data for existing ridership at the involved stations. 2 - The project creates a moderate number of new trips that would otherwise be taken by an automobile. For rack repair/replacement projects, the stations being replaced are of moderate utility and consistent ridership levels. 3 - The project creates a large number of new trips that would otherwise be taken by an automobile, or increases the accessibility of an alternative transportation mode/route (ex: existing trails, routes parallel to transit operations). For rack repair/replacement projects, the stations being replaced are of significant utility with strong ridership levels, and are first priority investments. 4 - Pursuant to 3 above, but does so in area with disproportionate air quality burden. | 4 |
Estimates for project demand are realistic and grounded in thorough analysis. | 0 - Future demand projections do not seem realistic, or the methodology as to how they were calculated is not explained. 2 - Future demand projections seem reasonable and support the above argument for substituting single occupancy vehicle trips. 4 - The applicant has provided realistic demand projections and accounted for possible variations in demand (seasonal variation, new enabling infrastructure, etc.) in their estimate. | 4 |
The rack investment is complementary to an ongoing or planned surface transportation investment. | 0 - The investment does not complement any planned or nearby projects. 2 - The investment is somewhat related to a planned or nearby project, but the connection between the two is limited. 4 - The investment is related to a planned or nearby project that offers some bike-supportive infrastructure. 6 - The investment is directly and deliberately related to a planned or nearby project that offers safe and accessible bike-supportive infrastructure, such as a shared-use-path. | 6 |
The rack investment reinforces access to an existing surface transportation facility. | 0 - The investment does not complement any nearby bicycle facilities. 2 - The investment complements an existing low to moderate utility link for biking. 4 - The investment complements an existing moderate to high utility link for biking, or a physically separated and safe pathway for all users (ex: shared use path, rail trail). | 4 |
Climate Change Mitigation | 18 | |
Performance Management | ||
The project application includes a budget worksheet that outlines the sources and uses of the project. | Disqualifying - No budget worksheet is attached. 0 - A budget sheet is included, but the costs associated are unrealistic. 3 - The budget sheet is attached, and the applicant describes the expenses, including the rationale behind the selected unit type. | 3 |
The project proponent broadly outlines expected activities necessary for asset maintenance. | 0 - No description of maintenance activities are provided. 3 - An anticipated maintenance schedule is provided. | 3 |
The estimates for the usage rates on the bicycle racks are sound. | 0 - The applicant does not describe how demand was estimated. 2 - The process for estimating demand for the bicycle racks is vague. 4 - The demand estimates for the bicycle racks are sound. | 4 |
Performance Management | 10 | |
Total Score | 100 |
Table A-10
FFYs 2025–29 TIP Community Connections Program Project Evaluation Criteria: Bicycle Racks
Evaluation Criteria for the FFYs 2025 Community Connections Program: Bicycle Lanes Applications | ||
Scoring Criteria | Max Points | |
Connectivity: Improve first- and last-mile connections to key destinations. | ||
Work locations are near to existing areas of concentrated development or public spaces. | 0 - The proposed work locations are not near to a moderate density of residential housing, commercial businesses, or public facilities. 1 - The proposed work locations are near to some mid-density residential, commercial, or mixed use developments, or public facilities/open space. 2 - The proposed work locations are near to mid-high density residential, commercial, or mixed use developments, or public facilities/open space. 3 - The proposed work locations are near to a combination of mid-high density residential, commercial, or mixed use developments and public facilities and open space. | 3 |
Work locations are near to planned developments or public spaces. | 0 - No planned developments or public realm improvements are sited near the work locations. 1 - Proposed developments in the project area are limited. 2 - Numerous developments are proposed at or near work locations for the project, and include enabling land uses. 3 - All work locations are near to areas of planned development, and the types of development are supportive to demand for micromobility. Alternatively, full credit may also be earned if some of the work locations are near designated areas for Transit Oriented Development, including zones for compliance with Section 3A of the Massachusetts Zoning Act. | 3 |
Work locations for the project are situated near to transit facilities. | 0 - Proposed work locations are not located near transit stations. 1 - At least one of the proposed work locations is within 300 feet of a transit facility. 2 - At least one of the proposed work locations is sited directly at or on a transit facility. 3 - At least one of the proposed work locations is sited directly at or on a transit facility, and the RTA/owner of the facility has provided written support for the project. | 3 |
Work locations for the project complement transit operating routes. | 0 - The proposed project is not near transit routes. 1 - A transit route is located in the project area, but with limited accessibility or utility to and from that point. 2 - A major transit route is present, and the proposed facility provides some utility to and from that point. 3 - The proposed facility effectively mirrors or complements transit routes, and improves accessibility to and from that route. | 3 |
The work location or locations are safely accessible by walking. | 0 - Proposed work locations are not near safe pedestrian infrastructure, such as sidewalks and crosswalks. 1 - Less than half of the project area contains safe pedestrian infrastructure. 2 - Most of the project limits are near to safe, pedestrian-accessible facilities that include signalized crosswalks and continuous sidewalks. | 2 |
The proposed lanes are not placed in areas that could be potentially hazardous to users. | -5 - Proposed work locations could be hazardous to users due to high speeds along the roadway, and additional mitigations besides lane striping are not planned for implementation. 0 - The proposed lanes are placed in areas that lack connectivity with other bicycle facilities, leading to 'drop offs' at the ends of the lanes. 1 - The lanes are located in areas with no current bicycle facilities and create a safer outcome, but speeds for vehicles along the roadway are high. 2 - The bicycle lanes create safe connections between other network assets, and the proposed implementation of the lanes is not hazardous to users. | 2 |
The proposed lanes are near to other bicycle-supportive assets, such as racks, signage, or other trails and paths. | 0 - No other bicycle supportive assets are near to the facility. 1 - A low amount of bicycle supportive assets are near to the facility, such as occasional bicycle lanes or signs. 2 - The bicycle lanes connect into other micromobility facilities, and/or the lanes are near to both current and planned supportive assets such as racks or signs. | 2 |
Connectivity Score | 18 | |
Regional and Interlocal Coordination |
