Transportation Improvement Program
Federal Fiscal Years 2024–28

APPENDICES

TIP logo

Appendix A: Project Prioritization and Scoring
Appendix B: Greenhouse Gas Monitoring and Evaluationn
Appendix C: Public Engagement and Comments

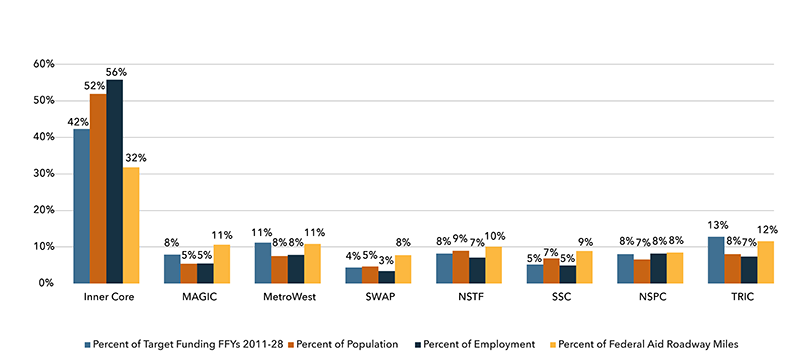

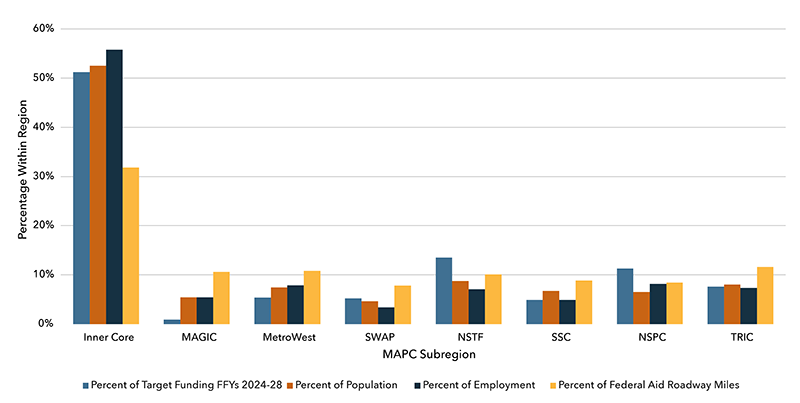

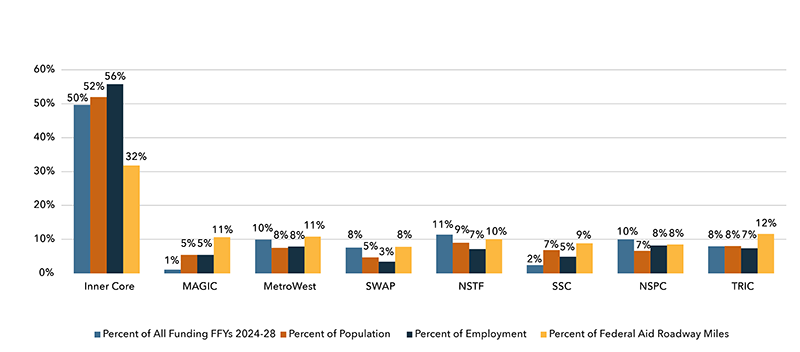

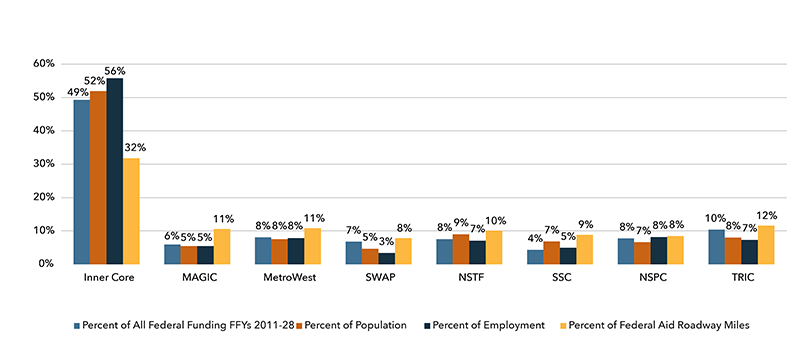

Appendix D: Geographic Distribution of TIP Funding
Appendix E: Regulatory and Policy Framework
Appendix F: Boston Region Metropolitan Planning Organization Membership
Appendix G: Operations and Maintenance Summary

TIP 2024–28

ABBREVIATIONS

Abbreviations

Abbreviation	Term
3C	continuous, comprehensive, cooperative [metropolitan transportation planning process]
AAB	Massachusetts Architectural Access Board
AADT	average annual daily traffic
ABP	Accelerated Bridge Program [MassDOT program]
AC	advance construction
ACS	American Community Survey [US Census Bureau data]
ADA	Americans with Disabilities Act of 1990
AFC	automated fare collection
ALI	Activity Line Item
ARPA	American Rescue Plan Act
BIL	Bipartisan Infrastructure Law
BFP	Bridge Formula Program [federal funding program]
BR	Bridge [highway investment program]
BRT	bus rapid transit
CA/T	Central Artery/Tunnel [project also known as “the Big Dig”]
CAA	Clean Air Act
CAAA	Clean Air Act Amendments
CARES Act	Coronavirus Aid, Relief, and Economic Security Act
CATA	Cape Ann Transportation Authority
CECP	Massachusetts Clean Energy and Climate Plan
CFR	Code of Federal Regulations
CIP	Capital Investment Plan [MassDOT]
CMAQ	Congestion Mitigation and Air Quality [federal funding program]
CMR	Code of Massachusetts Regulations
CMP	Congestion Management Process
CNG	compressed natural gas
CO	carbon monoxide
CO₂	carbon dioxide
CPT–HST	Coordinated Public Transit–Human Services Transportation Plan
CRRSAA	Coronavirus Response and Relief Supplemental Appropriations Act
CTPS	Central Transportation Planning Staff
CY	calendar year
DCR	Department of Conservation and Recreation
DEP	Department of Environmental Protection [Massachusetts]
DOD	United States Department of Defense
DOT	department of transportation
DVR	digital video recorder
EB	eastbound
EDTTT	excessive delay threshold travel time
EJ	environmental justice
EO	executive order
EOEEA	Massachusetts Executive Office of Energy and Environmental Affairs
EOHED	Massachusetts Executive Office of Housing and Economic Development
EPA	United States Environmental Protection Agency
EPDO	equivalent property damage only [a traffic-related index]
EV	electric vehicle
FARS	Fatality Analysis and Reporting System [FHWA]
FAST Act	Fixing America’s Surface Transportation Act
FEMA	Federal Emergency Management Agency
FFY	federal fiscal year
FHWA	Federal Highway Administration
FMCB	MBTA Fiscal and Management Control Board
FMLA	Federal Land Management Agency
FR	Federal Register
FTA	Federal Transit Administration
GANS	grant anticipation notes [municipal bond financing]
GHG	greenhouse gas
GWSA	Global Warming Solutions Act of 2008 [Massachusetts]
HIP	Highway Infrastructure Program [federal funding program]
HOV	high-occupancy vehicle
HSIP	Highway Safety Improvement Program [federal funding program]
I	Interstate
ICC	Inner Core Committee [MAPC municipal subregion]
IRI	International Roughness Index
ITS	intelligent transportation systems
LED	light-emitting diode
LEP	limited English proficiency
LF	local funds
LOTTR	level of travel time ratio
LRTP	Long-Range Transportation Plan [MPO certification document]
MAGIC	Minuteman Advisory Group on Interlocal Coordination [MAPC municipal subregion]
MAP-21	Moving Ahead for Progress in the 21st Century Act
MAPC	Metropolitan Area Planning Council
MARPA	Massachusetts Association of Regional Planning Agencies
MART	Montachusett Regional Transit Authority
MassDOT	Massachusetts Department of Transportation
Massport	Massachusetts Port Authority
MBTA	Massachusetts Bay Transportation Authority
MCRT	Mass Central Rail Trail
MOVES	Motor Vehicle Emissions Simulator [EPA air quality model]
MPO	metropolitan planning organization
MOU	memorandum of understanding
MWRC	MetroWest Regional Collaborative [MAPC municipal subregion]
MWRTA	MetroWest Regional Transit Authority
NAAQS	National Ambient Air Quality Standards
NB	northbound
NBI	National Bridge Inventory
NEVI	National Electric Vehicle Infrastructure Program [federal funding program]
NFA	Non-federal aid
NGBP	Next Generation Bridge Program [MassDOT program]
NH DOT	New Hampshire Department of Transportation
NHFP	National Highway Freight Program [federal funding program]
NHPP	National Highway Performance Program [federal funding program]
NHS	National Highway System
NHTSA	National Highway Traffic Safety Administration
NMCOG	Northern Middlesex Council of Governments
NOx	nitrogen oxides
NPMRDS	National Performance Measure Research Data Set [FHWA]
NSPC	North Suburban Planning Council [MAPC municipal subregion]
NSTF	North Shore Task Force [MAPC municipal subregion]
NTD	National Transit Database
OF	other federal funding
O&M	operations and management
PBPP	performance-based planning and programming
PEN	penalty funding
PHED	peak hours of excessive delay
PL	metropolitan planning funds [FHWA] or public law funds
PM	particulate matter
PNF	project need form [MassDOT]
ppm	parts per million
PRC	Project Review Committee [MassDOT]
PSAC	Project Selection Advisory Council [MassDOT]
PSI	Pavement Serviceability Index
PTASP	Public Transportation Agency Safety Plan
RITIS	Regional Integrated Transportation Information System
RRIF	Railroad Rehabilitation and Improvement Financing
RTA	regional transit authority
RTAC	Regional Transportation Advisory Council [of the Boston Region MPO]
RTACAP	Regional transit authority capital funds
SB	southbound
SFY	state fiscal year
SHSP	Strategic Highway Safety Plan
SIP	State Implementation Plan
SMS	safety management systems
SOV	single-occupant vehicle
SPR	Statewide Planning and Research
SRTS	Safe Routes to School [federal program]
SSC	South Shore Coalition [MAPC municipal subregion]
STRAHNET	Strategic Highway Network
STBG	Surface Transportation Block Grant Program [federal funding program]
STIP	State Transportation Improvement Program
SWAP	South West Advisory Planning Committee [MAPC municipal subregion]
TAM	Transit Asset Management Plan
TAMP	Transportation Asset Management Plan
TAP	Transportation Alternatives Program [federal funding program]
TAZ	transportation analysis zone
TBD	to be determined
TCM	transportation control measure
TE	transportation equity
TERM	Transit Economic Requirements Model [FTA]
TFPC	Total Federal Participating Cost
TIFIA	Transportation Infrastructure and Innovation Act
TIP	Transportation Improvement Program [MPO certification document]
TMA	transportation management association
TRIC	Three Rivers Interlocal Council [MAPC municipal subregion]
TSP	transit signal priority
TTTR	Truck Travel Time Reliability Index
ULB	useful life benchmark
UPWP	Unified Planning Work Program [MPO certification document]
USC	United States Code
USDOT	United States Department of Transportation
UZA	urbanized area
WB	westbound
VPI	virtual public involvement
VMT	vehicle-miles traveled
VOCs	volatile organic compounds
VRM	vehicle revenue-miles
VUS	Vulnerable User Safety [federal funding program]

Appendix A: Project Prioritization and Scoring

INTRODUCTION

As described in Chapter 2, the Transportation Improvement Program (TIP) development and project prioritization and funding process consists of numerous phases and is supported by several different funding sources. This appendix includes information about transportation projects that the Boston Region Metropolitan Planning Organization (MPO) considered for funding through the Highway Discretionary (Regional Target) Program in the federal fiscal years (FFYs) 2024–28 TIP.

To be considered for funding by the MPO, a project must fulfill certain basic criteria. Projects evaluated through the MPO’s Bicycle Network and Pedestrian Connections, Complete Streets, Intersection Improvements, and Major Infrastructure investment programs must meet these criteria:

The Massachusetts Department of Transportation’s Project Review Committee must have approved the project or must plan to review it.
The project proponent must be a municipality or state agency.
The project must be at the 25-percent design stage or demonstrate the level of detail of a project near this threshold (for example, through the submission of functional design reports, project locus maps and designs, operations analyses, or Highway Capacity Manual data sheets showing future build and no-build scenarios).

For projects evaluated through the MPO’s Community Connections Program, the following criteria apply:

The project proponent must submit a complete application for funding to MPO staff, along with supporting documentation such as geographic files depicting the project area and budgeting worksheets.
The proponent must be a municipality, transportation management association (TMA), or regional transit authority (RTA). Other entities, such as nonprofit organizations, may apply in partnership with a municipality, TMA, or RTA that has agreed to serve as a project proponent and fiscal manager.
The proponent must demonstrate that the project will have a positive impact on air quality, as this program is funded using federal Congestion Mitigation and Air Quality funds.
The proponent must demonstrate readiness and institutional capacity to manage the project sustainably.

If a project meets the above criteria, it is presented to the MPO board in the Universe of Projects (Table A-1) to be considered for funding. This project list is presented to the MPO board in November and provides a snapshot of information available on projects at that stage in the TIP development. Some projects that get evaluated for funding may not appear in the Universe, as more project information may become available following the compilation of the Universe. In addition, some projects that appear on the Universe list may not be evaluated each year if these projects are not actively being advanced by municipal or state planners or if they are not at the minimum required level of design for evaluation. Community Connections projects are not typically included in the Universe because proponents of those projects apply for funding through a discrete application process, the submission deadline for which is after the presentation of the Universe to the MPO board.

Once a proponent provides sufficient design documentation for a project in the Universe and the municipality or state is actively prioritizing the project for funding, the project can be evaluated by MPO staff. The evaluation criteria used to score projects are based on the MPO’s goals and objectives. After the projects are evaluated, the scores are shared with project proponents, posted on the MPO’s website, and presented to the MPO board for review and discussion. The scores for projects evaluated during development of the FFYs 2024–28 TIP for programming in the MPO’s Bicycle Network and Pedestrian Connections, Complete Streets, and Intersection Improvements programs are summarized in Table A-3. No projects were evaluated for inclusion in the Major Infrastructure investment program during the development of the FFY 2024-28 TIP. Scores for projects that applied for funding through the MPO’s Community Connections Program during the FFYs 2024–28 TIP cycle are summarized in Table A-4.

The MPO board approved a suite of changes to the TIP project selection criteria in October 2020. One of the central goals was to create distinct criteria for each investment program to allow for evaluations to be conducted in ways that better reflect the nuances of different types of transportation projects. For this reason, the project selection criteria for each investment program are shown in separate tables in this appendix as follows: Bicycle Network and Pedestrian Connections (Table A-5); Community Connections (Table A-6); Complete Streets (Table A-7); Intersection Improvements (Table A-8); and Major Infrastructure (Table A-9). Archived project evaluation criteria for all investment programs, which were discontinued in October 2020 after the FFYs 2021–25 TIP cycle, are shown in Tables A-10 and A-11.

In addition to project scores, several other factors are taken into consideration by the MPO when selecting projects for funding. Table A-2 describes many of these elements, including the relationships between the MPO’s FFYs 2024–28 Regional Target projects and the MPO’s Long-Range Transportation Plan (LRTP), studies and technical assistance conducted by MPO staff through the Unified Planning Work Program (UPWP), the federally required performance measures discussed in Chapter 4, and Massachusetts’ modal plans. These projects are listed by MPO investment program. More details about each of these projects are available in the funding tables and project descriptions included in Chapter 3. Performance-related information for the FFYs 2024–28 Regional Target projects is included in Chapter 4, and information about greenhouse gas (GHG) emissions for these projects is available in Appendix B.

Table A-1
FFYs 2024–28 TIP Universe of Projects

Projects grouped by MAPC subregion and by MPO Investment Program
This table contains unprogrammed projects in the Boston region that may be considered for evaluation in the FFYs 2024-28 TIP cycle. Not all projects listed in this table will be evaluated for funding in the FFYs 2024-8 TIP, as projects must be PRC approved and submit sufficient project documentation prior to scoring. The MPO has also established a policy to prioritize projects that have reached the 25% design submission stage for funding. This list is subject to change as more project information is received.

Key
	Evaluated for FFYs 2023-27 TIP
	New project in TIP universe for FFYs 2024-28 TIP
	In 2023-27 universe, not evaluated

Municipality	Project Proponent	Project Name	PROJIS	Design Status (as of 10/6/21)	Year Added to Universe	Cost Estimate	Highway District	Notes	Previous Evaluation Score
Inner Core
Complete Streets
Boston	Boston	Reconstruction of Albany Street	N/A	Pre-PRC	2021	N/A	6	Pursuing 2022 PRC approval.	N/A
Boston	MassDOT	Reconstruction on Gallivan Boulevard (Route 203), from Neponset Circle to East of Morton Street Intersection	606896	PRC approved (2012)	2018	$11,500,000	6	Resulted from FFY 2012 Addressing Priority Corridors MPO Study	N/A
Boston	MassDOT	Improvements on Morton Street (Route 203), from West of Gallivan Boulevard to Shea Circle	606897	PRC approved (2012)	2018	$11,500,000	6	Resulted from FFY 2012 Addressing Priority Corridors MPO Study	N/A
Boston	Boston	Roadway Improvements along Commonwealth Avenue (Route 30), from Alcorn Street to Warren/Kelton Streets (Phase 3 & Phase 4)	608449	25% submitted (9/28/2017)	2017 or earlier	$31,036,006	6	Last scored for FFYs 2020-24 TIP.	56
Boston	MassDOT	Intersection & Signal Improvements at VFW Parkway and Spring Street	607759	25% Package Received - R1 (3/09/2022)	2022	$4,526,907	6		N/A
Boston	MassDOT	Gallivan Boulevard (Route 203) Safety Improvements, from Washington Street to Granite Avenue	610650	PRC approved (2019)	2019	$5,750,000	6	Priority for District 6. Road safety audit being initiated.	N/A
Brookline	Brookline	Boylston Street (High Street to Brington Road) Complete Streets Improvements	N/A	Pre-PRC	2022	$3,500,000	6	Ped crossings, bike lanes, street trees. Design through Toole with some facilitation from MassDOT. Three options were pushed through and endorsed by the Select Board. Town met with District 6 to run through this. Should be in PRC soon.	N/A
Brookline	Brookline	Davis Street Path Restoration and Reconstruction of the Davis Street Path Bridge over MBTA	N/A	Pre-PRC	2022	$12,000,000	6	Conceptual stage. Brookline is investigating avenues to use federal discretionary grant funding to advance this project. Potential for bundling with Boylston Street work above.	N/A
Chelsea	Chelsea	Reconstruction of Spruce Street, from Everett Avenue to Williams Street	610675	PRC approved (2019)	2019	$5,408,475	6		N/A
Chelsea	Chelsea	Reconstruction of Everett Avenue and 3rd Street, from Broadway to Ash Street	N/A	Pre-PRC	2020	N/A	6		N/A
Chelsea	Chelsea	Reconstruction of Marginal Street	N/A	Pre-PRC	2019	N/A	6		N/A
Lynn, Salem	MassDOT	Reconstruction of Route 107	608927	PRC approved (2017)	2020	$38,155,000	4		N/A
Malden	Malden	Broadway Corridor Reconstruction	N/A	Pre-PRC	2022	N/A	4	Malden is currently holding community meetings to discuss this project, with the most recent one being held 10.25.2022.	N/A
Melrose	Melrose	Reconstruction of Lebanon Street, from Lynde Street to Malden City Line	612534	PRC approved (2/10/2022)	2020	$3,742,432	4		N/A
Newton	Newton	Reconstruction of Washington Street, from Church Street to Chestnut Street	N/A	Pre-PRC	2020	N/A	6		N/A
Revere	Revere	Reconstruction of Ocean Ave, Revere Street, and Revere Beach Boulevard	N/A	Pre-PRC	2020	N/A	4	Project at conceptual stage with schematics, needs full design - investigating roundabout. Key East/West connection.	N/A
Winthrop	Winthrop	Reconstruction & Improvements on Route 145	N/A	PRC approved (2019)	2019	$7,565,512	6		N/A
Intersection Improvements
Boston, Brookline	Boston, Brookline	Mountfort St. & Commonwealth Ave. Connection	608956	PRC approved (2017)	2018	$916,883	6	Preliminary design.	N/A
Medford	Medford	Intersection Improvements at Main Street and South Street	611974	PRC approved (2021)	2019	$8,498,000	4	Project location studied by CTPS. Priority for municipality. Design is in progress, and eventually the City will work with MassDOT to fund construction.	N/A
Newton	MassDOT	Route 16 at Quinobequin Road	612613	PRC approved (2/10/2022)	2022	$4,350,000	6	Reconfiguration of the interchange may result in consideration of this project for the LRTP.
Quincy	MassDOT	Intersection Improvements at Route 3A (Southern Artery) and Broad Street	608569	PRC approved (2016)	2020	$2,900,000	6	Priority for District 6.	N/A
Quincy	Quincy	Intersection Improvements at Willard Street and Ricciuti Drive	610823	25% Package Received (9/28/2022)	2020	$1,544,650	6	25% design complete. PM is Kathy Dougherty.	N/A
Quincy	Quincy	Merrymount Parkway Phase II	N/A	Pre-PRC	2022	N/A	6	December PRC.	N/A
Bicycle and Pedestrian
Boston	Boston	Fenway Multi-Use Path Phase III	N/A	Pre-PRC	2021	N/A	6	Project at conceptual stage.	N/A
Brookline	Brookline	Beacon Street Bridle Pathway	N/A	Pre-PRC	2022	N/A	6	Project in conceptual design through Toole, receipt of a MassTrails grant in 2020 for feasibility study. Limits would be Audubon Circle to Cleveland Circle.	N/A
Everett, Somerville	DCR	Mystic River Bicycle and Pedestrian Crossing	612004	PRC approved (2021)	2021	$38,218,334	4		N/A
Lynn, Nahant	Lynn, Nahant	Northern Strand Extension	610919	DPH (11/17/2021)	2020	$9,363,750	4		N/A
Medford	Medford	Wellington Phase 4 Shared Use Path	613082	Pre-PRC	2022	$1,195,000	4	ID # is not yet in PINFO. Initiated on 11/3/2022. Includes an earmark and Gaming Commission money.	N/A
Medford	Medford	MacDonald Park Pedestrian Bridge	N/A	Pre-PRC	2022	$800,000	4	In DCR park, City is requesting expansion of bridge to 10-12feet in width to coordinate with shared use pathway.	N/A
Major Infrastructure
Boston, Chelsea	Boston	Bridge Rehabilitation and Fender Pier Replacement, Meridian Street Over Chelsea Creek (Andrew P. McArdle Bridge)	600637	PRC Approved (2/10/2022)	2021	$97,538,787	6		N/A
Cambridge	DCR	Intersection Improvements at Fresh Pond Parkway/Gerry's Landing Road, from Brattle Street to Memorial Drive	609290	PRC approved (2018)	2019	$7,000,000	6	Short-term improvements being initiated.	N/A
Revere, Malden	MassDOT	Improvements on Route 1 (NB) Add-A-Lane	610543	PRC approved (2019)	2019	$7,210,000	4	Project is not programmed in Destination 2040. It is located on a regionally significant roadway. If this work includes capacity-adding elements, and it is programmed in the TIP, it will need to be included in Destination 2050.	N/A
Newton	MassDOT	Traffic Signal and Safety Improvements at Interchange 127 (Newton Corner)	609288	PRC approved (2018)	2019	$14,000,000	6		N/A
Medford	Medford	Roosevelt Circle Interchange Reconfiguration	N/A	Pre-PRC	2022	TBD	4	As discussed on 11.4.2022 with the City of Medford, the City is looking to reconfigure the ramps and adjacent local roadways to improve traffic safety following the results of a RSA along this corridor. Includes improvements for bicycle, pedestrian, and transit access. Given the state of repair on the bridges, this may be coordinated with bridge rehabilitation work for these structures over I-93.	N/A
Boston	Boston	Cambridge Street Bridge Replacement - Charlestown	N/A	Pre-PRC	2022	N/A	6	City wants this programmed to advertise this before Rutherford Avenue enters construction. This is a difficult bridge under I-93 and next to Sullivan Square.	N/A
Revere	Revere	Route 1A Improvement and Reconfiguration	N/A	Pre-PRC	2022	$9-12,000,000	4	Project is in conceptual design stage. The priority is to reconfigure the loop ramps at the General Edwards Bridge to facilitate redevelopment of the area, for which there are already parcel developments planned. The reconfiguration will entail construction of a new roundabout and improved pedestrian crossings to improve access to the riverfront and Point of Pines area along Revere. Per the City, this reconfiguration is intended to work with the Lynnway Multimodal Corridor improvements, but will also not impact construction for the General Edwards Bridge replacement.	N/A
Revere, Saugus	Revere, Saugus	Roadway Widening on Route 1 North (Phase 2)	611999	PRC approved (2021)	2021	$2,397,600	4	Project is not programmed in Destination 2040. It Is on a regionally-significant roadway and would add roadway capacity. If programmed in the TIP, this project will also need to be included in Destination 2050. Robins Road to Route 99 interchange are the limits.	N/A

Minuteman Advisory Group on Interlocal Coordination
Complete Streets
Bedford	Bedford	Roadway Reconstruction of Route 4/225 (The Great Road)	612739	PRC approved (5/12/2022)	2022	$10,899,448	4	Limits appear to go from North Road to match line near Loomis Street. SRTS project completed in the area under 608000.	N/A
Intersection Improvements
Littleton	Littleton	Intersection Improvements at Route 119/Beaver Brook Road	610702	PRC approved (2020)	2020	$3,120,110	3	MassDOT agreed to fund design after 25% design approved. As of October 2022, the project remains in preliminary design.	N/A
Bicycle and Pedestrian
Bedford	Bedford	Minuteman Bikeway Extension, From Loomis Street to Concord Road (Route 62)	607738	47	2022	$11,218,186	4	Local concerns about permitting. Previously programmed in FY23-27, dropped due to public opposition. Failed to achieve 2/3rds majority in town meeting on 11.14.2022.	N/A
Concord	Concord	Assabet River Multi-Use Trail and Bridge Construction	612870	PRC approved (8/29/2022)	2020	$8,280,000	4	Project was originally a new Pedestrian Bridge with a $2-3.6M price range. Scope has increased to include improvements for a multi-use trail alongside the bridge. Cost has increased accordingly, and is now in preliminary design. Project location runs between the West Concord MBTA Station and the Concord Meadows Corporate Center with a hookup to the Southern Terminus of the Bruce Freeman.	N/A
Major Infrastructure
Acton	MassDOT	Intersection Improvements at Route 2 and Route 27 Ramps	610553	PRC approved (2019)	2020	$3,480,000	3	Project not programmed in LRTP (meets MPO roadway classification requirement). Priority for District 3 and Town of Acton. Project has had surveying and MSA design contracts opened for it. MassDOT appears to be tracking as a Traffic Safety improvement.	N/A
Concord	Concord	Reconstruction & Widening on Route 2, from Sandy Pond Road to Bridge over MBTA/B&M Railroad	608015	PRC approved (2014)	2019	$8,000,000	4	Project is not programmed in Destination 2040. It is on a regionally significant roadway and includes roadway widening elements. If programmed in the TIP, this project should also be included in Destination 2050.	N/A
Lexington	Lexington	Route 4/225 (Bedford Street) and Hartwell Avenue	N/A	Pre-PRC	2019	$30,557,000	4	Project is programmed in Destination 2040 (FFYs 2030-34). The project is expected to include work on the I-95 Interchange with Route 4/225. If this work includes capacity-adding elements, it will need to be included in Destination 2050.	N/A

MetroWest Regional Collaborative
Complete Streets
Wellesley	Wellesley	Route 135 Reconstruction (Natick Town Line to Weston Road)	N/A	Pre-PRC	N/A	TBD	6		N/A
Holliston	Holliston	Reconstruction of Concord Street (Route 126)	N/A	Pre-PRC	2021	N/A	3	Added through subregional outreach. Project is municipal priority, as it's tied to necessary below-grade sewer work. 10/12/22: MaPIT is showing that a project was initiated back on 7.14.2020 for this stretch for resurfacing and related work, assuming $600K in total cost (likely lowball).	N/A
Intersection Improvements
Framingham	MassDOT	Roundabout Construction at Salem End Road, Badger Road and Gates Street	609280	PRC approved (2018)	2019	$2,520,000	3		N/A
Weston	Weston	Intersection Improvements - Signalization of Route 20 at Highland Street	N/A	Pre-PRC	2021	N/A	6	Added through subregional outreach.	N/A
Bicycle and Pedestrian
Weston	MassDOT	Weston - Shared Use Path Construction on Route 30	612602	PRC Approved (2/10/2022)	2022	$1,050,000	6	Meant to connect into Project 608954. District 6 priority to ensure that the shared-use-path there ties in to the rest of the bicycle network and concludes at a logical terminus.	N/A
Natick	Natick	Cochituate Rail Trail Extension, from MBTA Station to Mechanic Street	610691	PRC approved (4/30/2020)	2020	$5,778,069	3	Final section of Cochituate Rail Trail Extension. Imminent 25% design submittal.	N/A
Major Infrastructure
Framingham	Framingham	Intersection Improvements at Route 126/135/MBTA and CSX Railroad	606109	PRC approved (2010)	2019	$115,000,000	3	Project is programmed in Destination 2040 (FFYs 2030-34). May need to be pushed back with LRTP rewrite. Consultant said that depressing Route 135 may be the solution.	N/A

North Suburban Planning Council
Complete Streets
Burlington	Burlington	Town Center Complete Streets Improvements	N/A	Pre-PRC	2021	N/A	4	Complete Streets upgrades along Route 3A from Bedford Street to Arthur Woods Avenue. The scope of work would be additive to existing resurfacing planned under 610704, and would focus mostly on paint. There is potential for widening if the town's design includes a multimodal path while maintaining the current number and width of vehicle lanes.	N/A
Lynnfield	Lynnfield	Reconstruction of Summer Street	609381	PRC approved (2019)	2019	$21,521,921	4		N/A
Reading	Reading	Reading Downtown Improvement Project	N/A	Pre-PRC	2020	$7-$8 million	4	Project at conceptual stage.	N/A
Stoneham	Stoneham	Reconstruction of South Main Street, from Town Center to South Street	N/A	Pre-PRC	2021	N/A	4		N/A
Wakefield	Wakefield	Main Street Reconstruction (Water St. to Salem St.)	610545	25% Design Complete	2020	$26,382,000	4	Main St (Nahant to Water) and Water Street (Main to Cyrus) removed from project and bundled in 607329. 25% design incorporates some retention of angled parking in order to appease older public, but focus is on bike parking. Strong public input from youth during town meetings led to approval.	41.8
Winchester	Winchester	Town Center Complete Streets Improvements	N/A	Pre-PRC	2021	N/A	4		N/A
Intersection Improvements
Stoneham	Stoneham	Intersection Improvements at Main Street (Route 28), Franklin Street, and Central Street	N/A	Pre-PRC	2020	N/A	4	Project at conceptual stage.	N/A
Bicycle and Pedestrian
Stoneham, Wakefield	Stoneham, Wakefield	Mystic Highlands Greenway Project	N/A	Pre-PRC	2021	N/A	4		N/A
Community Connections
North Reading	North Reading

North Shore Task Force
Complete Streets
Beverly, Manchester-by-the-Sea	MassDOT	Resurfacing and Related Work on Route 127	607707	PRC approved (2013)	2018	$2,300,000	4	Still in preliminary design.	N/A
Danvers	Danvers	Reconstruction on Collins Street, from Sylvan Street to Centre and Holten Streets	602310	75% submitted (3/5/2010)	2017 or earlier	$5,183,121	4	Updated 75% design submission needed for project to move forward. Last scored for FFYs 2020-24 TIP.	46
Ipswich	Ipswich	Reconstruction of County Road, from South Main Street to East Street	611975	PRC approved (2021)	2020	$5,653,500	4	On 10/7/2022, Ipswich DPW mentioned that a bridge within the project limits has had a lane closed by MassDOT. Structure IDs are I01005, main concern is Ipswich - 2PN which is an 1861-built historic stone arch mill bridge.	45.4
Ipswich	Ipswich	Argilla Roadway Reconstruction and Adaptation	612738	PRC Approved (5/12/2022)	2021	$4,628,419	4	Municipal priority for funding.	N/A
Marblehead	Marblehead	Bridge Replacement, M-04-001, Village Street over Marblehead Rail Trail (Harold B. Breare Bridge)	612947	PRC approved (9/15/2022)	2019	N/A	4	Per 10.11 email with C Quigley, the project received a PRC and a PROJIS ID in September 2022 after a PNF was submitted 8/2022.	N/A
Manchester-by-the-Sea	Manchester-by-the-Sea	Pine Street - Central Street (Route 127) to Rockwood Heights Road	N/A	Pre-PRC; PNF submitted (12/27/16)	2017 or earlier	N/A	4		N/A
Manchester-by-the-Sea	Manchester-by-the-Sea	Bridge Replacement, M-02-001 (8AM), Central Street (route 127) over Saw Mill Brook	610671	PRC approved (2019)	2019	$4,350,000	4		34.8
Salem	MassDOT	Reconstruction of Bridge Street, from Flint Street to Washington Street	5399	25% submitted (8/20/2004)	2017 or earlier	$24,810,211	4	Project is not programmed in Destination 2040. It is on a regionally significant roadway and would add roadway capacity. If it is programmed in the TIP, it will need to be programmed in Destination 2050.	N/A
Wenham	Wenham	Safety Improvements on Route 1A	609388	25% Approved (9/10/2021)	2019	$3,629,036	4		N/A
Wenham	Wenham	Roadway Reconstruction on Larch Row and Dodges Row	N/A	Pre-PRC	2019	$800,000	4	Project at conceptual stage.	N/A
Intersection Improvements
Essex	Essex	Targeted Safety Improvements on Route 133 (John Wise Avenue)	609315	PRC approved (2019)	2019	$2,135,440	4		N/A
Bicycle and Pedestrian
Peabody, Salem	Peabody, Salem	Riverwalk Project	N/A	Pre-PRC	2021	N/A	4	MVP grant issued for project design.	N/A
Marblehead	Marblehead	B2B Bikeway Design - Marblehead	N/A	Pre-PRC	2022	$140,000	4	Earmark. May be added via amendment.
Peabody, Salem	Peabody, Salem	B2B Bikeway Design - Peabody/Salem	N/A	Pre-PRC	2022	$600,000	4	Earmark. May be added via amendment.
Major Infrastructure
Beverly	Beverly	Interchange Reconstruction at Route 128/Exit 19 at Brimbal Avenue (Phase II)	607727	PRC Approved (2014)	2021	N/A	4	Project is not programmed in Destination 2040. Is on a regionally-significant roadway, and would expand the interchange. If this project is programmed in the TIP and adds roadway capacity, this project will need to be included in Destination 2050.	N/A

South Shore Coalition
Complete Streets
Holbrook	Holbrook	Corridor Improvements and Related Work on South Franklin Street (Route 37) from Snell Street to King Road	608543	PRC approved (2017)	2018	$4,000,200	5		N/A
Rockland	Rockland	Corridor Improvements on VFW Drive/Weymouth Street	612605	PRC approved (2/10/2022)	2021	$13,047,281	5	PNF entered in Jan 2022	N/A
Weymouth	MassDOT	Reconstruction on Route 3A, Including Pedestrian and Traffic Signal Improvements	608231	PRC approved (2016)	2017 or earlier	$10,780,100	6	Pre-25% package submitted in July 2021.	N/A
Weymouth	MassDOT	Resurfacing and Related Work on Route 3A	608483	PRC approved (2016)	2018	$2,400,000	6		N/A
Intersection Improvements
Cohasset	Cohasset	Intersection Improvements at Route 3A and King Street	N/A	Pre-PRC	2021	N/A	5	Added through subregional outreach.	N/A
Hull	Hull	Intersection Improvements at George Washington Boulevard and Barnstable Road/ Logan Avenue	N/A	Pre-PRC	2021	N/A	5	Added through subregional outreach.	N/A

South West Advisory Planning Committee
Complete Streets
Bellingham	Bellingham	South Main Street (Route 126) - Elm Street to Douglas Drive Reconstruction	N/A	Pre-PRC; PNF submitted (3/13/17)	2017 or earlier	N/A	3	Project would dovetail ongoing project 608887, rehab on Route 126 from Douglas Drive to Route 140.	N/A
Franklin	MassDOT	Resurfacing and Intersection Improvements on Route 140, from Beaver Street to I-495 Ramps	607774	PRC approved (2014)	2018	$4,025,000	3		N/A
Medway	Medway	Improvements on Route 109 West of Highland Street	N/A	Pre-PRC	2021	N/A	3	Project at conceptual stage.	N/A
Milford	MassDOT	Resurfacing and Related Work on Route 16	612091	PRC approved (2021)	2021	$4,192,500	3		N/A
Millis	Millis	Town Center Improvements	N/A	Pre-PRC	2020	N/A	3	Project at conceptual stage.	N/A
Wrentham	Wrentham	Resurfacing and Related Work on Route 1	608497	PRC approved (2016)	2020	N/A	5	25% design anticipated July 2022.	N/A
Intersection Improvements
Medway	Medway	Traffic Signalization at Trotter Drive and Route 109	N/A	Pre-PRC	2021	N/A	3	Project at conceptual stage.	N/A
Sherborn	Sherborn	Intersection Improvements at Route 16 and Maple Street	N/A	Pre-PRC	2021	N/A	3	Project at conceptual stage.	N/A
Wrentham	Wrentham	Intersection Improvements on Route 1A at North and Winter Street	610676	PRC Approved (12/19/2019)	2020	$2,649,000	5		N/A
Wrentham	Wrentham	Intersection Improvements at Randall Road and Route 1A	N/A	Pre-PRC	2020	$2,649,000	5	Project at conceptual stage.	N/A
Wrentham	Wrentham	Intersection Improvements at Route 1A and Route 140	N/A	Pre-PRC	2020	N/A	5	Project at conceptual stage.	N/A
Bicycle and Pedestrian
Franklin	Franklin	Southern New England Trunk Trail (SNETT) Extension, from Grove Street to Franklin Town Center	N/A	Pre-PRC	2021	N/A	3	Project at conceptual stage.
Hopkinton	Hopkinton	Campus Trail Connector, Shared Use Trail Construction	611932	PRC approved (2020)	2020	$1,750,700	3		N/A
Norfolk, Walpole, and Wrentham	Norfolk	Metacomet Greenway	N/A	Pre-PRC	2021	N/A	5	Project at conceptual stage.	N/A
Sherborn	Sherborn	Upper Charles River Trail Extension to Framingham City Line	N/A	Pre-PRC	2021	N/A	3	Project at conceptual stage.	N/A
Major Infrastructure
Bellingham	MassDOT	Ramp Construction & Relocation, I-495 at Route 126 (Hartford Avenue)	604862	PRC approved (2006)	2017 or earlier	$13,543,400	3	High priority for District 3	N/A

Three Rivers Interlocal Council
Complete Streets
Canton, Milton	MassDOT	Roadway Improvements on Route 138	608484	PRC approved (2016)	2020	$18,467,500	6	Milton also in ICC subregion. Project a high priority for the TRIC subregion. District is working to refine scope. .	N/A
Medfield	Medfield	Reconstruction of Route 109	N/A	Pre-PRC	2021	N/A	3	Added through subregional outreach.	N/A
Milton	MassDOT	Reconstruction on Granite Avenue, from Neponset River to Squantum Street	608406	25% submitted (2/10/2017)	2017 or earlier	$3,665,146	6	Milton also in ICC subregion.	N/A
Milton	Milton	Adams Street Improvements, from Randolph Avenue to Eliot Street	610820	PRC approved (4/30/2020)	2020	$1,799,330	6	Milton also in ICC subregion.	N/A
Needham	Needham	Reconstruction of Highland Avenue, from Webster Street to Great Plains Avenue	612536	PRC approved (10/21/2021)	2021	$10,402,402	6	Needham also in ICC subregion.	N/A
Dover, Needham	Dover, Needham	Centre Street Bridge Replacement	N/A	Pre-PRC	2022	N/A	6	Historic-eligible, needs replacement as it is 1850's era.	N/A
Westwood	Westwood	Reconstruction of Canton Street	608158	25% Package Received (2/18/2022)	2017 or earlier	$19,047,306	6	Priority for municipality. MassDOT expresses concerns regarding project readiness due to scope fluctuations. New shapefile is in development for MapIT, there is not one available right now.	N/A
Intersection Improvements
Foxborough	Foxborough	Intersection Signalization at Route 140/Walnut Street and Route 140/I-95 (SB Ramp)	612740	PRC Approved (5/12/2022)	2021	$11,902,600	5	Added through subregional outreach. Town has advanced design outside of TIP process. District supports project. Budget has increased from original $5M estimate in 2021.	N/A
Medfield	Medfield	Intersection Improvements at Route 27 and West Street	612807	PRC Approved (5/12/2022)	2021	$3,987,500	3	Added through subregional outreach.	N/A
Bicycle and Pedestrian
Canton	Canton	Warner Trail Extension, from Sharon to Blue Hills Reservation	N/A	Pre-PRC	2021	N/A	6	Added through subregional outreach. Feasibility study currently underway.	N/A
Major Infrastructure
Canton, Westwood	MassDOT	Interchange Improvements at I-95 / I-93 / University Avenue / I-95 Widening	87790	25% submitted (7/25/14)	2017 or earlier	$202,205,994	6	Project not programmed in Destination 2040. IIt is on a regionally-significant roadway and adds roadway capacity. If programmed in the TIP, this project would also need to be included in Destination 2050. Last scored for FFYs 2020-24 TIP. Regional priority, potential discretionary grant project via MassDOT for State Highway funding.	47

Table A-2
FFYs 2024–28 Regional Target Projects and Their Relationships to Plans and Performance Measures

ID	Project Name	MPO Investment Program	Project Description	MPO Muncipalities	Programming Year (FFY)	Planning Relationships	Relationoships to Performance Measures
609211	Peabody–Independence Greenway Extension	Bicycle and Pedestrian	Extend the Independence Greenway from the North Shore Mall to central Peabody.	Peabody	02024	This project will extend the MassDOT Off-Street High Comfort Bike Network, as identified in the 2019 Massachusetts Bicycle Plan.	This project is expected to improve safety for bicyclists and pedestrians. It will create more than a mile of bike trail network and bring the Independence Greenway’s total length to eight miles. By extending the region’s bicycle network, this project is expected to increase non-SOV travel. It is also expected to reduce CO2 and other transportation-related emissions.
610544	Peabody–Multi-Use Path Construction of Independence Greenway at Interstate 95 and Route 1	Bicycle and Pedestrian	Construct a new multi-use paved path along the abandoned railbed between two existing segments of the Independence Greenway in Peabody and create a connection to the existing Border to Boston trailhead at Lowell Street.	Peabody	02025	This project will extend the MassDOT Off-Street High Comfort Bike Network, as identified in the 2019 Massachusetts Bicycle Plan.	This project wzill create nearly two miles of multi-use trail, connect other segments of the Independence Greenway, and create a link to the Border to Boston trail. By connecting these sections of the regional bike network, this project is expected to increase non-SOV travel. Improved signalization near ramps to Route 1 may help facilitate motorized and nonmotorized traffic flow and reduce PHED on this NHS corridor. This project is also expected to improve safety for bicyclists and pedestrians and to reduce CO2 and other transportation-related emissions.
S12114	Canton–Royall Street Shuttle	Community Connections	Establish a shuttle service connecting Canton’s Royall Street employment cluster with the MBTA Route 128 commuter rail station and Ashmont, Mattapan Trolley, and Quincy Adams rapid transit stations.	Canton	2023–24	N/A	This project may increase non-SOV travel by providing a new transit option. It may reduce PHED and improve reliability on the NHS by providing an alternative to SOV travel on NHS routes in Canton. It is expected to reduce CO2 and other transportation-related emissions.
S12700	Cape Ann Transportation Authority (CATA)–CATA On Demand Microtransit Service Expansion	Community Connections	Expand existing CATA On Demand microtransit service to Rockport and to an additional neighborhood in Gloucester, and to help customers reach a wider array of essential destinations.	Gloucester, Rockport	2023–25	N/A	This project may increase non-SOV travel by expanding CATA’s microtransit service to new areas and supporting its ability to serve customers beyond those commuting to transit or specific employment centers. It may reduce PHED and improve reliability on the NHS by providing an alternative to SOV travel on NHS routes in Gloucester and Rockport. This project is expected to reduce CO2 and other transportation-related emissions.
S12701	MetroWest Regional Transit Authority (MWRTA) –CatchConnect Microtransit Service Expansion	Community Connections	Expand MWRTA’s CatchConnect microtransit service to Hudson and Marlborough, which will support connections to MWRTA’s fixed-route network.	Hudson, Marlborough	2023–25	N/A	This project may increase non-SOV travel by expanding microtransit service to new areas. It may reduce PHED and improve reliability on the NHS by providing an alternative to SOV travel on NHS routes in Hudson and Marlborough. This project is expected to help reduce CO2 emissions.
S12703	Montachusett Regional Transit Authority (MART) –MART Microtransit Service	Community Connections	Establish an on-demand microtransit service that will serve Bolton, Boxborough, Littleton, and Stow.	Bolton, Boxborough, Littleton, and Stow	2023–25	N/A	This project may increase non-SOV travel by providing a new transit option. It may reduce PHED and improve reliability on the NHS by providing an alternative to SOV travel on NHS routes in Boxborough, Bolton, Littleton, and Stow. It is expected to reduce CO2 and other transportation-related emissions.
S12694	Newton–NewMo Microtransit Service Expansion	Community Connections	Expand an existing Newton-wide microtransit service (see project S12125) to include stops in six neighboring municipalities.	Newton [adding service to Boston, Needham, Waltham Watertown, Wellesley, and Weston]	2023–25	N/A	This project may increase non-SOV travel by expanding the reach of Newton’s existing microtransit service. It may reduce PHED and improve reliability on the NHS by providing an alternative to SOV travel on NHS routes in multiple MPO communities. This project is expected to reduce CO2 and other transportation-related emissions.
606453	Boston–Improvements on Boylston Street	Complete Streets	Improve the roadway cross section, signals, and bicycle and pedestrian accommodations in the project corridor.	Boston	02025	N/A	The project area overlaps a 2017–19 HSIP all-mode crash cluster location, a 2010–19 HSIP bicycle crash cluster location, and a 2010–19 HSIP pedestrian crash cluster location. The project is expected to improve safety performance, including for bicyclists and pedestrians. It will improve more than two lane miles of substandard NHS pavement, will address reliability needs on an unreliable NHS segment, and may also reduce PHED on that segment. It will improve substandard sidewalks and add bicycle lanes in the project corridor; these features are expected to increase non-SOV travel. The project is also expected to reduce CO2 and other transportation-related emissions.
610932	Brookline–Rehabilitation of Washington Street	Complete Streets	Replace signals, reconstruct sidewalks and pavement, and provide protected bicycle facilities and dedicated bus pull-out spaces in the Washington Street corridor between Washington Square and Brookline Village.	Brookline	02027	N/A	The project area overlaps two 2010–19 HSIP bicycle crash cluster locations and a 2010–19 HSIP pedestrian crash cluster location. The project is expected to improve safety performance, including for bicyclists and pedestrians. It will improve substandard sidewalks, implement bicycle lanes, upgrade signals to include TSP, and add bus shelters to the corridor; these features are expected to increase non-SOV travel. The project is expected to reduce CO2 and other transportation-related emissions.
611983	Chelsea–Park and Pearl Street Reconstruction	Complete Streets	Improve safety and mobility on Park and Pearl Street by improving signals and roadway geometry, reconstructing sidewalks, and adding bicycle facilities.	Chelsea	02027	N/A	The project area overlaps a 2017–19 HSIP all-mode crash cluster location, a 2010–19 HSIP bicycle crash cluster location, and two 2010–19 HSIP pedestrian crash cluster locations. The project is expected to improve safety performance, including for bicyclists and pedestrians. The project will reconstruct sidewalks, improve bicycle amenities, and implement TSP; these features are expected to increase non-SOV travel. The project is expected to reduce CO2 and other transportation-related emissions.
608007	Cohasset, Scituate– Corridor Improvements and Related Work on Justice Cushing Highway (Route 3A) from Beechwood Street to Henry Turner Bailey Road	Complete Streets	Improve the corridor from the Beechwood Street intersection to the Cohasset/Scituate town line. Upgrade traffic signal equipment, make geometric modifications at intersections, and provide bicycle and pedestrian accommodations.	Cohasset, Scituate	02024	This project location was studied in “Route 3A Subregional Priority Roadway Study in Cohasset and Scituate” (CTPS, 2014).	The project area overlaps a 2017–19 HSIP all-mode crash cluster location and the project is expected to improve safety performance, including for bicyclists and pedestrians. It is expected to add sidewalks and bicycle lanes in the project corridor, which may encourage non-SOV travel. The project is expected to reduce CO2 and other transportation-related emissions.
609257	Everett– Rehabilitation of Beacham Street, from Route 99 to Chelsea City Line	Complete Streets	Reconstruct Beacham Street to reduce vehicular collisions and improve bicycle and pedestrian travel.	Everett	02025	N/A	This project is expected to improve transportation safety, including for bicyclists and pedestrians. It will improve substandard sidewalks and include a shared-use path—both features may encourage non-SOV travel and improve safety performance. The project is expected to reduce CO2 and other transportation-related emissions.
605168	Hingham–Intersection Improvements at Route 3A/Summer Street Rotary	Complete Streets	Improve multimodal access between Hingham Center, residential areas, and Hingham Harbor and make safety improvements, including by establishing a small roundabout at the intersection of Route 3A and Summer Street.	Hingham	02025	This project location was studied in “Summer Street/George Washington Boulevard Subregional Priority Roadway Study in Hingham and Hull” (CTPS, 2016).	The project is expected to improve safety performance, including for bicyclists and pedestrians. It will improve more than a lane mile of substandard pavement on the NHS, and the geometric improvements included in the project are expected to help reduce delay and potentially PHED on the NHS. The project is expected to improve substandard sidewalks, add new sidewalks, and add bicycle accommodations, including a shared-use path. These features may support increases in non-SOV travel. The project is also expected to reduce CO2 and other transportation-related emissions.
605743	Ipswich–Resurfacing and Related Work on Central and South Main Streets	Complete Streets	Reconstruct the roadway between Mineral Street and Poplar Street to improve the roadway surface. Make minor geometric improvements at intersections, include pedestrian crossings, and improve sidewalks.	Ipswich	02026	N/A	The project is expected to improve safety performance, including for bicyclists and pedestrians. It will improve more than a lane mile of substandard pavement on the NHS. It will upgrade substandard sidewalks, and it is expected to add bicycle lanes; both features may encourage non-SOV travel. The project is also expected to reduce CO2 and other transportation-related emissions.
609054	Littleton–Reconstruction of Foster Street	Complete Streets	Add turning lanes, consolidate curb cuts, and improve bicycle, pedestrian, and vehicular accommodations in the project corridor.	Littleton	02024	N/A	The project is expected to improve safety performance, including for bicyclists and pedestrians. It will include a shared-use path, which is expected to increase non-SOV travel. This project is also expected to reduce CO2 and other transportation-related emissions.
609252	Lynn–Rehabilitation of Essex Street	Complete Streets	Make key bicycle and pedestrian safety improvements and operational improvements, such as signal upgrades, in the project corridor.	Lynn	02025	N/A	The project area overlaps five 2017–19 all-mode HSIP crash cluster locations and three 2010–19 HSIP pedestrian crash cluster locations. The project is expected to improve safety performance, including for bicyclists and pedestrians. Planned improvements to signals and roadway geometry in the corridor may help improve reliability on nearby unreliable NHS segments and may also reduce PHED on those segments. It is expected to reconstruct substandard sidewalks and add bicycle lanes; these features are expected to increase non-SOV travel. This project is also expected to reduce CO2 and other transportation-related emissions.
609246	Lynn– Reconstruction of Western Avenue	Complete Streets	Reconstruct Western Avenue between Centre Street and Eastern Avenue. Improve signal timing, intersection design, and bus stop locations. Implement bicycle and ADA-compliant pedestrian improvements.	Lynn	2027-2028	N/A	The project area overlaps five 2017–19 all-mode HSIP crash cluster locations, two 2010–19 HSIP pedestrian crash cluster locations and one 2010–19 HSIP bicycle crash cluster location. The project is expected to improve safety performance, including for bicyclists and pedestrians, and it will improve nearly 4 lane miles of substandard pavement on the NHS. The signal improvements included in the project are expected reduce delay and may help reduce PHED and improve reliability on the NHS. It will reconstruct sidewalks and add bike lanes, TSP, and bus amenities; these features are expected to increase non-SOV travel. This project is also expected to reduce CO2 and other transportation-related emissions.
608045	Milford–Rehabilitation on Route 16, from Route 109 to Beaver Street	Complete Streets	Improve vehicular safety and traffic flow through the implementation of a road diet, additional roadway reconstruction, bicycle and pedestrian accommodations, and enhanced signalization on Route 16 (East Main Street) from Route 109 (Medway Road) to Beaver Street.	Milford	02026	N/A	The project area overlaps a 2017–19 all-mode HSIP crash cluster location, and the project is expected to improve safety performance, including for bicyclists and pedestrians. The project is also expected to upgrade substandard sidewalks, add new sidewalks, and add shared-use paths; these features are expected to increase non-SOV travel.
110980	Newton, Weston– Commonwealth Avenue (Route 30) over the Charles River	Complete Streets	Replace a deteriorated bridge over the Charles River. Reconstruct the Route 30 corridor in the vicinity of the I-95 and I-90 interchange, including several I-95 on-ramps. Improve sidewalks and pedestrian amenities, add a bike lane, and develop a segment of shared-use path along the Charles River.	Newton, Weston	02024	N/A	The project area overlaps a 2017–19 all-mode HSIP crash cluster locations and the project is expected to improve safety performance, including for bicyclists and pedestrians. It will replace a deteriorated NHS bridge structure and will improve one lane mile of substandard pavement on the NHS. Signal and geometric improvements on Route 30 and reconfiguration of the I-95 ramps may reduce PHED and improve reliability on the NHS. The shared-use path, sidewalk improvements, and bike lane included in the project are expected to increase non-SOV travel. This project is expected to reduce CO2 and other transportation-related emissions.
609432	Salem–Boston Street Improvements	Complete Streets	Incorporate complete streets elements and a separated bicycle path into the corridor. Add a new signal at Boston Street and Aborn Street and upgrade existing signals at other intersections along the corridor.	Salem	02026	N/A	The project area overlaps a 2010–19 HSIP pedestrian crash cluster location, and the project is expected to improve safety performance, including for bicyclists and pedestrians. It is expected to improve more than a lane mile of substandard NHS pavement. The project includes signal and geometry improvements and is expected to reduce delay, which may reduce PHED and improve reliability on the NHS. It will implement sidewalks on both sides of the corridor and add separated bicycle facilities; these features are expected to increase non-SOV travel. This project is expected to reduce CO2 and other transportation-related emissions.
609437	SALEM- PEABODY- BOSTON STREET IMPROVEMENTS	Complete Streets	Incorporate complete streets elements and a separated bicycle path into the corridor. Add a new signal at Boston Street and Aborn Street and upgrade existing signals at other intersections along the corridor.	Salem	02026	N/A	The project area overlaps a 2010–19 HSIP pedestrian crash cluster location, and the project is expected to improve safety performance, including for bicyclists and pedestrians. It is expected to improve more than a lane mile of substandard NHS pavement. The project includes signal and geometry improvements and is expected to reduce delay, which may reduce PHED and improve reliability on the NHS. It will implement sidewalks on both sides of the corridor and add separated bicycle facilities; these features are expected to increase non-SOV travel. This project is expected to reduce CO2 and other transportation-related emissions.
610662	Woburn–Roadway and Intersection Improvements at Woburn Common, Route 38 (Main Street), Winn Street, Pleasant Street, and Montvale Avenue	Complete Streets	Improve safety and congestion within the Woburn Common area by making safety and operational improvements, reconfiguring the Woburn Common rotary, and reconstructing and realigning roadways. The project will also reconstruct sidewalks, add bike lanes, and upgrade or add signals in the area.	Woburn	02026	N/A	The project area overlaps a 2017–19 all-mode HSIP crash cluster location and a 2010–19 HSIP pedestrian crash cluster location. The project is expected to improve safety performance, including for bicyclists and pedestrians. It is expected to improve nearly two lane miles of substandard pavement on the NHS. Signal and geometric improvements included in the project may improve reliability on unreliable NHS segments within the project area and potentially reduce PHED. The project will reconstruct sidewalks to support pedestrian safety and mobility. It is also expected to include bicycle accommodations and to reduce CO2 and other transportation-related emissions.
603739	Wrentham (MassDOT)– Construction of Interstate 495/Route 1A Ramps	Complete Streets	Construct ramps at the interchange of Route 1A and Interstate 495 to accommodate increased traffic volumes resulting from nearby development.	Wrentham	02024	This project area was studied as part of “Route 1A Corridor Study in Wrentham” (CTPS, 2017).	The project area overlaps two 2017–19 all-mode HSIP crash cluster locations and the project is expected to improve safety performance, including for bicyclists and pedestrians. The project is expected to reduce vehicle delay and may support reductions of PHED on nearby NHS roadways. It will add sidewalks and bicycle lanes, which may support non-SOV travel. It is also expected to reduce CO2 and other transportation-related emissions.
608436	Ashland–Rehabilitation and Rail Crossing Improvements on Cherry Street	Intersection Improvements	Improve the safety features on Cherry Street and Main Street to establish a Federal Railroad Administration Quiet Zone surrounding the railroad crossings on those two roadways. Install roadway medians, enhance existing railroad crossing signals and gates, reconstruct pavement, construct sidewalks, and improve drainage in the project area.	Ashland	02025	N/A	The project is expected to improve safety performance at a railroad crossing location, including for bicyclists and pedestrians.
608067	Woburn–Intersection Reconstruction at Route 3 (Cambridge Road) and Bedford Road and South Bedford Street	Intersection Improvements	Reconstruct the intersection and all traffic signal equipment. Enhance roadway geometry to provide exclusive turn lanes for intersection approaches. Reconstruct existing sidewalks, construct new sidewalks, and add bicycle lanes and ADA-compliant bus stops, where feasible.	Woburn	02025	N/A	The project is expected to improve safety performance, including for bicyclists and pedestrians. The project is expected to improve existing sidewalks and add new sidewalks at the intersection, as well as add new bike lanes; all of these features may encourage non-SOV travel. The geometric improvements included in the project are expected to help reduce delay and potentially PHED on nearby NHS routes. The project is expected to reduce CO2 and other transportation-related emissions.
605857	Norwood–Intersection Improvements at Route 1 and University Avenue/Everett Street	Intersection Improvements	Upgrade traffic signals and make associated geometric improvements at the intersection of Route 1, University Avenue and Everett Street. Construct an additional travel lane in each direction on Route 1, lengthen left-turn lanes, upgrade pedestrian crossings and bicycle amenities, and rehabilitate sidewalks.	Norwood, Westwood	2026-2027	The Route 1 corridor in Norwood is identified as a priority bottleneck in the Destination 2040 Needs Assessment. This location was studied in “Route 1 at Everett Street and University Avenue” (CTPS, 2014).	The project area overlaps a 2017–19 all-mode HSIP crash cluster location and the project is expected to improve safety performance, including for bicyclists and pedestrians. It is expected to improve nearly three lane miles of pavement on the NHS. Signal and geometric improvements included in the project may improve reliability on unreliable NHS segments within the project area and potentially reduce PHED. The project will improve substandard sidewalks and add new sidewalks and bicycle accommodations, all of which may encourage non-SOV travel. It is expected to reduce CO2 and other transportation-related emissions.
608940	Weston–Intersection Improvements at Boston Post Road (Route 20) at Wellesley Street	Intersection Improvements	Address safety, congestion, and connectivity concerns at the intersection of Route 20, Boston Post Road, and Wellesley Street by installing a new signal system, implementing geometric improvements, replacing and adding sidewalks, and adding bicycle lanes.	Weston	02026	This project intersects a priority bottleneck location identified in the Destination 2040 Needs Assessment.	The project area overlaps a 2017–19 all-mode HSIP crash cluster location and the project is expected to improve safety performance, including for bicyclists and pedestrians. Signal and geometric improvements included in the project may improve reliability on unreliable NHS segments within the project area and potentially reduce PHED. The project will improve and add sidewalks and add bicycle lanes; these features may encourage non-SOV travel. It is expected to reduce CO2 and other transportation-related emissions.
607981	Somerville–McGrath Boulevard Reconstruction	Major Infrastructure: Roadway	Remove the existing McCarthy Viaduct and replace it with an at-grade urban boulevard. Rationalize intersections, improve signalization, and create off-street pedestrian and bicycle facilities. Improve bus operations by installing floating/in-lane bus stops, transit signal priority, and bus queue-jump lanes at key intersections.	Somerville	2027-2028	This project is included in Destination 2040, the MPO’s LRTP. This project changes network capacity and is considered regionally significant for air quality modeling.	The project area overlaps a 2017–19 all-mode HSIP crash cluster location, a 2010–19 HSIP pedestrian crash cluster location, and a 2010–19 HSIP bicycle crash cluster location. It is expected to improve safety performance, including for bicyclists and pedestrians. It will improve one NHS bridge and improve more than four lane miles of substandard pavement on the NHS. The geometric and signal improvements included in the project may reduce PHED and improve reliability on this portion of the NHS network. The project will improve bus operations and amenities, reconstruct and reconfigure sidewalks, and add off-street bicycle and pedestrian facilities; these features are expected to increase non-SOV travel. It was analyzed as part of a set of recommended LRTP projects, and MPO staff estimate that this set will decrease CO2 emissions in the region compared to a no-build scenario.
613088	MALDEN - SPOT POND BROOK GREENWAY	Bicycle Network and Pedestrian Connections	The Spot Pond Brook Greenway is a proposed shared-use path connecting Malden's Oak Grove neighborhood with the Northern Strand Community Trail and Malden River via downtown Malden. The 1.1 mile, 11 foot wide shared-use path will replace existing sidewalk infrastructure and narrow roadway widths to accommodate the new bicycle/pedestrian facility on existing right-of-way. The project will also install wayfinding signage on existing roadway facilities to connect the northern terminus of the path at Coytemore Lea Park with the Oak Grove MBTA station.	MALDEN	02027	This project includes sections of the Mystic Highlands Greenway, a regional trail connection initiative.	This project includes a 2017-19 bicycle HSIP crash cluster location and will improve the safety of bicyclists and pedestrians throughout the project area. The project will also improve connectivity to MBTA bus and rail transit facilities.
610691	NATICK- COCHITUATE RAIL TRAIL EXTENSION, FROM MBTA STATION TO MECHANIC STREET	Bicycle Network and Pedestrian Connections	Construction of a shared-use bridge to connect the Cochituate Rail Trail to Route 27. Improvements to multimodal connectivity at Natick Center commuter rail station. Project would be the final extension of the Cochituate Rail Trail.	NATICK	02028	This project finalizes the Cochituate Rail Trail with a direct connection into a new MBTA Natick Center Commuter Rail Station. The development of the project coordinated with the MBTA and with MassDOT, which at the time of project evaluation was implementing additional bicycle network enhancements as part of its Route 27 reconstruction.	This project constructs a new grade-separated facility as part of the Cochituate Rail Trail to establish safe pedestriana nd bicycle connections between MBTA Commuter Rail facilities and downtown Natick into the Cochituate Rail Trail.
608158	WESTWOOD- NORWOOD- RECONSTRUCTION OF CANTON STREET TO UNIVERSITY DRIVE, INCLUDING REHAB OF N-25-032=W-31-018	Complete Streets	The project will install new pedestrian sidewalks on the west side of the roadway and a shared-use path on the east side of the roadway. These facilities are being constructed where no dedicated facilities currently exist to improve multimodal accessibility to area residences, employment centers, and open space. Bridge N25032 will be replaced for improved multimodal access and freight rail clearance beneath. The project improves roadway geometry for all vehicles, including visibility improvements on five curves for stopping sight distance, the addition of truck apron turn lanes, and median installation. High-visibility crosswalks and rectangular rapid flashing beacons (RRFBs) will be added in seven locations. New medians will function as pedestrian refuges. New or relocated street lighting will be mounted on utility poles. Reflective signing and markers will be improved.	WESTWOOD	02027	N/A	This project replaces the deck of an NHS bridge structure and improves the clearance of the superstructure to facilitate freight movement. The project creates safe pedestrian and bicycle facilities along Canton Street, which lacks any facilities at the time of project programming. These multimodal facilities improve access to nearby transit facilities at the Route 128 / University Park MBTA and Amtrak station.
612989	BOSTON- BRIDGE PRESERVATION, B-16-066 (38D), CAMBRIDGE STREET OVER MBTA	Complete Streets	Replace superstructure of a major bridge over the MBTA Orange Line, commuter rail, Amtrak lines, and Interstate 93. Pursue state-of-good-repair investments to avoid closures and limit impacts to nearby projects (for example, projects on Mystic Avenue, Maffa Way, Rutherford Avenue, and McGrath Highway). Enhance multimodal accessibility for a key link to Sullivan Square MBTA station, including expanding bus facility access.	BOSTON	02026	This project is consistent with the City of Boston's Sullivan Square Design Project.	This project replaces the deck and superstructure of an NHS bridge structure over MBTA, Amtrak, and freight rail and beneath Interstate 93. The new bridge will support a westbound bus lane to facilitate improved transit connectivity between Boston's Charlestown neighborhood and Somerville.
613145	WAKEFIELD- COMPREHENSIVE DOWNTOWN MAIN STREET RECONSTRUCTION	Complete Streets	Complete Streets enhancements to improve pedestrian and bicycle safety along a major local economic generator. Traffic signal upgrade at the intersection of Church and Salem Streets with geometry adjustments to improve turn radii and reduce emergency response times. Pedestrian signal upgrades, new crosswalks, pedestrian refuge islands, installation of a shared-use-path, and new pedestrian lighting. Partial closure of Common Street to thru-traffic to improve pedestrian accessibility for Upper and Lower Common open space.	WAKEFIELD	02028	This project includes sections of the Mystic Highlands Greenway, a regional trail connection initiative.	This project implements complete streets enhancements and traffic calming measures along a section of NHS roadway to complement investments in transit-oriented-development in Wakefield. These investments are also part of a larger regional investment in trails and bicycle paths for the Mystic Highlands Greenway, and the project provides for connectivity into the future Wakefield-Lynnfield Rail Trail.
S12807	MWRTA CATCHCONNECT MICTROTRANSIT SERVICE EXPANSION PHASE 2	Community Connections	Expansion of the CatchConnect microtransit program within the municipalities of Framingham and Natick on weeknights during evening hours. CatchConnect would be available within these communities between approximately 7:30 PM and 10:30 PM Monday through Friday, providing a supplemental public transportation resource following the conclusion of traditional fixed-route service.	MWRTA	2024-2026	Expansion of microtransit services in underserved transit areas is highlighted in the MPO's Coordinated Public Transit and Human Services Transportation (HST) Plan. CTPS has also conducted studies regarding MicroTransit with favorable recommendations for MWRTA in the past.	This project will reduce CO2 emissions by reducing SOV travel by providing for expanded service hours and area for microtransit.
S12802	LYNN- BROAD STREET CORRIDOR TRANSIT SIGNAL PRIORITY	Community Connections	Upgrade traffic signal equipment at seven signalized intersections to improve safety and efficiency for all modes of transportation along one of the busiest corridors in Lynn.	LYNN	02024	Destination 2040 cites Downtown Lynn as a priority area for reducing pedestrian crash-cluster incidents (Page 4). Parts of Broad Street are included in the ongoing MBTA North Shore Busway Study, programmed in FFY 2023 of the UPWP.	This project will reduce SOV travel and CO2 emissions by making transit improvements that improve the reliability and operability of multiple MBTA bus routes along a high-priority bus transit corridor in Lynn.
S12803	MEDFORD BICYCLE PARKING - TIER 1	Community Connections	Purchase and install 40 bicycle racks to create 80 additional bicycle parking spaces	MEDFORD	02024	Destination 2040 Vision, Goals, and Objectives cities supporting funding bicycle networks with the aim to create a connected network of bicycle facilities to achieve the goal of Capacity Management and Mobility. (Needs Assesment 6-83)	This project implements additional bicycle parking at numerous areas throughout Medford to facilitate active transportation usage at key public spaces and commercial centers.
S12804	MEDFORD BLUEBIKES EXPANSION	Community Connections	Purchase and installation of four Bluebikes docks and 25 Bluebikes for the City of Medford’s Bluebikes network	MEDFORD	02024	N/A	This project invests in the expansion of the regional bikeshare network, including additional expansion of Medford's Bluebikes facilities to provide for additional connections in MBTA rapid transit facilities.
S12805	CANTON PUBLIC SCHOOLS BIKE PROGRAM	Community Connections	Installation of bidirectional bicycle lanes on Dedham Street. Purchase and installation of bicycle racks at three elementary schools, one middle school, and one high school.	CANTON	02024	N/A	This project will reduce CO2 emissions by providing for new bicycle storage facilities for students of Canton's public schools to encourage mode shift and complement additional municipal investments in the bicycle network to provide for safe travel for vulnerable roadway users.
S12806	CANTON CENTER BICYCLE RACKS	Community Connections	Purchase and installation of bicycle racks in downtown Canton and at the Canton Center MBTA station.	CANTON	02024	Destination 2040 Vision, Goals, and Objectives cities supporting funding bicycle networks with the aim to create a connected network of bicycle facilities to achieve the goal of Capacity Management and Mobility. Bicycle Parking Capacity and Utilization: 2009-10 Inventory, Boston Region MPO/CTPS noted that bicycle parking is provided at both commuter rail stations. At Canton Center the small bicycle parking is at full utilization, while at Canton Junction the large bicycle parking is not utilized.	This project reduces CO2 emissions by adding new bicycle parking facilities at key commuter rail facilities in downtowon Canton to better accomodate intermodal connectivity.
S12823	BOSTON ELECTRIC BLUEBIKES ADOPTION	Community Connections	Purchase of 272 electric bikes (e-bikes) and 136 spare batteries for the City of Boston’s Bluebikes network	Boston	02024	N/A	This project is part of a larger regional investment in modernizing and expanding the regional Bluebikes bikeshare system and network, in addition to integrating electric vehicles to improve the accessibility and versatility of the network for all users.
S12824	CAMBRIDGE ELECTRIC BLUEBIKES ADOPTION	Community Connections	Purchase of 90 new e-bikes and 45 spare batteries for the City of Cambridge’s Bluebikes network.	Cambridge	02024	N/A	This project is part of a larger regional investment in modernizing and expanding the regional Bluebikes bikeshare system and network, in addition to integrating electric vehicles to improve the accessibility and versatility of the network for all users.
613121	EVERETT- TARGETED MULTI-MODAL AND SAFETY IMPROVEMENTS ON ROUTE 16	Intersection Improvements	This project will make targeted safety enhancements along Route 16 in Everett with a focus on enhanced multimodal accessibility along the corridor.	MassDOT	02027	N/A	This project makes specific and targeted investments in multimodal accessibility along a major NHS facility with significant usage for the Inner Core of the region.
S12818	ACTON PARKING MANAGEMENT SYSTEM	Community Connections	This project will implement digital parking management products to improve the efficiency of permitting and enforcement processes at five commuter parking lots surrounding the MBTA South Acton commuter rail station. These highly utilized lots provide nearly 500 parking spaces. The project will support the transition from a paper-based parking management system to a cloud-based one that will be more convenient for commuters and Acton’s parking management team.	Acton	02024	N/A	This project leverages intelligent transportation systems to better utilize and manage the existing capacity of parking facilities in Acton to better connect residents with parking opportunities at Commuter Rail facilities and facilitate mode shift.
609532	CHELSEA- TARGETED SAFETY IMPROVEMENTS AND RELATED WORK ON BROADWAY, FROM WILLIAMS STREET TO CITY HALL AVENUE	Intersection Improvements	The project will include corridor wide safety improvements targeted at reducing incidents for all users. Standard safety countermeasures such as improved signage, lighting, traffic calming streetscape elements, curb extensions, signal upgrades (where applicable) and other countermeasures may be incorporated. In addition, it is expected that the corridor’s pavement, sidewalks and bus transit amenities will be improved or replaced.	MassDOT	02025	N/A	This project is located at a Top 200 crash location and will implement safety improvements for all users of the roadway. The project will reduce CO2 emissions.
S12819	JACKSON SQUARE STATION ACCESSIBILITY IMPROVEMENTS	Transit Modernization	Includes construction of new elevator, modernization of existing elevator, lighting improvements, and various state of good repair improvements to the station.	MBTA	2024-2025	This project is part of the MBTA's larger System-Wide Accessibility project portfolio.	This project provides for the maintenance and modernization of existing rapid transit facilities to encourage mode shift and support system reliability for the MBTA's Orange Line.
S12821	RAIL TRANSFORMATION - EARLY ACTION ITEMS - READING STATION AND WILBUR INTERLOCKING	Transit Modernization	Addition of a turn track at Reading Station and improvements to the siding at Wilbur Interlocking on the Lowell Line to enable 30 minute headways in the short term and higher frequencies with electrified rolling stock. • Improvements would reduce conflicts with freight and the Amtrak Downeaster while facilitating bus integration.	MBTA	02024	This project implements early term action items for a new program in the MBTA's 2024-2028 Capital Investment Plan.	This project maintains commuter rail facilities and provides for additional signal and track improvements to increase the capacity of rail infrastructure. These capacity enhancements allow for reductions in headways and establish a foundation for future electrification efforts for the rail network.
S12822	COLUMBUS AVE BUS LANE PHASE II	Transit Modernization	Building on Phase 1, Phase 2 of the project includes bus-only lanes, transit signal priority, improvements to bus stops and shelters along Columbus Ave. and Tremont St., and enhanced pedestrian and bicycle connections. • New project elements include green infrastructure to promote traffic calming and reduce impervious surfaces.	MBTA	02024	This project builds upon completed Phase 1 work along Columbus Avenue that was performed by the MBTA and City of Boston.	The project improves bus transit along Columbus Avenue in Boston to provide for rapid and reliable connectivity for bus routes running parralel to the MBTA's Orange Line facilities. This project also establishes connections into those facilities for buses, and improves bicycle and pedestrian safety along the route.
S12820	BIKESHARE STATE OF GOOD REPAIR SET-ASIDE	Community Connections	This line item sets aside funding to support Bikeshare investments within the Community Connections program. Example uses of this set-aside include bikeshare system expansion, as well as replacement and upgrades to existing stations.	CTPS	2025-2028	This funding implements a recommendation that will be made in the MPO's upcoming LRTP, Destination 2050, regarding the establishment of dedicated funding to support Bikeshare investment throughout the region.	This line item will ensure the maintenance and modernization of existing bikeshare infrastructure within the Boston Region while providing additional funding resources for expansion into neighboring municipalities.
S12825	PROJECT DESIGN SUPPORT PILOT	Project Design Support Pilot	Set-aside funding to support the Project Design Support Pilot program, which is planned to launch in the FFY 202529 TIP.	CTPS	02025	In tandem with previous MPO discussions, namely the TIP Project Cost Ad Hoc Committee, this line item will empower municipalities to reach the 25% design threshold for projects by allocating additional resources to fund project design.	This line item will ensure the readiness and sustainability of project delivery by providing municipalities with a competitive opportunity to utilize additional resources to fund project design and development.

Notes: HSIP cluster locations are identified by MassDOT. Substandard pavement and sidewalk designations are based on data provided by MassDOT and project proponents and on MPO assessments conducted for TIP evaluations. The estimated lane miles of substandard NHS pavement improved is based on MPO staff’s assessment of pavement condition in the project area and their assessment of the portion of the project on the NHS. The IRI thresholds used to classify pavement are based on the TIP criteria the MPO adopted in 2020: less than 95 is good, 95 to 170 is fair, and greater than 170 is poor.
* The MPO is contributing funds to this project, which is generally funded by MassDOT or the MBTA.
AAB = Architectural Access Board. ADA = Americans with Disabilities Act. CO2 = carbon dioxide. CTPS = Central Transportation Planning Staff. FFY = federal fiscal year. HSIP = Highway Safety Improvement Program. IRI = International Roughness Index. MassDOT = Massachusetts Department of Transportation. MBTA = Massachusetts Bay Transportation Authority. MCRT = Mass Central Rail Trail. MPO = metropolitan planning organization. N/A = not applicable. NHS = National Highway System. PHED = peak hours of excessive delay. SOV = single-occupancy vehicle. TSP = transit signal priority.

Source: Boston Region MPO staff.

Table A-3
FFYs 2024–28 TIP Project Evaluation Results: Multiple MPO Investment Programs

Bicycle Network and Pedestrian Connections Program

Proponent	Project Number	Project Name	MAPC Subregion	Project Status	Project Cost	Cost / Road Mile	Total Score	Total Base Score	Total Scaled Equity Score	Safety	Safety Equity Score	System Preservation and Modernization	System Preservation Equity Score	Capacity Management and Mobility	Capacity Management Equity Score	Clean Air and Sustainable Communities	Clean Air Equity Score	Economic Vitality
Malden	613088	Spot Pond Brook Greenway	ICC	PRC-Approved (12/20/2022)	$3,250,000	$8,362,573	73	61	12	16.5	3.6	10	2.4	18	5.4	5	0.6	11.5
Natick	610691	Cochituate Rail Trail Extension	MWRC	25% Received (11/21/2022)	$6,690,043	$79,289,399	67	59	8	12	2	11	2.2	18	3.6	5	0.2	13
						Possible Points	100	80	20	20	5.6	14	4.8	18	7.2	14	2.4	14

Complete Streets Program

Proponent	Project Number	Project Name	MAPC Subregion	Project Status	Project Cost	Cost / Road Mile	Total Score	Total Base Score	Total Equity Score	Safety	Safety Equity Score	System Preservation and Modernization	System Preservation Equity Score	Capacity Management and Mobility	Capacity Management Equity Score	Clean Air and Sustainable Communities	Clean Air Equity Score	Economic Vitality
Bellingham	612963	Roadway Rehabilitation of Route 126 (Hartford Road) from 800 feet North of the I-495 NB off ramp to Medway T/L (including Bridge B-06-017).	SWAP	PRC-Approved (9/15/2022)	$10,950,000	$22,383,275	51.8	46.5	5.3	13	1.55	15	2.1	7.5	1.4	5	0.25	6
Boston	612989	Bridge Preservation, B-16-066 (38D), Cambridge Street Over MBTA	ICC	PRC -Approved (12/21/2022)	$15,400,000	$0	53.1	47.25	5.9	5	0.77	15	1.8	12.5	2.56	4.5	0.77	10.25
Ipswich	612738	Argilla Roadway Reconstruction and Adaptation (Crane Estate to Crane Beach)	NSTF	PRC-Approved (5/12/2022)	$5,500,000	$33,689,095	37.1	34	3.1	6	0.5	14	1.3	4	1	5	0.3	5
Wakefield	610545	Envision Wakefield - Main Street Complete Streets Improvements	NSPC	PRC-Approved (12/19/2019)	$16,581,200	$43,691,354	61.8	53	8.8	13	2.6	13	2.7	10	3.1	6	0.4	11
Westwood	608158	Reconstruction of Canton Street (East Street Rotary and University Avenue) Including Bridge N25032	TRIC	25% Received (2/18/2022)	$19,047,306	$29,106,536	53.3	48.25	5	12	1.54	14.5	1.67	9	1.54	3.75	0.25	9
						Possible Points	100	80	20	18	4.6	20	5.6	18	7.2	12	2.6	12

Intersection Improvements Program

Proponent	Project Number	Project Name	MAPC Subregion	Project Status	Project Cost	Cost / Road Mile	Total Score	Total Base Score	Total Equity Score	Safety	Safety Equity Score	System Preservation and Modernization	System Preservation Equity Score	Capacity Management and Mobility	Capacity Management Equity Score	Clean Air and Sustainable Communities	Clean Air Equity Score	Economic Vitality
Canton**	N/A	Randolph and York Street Intersection Signalization	TRIC	Pre-PRC	$500,000	$25,882,353	N/A*	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
						Possible Points	100	80	20	21	5.4	17	5.4	18	6.8	12	2.4	12


*This project was not recommended for moving forward at TIP Readiness Days until the project is formally intiated through MassDOT's system and goes through the Project Review Committee. Staff are actively working with the project proponent and MassDOT District 6 to initiate this project.

Abbreviations
MWRTA = MetroWest Regional Transit Authority. N/A = not applicable. PRC = MassDOT's Project Review Committee.
Metropolitan Area Planning Council (MAPC) Subregions: ICC = Inner Core Committee. MAGIC = Minuteman Advisory Group on Interlocal Coordination. MWRC = MetroWest Regional Collaborative. NSPC = North Suburban Planning Council. NSTF = North Shore Task Force. SSC = South Shore Coalition. SWAP = SouthWest Advisory Planning Committee. TRIC = Three Rivers Interlocal Council.

Table A-4
FFYs 2024–28 TIP Project Evaluation Results: Community Connections Program

Community Connections Program

Proponent	Project Name	MAPC Subregion	Project Cost	Cost/Monthly Passenger Trip	Cost/Point	Total Score	Connectivity	Coordination	Plan Implementation	Transportation Equity	Mode Shift and Demand Projection	Fiscal Sustainability
Concord	Concord Workforce Shuttle*	MAGIC	$369,911	$155	$5,210	71	13	15	6	6	21	10
MWRTA	CatchConnect Microtransit Expansion Phase 2*	MWRC	$402,500	$93	$4,472	90	17	15	15	9	24	10
North Reading	North Reading Demand Response Shuttle Pilot Program*	NSPC	$77,637	$348	$1,005	77.25	16.25	15	9	9	18	10
Revere	Revere On Demand Shuttle Service*	ICC	$980,976	$30	$17,210	57	17	0	3	12	15	10
Boston	Boston Electric BlueBikes Adoption	ICC	$1,020,000	$21	$12,143	84	17	15	6	12	24	10
Cambridge	Cambridge Electric BlueBikes Adoption	ICC	$352,575	$13	$4,353	81	17	15	6	9	24	10
Canton	Canton Center Bicycle Racks	TRIC	$10,000	$12	$139	72	14	9	12	6	21	10
Canton	Canton Public Schools Bike Program	TRIC	$22,500	$4	$592	38	13	0	6	6	3	10
Lynn	Broad Street Corridor TSP	ICC	$297,800	$2	$3,384	88	17.5	12	13.5	12	23	10
Medford	Medford Bicycle Parking - Tier 1	ICC	$29,600	$12	$352	84	17	12	12	9	24	10
Medford	Medford Bluebikes Expansion	ICC	$118,643	$53	$1,521	78	17	15	3	9	24	10
Possible Points				Possible Points		100	18	15	15	18	24	10

*These shuttle projects requested funding for FFY24 and additional years. Concord requested $139,749 in FFY24, $122,165 in FFY25, and $107,997 in FFY26. The MWRTA requested $140,000 in FFY24, $132,500 in FFY 25, and $107,977 in FFY 26. $130,000 in FFY 26. North Reading requested $41,787 in FFY 24 and $35,850 in FFY 25. Revere requested $356,825 in FFY 24, $338,521 in FFY 25, and $285,630 in FFY 26. The Cost/Monthly Passenger Trip for these projects only shows the cost/monthly user for the first year of funding.

Abbreviations
MWRTA = MetroWest Regional Transit Authority. N/A = not applicable. PRC = MassDOT's Project Review Committee.
Metropolitan Area Planning Council (MAPC) Subregions: ICC = Inner Core Committee. MAGIC = Minuteman Advisory Group on Interlocal Coordination. MWRC = MetroWest Regional Collaborative. NSPC = North Suburban Planning Council. NSTF = North Shore Task Force. SSC = South Shore Coalition. SWAP = SouthWest Advisory Planning Committee. TRIC = Three Rivers Interlocal Council.

Table A-5
FFYs 2024–28 TIP Evaluation Criteria: Bicycle Network and Pedestrian Connections Program


MPO Goal Area	Safety: Transportation by all modes will be safe. (Up to 20 points)
Criterion	Project improves bicycle safety (up to 5 points) +5 High total effectiveness of bicycle safety improvements +3 Medium total effectiveness of bicycle safety improvements +1 Low total effectiveness of bicycle safety improvements +0 Project does not implement bicycle safety improvements	Project improves pedestrian safety (up to 5 points) +5 High total effectiveness of pedestrian safety improvements +3 Medium total effectiveness of pedestrian safety improvements +1 Low total effectiveness of pedestrian safety improvements +0 Project does not implement pedestrian safety improvements	Project improves safety for all users (up to 3 points) +3 Project includes three or more eligible multimodal safety improvements +2 Project includes two eligible multimodal safety improvements +1 Project includes one eligible multimodal safety improvement +0 Project does not include any eligible multimodal safety improvements
Bonus/Penalty (if applicable)	Bonus (up to 2 points) +2 Improves bicycle safety at bicycle HSIP cluster	Bonus (up to 2 points) +2 Improves pedestrian safety at pedestrian HSIP cluster	Bonus (up to 3 points) +3 Addresses safety at multiple all-mode HSIP clusters OR a top-200 crash location +2 Addresses safety at one all-mode HSIP cluster
Equity Multiplier?	Yes	Yes	No

MPO Goal Area	System Preservation: Maintain and modernize the transportation system and plan for its resiliency. (Up to 14 points)
Criterion	Project incorporates resiliency elements into its design (up to 5 points) +1 Project implements recommendation(s) as identified in a Hazard Mitigation Plan, Municipal Vulnerability Plan, or climate adaptation plan ------------------------------------------------------------------ +1 Project improves stormwater infrastructure ------------------------------------------------------------------ +1 Project implements innovative resiliency solutions ------------------------------------------------------------------ +1 Project designed to meet a range of future climate projections ------------------------------------------------------------------ +1 Project demonstrates regional coordination on resiliency	Project improves connectivity to critical facilities (up to 2 points) +2 Project improves access to critical facilities	Project improves existing pedestrian facilities (up to 5 points) +5 Existing pedestrian facilities are in poor condition and improvements are included in the project +3 Existing pedestrian facilities are in fair condition and improvements are included in the project +1 Existing pedestrian facilities are in good condition and improvements are included in the project +0 Project does not improve existing pedestrian facilities	Project improves other existing assets (up to 2 points) +2 Project improves three or more other assets +1 Project improves one or two other assets +0 Project does not meet or address criteria
Bonus/Penalty (if applicable)	Penalty -1 Project is located in an existing or projected flood zone and doesn't specify how the project will address future flooding	N/A	N/A	N/A
Equity Multiplier?	Yes	Yes	Yes	No

MPO Goal Area	Capacity Management/Mobility: Use existing facility capacity more efficiently and increase healthy transportation options. (Up to 18 points)
Criterion	Project improves pedestrian network and ADA accessibility (up to 5 points) +5 Project adds new shared-use path +3 Project adds new high-quality sidewalks +1 Project adds new standard sidewalks +0 Project does not improve pedestrian network	Project improves bicycle network (up to 5 points) +5 Project adds new separated bicycle facility (including shared-use paths) +3 Project adds new buffered bicycle facility +1 Project adds new standard bicycle facility +0 Project does not improve bicycle network
Bonus/Penalty (if applicable)	Bonus (up to 4 points) +4 Project closes a gap in the pedestrian network +3 Project improves ADA accessibility beyond minimum required standards +2 Project creates or improves a pedestrian connection to transit +1 Project extends existing pedestrian network	Bonus (up to 4 points) +4 Project closes a gap in the bicycle network +2 Project creates or improves a bicycle connection to transit +2 Project extends existing bicycle network +1 Project makes accommodations for bicycle parking or a bicycle share station
Equity Multiplier?	Yes	Yes

MPO Goal Area	Clean Air/Sustainable Communities: Create an environmentally friendly transportation system. (Up to 14 points)
Criterion	Project reduces CO2 (up to 4 points) +4 300 or more annual tons of CO2 reduced +3 100–299 annual tons of CO2 reduced +2 50–99 annual tons of CO2 reduced +1 Less than 50 annual tons of CO2 reduced 0 No expected impact -1 Less than 50 annual tons of CO2 increased -4 50 or more annual tons of CO2 increased	Project reduces other transportation-related emissions (up to 4 points) +4 1,500 or more total annual kilograms of other emissions reduced +3 750–1499 total annual kilograms of other emissions reduced +2 250–749 total annual kilograms of other emissions reduced +1 Less than 250 total annual kilograms of other emissions reduced 0 No impact -1 Less than 250 total annual kilograms of other emissions increased -4 250 or more total annual kilograms of other emissions increased	Enhances Natural Environment (up to 4 points) +1 Project improves water quality ------------------------------------------------------------------ +1 Project selects a design alternative that avoids impacts to sensitive natural areas ------------------------------------------------------------------ +1 Project reduces urban heat island effect ------------------------------------------------------------------ +1 Project increases access to parks, open space, or other natural assets
Bonus/Penalty (if applicable)	N/A	Bonus/Penalty (up to 2 points) +2 Project reduces NOx emissions in area in top 20% of regional NOx levels -2 Project increases NOx emissions in area in top 20% of regional NOx levels	Penalty -1 Project is anticipated to lead to negative environmental outcomes
Equity Multiplier?	No	Yes	No

MPO Goal Area	Economic Vitality: Ensure our transportation network provides a strong foundation for economic vitality. (Up to 14 points)
Criterion	Project serves sites targeted for future development (up to 4 points) +2 Project improves bicycle access to or within a site ------------------------------------------------------------------ +2 Project improves pedestrian access to or within a site	Project serves existing employment and population centers (up to 4 points) +4 Project mostly serves an existing area of concentrated development +2 Project partly serves an existing area of concentrated development +0 Project does not serve an existing area of concentrated development	Project demonstrates proponent investment (up to 2 points) +2 20 percent or more of the project cost is provided +1 Less than 20 percent of the project cost is provided +0 No non-TIP funding is provided by the project proponent	Project promotes access to affordable housing opportunities (up to 3 points) +3 10.4% or more of housing units are affordable in project area +2 6.6-10.3% of housing units are affordable in project area +1 1-6.5% of housing units are affordable in project area +0 Less than 1% of housing units are affordable in project area
Bonus/Penalty (if applicable)	N/A	N/A	Bonus (up to 1 point) +1 Project proponent supports design process through pilot project OR robust community outreach process	N/A
Equity Multiplier?	No	No	No	No

Total Base Points Possible	80
Total Equity Points Possible	20
Total Possible Points	100

Table A-6
Evaluation Criteria for FFYs 2024 Community Connections Program

OBJECTIVE	CRITERIA	DATA TO USE	SUBCRITERIA/SCORING
SCORING CRITERIA (90 possible points)
NETWORK OR CONNECTIVITY VALUE (18 points)
The primary purpose of the Community Connections Program is to close gaps in the transportation network, especially those in the first or last mile between transit and a destination. Projects will be awarded points based on how effectively a proposed project closes different types of gaps and makes travel easier or more efficient.	Connection to existing activity hubs and residential developments (9/6 points)	Application materials, CTPS GIS layers reflecting relevant destinations and employment and population density	Projects can earn points for any combination of conditions, up to the noted overall maximum. Area projects (up to 9 points) 0 If the project area includes* no dense employment concentrations, or dense residential concentrations, or Major Civic Destinations. +2 for each dense employment concentration OR dense residential concentration included in the project area, up to a maximum of 6 points +1 if the project targets a specific dense employment concentration, OR dense residential concentration, or Major Civic Destination +.25 points for each Major Civic Destination included in the project area, up to a maximum of 2 points Point projects (up to 6 points) 0 points if the project has no locations/stops within** ½ mile of a dense employment concentration OR a dense residential concentration +1 point for each location/stop within ½ mile of a dense employment concentration OR a dense residential concentration, up to a maximum of 4 points +2 points for each location/stop within ¼ mile of a dense employment concentration OR a dense residential concentration, up to a maximum of 4 points +.25 points for each location/stop within a ½ mile of a Major Civic Destination, up to a maximum of 1 point +.5 points for each location/stop within a ¼ mile of a Major Civic Destination, up to a maximum of 1 point A project area includes a dense employment or residential concentration if it contains more than 50% of a transportation analysis zone (TAZ) that meets employment or residential density thresholds *For dense employment or residential concentrations, ”Within” is defined as the location being within the specified distance of the centroid of the relevant TAZs
	Connection to existing transit hubs (6 points)	Application materials, CTPS GIS layers reflecting transit stops and routes	Projects can earn points for any combination of conditions, up to the noted overall maximum. Area Projects (up to 9 points) 0 if the project area does not include any transit stops for any mode +1 for each bus stop with infrequent service in the project area, up to a maximum of 4 points +2 for each commuter rail station in the project area, up to a maximum of 4 points +3 for each bus stop with frequent service in the project area, up to a maximum of 6 points +4 for each rapid transit stop in the project area, up to a maximum of 8 points Point Projects (up to 6 points) 0 If none of the project locations are within 1/2 mile of any transit stations/routes +1 if there is one bus stop with infrequent service within ½ mile of a project location +2 if there are multiple instances of a bus stop with infrequent service within ½ mile of a project location +3 if there is a commuter rail station within ½ mile of a project location +4 if there is a bus stop with frequent service within ¼ mile of a project location +5 if there are multiple instances of bus stops with frequent service within ¼ mile of a project location +6 if there is at least one rapid transit stop within ¼ mile of a project location
	Connection to other transportation infrastructure (6 points)	Application materials, CTPS GIS layers including bicycle infrastructure (derived from MAPC trailmap and other sources) and MassDOT road inventory with enhanced sidewalk data	Area Projects (not eligible for points in this subcriterion) n/a Point Projects (up to 6 points) 0 if none of the project locations are within 250 feet of sidewalks or protected bicycle infrastructure +1 for each project location within 250 feet of a sidewalk, up to a maximum of 2 points +1 for each project location within 250 feet of protected bicycle infrastructure, up to a maximum of 2 points +2 if any project location is within 250 feet of BOTH a sidewalk and protected bicycle infrastructure
Coordination or cooperation between multiple entities (15 points)
The MPO prioritizes collaboration among different entities in the transportation planning process. Cooperative project planning and execution is particularly important for first-mile and last-mile connections of the type that the Community Connections Program is intended to facilitate. The cooperation can involve actors from both the public and private sectors.	Number of collaborating entities (15 points)	Application materials	+3 for each collaborating entity beyond the sponsor, up to a maximum of 9 points -15 for Bus Lane, TSP, or E-Ink projects that do not have a letter of support from the MBTA Additionally +3 If the project consists of collaborators from multiple sectors (i.e., public and private, or public and nonprofit) +3 If each listed collaborator has provided a formal letter of support to the MPO
Inclusion in and consistency with local and regional plans (15 points)
A comprehensive planning process is important to ensure that projects occur in an environment of collaboration and careful consideration rather than independently. This criterion proposes to award points based on the extent to which a proposed project has been included in prior plans at both the local and regional levels, and whether it meets the goals of those plans.	Inclusion in local plans (6 points)	Application materials, local plans	Project is scored based on the best condition it meets. +3 if the project supports a theme, idea, or concept in a local comprehensive plan or equivalent document. +6 If the project is specifically included as a need or priority in a local comprehensive plan or equivalent document
	Inclusion in MPO plans (6 points)	Application materials, LRTP Needs Assessment, UPWP Database, MAPC plans	Project earns points for each condition met. +3 If the project is identified as a need in a current or previous LRTP Needs Assessment or another regional plan +3 if the project or a large element thereof is recommended in MPO/MAPC technical studies
	Inclusion in statewide plans (3 point)	Application materials, LRTP Needs Assessment	+3 If the project is included as a need or priority in MassDOT or other statewide planning studies
TRANSPORTATION EQUITY (18 points)
The MPO seeks to prioritize investments that benefit equity populations, while minimizing any burdens associated with MPO-funded projects for these populations.	Serves one or more transportation equity demographics, as identified by the MPO (18 points)	Application materials, CTPS GIS layers	See detailed scoring criteria handout: https://docs.google.com/document/d/1YXBvJoj2FM2UJp0qd88Ew_n_KR5OscyS/edit?usp=sharing&ouid=110620465990841651473&rtpof=true&sd=true
GENERATION OF MODE SHIFT (12 points)
Another primary purpose of the Community Connection Program is to enable modal shift from SOV to transit or other modes. This criterion awards points based on the project’s effectiveness at creating mode shift and/or enabling trips that were previously impossible by non-SOV modes.	Allow new trips that would not be otherwise possible without a car (12 points)	Application materials	This criterion will be scored by MPO staff based on materials and narrative provided in the project application, considering factors such as: •Whether the project competes with or complements existing transit service •If the project brings non-SOV transportation options to an area that previously had few or none •Whether the project provides complementary connections to existing non-SOV transportation services and infrastructure •Whether the project serves a particular, identified transportation purpose that includes or facilitates mode shift •If relevant, whether the project shows it has a viable path to fiscal independence at the end of the MPO grant period •Reliability of projected local or other non-MPO financial contributions •If the project serves a population that travels through the project area but does not live adjacent to or within it •The quality and innovation of the project's marketing plan, when relevant
DEMAND PROJECTION (12 points)
Gaining an understanding of how many transportation network users a project will reach is crucial for understanding its cost-effectiveness.	Overall demand estimate (6 points)	Application materials	0 If the application contains no estimates of demand or usage +3 If the application contains estimates of demand or usage, but no documentation of methods used to create them or background information +6 If the application contains estimates of demand or usage that are backed by extensive documentation of methods used to create the estimates and/or other relevant background information
	Staff evaluation of demand estimate (6 points)	Application materials	0 If staff judge that demand/usage projections are unrealistic or not present +3 if staff judge that demand/usage projections are somewhat realistic +6 If staff judge that demand/usage projections are realistic
BUDGET SHEET (10 points)
	Quality of information provided (10 points)	Application materials	0 if there is no budget sheet present or the budget sheet does not contain useful information +5 if the budget sheet is incomplete or inaccurate, but usable with work +10 if the budget sheet is completed with all necessary information
Definitions Area projects: Those that are geographically defined as a polygon, rather than delivered at a particular point or points. Examples: microtransit covering an entire town, or an education project for a neighborhood. Point projects: Those that are delivered at a particular point or points and can be geographically defined as such. Examples: bike racks, fixed-route transit (the stops are the points) Population density concentration: any TAZ with more than 4,000 people per square mile. Employment density concentration: any TAZ with more than 4,000 jobs per square mile Frequent service: Follows the MBTA Service Delivery Policy. Stops with frequent service defined are defined in a CTPS layer used in pilot round CC scoring and for the Destination 2040 Needs Assessment. This layer measures frequency at the stop level rather than the route level; that is, a stop with four buses per hour, from two different routes, is considered a frequent stop.
ADA = Americans with Disabilities Act. CMAQ = Congestion Mitigation and Air Quality Improvement Program. CTPS = Central Transportation Planning Staff. FFY = federal fiscal year. GIS = geographic information systems. GTFS = general transit feed specification. LRTP = Long-Range Transportation Plan. MAPC = Metropolitan Area Planning Council. MassDOT = Massachusetts Department of Transportation. MBTA = Massachusetts Bay Transportation Authority. MPO = Metropolitan Planning Organization. MVP = Municipal Vulnerability Program. SOV = single occupancy vehicle. TAD = Traffic and Design. TAZ = transportation analysis zone. TIP = Transportation Improvement Program.

Table A-7
FFYs 2024–28 TIP Evaluation Criteria: Complete Streets Program

MPO Goal Area	Safety: Transportation by all modes will be safe. (Up to 18 points)
Criterion	Project addresses severe-crash location (up to 3 points) +3 EPDO value of 1000 or more +2 EPDO value of 250 to 999 +1 EPDO value of less than 250 +0 No EPDO value	Project addresses high-crash location (up to 3 points) +3 Crash rate of 6.45 or greater +2 Crash rate between 4.25 and 6.45 +1 Crash rate between 2.05 and 4.25 +0 Crash rate below 2.05	Project addresses truck-related safety issue (up to 2 points) +2 High total effectiveness of truck safety improvements +1 Medium total effectiveness of truck safety improvements +0 Low total effectiveness or no implementation of truck safety improvements	Project improves bicycle safety (up to 2 points) +2 High total effectiveness of bicycle safety improvements +1 Medium total effectiveness of bicycle safety improvements +0 Low total effectiveness or no inclusion of bicycle safety improvements	Project improves pedestrian safety (up to 2 points) +2 High total effectiveness of pedestrian safety improvements +1 Medium total effectiveness of pedestrian safety improvements +0 Low total effectiveness or no inclusion of pedestrian safety improvements	Project improves safety for all users (up to 2 points) +2 Project includes three or more eligible multimodal safety improvements +1 Project includes one or two eligible multimodal safety improvements +0 Project does not include any eligible multimodal safety improvements
Bonus/Penalty (if applicable)	N/A	N/A	N/A	Bonus (up to 1 point) +1 Improves bicycle safety at bicycle HSIP cluster	Bonus (up to 1 point) +1 Improves pedestrian safety at pedestrian HSIP cluster	Bonus (up to 2 points) +2 Addresses safety at multiple all-mode HSIP clusters OR a top-200 crash location +1 Addresses safety at one all-mode HSIP cluster
Equity Multiplier?	Yes	No	No	Yes	Yes	No

MPO Goal Area	System Preservation: Maintain and modernize the transportation system and plan for its resiliency. (Up to 20 points)
Criterion	Project incorporates resiliency elements into its design (up to 5 points) +1 Project implements recommendation(s) as identified in a Hazard Mitigation Plan, Municipal Vulnerability Plan, or climate adaptation plan ------------------------------------------------------------------ +1 Project improves stormwater infrastructure ------------------------------------------------------------------ +1 Project implements innovative resiliency solutions ------------------------------------------------------------------ +1 Project designed to meet a range of future climate projections ------------------------------------------------------------------ +1 Project demonstrates regional coordination on resiliency	Improves evacuation route (up to 1 point) +1 Project improves an evacuation route, diversion route, or alternate diversion route	Improves connectivity to critical facilities (up to 1 point) +1 Project improves access to critical facilities	Project improves existing transit assets (up to 2 points) +2 Project makes significant improvements to existing transit assets +1 Project makes moderate improvements to existing transit assets +0 Project does not modernize or improve the condition of existing transit assets	Project improves existing pedestrian facilities (up to 3 points) +3 Existing pedestrian facilities are in poor condition and improvements are included in the project +2 Existing pedestrian facilities are in fair condition and improvements are included in the project +1 Existing pedestrian facilities are in good condition and improvements are included in the project +0 Project does not improve existing pedestrian facilities	Project improves existing bridges (up to 2 points) +2 Project improves existing bridge(s) from poor to good condition through rehabilitation or replacement +1 Project improves existing bridge(s) from fair to good condition through rehabilitation or replacement 0 Project does not include bridge improvements	Project improves existing pavement condition (up to 2 points) +2 Current roadway condition is poor and pavement improvements are included in the project +1 Current roadway condition is fair and pavement improvements are included in the project +0 Current roadway condition is good	Project improves other existing assets (up to 2 points) +2 Project improves three or more other assets +1 Project improves one or two other assets +0 Project does not meet or address criteria
Bonus/Penalty (if applicable)	Penalty -1 Project is located in an existing or projected flood zone and doesn't specify how the project will address future flooding	N/A	N/A	N/A		Bonus (up to 1 point) +1 Project reduces or removes vehicle weight/height restrictions OR improves bridge on a key roadway	Bonus (up to 1 point) +1 Project improves pavement on a key corridor OR improves roadway substructure	N/A
Equity Multiplier?	Yes	No	Yes	Yes	Yes	No	No	No

MPO Goal Area	Capacity Management/Mobility: Use existing facility capacity more efficiently and increase healthy transportation options. (Up to 18 points)
Criterion	Project reduces transit passenger delay (up to 3 points) +3 Project results in significant passenger delay reductions +2 Project results in moderate passenger delay reductions +1 Project results in limited passenger delay reductions +0 Project does not make meaningful reductions in passenger delay	Project invests in New Transit Assets (up to 2 points) +2 Project makes significant investments in new transit assets +1 Project makes moderate investments in new transit assets +0 Project does not invest in new transit assets	Project improves pedestrian network and ADA accessibility (up to 3 points) +3 Project adds new sidewalks on high-utility link +2 Project adds new sidewalks on medium-utility link +1 Project adds new sidewalks on low-utility link +0 Project does not improve pedestrian network	Project improves bicycle network (up to 3 points) +3 Project adds new separated bicycle facility (including shared-use paths) +2 Project adds new buffered bicycle facility +1 Project adds new standard bicycle facility +0 Project does not improve bicycle network	Project improves truck movement (up to 2 points) +2 Project significantly improves truck movement +1 Project somewhat improves truck movement +0 Project makes minimal improvements to truck movement or does not address criteria	Project addresses unreliable corridor (up to 1 point) +1 Project addresses a corridor with a level of travel time reliability above 1.25 +0 Project does not meet or address criteria
Bonus/Penalty (if applicable)	Bonus/Penalty (+/- up to 1 point) +1 Project invests in bus-priority infrastructure on MPO-identified priority corridor -1 Project increases transit vehicle delays or negatively impacts transit vehicle movement	N/A	Bonus (up to 1 point) +1 Project closes a gap in the pedestrian network +1 Project enhances ADA accessibility beyond minimum required standards +1 Project creates or improves pedestrian connection to transit	Bonus (up to 1 point) +1 Project closes a gap in the bicycle network +1 Project creates or improves a bicycle connection to transit +1 Project makes accommodations for bicycle parking or bicycle share station +1 Project is on a high-utility link	Bonus (up to 1 point) +1 Project addresses key freight corridor or makes accommodations for freight deliveries	N/A
Equity Multiplier?	Yes	Yes	Yes	Yes	No	No

MPO Goal Area	Clean Air/Sustainable Communities: Create an environmentally friendly transportation system. (Up to 12 points)
Criterion	Project reduces CO2 (up to 3 points) +3 750 or more annual tons of CO2 reduced +2 250-749 annual tons of CO2 reduced +1 Less than 250 annual tons of CO2 reduced 0 No impact -1 Less than 250 annual tons of CO2 increased -3 250 or more annual tons of CO2 increased	Project reduces other transportation-related emissions (up to 3 points) +3 1,000 or more total kilograms of VOC, NOx, CO reduced +2 250-999 total kilograms of VOC, NOx, CO reduced +1 Less than 250 total kilograms of VOC, NOx, CO reduced 0 No impact -1 Less than 250 total kilograms of VOC, NOx, CO increased -3 250 or more total kilograms of VOC, NOx, CO increased	Enhances Natural Environment (up to 4 points) +1 Project improves water quality ------------------------------------------------------------------ +1 Project selects a design alternative that avoids impacts to sensitive natural areas ------------------------------------------------------------------ +1 Project reduces urban heat island effect ------------------------------------------------------------------ +1 Project increases access to parks, open space, or other natural assets
Bonus/Penalty (if applicable)	N/A	Bonus/Penalty (up to 2 points) +2 Project reduces NOx emissions in area in top 20% of regional NOx levels -2 Project increases NOx emissions in area in top 20% of regional NOx levels	Penalty -1 Project is anticipated to lead to negative environmental outcomes
Equity Multiplier?	No	Yes	No

MPO Goal Area	Economic Vitality: Ensure our transportation network provides a strong foundation for economic vitality. (Up to 12 points)
Criterion	Project serves sites targeted for future development (up to 3 points) +1 Project improves bicycle access to or within a site ------------------------------------------------------------------ +1 Project improves pedestrian access to or within a site ------------------------------------------------------------------ +1 Project improves transit access to or within a site	Project serves existing employment and population centers (up to 3 points) +3 Project mostly serves an existing area of concentrated development +1 Project partly serves an existing area of concentrated development +0 Project does not serve an existing area of concentrated development	Project demonstrates proponent investment (up to 2 points) +2 20 percent or more of the project cost is provided +1 Less than 20 percent of the project cost is provided +0 No non-TIP funding is provided by the project proponent	Project promotes access to affordable housing opportunities (up to 3 points) +3 10.4% or more of housing units are affordable in project area +2 6.6-10.3% of housing units are affordable in project area +1 1-6.5% of housing units are affordable in project area +0 Less than 1% of housing units are affordable in project area
Bonus/Penalty (if applicable)	N/A	N/A	Bonus (up to 1 point) +1 Project proponent supports design process through pilot project OR robust community outreach process	N/A
Equity Multiplier?	No	No	No	No

Total Base Points Possible	80
Total Equity Points Possible	20
Total Possible Points	100

Table A-8

FFYs 2024–28 TIP Evaluation Criteria: Intersection Improvements Program

MPO Goal Area	Safety: Transportation by all modes will be safe. (Up to 21 points)
Criterion	Project addresses severe-crash location (up to 3 points) +3 EPDO value of 300 or more +2 EPDO value of 100 to 299 +1 EPDO value of less than 100 +0 No EPDO value	Project addresses high-crash location (up to 3 points) Signalized Intersection: +3 Crash rate of 1.69 or greater +2 Crash rate between 1.02 and 1.69 +1 Crash rate between 0.35 and 1.02 +0 Crash rate below 0.35 Unsignalized Intersection: +3 Crash rate of 1.36 or greater +2 Crash rate between 0.78 and 1.36 +1 Crash rate between 0.20 and 0.78 +0 Crash rate below 0.20	Project addresses truck-related safety issue (up to 2 points) +2 High total effectiveness of truck safety improvements +1 Medium total effectiveness of truck safety improvements +0 Low total effectiveness or no implementation of truck safety improvements	Project improves bicycle safety (up to 3 points) +3 High total effectiveness of bicycle safety improvements +2 Medium total effectiveness of bicycle safety improvements +1 Low total effectiveness of bicycle safety improvements +0 Project does not include bicycle safety improvements	Project improves pedestrian safety (up to 3 points) +3 High total effectiveness of pedestrian safety improvements +2 Medium total effectiveness of pedestrian safety improvements +1 Low total effectiveness of pedestrian safety improvements +0 Project does not include pedestrian safety improvements	Project improves safety for all users (up to 3 points) +3 Project includes three or more eligible multimodal safety improvements +2 Project includes two eligible multimodal safety improvements +1 Project includes one eligible multimodal safety improvement +0 Project does not include any eligible multimodal safety improvements
Bonus/Penalty (if applicable)	N/A	N/A	N/A	Bonus (up to 1 point) +1 Improves bicycle safety at bicycle HSIP cluster	Bonus (up to 1 point) +1 Improves pedestrian safety at pedestrian HSIP cluster	Bonus (up to 2 points) +2 Addresses safety at multiple all-mode HSIP clusters OR a top-200 crash location +1 Addresses safety at one all-mode HSIP cluster
Equity Multiplier?	Yes	No	No	Yes	Yes	No

MPO Goal Area	System Preservation: Maintain and modernize the transportation system and plan for its resiliency. (Up to 17 points)
Criterion	Project incorporates resiliency elements into its design (up to 5 points) +1 Project implements recommendation(s) as identified in a Hazard Mitigation Plan, Municipal Vulnerability Plan, or climate adaptation plan ------------------------------------------------------------------ +1 Project improves stormwater infrastructure ------------------------------------------------------------------ +1 Project implements innovative resiliency solutions ------------------------------------------------------------------ +1 Project designed to meet a range of future climate projections ------------------------------------------------------------------ +1 Project demonstrates regional coordination on resiliency	Improves evacuation route (up to 1 point) +1 Project improves an evacuation route, diversion route, or alternate diversion route	Improves connectivity to critical facilities (up to 1 point) +1 Project improves access to critical facilities	Project improves existing transit assets (up to 2 points) +2 Project makes significant improvements to existing transit assets +1 Project makes moderate improvements to existing transit assets +0 Project does not modernize or improve the condition of existing transit assets	Project improves existing pedestrian facilities (up to 3 points) +3 Existing pedestrian facilities are in poor condition and improvements are included in the project +2 Existing pedestrian facilities are in fair condition and improvements are included in the project +1 Existing pedestrian facilities are in good condition and improvements are included in the project +0 Project does not improve existing pedestrian facilities	Project improves existing pavement condition (up to 2 points) +2 Current roadway condition is poor and pavement improvements are included in the project +1 Current roadway condition is fair and pavement improvements are included in the project +0 Current roadway condition is good	Project improves other existing assets (up to 2 points) +2 Project improves three or more other assets +1 Project improves one or two other assets +0 Project does not meet or address criteria
Bonus/Penalty (if applicable)	Penalty -1 Project is located in an existing or projected flood zone and doesn't specify how the project will address future flooding	N/A	N/A	N/A		Bonus (up to 1 point) +1 Project improves pavement on a key corridor OR improves roadway substructure	N/A
Equity Multiplier?	Yes	No	Yes	Yes	Yes	No	No

MPO Goal Area	Capacity Management/Mobility: Use existing facility capacity more efficiently and increase healthy transportation options. (Up to 18 points)
Criterion	Project reduces transit passenger delay (up to 3 points) +3 Project results in significant passenger delay reductions +2 Project results in moderate passenger delay reductions +1 Project results in limited passenger delay reductions +0 Project does not make meaningful reductions in passenger delay	Project invests in New Transit Assets (up to 2 points) +2 Project makes significant investments in new transit assets +1 Project makes moderate investments in new transit assets +0 Project does not invest in new transit assets	Project improves pedestrian network and ADA accessibility (up to 3 points) +3 Project adds new sidewalks on high-utility link +2 Project adds new sidewalks on medium-utility link +1 Project adds new sidewalks on low-utility link +0 Project does not improve pedestrian network	Project improves bicycle network (up to 3 points) +3 Project adds new separated bicycle facility (including shared-use paths) +2 Project adds new buffered bicycle facility +1 Project adds new standard bicycle facility +0 Project does not improve bicycle network	Project improves truck movement (up to 2 points) +2 Project significantly improves truck movement +1 Project somewhat improves truck movement +0 Project makes minimal improvements to truck movement or does not address criteria	Project addresses unreliable corridor (up to 1 point) +1 Project addresses a corridor with a level of travel time reliability above 1.25 +0 Project does not meet or address criteria
Bonus/Penalty (if applicable)	Bonus/Penalty (+/- up to 1 point) +1 Project invests in bus-priority infrastructure on MPO-identified priority corridor -1 Project increases transit vehicle delays or negatively impacts transit vehicle movement	N/A	Bonus (up to 1 point) +1 Project closes a gap in the pedestrian network +1 Project enhances ADA accessibility beyond minimum required standards +1 Project creates or improves pedestrian connection to transit	Bonus (up to 1 point) +1 Project closes a gap in the bicycle network +1 Project creates or improves a bicycle connection to transit +1 Project makes accommodations for bicycle parking or bicycle share station +1 Project is on a high-utility link	Bonus (up to 1 point) +1 Project addresses key freight corridor or makes accommodations for freight deliveries	N/A
Equity Multiplier?	Yes	Yes	Yes	Yes	No	No

MPO Goal Area	Clean Air/Sustainable Communities: Create an environmentally friendly transportation system. (Up to 12 points)
Criterion	Project reduces CO2 (up to 3 points) +3 750 or more annual tons of CO2 reduced +2 250-749 annual tons of CO2 reduced +1 Less than 250 annual tons of CO2 reduced 0 No impact -1 Less than 250 annual tons of CO2 increased -3 250 or more annual tons of CO2 increased	Project reduces other transportation-related emissions (up to 3 points) +3 1,000 or more total kilograms of VOC, NOx, CO reduced +2 250-999 total kilograms of VOC, NOx, CO reduced +1 Less than 250 total kilograms of VOC, NOx, CO reduced 0 No impact -1 Less than 250 total kilograms of VOC, NOx, CO increased -3 250 or more total kilograms of VOC, NOx, CO increased	Enhances Natural Environment (up to 4 points) +1 Project improves water quality ------------------------------------------------------------------ +1 Project selects a design alternative that avoids impacts to sensitive natural areas ------------------------------------------------------------------ +1 Project reduces urban heat island effect ------------------------------------------------------------------ +1 Project increases access to parks, open space, or other natural assets
Bonus/Penalty (if applicable)	N/A	Bonus/Penalty (up to 2 points) +2 Project reduces NOx emissions in area in top 20% of regional NOx levels -2 Project increases NOx emissions in area in top 20% of regional NOx levels	Penalty -1 Project is anticipated to lead to negative environmental outcomes
Equity Multiplier?	No	Yes	No

MPO Goal Area	Economic Vitality: Ensure our transportation network provides a strong foundation for economic vitality. (Up to 12 points)
Criterion	Project serves sites targeted for future development (up to 3 points) +1 Project improves bicycle access to or within a site ------------------------------------------------------------------ +1 Project improves pedestrian access to or within a site ------------------------------------------------------------------ +1 Project improves transit access to or within a site	Project serves existing employment and population centers (up to 3 points) +3 Project mostly serves an existing area of concentrated development +1 Project partly serves an existing area of concentrated development +0 Project does not serve an existing area of concentrated development	Project demonstrates proponent investment (up to 2 points) +2 20 percent or more of the project cost is provided +1 Less than 20 percent of the project cost is provided +0 No non-TIP funding is provided by the project proponent	Project promotes access to affordable housing opportunities (up to 3 points) +3 10.4% or more of housing units are affordable in project area +2 6.6-10.3% of housing units are affordable in project area +1 1-6.5% of housing units are affordable in project area +0 Less than 1% of housing units are affordable in project area
Bonus/Penalty (if applicable)	N/A	N/A	Bonus (up to 1 point) +1 Project proponent supports design process through pilot project OR robust community outreach process	N/A
Equity Multiplier?	No	No	No	No

Total Base Points Possible	80
Total Equity Points Possible	20
Total Possible Points	100

Table A-9

FFYs 2024–28 TIP Evaluation Criteria: Major Infrastructure Program

MPO Goal Area	Safety: Transportation by all modes will be safe. (Up to 18 points)
Criterion	Project addresses severe-crash location (up to 3 points) +3 EPDO value of 1000 or more +2 EPDO value of 250 to 999 +1 EPDO value of less than 250 +0 No EPDO value	Project addresses high-crash location (up to 3 points) For corridor projects: +3 Crash rate of 6.45 or greater +2 Crash rate between 4.25 and 6.45 +1 Crash rate between 2.05 and 4.25 +0 Crash rate below 2.05 ------------------------------------------------------------------ For intersection and interchange projects: Signalized Intersection: +3 Crash rate of 1.69 or greater +2 Crash rate between 1.02 and 1.69 +1 Crash rate between 0.35 and 1.02 +0 Crash rate below 0.35 Unsignalized Intersection: +3 Crash rate of 1.36 or greater +2 Crash rate between 0.78 and 1.36 +1 Crash rate between 0.20 and 0.78 +0 Crash rate below 0.20	Project addresses truck-related safety issue (up to 2 points) +2 High total effectiveness of truck safety improvements +1 Medium total effectiveness of truck safety improvements +0 Low total effectiveness or no implementation of truck safety improvements	Project improves bicycle safety (up to 2 points) +2 High total effectiveness of bicycle safety improvements +1 Medium total effectiveness of bicycle safety improvements +0 Low total effectiveness or no inclusion of bicycle safety improvements	Project improves pedestrian safety (up to 2 points) +2 High total effectiveness of pedestrian safety improvements +1 Medium total effectiveness of pedestrian safety improvements +0 Low total effectiveness or no inclusion of pedestrian safety improvements	Project improves safety for all users (up to 2 points) +2 Project includes three or more eligible multimodal safety improvements +1 Project includes one or two eligible multimodal safety improvements +0 Project does not include any eligible multimodal safety improvements
Bonus/Penalty (if applicable)	N/A	N/A	N/A	Bonus (up to 1 point) +1 Improves bicycle safety at bicycle HSIP cluster	Bonus (up to 1 point) +1 Improves pedestrian safety at pedestrian HSIP cluster	Bonus (up to 2 points) +2 Addresses safety at multiple all-mode HSIP clusters OR a top-200 crash location +1 Addresses safety at one all-mode HSIP cluster
Equity Multiplier?	Yes	No	No	Yes	Yes	No

MPO Goal Area	System Preservation: Maintain and modernize the transportation system and plan for its resiliency. (Up to 20 points)
Criterion	Project incorporates resiliency elements into its design (up to 5 points) +1 Project implements recommendation(s) as identified in a Hazard Mitigation Plan, Municipal Vulnerability Plan, or climate adaptation plan ------------------------------------------------------------------ +1 Project improves stormwater infrastructure ------------------------------------------------------------------ +1 Project implements innovative resiliency solutions ------------------------------------------------------------------ +1 Project designed to meet a range of future climate projections ------------------------------------------------------------------ +1 Project demonstrates regional coordination on resiliency	Improves evacuation route (up to 1 point) +1 Project improves an evacuation route, diversion route, or alternate diversion route	Improves connectivity to critical facilities (up to 1 point) +1 Project improves access to critical facilities	Project improves existing transit assets (up to 2 points) +2 Project makes significant improvements to existing transit assets +1 Project makes moderate improvements to existing transit assets +0 Project does not modernize or improve the condition of existing transit assets	Project improves existing pedestrian facilities (up to 3 points) +3 Existing pedestrian facilities are in poor condition and improvements are included in the project +2 Existing pedestrian facilities are in fair condition and improvements are included in the project +1 Existing pedestrian facilities are in good condition and improvements are included in the project +0 Project does not improve existing pedestrian facilities	Project improves existing bridges (up to 2 points) +2 Project improves existing bridge(s) from poor to good condition through rehabilitation or replacement +1 Project improves existing bridge(s) from fair to good condition through rehabilitation or replacement 0 Project does not include bridge improvements	Project improves existing pavement condition (up to 2 points) +2 Current roadway condition is poor and pavement improvements are included in the project +1 Current roadway condition is fair and pavement improvements are included in the project +0 Current roadway condition is good	Project improves other existing assets (up to 2 points) +2 Project improves three or more other assets +1 Project improves one or two other assets +0 Project does not meet or address criteria
Bonus/Penalty (if applicable)	Penalty -1 Project is located in an existing or projected flood zone and doesn't specify how the project will address future flooding	N/A	N/A	N/A		Bonus (up to 1 point) +1 Project reduces or removes vehicle weight/height restrictions OR improves bridge on a key roadway	Bonus (up to 1 point) +1 Project improves pavement on a key corridor OR improves roadway substructure	N/A
Equity Multiplier?	Yes	No	Yes	Yes	Yes	No	No	No

MPO Goal Area	Capacity Management/Mobility: Use existing facility capacity more efficiently and increase healthy transportation options. (Up to 18 points)
Criterion	Project reduces transit passenger delay (up to 3 points) +3 Project results in significant passenger delay reductions +2 Project results in moderate passenger delay reductions +1 Project results in limited passenger delay reductions +0 Project does not make meaningful reductions in passenger delay	Project invests in New Transit Assets (up to 2 points) +2 Project makes significant investments in new transit assets +1 Project makes moderate investments in new transit assets +0 Project does not invest in new transit assets	Project improves pedestrian network and ADA accessibility (up to 3 points) +3 Project adds new sidewalks on high-utility link +2 Project adds new sidewalks on medium-utility link +1 Project adds new sidewalks on low-utility link +0 Project does not improve pedestrian network	Project improves bicycle network (up to 3 points) +3 Project adds new separated bicycle facility (including shared-use paths) +2 Project adds new buffered bicycle facility +1 Project adds new standard bicycle facility +0 Project does not improve bicycle network	Project improves truck movement (up to 2 points) +2 Project significantly improves truck movement +1 Project somewhat improves truck movement +0 Project makes minimal improvements to truck movement or does not address criteria	Project addresses unreliable corridor (up to 1 point) +1 Project addresses a corridor with a level of travel time reliability above 1.25 +0 Project does not meet or address criteria
Bonus/Penalty (if applicable)	Bonus/Penalty (+/- up to 1 point) +1 Project invests in bus-priority infrastructure on MPO-identified priority corridor -1 Project increases transit vehicle delays or negatively impacts transit vehicle movement	N/A	Bonus (up to 1 point) +1 Project closes a gap in the pedestrian network +1 Project enhances ADA accessibility beyond minimum required standards +1 Project creates or improves pedestrian connection to transit	Bonus (up to 1 point) +1 Project closes a gap in the bicycle network +1 Project creates or improves a bicycle connection to transit +1 Project makes accommodations for bicycle parking or bicycle share station +1 Project is on a high-utility link	Bonus (up to 1 point) +1 Project addresses key freight corridor or makes accommodations for freight deliveries	N/A
Equity Multiplier?	Yes	Yes	Yes	Yes	No	No

MPO Goal Area	Clean Air/Sustainable Communities: Create an environmentally friendly transportation system. (Up to 12 points)
Criterion	Project reduces CO2 (up to 3 points) +3 750 or more annual tons of CO2 reduced +2 250-749 annual tons of CO2 reduced +1 Less than 250 annual tons of CO2 reduced 0 No impact -1 Less than 250 annual tons of CO2 increased -3 250 or more annual tons of CO2 increased	Project reduces other transportation-related emissions (up to 3 points) +3 1,000 or more total kilograms of VOC, NOx, CO reduced +2 250-999 total kilograms of VOC, NOx, CO reduced +1 Less than 250 total kilograms of VOC, NOx, CO reduced 0 No impact -1 Less than 250 total kilograms of VOC, NOx, CO increased -3 250 or more total kilograms of VOC, NOx, CO increased	Enhances Natural Environment (up to 4 points) +1 Project improves water quality ------------------------------------------------------------------ +1 Project selects a design alternative that avoids impacts to sensitive natural areas ------------------------------------------------------------------ +1 Project reduces urban heat island effect ------------------------------------------------------------------ +1 Project increases access to parks, open space, or other natural assets
Bonus/Penalty (if applicable)	N/A	Bonus/Penalty (up to 2 points) +2 Project reduces NOx emissions in area in top 20% of regional NOx levels -2 Project increases NOx emissions in area in top 20% of regional NOx levels	Penalty -1 Project is anticipated to lead to negative environmental outcomes
Equity Multiplier?	No	Yes	No

MPO Goal Area	Economic Vitality: Ensure our transportation network provides a strong foundation for economic vitality. (Up to 12 points)
Criterion	Project serves sites targeted for future development (up to 3 points) +1 Project improves bicycle access to or within a site ------------------------------------------------------------------ +1 Project improves pedestrian access to or within a site ------------------------------------------------------------------ +1 Project improves transit access to or within a site	Project serves existing employment and population centers (up to 3 points) +3 Project mostly serves an existing area of concentrated development +1 Project partly serves an existing area of concentrated development +0 Project does not serve an existing area of concentrated development	Project demonstrates proponent investment (up to 2 points) +2 20 percent or more of the project cost is provided +1 Less than 20 percent of the project cost is provided +0 No non-TIP funding is provided by the project proponent	Project promotes access to affordable housing opportunities (up to 3 points) +3 10.4% or more of housing units are affordable in project area +2 6.6-10.3% of housing units are affordable in project area +1 1-6.5% of housing units are affordable in project area +0 Less than 1% of housing units are affordable in project area
Bonus/Penalty (if applicable)	N/A	N/A	Bonus (up to 1 point) +1 Project proponent supports design process through pilot project OR robust community outreach process	N/A
Equity Multiplier?	No	No	No	No

Total Base Points Possible	80
Total Equity Points Possible	20
Total Possible Points	100

Table A-10

Evaluation Criteria for FFYs 2021-25 TIP and Prior TIP Cycles (Archived)

OBJECTIVES	CRITERIA	SUBCRITERIA/SCORING
SAFETY: Transportation by all modes will be safe.
Reduce the number and severity of crashes and safety incidents for all modes Reduce serious injuries and fatalities from transportation Make investments and support initiatives that help protect transportation customers, employees, and the public from safety and security threats	Crash severity value: EPDO index (0–5 points)	+5 EPDO value of 300 or more +4 EPDO value between 200 and 299 +3 EPDO value between 100 and 199 +2 EPDO value between 50 and 99 +1 EPDO value less than 50 +0 No EPDO value
	Crash rate (intersections and corridors) (0–5 points)	Intersection Evaluation Score Signalized Unsignalized +5 ≥ 1.69 ≥ 1.36 +4 1.31–1.69 1.03–1.36 +3 0.93–1.31 0.70–1.03 +2 0.55–0.93 0.37–0.70 +1 0.36–0.55 0.21–0.37 +0 < 0.36 < 0.21
	Crash rate (intersections and corridors) (0–5 points)	Corridor Interstate Principal Arterials or Other Evaluation Other Freeways Minor Arterials Score Expressways Major–Minor Collectors +5 ≥ 1.81 ≥ 6.45 +4 1.40–1.81 5.35–6.45 +3 1.00–1.40 4.25–5.35 +2 0.59–1.00 3.15– 4.25 +1 0.40–0.59 2.05–3.15 +0 < 0.40 < 2.05
	Improves truck-related safety issue (0–5 points)	+3 High total effectiveness of truck safety countermeasures +2 Medium total effectiveness of truck safety countermeasures +1 Low total effectiveness of truck safety countermeasures +0 Does not implement truck safety countermeasures
	Improves truck-related safety issue (0–5 points)	If project scores points above, then it is eligible for additional points below: +2 Improves truck safety at HSIP Cluster
	Improves bicycle safety (0–5 points)	+3 High total effectiveness of bicycle safety countermeasures +2 Medium total effectiveness of bicycle safety countermeasures +1 Low total effectiveness of bicycle safety countermeasures +0 Does not implement bicycle safety countermeasures
	Improves bicycle safety (0–5 points)	If project scores points above, then it is eligible for additional points below: +2 Improves bicycle safety at HSIP Bicycle Cluster +1 Improves bicycle safety at HSIP Cluster
	Improves pedestrian safety (0–5 points)	+3 High total effectiveness of pedestrian safety countermeasures +2 Medium total effectiveness of pedestrian safety countermeasures +1 Low total effectiveness of pedestrian safety countermeasures +0 Does not implement pedestrian safety countermeasures
	Improves pedestrian safety (0–5 points)	If project scores points above, then it is eligible for additional points below: +2 Improves pedestrian safety at HSIP Pedestrian Cluster +1 Improves pedestrian safety at HSIP Cluster
	Improves safety or removes an at-grade railroad crossing (0–5 points)	+5 Removes an at-grade railroad crossing +3 Significantly improves safety at an at-grade railroad crossing +1 Improves safety at an at-grade railroad crossing +0 Does not include a railroad crossing
SAFETY (30 possible points)
SYSTEM PRESERVATION AND MODERNIZATION: Maintain and modernize the transportation system and plan for its resiliency.
Maintain the transportation system, including roadway, transit, and active transportation infrastructure, in a state of good repair Modernize transportation infrastructure across all modes Prioritize projects that support planned response capability to existing or future extreme conditions (sea level rise, flooding, and other natural and security-related man-made impacts)	Improves substandard roadway bridge(s) (0–3 points)	+3 Condition is structurally deficient and improvements are included in the project +1 Condition is functionally obsolete and improvements are included in the project +0 Does not improve substandard bridge or does not include a bridge
	Improves substandard pavement (0–6 points)	+6 IRI rating greater than 320: Poor condition and pavement improvements are included in the project +4 IRI rating between 320 and 191: Fair condition and pavement improvements are included in the project +0 IRI rating less than 190: Good or better condition
	Improves substandard traffic signal equipment (0–6 points)	+6 Poor condition and improvements are included in the project +4 Fair condition and improvements are included in the project +0 Does not meet or address criteria
	Improves transit asset(s) (0–3 points)	+2 Brings transit asset into state of good repair +1 Meets an identified-need in an asset management plan +0 Does not meet or address criteria
	Improves substandard sidewalk(s) (0–3 points)	+3 Poor condition and sidewalk improvements are included in the project +2 Fair condition and sidewalk improvements are included in the project +0 Sidewalk condition is good or better
	Improves emergency response (0–2 points)	+1 Project improves an evacuation route, diversion route, or alternate diversion route
	Improves emergency response (0–2 points)	+1 Project improves an access route to or in proximity to an emergency support location
	Improves ability to respond to extreme conditions (0–6 points)	+2 Addresses flooding problem and/or sea level rise and enables facility to function in such a condition
		+1 Brings facility up to current seismic design standards
		+1 Addresses critical transportation infrastructure
		+1 Protects freight network elements
		+1 Implements hazard mitigation or climate adaptation plans
SYSTEM PRESERVATION AND MODERNIZATION (29 possible points)
CAPACITY MANAGEMENT AND MOBILITY: Use existing facility capacity more efficiently and increase transportation options.
Improve access to and accessibility of all modes, especially transit and active transportation Support roadway management and operations strategies to improve travel reliability, mitigate congestion, and support non-single-occupant-vehicle travel Emphasize capacity management through low-cost investments; prioritize projects that focus on lower-cost operations/ management-type improvements such as intersection improvements, transit priority, and Complete Streets solutions Improve reliability of transit Increase percentage of population and employment within one-quarter mile of transit stations and stops Support community-based and private-initiative services to meet first- and last-mile, reverse commute, and other non-traditional transportation needs, including those of people 75 years old or older and people with disabilities Support strategies to better manage automobile and bicycle parking capacity and usage at transit stations Fund improvements to bicycle and pedestrian networks aimed at creating a connected network of bicycle and accessible sidewalk facilities by expanding existing facilities and closing gaps Increase percentage of population and places of employment with access to facilities on the bicycle network Eliminate bottlenecks on the freight network, improve freight reliability, and enhance freight intermodal connections	Reduces transit vehicle delay (0–4 points)	+3 5 hours or more of daily transit vehicle delay reduced +2 1–5 hours of daily transit vehicle delay reduced +1 Less than one hour of daily transit vehicle delay reduced +0 Does not reduce transit delay
	Reduces transit vehicle delay (0–4 points)	If project scores points above, then it is eligible for additional points below: +1 Improves one or more key bus route(s)
	Improves pedestrian network and ADA accessibility (0–5 points)	+2 Adds new sidewalk(s) (including shared-use paths)
		+2 Improves ADA accessibility
		+1 Closes a gap in the pedestrian network
		+0 Does not improve pedestrian network
	Improves bicycle network (0–4 points)	+3 Adds new physically separated bicycle facility (including shared-use paths) +2 Adds new buffered bicycle facility +1 Adds new standard bicycle facility
	Improves bicycle network (0–4 points)	+1 Closes a gap in the bicycle network +0 Does not improve bicycle network
	Improves intermodal accommodations/ connections to transit (0–6 points)	+6 Meets or addresses criteria to a high degree +4 Meets or addresses criteria to a medium degree +2 Meets or addresses criteria to a low degree +0 Does not meet or address criteria
	Improves truck movement (0–4 points)	+3 Meets or addresses criteria to a high degree +2 Meets or addresses criteria to a medium degree +1 Meets or addresses criteria to a low degree +0 Does not meet or address criteria
	Improves truck movement (0–4 points)	If project scores points above, then it is eligible for additional points below: +1 Addresses MPO-identified bottleneck location
	Reduces vehicle congestion (0–6 points)	+6 400 hours or more of daily vehicle delay reduced +4 100–400 hours of daily vehicle delay reduced +2 Less than 100 hours of daily vehicle delay reduced +0 Does not meet or address criteria
CAPACITY MANAGEMENT AND MOBILITY (29 possible points)
CLEAN AIR/SUSTAINABLE COMMUNITIES: Create an environmentally friendly transportation system.
Reduce greenhouse gases generated in the Boston region by all transportation modes Reduce other transportation-related pollutants Minimize negative environmental impacts of the transportation system Support land use policies consistent with smart, healthy, and resilient growth	Reduces CO₂ (-5–5 points)	+5 1,000 or more annual tons of CO₂ reduced +4 500–999 annual tons of CO₂ reduced +3 250–499 annual tons of CO₂ reduced +2 100–249 annual tons of CO₂ reduced +1 Less than 100 annual tons of CO₂ reduced 0 No impact -1 Less than 100 annual tons of CO₂increased -2 100–249 annual tons of CO₂increased -3 250–499 annual tons of CO₂increased -4 500–999 annual tons of CO₂increased -5 1,000 or more annual tons of CO₂ increased
	Reduces other transportation-related emissions (VOC, NOx, CO) (-5–5 points)	+5 2,000 or more total kilograms of VOC, NOx, CO reduced +4 1,000–1999 total kilograms of VOC, NOx, CO reduced +3 500–999 total kilograms of VOC, NOx, CO reduced +2 250–499 total kilograms of VOC, NOx, CO reduced +1 Less than 250 total kilograms of VOC, NOx, CO reduced 0 No impact -1 Less than 250 total kilograms of VOC, NOx, CO increased -2 250–499 total kilograms of VOC, NOx, CO increased -3 500–999 total kilograms of VOC, NOx, CO increased -4 1,000–1999 total kilograms of VOC, NOx, CO increased -5 2,000 or more total kilograms of VOC, NOx, CO increased
	Addresses environmental impacts (0–4 points)	+1 Addresses water quality
		+1 Addresses cultural resources/open space
		+1 Addresses wetlands/resource areas
		+1 Addresses wildlife preservation/protected habitats
		+0 Does not meet or address criteria
	Is in an EOEEA-certified "Green Community" (0–2 points)	+2 Project is located in a “Green Community” +0 Project is not located in a "Green Community"
CLEAN AIR/SUSTAINABLE COMMUNITIES (16 possible points)
TRANSPORTATION EQUITY: Ensure that all people receive comparable benefits from, and are not disproportionately burdened by, MPO investments, regardless of race, color, national origin, age, income, ability, or sex.
Prioritize MPO investments that benefit equity populations Minimize potential harmful environmental, health, and safety effects of MPO funded projects for all equity populations Promote investments that support transportation for all ages (age-friendly communities) Promote investments that are accessible to all people regardless of ability	Serves Title VI/non-discrimination populations (-10–12 points)	+2 Serves minority (high concentration) population (>2,000 people) +1 Serves minority (low concentration) population (≤ 2,000 people)
		+2 Serves low-income (high concentration) population (>2,000 people) +1 Serves low-income (low concentration) population (≤ 2,000 people)
		+2 Serves limited-English proficiency (high concentration) population (>1,000 people) +1 Serves limited-English proficiency (low concentration) population (≤ 1,000 people)
		+2 Serves elderly (high concentration) population (>2,000 people) +1 Serves elderly (low concentration) population (≤ 2,000 people)
		+2 Serves zero vehicle households (high concentration) population (>1,000 people) +1 Serves zero vehicle households (low concentration) population (≤ 1,000 people)
		+2 Serves persons with disabilities (high concentration) population (>1,000 people) +1 Serves persons with disabilities (low concentration) population (≤ 1,000 people)
		+0 Does not serve Title VI or non-discrimination populations -10 Creates a burden for Title VI/non -discrimination populations
TRANSPORTATION EQUITY (12 possible points)
ECONOMIC VITALITY: Ensure our transportation network provides a strong foundation for economic vitality.
Respond to mobility needs of the workforce population Minimize the burden of housing and transportation costs for residents in the region Prioritize transportation investments that serve residential, commercial, and logistics targeted development sites and "Priority Places" identified in the MBTA's Focus 40 plan Prioritize transportation investments consistent with compact-growth strategies of the regional transportation plan	Serves targeted development site (0–6 points)	+2 Provides new transit access to or within site +1 Improves transit access to or within site +1 Provides for bicycle access to or within site +1 Provides for pedestrian access to or within site +1 Provides for improved road access to or within site +0 Does not provide any of the above measures
	Provides for development consistent with the compact growth strategies of MetroFuture (0–5 points)	+2 Mostly serves an existing area of concentrated development +1 Partly serves an existing area of concentrated development +1 Supports local zoning or other regulations that are supportive of smart growth development +2 Complements other local financial or regulatory support that fosters economic revitalization in a manner consistent with smart growth development principles +0 Does not provide any of the above measures
	Provides multimodal access to an activity center (0–4 points)	+1 Provides transit access (within a quarter mile) to an activity center
		+1 Provides truck access to an activity center
		+1 Provides bicycle access to an activity center
		+1 Provides pedestrian access to an activity center
		+0 Does not provide multimodal access
	Leverages other investments (non-TIP funding) (0–3 points)	+3 Meets or addresses criteria to a high degree (>30 percent of the project cost) +2 Meets or addresses criteria to a medium degree (10–30 percent of the project cost) +1 Meets or addresses criteria to a low degree (< 10 percent of the project cost) +0 Does not meet or address criteria
ECONOMIC VITALITY (18 possible points)
TOTAL SCORE (134 possible points)

Table A-11

FFYs 2021 TIP Community Connections Criteria (Archived)

Key
Blue = Criteria that apply to all projects
Green = Criteria for capital projects
Red/Pink = Criteria for operating projects

OBJECTIVE	CRITERIA	FACTORS
PROJECT ELIGIBILITY VERIFICATION
Each project funded through this program must show an air quality benefit when analyzed through the MPO’s air quality analysis process. Projects must be ready to begin construction or operation by October 2020. Project sponsors or proponents must demonstrate that they have gained support from stakeholders and have the institutional capacity to carry out the project within the MPO timeframe.	Air Quality Analysis	Projects must pass a spreadsheet-based air quality benefit test based on a variety of data inputs customized to the type of project.
	Proponent's Project Management Capacity	Names, experience, and time commitment of project management staff, as provided by the proponent.
GENERAL SCORING CRITERIA (30 possible points)
Network or connectivity value (6 points)
The primary purpose of the Community Connections Program is to close gaps in the transportation network, especially those in the first or last mile between transit and a destination. Projects will be awarded points based on how effectively a proposed project closes different types of gaps and makes travel easier or more efficient.	Connection to existing activity hubs and residential developments (2 points)	Proximity of the project or service to employment, residential, and civic activity hubs, such as dense areas of employment or housing.
	Connection to existing transit hubs (2 points)	Proximity of the project to transit service, with added incentive for connecting to frequent or high-quality service.
	Connection to other transportation infrastructure (2 points)	Proximity of the project to sidewalk or protected or off-road bicycle infrastructure.
Coordination or cooperation between multiple entities (5 points)
The MPO prioritizes collaboration among different entities in the transportation planning process. Cooperative project planning and execution is particularly important for first-mile and last-mile connections of the type that the Community Connections Program is intended to facilitate. The cooperation can involve actors from both the public and private sectors.	Number of collaborating entities (5 points)	Number and variety (judged by sector of origin) of entities collaborating to support the project.
Inclusion in and consistency with local and regional plans (5 points)
A comprehensive planning process is important to ensure that projects occur in an environment of collaboration and careful consideration rather than independently. This criterion proposes to award points based on the extent to which a proposed project has been included in prior plans at both the local and regional levels, and whether it meets the goals of those plans.	Inclusion in local plans (2 points)	Whether the project is included as a need or priority in a local comprehensive plan.
	Inclusion in MPO plans (2 points)	Whether the project is identified as a need in the LRTP Needs Assessment or recommended in an MPO or MAPC study.
	Inclusion in statewide plans (1 point)	Whether the project is included as a need or priority in a MassDOT or other statewide study.
Transportation equity (5 points)
The MPO seeks to target investments to areas that benefit a high percentage of low-income and minority populations; minimize any burdens associated with MPO-funded projects in low-income and minority areas; and break down barriers to participation in MPO-decision making.	Serves a demographic of transportation equity concern, as identified by the MPO (5 points)	The extent to which the project serves equity populations.
Generation of mode shift (4 points)
Another primary purpose of the Community Connection Program is to enable modal shift from SOV to transit or other modes. This criterion would award points based on the project’s effectiveness at creating mode shift and/or enabling trips that were previously impossible by non-SOV modes.	Allow new trips that would not be otherwise possible without a car (4 points)	Whether the project adds to overall non-automotive mobility by creating new connections or making trips possible that were not previously, without detracting from or competing with existing transit options.
Demand projection (4 points)
Gaining an understanding of how many transportation network users a project will reach is crucial for understanding its cost-effectiveness.	Overall demand estimate (2 points)	Presence of demand/usage estimates and quality of analysis used to support them in the application materials.
	Staff evaluation of demand estimate (2 points)	Whether staff judge the demand/usage projections realistic.
TYPE-SPECIFIC EVALUATION CRITERIA: CAPITAL PROJECTS (30 points)
SAFETY BENEFITS (12 points)
Bicycle safety (6 points)
Improving safety on the regional transportation network is one of the MPO’s key goals. This criterion would award points to projects that improve safety for the most vulnerable users of the network – people walking and people riding bicycles. An overall score of the effectiveness of bicycle safety countermeasures will be made through professional judgement comparing existing facilities, safety issues, use, and desired/anticipated use to the proposed bicycle safety countermeasures planned to be implemented as part of the project.	Total effectiveness of bicycle safety countermeasures (6 points)	Existing and potential bicyclist usage of the infrastructure and effectiveness of the expected safety improvements.
Pedestrian safety (6 points)
An overall score of the effectiveness of pedestrian safety countermeasures will be made through professional judgement comparing existing facilities, safety issues, use, and desired/anticipated use to the proposed pedestrian safety countermeasures planned to be implemented as part of the project.	Total effectiveness of pedestrian safety countermeasures (6 points)	Existing and potential pedestrian usage of the infrastructure and effectiveness of the expected safety improvements.
Lifecycle cost-effectiveness (10 points)
In addition to the initial construction costs, the MPO is concerned that projects funded through the Community Connection Program remain fiscally sustainable after MPO-awarded funding runs out. Projects proposed to the program should be cost-effective compared to potential alternatives, and proponents should demonstrate that local maintenance budgets will be able to accommodate the increased costs of maintaining the project.	Lifecycle Alternatives Analysis (5 Points)	Presence of a cost-effectiveness analysis in the application and whether the analysis is qualitative or quantitative.
	Maintenance budget and plan (5 Points)	Identification of a maintenance plan for the project, including the entity responsible for it and a source of funds.
Resilience to weather and environmental hazards (8 points)
Resilience in the face of increasingly destructive storms and weather hazards is a growing concern in the Boston region, and is codified in the MPO’s System Preservation goal. Project proponents should demonstrate that their project will not cause damage to a sensitive ecosystem and that it will be able to resist damage from extreme weather events.	Impact on areas of environmental concern (6 points)	Magnitude of the project's environmental impact, positive or negative.
	Relationship to resilience plans (2 points)	Whether the project is included in local resilience plans.
TYPE-SPECIFIC CRITERIA: OPERATIONAL PROJECTS
Long-Term Financial Plan (12 points)
	Annual operating costs (2 points)	Whether the estimate of operating costs is present and realistic.
	Annual maintenance costs (1 point)	Whether the estimate of maintenance costs is present and realistic.
	All other costs (1 point)	Whether the estimate of other costs is present and realistic.
	Fare structure (2 points)	Presence of a detailed description of the proposed fare structure and explanation thereof.
	Plan for fiscal sustainability (6 points)	Whether the application identifies full funding for the project (reflecting a local match to MPO funds) for 0, 1, 2, 3 or more years.
Service Plan (10 points)
	Service Plan (4 points)	Presence of details on: • Plans for ADA compliance • Frequency and routing of service • How the service plans meet the need of projected riders
	Operational/contracting plan (4 points)	Presence of details on administrative and/or contracting plans and the background of the operator.
	Marketing plan (2 points)	Presence of a detailed description of a marketing plan.
Performance Monitoring Plan (8 points)
	Data management plan (3 points)	Inclusion of plans for data collection, analysis for monitoring service, and sharing the data with the MPO.
	Passenger survey (2 points)	Whether the application describes plans for a ridership survey and the frequency with which it will be administered.
	Trip-level boarding counts (1 point)	Presence of plans for trip-level data collection.
	Stop-level data collection (1 point)	Presence of plans for stop-level data collection.
	Marketing evaluation (1 point)	Presence of plans for an evaluation of the marketing effort.
ADA = Americans with Disabilities Act. CMAQ = Congestion Mitigation and Air Quality Improvement Program. CTPS = Central Transportation Planning Staff. FFY = federal fiscal year. GIS = geographic information systems. GTFS = general transit feed specification. LRTP = Long-Range Transportation Plan. MAPC = Metropolitan Area Planning Council. MassDOT = Massachusetts Department of Transportation. MBTA = Massachusetts Bay Transportation Authority. MPO = Metropolitan Planning Organization. MVP = Municipal Vulnerability Program. SOV = single occupancy vehicle. TAD = Traffic and Design. TAZ = transportation analysis zone. TIP = Transportation Improvement Program.

Appendix B: Greenhouse Gas Monitoring and Evaluation

Background

The Global Warming Solutions Act of 2008 (GWSA) required statewide reductions in greenhouse gas (GHG) emissions of 25 percent below 1990 levels by the year 2020, and 80 percent below 1990 levels by 2050. As part of the GWSA, the Executive Office of Energy and Environmental Affairs developed the Massachusetts Clean Energy and Climate Plan (CECP), which outlined programs to attain the 25 percent reduction by 2020—including a 7.6 percent reduction attributed to the transportation sector.

The Commonwealth’s 13 metropolitan planning organizations (MPOs) are integrally involved in helping to achieve GHG emissions reductions mandated under the GWSA. The MPOs work closely with the Massachusetts Department of Transportation (MassDOT) and other involved agencies to develop common transportation goals, policies, and projects that will help to reduce GHG emissions levels statewide, and meet the specific requirements of the GWSA regulation, Global Warming Solutions Act Requirements for the Transportation Sector and the Massachusetts Department of Transportation (310 CMR 60.05). The purpose of this regulation is to assist the Commonwealth in achieving its adopted GHG emissions reduction goals by requiring the following:

MassDOT must demonstrate that its GHG emissions reduction commitments and targets are being achieved.
Each MPO must evaluate and track the GHG emissions and impacts of both its Long Range Transportation Plan (LRTP) and Transportation Improvement Program (TIP).
Each MPO, in consultation with MassDOT, must develop and use procedures to prioritize and select projects for its LRTP and TIP based on factors that include GHG emissions and impacts.

The Commonwealth’s MPOs are meeting the requirements of this regulation through the transportation goals and policies contained in their LRTPs, the major projects planned in their LRTPs, and the mix of new transportation projects that are programmed and implemented through their TIPs.

The GHG tracking and evaluation processes enable the MPOs and MassDOT to identify the anticipated GHG impacts of the planned and programmed projects, and to use GHG impacts as criteria to prioritize transportation projects. This approach is consistent with the GHG emissions reduction policies that promote healthy transportation modes through prioritizing and programming an appropriate balance of roadway, transit, bicycle, and pedestrian investments, as well as policies that support smart growth development patterns by creating a balanced multimodal transportation system.

Regional Tracking and Evaluating Long-Range Transportation Plans

MassDOT coordinated with MPOs and regional planning agencies to implement GHG tracking and to evaluate projects during the development of the LRTPs that were adopted in September 2011. This collaboration continued during the development of the LRTPs and amendments adopted in 2016, and for the TIPs produced for federal fiscal years (FFYs) 2016–19, 2017–21, 2018–22, 2019–23, 2020–24, 2021–25, and 2022–26. Working together, MassDOT and the MPOs have attained the following milestones:

As a supplement to the 2016 LRTPs and Amendment One to the Boston Region MPO’s LRTP, Charting Progress to 2040, the MPOs have completed modeling and developed long-range statewide projections for GHG emissions produced by the transportation sector. The Boston Region MPO’s travel demand model and the statewide travel demand model were used to project GHG emissions levels for 2018, 2019, and 2020 No-Build (base conditions). These projections were developed as part of amendments to 310 CMR 60.05 (adopted in August 2017 by the Massachusetts Department of Environmental Protection) to demonstrate that aggregate transportation GHG emissions reported by MassDOT will meet established annual GHG emissions targets.
All of the MPOs have discussed climate change, addressed GHG emissions reduction projections in their LRTPs, and prepared statements affirming their support for reducing GHG emissions as a regional goal.

Tracking And Evaluating the Transportation Improvement Program

In addition to monitoring the GHG impacts of projects in the LRTP that will add capacity to the transportation system, it also is important to monitor and evaluate the GHG impacts of all transportation projects that are programmed in the TIP. The TIP includes both the larger, capacity-adding projects from the LRTP and smaller projects, which are not included in the LRTP but that may affect GHG emissions. The principal objective of this tracking is to enable the MPOs to evaluate the expected GHG impacts of different projects and to use this information as criteria to prioritize and program projects in future TIPs.

In order to monitor and evaluate the GHG impacts of TIP projects, MassDOT and the MPOs have developed approaches for identifying anticipated GHG emissions impacts of different types of projects. Since carbon dioxide (CO2 ) is the largest component of GHG emissions overall and is the focus of regulation 310 CMR 60.05, CO2 has been used to measure the GHG emissions impacts of transportation projects in the TIP and LRTP.

All TIP projects have been sorted into two categories for analysis: 1) projects with quantified CO2 impacts, and 2) projects with assumed CO2 impacts. Projects with quantified impacts consist of capacity-adding projects from the LRTP and projects from the TIP that underwent a Congestion Mitigation and Air Quality Improvement (CMAQ) program spreadsheet analysis. Projects with assumed impacts are those that would be expected to produce a minor decrease or increase in emissions, and those that would be assumed to have no CO2 impact.

Travel Demand Model

Projects with quantified impacts include capacity-adding projects in the LRTP that were analyzed using the Boston Region MPO’s travel demand model set. No independent calculations were done for these projects during the development of the TIP.

Off-Model Methods

MassDOT’s Office of Transportation Planning provided spreadsheets that are used to determine projects’ eligibility for funding through the CMAQ program. Typically, MPO staff uses data from projects’ functional design reports, which are prepared at the 25-percent design phase, to conduct these calculations. Staff used these spreadsheets to calculate estimated projections of CO2 for each project, in compliance with GWSA regulations. These estimates are shown in Tables B-1 and B-2. A note of “to be determined” is shown for those projects for which a functional design report was not yet available.

As part of the development of the FFYs 2024–28 TIP, analyses were done for the types of projects described below. A summary of steps performed in the analyses is provided.

Traffic Operational Improvement

For an intersection reconstruction or signalization project that typically reduces delay and, therefore, idling, the following steps are taken:

Step 1: Calculate the AM peak hour total intersection delay (seconds)
Step 2: Calculate the PM peak hour total intersection delay (seconds)
Step 3: Select the peak hour with the longer intersection delay
Step 4: Calculate the selected peak hour total intersection delay with improvements
Step 5: Calculate the vehicle delay in hours per day (assumes peak hour delay is 10 percent of daily delay)
Step 6: Input the emissions factors for arterial idling speed from the US Environmental Protection Agency’s Motor Vehicle Emission Simulator (MOVES)
Step 7: Calculate the net emissions change in kilograms per day
Step 8: Calculate the net emissions change in kilograms per year (seasonally adjusted)
Step 9: Calculate the cost effectiveness (first year cost per kilogram of emissions reduced)

Pedestrian and Bicycle Infrastructure

For a shared-use path that would enable more walking and biking trips and reduce automobile trips, the following steps are taken:

Step 1: Calculate the estimated number of one-way trips based on the percentage of workers residing in the communities served by the facility and the communities’ bicycle and pedestrian commuter mode share
Step 2: Calculate the reduction in vehicle-miles traveled per day and per year (assumes each trip is the length of the facility and that the facility operates 200 days per year)
Step 3: Input the MOVES emissions factors for the average commuter travel speed (assumes 35 miles per hour)
Step 4: Calculate the net emissions change in kilograms per year (seasonally adjusted)
Step 5: Calculate the cost effectiveness (first year cost per kilogram of emissions reduced)

Bus Replacement

For a program that replaces old buses with new buses that reduce emissions or run on cleaner fuel, the following steps are taken:

Step 1: Input the MOVES emissions factors for the average bus travel speed (assumes 18 miles per hour) for both the old model year bus and the new model year bus
Step 2: Calculate the fleet vehicle-miles per day based on the vehicle revenue-miles and operating days per year
Step 3: Calculate the net emissions change in kilograms per year (seasonally adjusted)
Step 4: Calculate the cost effectiveness (first-year cost per kilogram of emissions reduced)

Other Types of Projects

Calculations may be performed on the project types listed below:

New and Additional Transit Service: A new bus or shuttle service that reduces automobile trips
Park-and-Ride Lot: A facility that reduces automobile trips by encouraging high-occupancy vehicle (HOV) travel via carpooling or transit
Alternative Fuel Vehicles: New vehicle purchases that replace traditional gas or diesel vehicles with alternative fuel or advanced technology vehicles
Anti-Idling Strategies: Strategies that include incorporating anti-idling technology into fleets and using light-emitting diode (LED) lights on trucks for the purpose of illuminating worksites
Bike-share Projects: Programs in which bicycles are made available for shared use to individuals on a short-term basis, allowing each bicycle to serve several users per day
Induced Travel: Projects associated with a roadway capacity change that gives rise to new automobile trips
Speed Reduction Projects: Projects that result in slower vehicle travel speeds and, therefore, reduced emissions
Transit Signal Priority Projects: Technology at signalized intersections or along corridors that affect bus travel times
Truck Stop Electrification: Provides truck drivers with necessary services, such as heating, air conditioning, or appliances, without requiring them to idle their engines

Analyzing Projects with Assumed Impacts

Qualitative Decrease or Increase in Carbon Dioxide Emissions

Projects with assumed CO2 impacts are those that could produce a minor decrease or increase in emissions, but the change in emissions cannot be calculated with any precision. Examples include a bicycle rack installation, Safe Routes to School project, or transit marketing or customer service improvement. These projects are categorized as producing an assumed nominal increase or decrease in emissions.

No Carbon Dioxide Impact

Projects that do not change the capacity or use of a facility—for example, a resurfacing project that restores a roadway to its previous condition, or a bridge rehabilitation or replacement that restores the bridge to its previous condition—are assumed to have no CO2 impact. More details about these projects are discussed in Chapter 3. The following tables display the GHG impact analyses of projects funded in the FFYs 2023–27 Highway Program (Table B-1) and Transit Program (Table B-2). Table B-3 summarizes the GHG impact analyses of highway projects completed before FFY 2024. Table B-4 summarizes the GHG impact analyses of transit projects completed before FFY 2024. A project is considered completed when the construction contract has been awarded or the transit vehicles have been purchased.

Table B-1
Greenhouse Gas Regional Highway Project Tracking: FFYs 2024-28 Programmed Projects
Project ID Number	Project Name	GHG Analysis Type	GHG CO2 Impact (kg/yr)	GHG Impact Description
Federal Fiscal Year 2024
110980	NEWTON- WESTON- BRIDGE REHABILITATION, N-12-010=W-29-005, COMMONWEALTH AVENUE (ROUTE 30) OVER THE CHARLES RIVER	Qualitative		No assumed impact/negligible impact on emissions
603739	WRENTHAM- CONSTRUCTION OF ROUTE I-495/ROUTE 1A RAMPS	Quantified	1,233,486	Quantified Decrease in Emissions from Traffic Operational Improvement
605313	NATICK- BRIDGE REPLACEMENT, N-03-020, ROUTE 27 (NORTH MAIN STREET) OVER ROUTE 9 (WORCESTER STREET) AND INTERCHANGE IMPROVEMENTS	Qualitative		No assumed impact/negligible impact on emissions
606496	BOSTON- BRIDGE REHABILITATION, B-16-052, BOWKER OVERPASS OVER MASS PIKE, MBTA/CSX, & IPSWICH STREET AND RAMPS (BINS 4FD, 4FG, 4FE, 4FF & 4FJ)	Qualitative		No assumed impact/negligible impact on emissions
606901	BOSTON- BRIDGE REPLACEMENT, B-16-109, RIVER STREET BRIDGE OVER MBTA/AMTRAK	Qualitative		No assumed impact/negligible impact on emissions
606902	BOSTON- BRIDGE REPLACEMENT, B-16-181, WEST ROXBURY PARKWAY OVER MBTA	Qualitative		No assumed impact/negligible impact on emissions
607342	MILTON- INTERSECTION IMPROVEMENTS AT ROUTE 28 (RANDOLPH AVENUE) & CHICKATAWBUT ROAD	Quantified	1,148,459	Quantified Decrease in Emissions from Traffic Operational Improvement
607777	WATERTOWN- REHABILITATION OF MOUNT AUBURN STREET (ROUTE 16)	Quantified	536,769	Quantified Decrease in Emissions from Complete Streets Project
607977	HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE	Quantified		RTP project included in the statewide model
608007	COHASSET- SCITUATE- CORRIDOR IMPROVEMENTS AND RELATED WORK ON JUSTICE CUSHING HIGHWAY (ROUTE 3A), FROM BEECHWOOD STREET TO HENRY TURNER BAILEY ROAD	Quantified	5,849	Quantified Decrease in Emissions from Complete Streets Project
608522	MIDDLETON- BRIDGE REPLACEMENT, M-20-003, ROUTE 62 (MAPLE STREET) OVER IPSWICH RIVER	Qualitative		No assumed impact/negligible impact on emissions
608562	SOMERVILLE- SIGNAL AND INTERSECTION IMPROVEMENT ON I-93 AT MYSTIC AVENUE AND MCGRATH HIGHWAY (TOP 200 CRASH LOCATION)	Qualitative		Qualitative Decrease in Emissions
609054	LITTLETON- RECONSTRUCTION OF FOSTER STREET	Quantified	1,140	Quantified Decrease in Emissions from Complete Streets Project
609211	PEABODY- INDEPENDENCE GREENWAY EXTENSION	Quantified	36,612	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
609438	CANTON- BRIDGE REPLACEMENT, C-02-042, REVERE COURT OVER WEST BRANCH OF THE NEPONSET RIVER	Qualitative		No assumed impact/negligible impact on emissions
612034	WOBURN- INTERSTATE PAVEMENT PRESERVATION AND RELATED WORK ON I-95	Qualitative		Qualitative Decrease in Emissions
612048	WALTHAM- INTERSTATE MAINTENANCE AND RELATED WORK ON I-95	Qualitative		Qualitative Decrease in Emissions
613196	BURLINGTON- LYNNFIELD- WAKEFIELD- WOBURN- BRIDGE PRESERVATION OF 10 BRIDGES CARRYING I-95	Qualitative		No assumed impact/negligible impact on emissions
613209	BOSTON- BRIDGE PRESERVATION, B-16-236 (39M, 39P, 39U, 39W, 39Y), 5 BRIDGES CARRYING STATE ROUTE 1A (EAST BOSTON EXPRESSWAY NB/SB) AND RAMPS	Qualitative		No assumed impact/negligible impact on emissions
613211	MEDFORD- BRIDGE PRESERVATION OF 10 BRIDGES CARRYING I-93	Qualitative		No assumed impact/negligible impact on emissions
S12114	ROYALL STREET SHUTTLE	Quantified	409,583	Quantified Decrease in Emissions from New/Additional Transit Service
S12694	NEWMO MICROTRANSIT SERVICE EXPANSION	Quantified	91,800	Quantified Decrease in Emissions from New/Additional Transit Service
S12697	PLEASANT STREET SHUTTLE SERVICE EXPANSION	Quantified	183,575	Quantified Decrease in Emissions from New/Additional Transit Service
S12699	STONEHAM SHUTTLE SERVICE	Quantified	41,707	Quantified Decrease in Emissions from New/Additional Transit Service
S12700	CATA ON DEMAND MICROTRANSIT SERVICE EXPANSION	Quantified	33,400	Quantified Decrease in Emissions from New/Additional Transit Service
S12701	MWRTA CATCHCONNECT MICROTRANSIT SERVICE EXPANSION	Quantified	11,936	Quantified Decrease in Emissions from New/Additional Transit Service
S12703	MONTACHUSETT RTA MICROTRANSIT SERVICE	Quantified	24,602	Quantified Decrease in Emissions from New/Additional Transit Service
S12705	LYNN STATION IMPROVEMENTS PHASE II	Qualitative		Qualitative Decrease in Emissions
S12802	LYNN - BROAD STREET CORRIDOR TRANSIT SIGNAL PRIORITY	Quantified	1,328,755	Quantified Decrease in Emissions from Traffic Operational Improvement
S12803	MEDFORD - BICYCLE PARKING (TIER 1)	Qualitative		Qualitative Decrease in Emissions
S12804	MEDFORD - BLUEBIKES EXPANSION	Quantified	4,561	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
S12805	CANTON PUBLIC SCHOOLS BIKE PROGRAM	Qualitative		Qualitative Decrease in Emissions
S12806	CANTON CENTER BICYCLE RACKS	Qualitative		Qualitative Decrease in Emissions
S12807	MWRTA CATCHCONNECT MICROTRANSIT EXPANSION PHASE 2	Quantified	102,845	Quantified Decrease in Emissions from New/Additional Transit Service
S12818	ACTON PARKING MANAGEMENT SYSTEM	Qualitative		Qualitative Decrease in Emissions
S12819	JACKSON SQUARE STATION ACCESSIBILITY IMPROVEMENTS	Qualitative		Qualitative Decrease in Emissions
S12821	RAIL TRANSFORMATION - EARLY ACTION ITEMS - READING STATION AND WILBUR INTERLOCKING	Qualitative		Qualitative Decrease in Emissions
S12822	COLUMBUS AVENUE BUS LANES PHASE 2	Qualitative		Qualitative Decrease in Emissions
S12823	BOSTON - ELECTRIC BLUEBIKES ADOPTION	Quantified	160,925	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
S12824	CAMBRIDGE - ELECTRIC BLUEBIKES ADOPTION	Quantified	66,559	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
Federal Fiscal Year 2025
604564	MAYNARD- BRIDGE REPLACEMENT, M-10-004, ROUTE 62 (MAIN STREET) OVER THE ASSABET RIVER	Qualitative		No assumed impact/negligible impact on emissions
605168	HINGHAM- IMPROVEMENTS ON ROUTE 3A FROM OTIS STREET/COLE ROAD INCLUDING SUMMER STREET AND ROTARY; ROCKLAND STREET TO GEORGE WASHINGTON BOULEVARD.	Quantified	284,736	Quantified Decrease in Emissions from Complete Streets Project
606453	BOSTON- IMPROVEMENTS ON BOYLSTON STREET, FROM INTERSECTION OF BROOKLINE AVENUE & PARK DRIVE TO IPSWICH STREET	Quantified	1,920,790	Quantified Decrease in Emissions from Complete Streets Project
607684	BRAINTREE- BRIDGE REPLACEMENT, B-21-017, WASHINGTON STREET (ST 37) OVER MBTA/CSX RAILROAD	Qualitative		No assumed impact/negligible impact on emissions
607977	HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE	Quantified		RTP project included in the statewide model
608051	WILMINGTON- RECONSTRUCTION ON ROUTE 38 (MAIN STREET), FROM ROUTE 62 TO THE WOBURN C.L.	Quantified	492,167	Quantified Decrease in Emissions from Complete Streets Project
608067	WOBURN- INTERSECTION RECONSTRUCTION AT ROUTE 3 (CAMBRIDGE ROAD) & BEDFORD ROAD AND SOUTH BEDFORD STREET	Quantified	168,263	Quantified Decrease in Emissions from Traffic Operational Improvement
608197	BOSTON- BRIDGE REHABILITATION, B-16-107, CANTERBURY STREET OVER AMTRAK RAILROAD	Qualitative		No assumed impact/negligible impact on emissions
608436	ASHLAND- REHABILITATION AND RAIL CROSSING IMPROVEMENTS ON CHERRY STREET	Qualitative		No assumed impact/negligible impact on emissions
608498	QUINCY- WEYMOUTH- BRAINTREE- RESURFACING AND RELATED WORK ON ROUTE 53	Qualitative		Qualitative Decrease in Emissions
608703	WILMINGTON- BRIDGE REPLACEMENT, W-38-029 (2KV), ST 129 LOWELL STREET OVER I 93	Qualitative		No assumed impact/negligible impact on emissions
608952	CHELSEA- BRIDGE SUPERSTRUCTURE REPLACMENT C-09-013, WASHINGTON AVENUE, CARTER STREET & COUNTY ROAD/ROUTE 1	Qualitative		No assumed impact/negligible impact on emissions
609252	LYNN- REHABILITATION OF ESSEX STREET	Quantified	411,006	Quantified Decrease in Emissions from Complete Streets Project
609257	EVERETT- RECONSTRUCTION OF BEACHAM STREET	Quantified	4,038	Quantified Decrease in Emissions from Complete Streets Project
609399	RANDOLPH- RESURFACING AND RELATED WORK ON ROUTE 28	Qualitative		Qualitative Decrease in Emissions
609467	HAMILTON- IPSWICH- SUPERSTRUCTURE REPLACEMENT, H-03-002=I-01-006, WINTHROP STREET OVER IPSWICH RIVER	Qualitative		No assumed impact/negligible impact on emissions
609516	BURLINGTON- IMPROVEMENTS AT I-95 (ROUTE 128)/ROUTE 3 INTERCHANGE	Qualitative		No assumed impact/negligible impact on emissions
609531	ARLINGTON- STRATTON SCHOOL IMPROVEMENTS (SRTS)	Qualitative		Qualitative Decrease in Emissions
609532	CHELSEA- TARGETED SAFETY IMPROVEMENTS AND RELATED WORK ON BROADWAY, FROM WILLIAMS STREET TO CITY HALL AVENUE	Qualitative		Qualitative Decrease in Emissions
610544	PEABODY- MULTI-USE PATH CONSTRUCTION OF INDEPENDENCE GREENWAY AT I-95 AND ROUTE 1	Quantified	24,423	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
610680	NATICK- LAKE COCHITUATE PATH	Quantified	2,844	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
610722	ACTON- BOXBOROUGH- LITTLETON- PAVEMENT PRESERVATION ROUTE 2	Qualitative		Qualitative Decrease in Emissions
610776	CAMBRIDGE- SUPERSTRUCTURE REPLACEMENT, C-01-031, US ROUTE 3/ROUTE 16/ROUTE 2 OVER MBTA REDLINE	Qualitative		No assumed impact/negligible impact on emissions
610782	DANVERS- MIDDLETON- BRIDGE REPLACEMENT, D-03-009=M-20-005, ANDOVER STREET (SR 114) OVER IPSWICH RIVER	Qualitative		No assumed impact/negligible impact on emissions
611982	MEDFORD- SHARED USE PATH CONNECTION AT THE ROUTE 28/WELLINGTON UNDERPASS	Quantified	4,309	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
611997	NEWTON- HORACE MANN ELEMENTARY SCHOOL IMPROVEMENTS (SRTS)	Qualitative		Qualitative Decrease in Emissions
612001	MEDFORD- MILTON FULLER ROBERTS ELEMENTARY SCHOOL (SRTS)	Qualitative		Qualitative Decrease in Emissions
612028	STONEHAM- DECK REPLACEMENT & SUPERSTRUCTURE REPAIRS, S-27-006 (2L2), (ST 28) FELLSWAY WEST OVER I-93	Qualitative		No assumed impact/negligible impact on emissions
612100	REVERE- IMPROVEMENTS AT BEACHMONT VETERANS ELEMENTARY (SRTS)	Qualitative		Qualitative Decrease in Emissions
612173	BELLINGHAM- BRIDGE REPLACEMENT, B-06-022, MAPLE STREET OVER I-495	Qualitative		No assumed impact/negligible impact on emissions
612178	NATICK- BRIDGE REPLACEMENT, N-03-010, SPEEN STREET OVER RR MBTA/CSX	Qualitative		No assumed impact/negligible impact on emissions
612182	NEWTON- BRIDGE REPLACEMENT, N-12-040, BOYLSTON STREET OVER GREEN LINE D	Qualitative		No assumed impact/negligible impact on emissions
612184	REVERE- BRIDGE REPLACEMENT, R-05-015, REVERE BEACH PARKWAY OVER BROADWAY	Qualitative		No assumed impact/negligible impact on emissions
612196	BRAINTREE- BRIDGE REPLACEMENT, B-21-067, JW MAHER HIGHWAY OVER MONATIQUOT RIVER	Qualitative		No assumed impact/negligible impact on emissions
S12113	TRANSIT MODERNIZATION PROGRAM	Qualitative		No assumed impact/negligible impact on emissions
S12124	COMMUNITY CONNECTIONS PROGRAM	Qualitative		No assumed impact/negligible impact on emissions
S12694	NEWMO MICROTRANSIT SERVICE EXPANSION	Quantified	91,800	Quantified Decrease in Emissions from New/Additional Transit Service
S12697	PLEASANT STREET SHUTTLE SERVICE EXPANSION	Quantified	183,575	Quantified Decrease in Emissions from New/Additional Transit Service
S12699	STONEHAM SHUTTLE SERVICE	Quantified	41,707	Quantified Decrease in Emissions from New/Additional Transit Service
S12700	CATA ON DEMAND MICROTRANSIT SERVICE EXPANSION	Quantified	33,400	Quantified Decrease in Emissions from New/Additional Transit Service
S12701	MWRTA CATCHCONNECT MICROTRANSIT SERVICE EXPANSION	Quantified	11,936	Quantified Decrease in Emissions from New/Additional Transit Service
S12703	MONTACHUSETT RTA MICROTRANSIT SERVICE	Quantified	24,602	Quantified Decrease in Emissions from New/Additional Transit Service
S12807	MWRTA CATCHCONNECT MICROTRANSIT EXPANSION PHASE 2	Quantified	102,845	Quantified Decrease in Emissions from New/Additional Transit Service
S12819	JACKSON SQUARE STATION ACCESSIBILITY IMPROVEMENTS	Qualitative		No assumed impact/negligible impact on emissions
S12820	BIKESHARE SUPPORT SET ASIDE	Not Applicable		No assumed impact/negligible impact on emissions
S12825	BOSTON MPO REGION - FFY2025 PROJECT DESIGN PILOT	Not Applicable		No assumed impact/negligible impact on emissions
Federal Fiscal Year 2026
605321	NORWOOD- BRIDGE PRESERVATION, N-25-026, PROVIDENCE HIGHWAY (STATE ROUTE 1) OVER THE NEPONSET RIVER	Qualitative		No assumed impact/negligible impact on emissions
605743	IPSWICH- RESURFACING & RELATED WORK ON CENTRAL & SOUTH MAIN STREETS	Quantified	4,356	Quantified Decrease in Emissions from Complete Streets Project
605857	NORWOOD- INTERSECTION IMPROVEMENTS @ ROUTE 1 & UNIVERSITY AVENUE/EVERETT STREET	Quantified	1,092,131	Quantified Decrease in Emissions from Traffic Operational Improvement
606449	CAMBRIDGE- BRIDGE REPLACEMENT, C-01-008, FIRST STREET BRIDGE & C-01-040, LAND BOULEVARD/BROAD CANAL BRIDGE	Qualitative		No assumed impact/negligible impact on emissions
607977	HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE	Quantified		RTP project included in the statewide model
608045	MILFORD- REHABILITATION ON ROUTE 16, FROM ROUTE 109 TO BEAVER STREET	Quantified	-38,500	Quantified Increase in Emissions
608564	WATERTOWN- INTERSECTION IMPROVEMENTS AT ROUTE 16 AND GALEN STREET	Qualitative		Qualitative Decrease in Emissions
608940	WESTON- INTERSECTION IMPROVEMENTS BOSTON POST ROAD (ROUTE 20) AT WELLESLEY STREET	Quantified	102,453	Quantified Decrease in Emissions from Traffic Operational Improvement
608954	WESTON- RECONSTRUCTION ON ROUTE 30	Quantified	357,681	Quantified Decrease in Emissions from Complete Streets Project
609204	BELMONT- COMMUNITY PATH, BELMONT COMPONENT OF THE MCRT (PHASE I)	Quantified	26,347	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
609437	SALEM- PEABODY- BOSTON STREET IMPROVEMENTS	Quantified	58,773	Quantified Decrease in Emissions from Complete Streets Project
610537	BOSTON- ELLIS ELEMENTARY TRAFFIC CALMING (SRTS)	Qualitative		Qualitative Decrease in Emissions
610662	WOBURN- ROADWAY AND INTERSECTION IMPROVEMENTS AT WOBURN COMMON, ROUTE 38 (MAIN STREET), WINN STREET, PLEASANT STREET AND MONTVALE AVENUE	Quantified	736,275	Quantified Decrease in Emissions from Traffic Operational Improvement
610665	STONEHAM- INTERSECTION IMPROVEMENTS AT ROUTE 28 (MAIN STREET), NORTH BORDER ROAD AND SOUTH STREET	Qualitative		Qualitative Decrease in Emissions
610675	CHELSEA- RECONSTRUCTION OF SPRUCE STREET, FROM EVERETT AVENUE TO WILLIAMS STREET	Qualitative		No assumed impact/negligible impact on emissions
611954	BOSTON- GUIDE AND TRAFFIC SIGN REPLACEMENT ON I-90/I-93 WITHIN CENTRAL ARTERY/TUNNEL SYSTEM	Qualitative		No assumed impact/negligible impact on emissions
611974	MEDFORD- INTERSECTION IMPROVEMENTS AT MAIN STREET/SOUTH STREET, MAIN STREET/MYSTIC VALLEY PARKWAY RAMPS, AND MAIN STREET/MYSTIC AVENUE	Qualitative		No assumed impact/negligible impact on emissions
612049	RANDOLPH- RESURFACING AND RELATED WORK ON ROUTE 24	Qualitative		Qualitative Decrease in Emissions
612050	BRAINTREE- WEYMOUTH- RESURFACING AND RELATED WORK ON ROUTE 3	Qualitative		Qualitative Decrease in Emissions
612051	CANTON- MILTON- RANDOLPH- INTERSTATE MAINTENANCE AND RELATED WORK ON I-93	Qualitative		Qualitative Decrease in Emissions
612075	SALEM- BRIDGE REPLACEMENT, S-01-024, JEFFERSON AVENUE OVER PARALLEL STREET	Qualitative		No assumed impact/negligible impact on emissions
612076	TOPSFIELD- BRIDGE REPLACEMENT, T-06-013, PERKINS ROW OVER MILE BROOK	Qualitative		No assumed impact/negligible impact on emissions
612099	ASHLAND- BRIDGE REPLACEMENT, A-14-006, CORDAVILLE ROAD OVER SUDBURY RIVER	Qualitative		No assumed impact/negligible impact on emissions
612496	SOMERVILLE- BRIDGE PRESERVATION, S-17-031, I-93 (NB & SB) FROM ROUTE 28 TO TEMPLE STREET (PHASE 2)	Qualitative		No assumed impact/negligible impact on emissions
612523	REVERE- STATE ROAD BEACHMONT CONNECTOR	Qualitative		Qualitative Decrease in Emissions
612599	LYNN- TARGETED SAFETY AND MULTIMODAL IMPROVEMENTS (PLAYBOOK PRIORITY CORRIDORS)	Qualitative		Qualitative Decrease in Emissions
612804	DEDHAM- IMPROVEMENTS AT AVERY ELEMENTARY (SRTS)	Qualitative		Qualitative Decrease in Emissions
612816	BROOKLINE- IMPROVEMENTS AT WILLIAM H. LINCOLN SCHOOL (SRTS)	Qualitative		Qualitative Decrease in Emissions
612884	CHELSEA- IMPROVEMENTS AT MARY C. BURKE ELEMENTARY (SRTS)	Qualitative		Qualitative Decrease in Emissions
612889	SHARON- COTTAGE STREET SCHOOL IMPROVEMENTS (SRTS)	Qualitative		Qualitative Decrease in Emissions
612894	FRAMINGHAM- IMPROVEMENTS AT HARMONY GROVE ELEMENTARY SCHOOL (SRTS)	Qualitative		Qualitative Decrease in Emissions
612989	BOSTON- BRIDGE PRESERVATION, B-16-066 (38D), CAMBRIDGE STREET OVER MBTA	Quantified	5,400	Quantified Decrease in Emissions from Traffic Operational Improvement
S12113	TRANSIT MODERNIZATION PROGRAM	Qualitative		No assumed impact/negligible impact on emissions
S12124	COMMUNITY CONNECTIONS PROGRAM	Qualitative		No assumed impact/negligible impact on emissions
S12807	MWRTA CATCHCONNECT MICROTRANSIT EXPANSION PHASE 2	Quantified	102,845	Quantified Decrease in Emissions from New/Additional Transit Service
S12820	BIKESHARE SUPPORT SET ASIDE	Not Applicable		No assumed impact/negligible impact on emissions
Federal Fiscal Year 2027
605276	BEVERLY- SALEM- DRAWBRIDGE REPLACEMENT/REHABILITATION OF B-11-005=S-01-013, KERNWOOD AVENUE OVER DANVERS RIVER	Qualitative		No assumed impact/negligible impact on emissions
605743	IPSWICH- RESURFACING & RELATED WORK ON CENTRAL & SOUTH MAIN STREETS	Quantified	4,356	Quantified Decrease in Emissions from Complete Streets Project
605857	NORWOOD- INTERSECTION IMPROVEMENTS @ ROUTE 1 & UNIVERSITY AVENUE/EVERETT STREET	Quantified	1,092,131	Quantified Decrease in Emissions from Traffic Operational Improvement
606226	BOSTON- RECONSTRUCTION OF RUTHERFORD AVENUE, FROM CITY SQUARE TO SULLIVAN SQUARE	Quantified		RTP project included in the statewide model
606728	BOSTON- BRIDGE REPLACEMENT B-16-365, STORROW DRIVE OVER BOWKER RAMPS	Qualitative		No assumed impact/negligible impact on emissions
607329	WAKEFIELD- LYNNFIELD- RAIL TRAIL EXTENSION, FROM THE GALVIN MIDDLE SCHOOL TO LYNNFIELD/PEABODY T.L.	Quantified	158,032	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
607420	NATICK- SUPERSTRUCTURE REPLACEMENT, N-03-012, BODEN LANE OVER CSX/MBTA	Qualitative		No assumed impact/negligible impact on emissions
607977	HOPKINTON- WESTBOROUGH- RECONSTRUCTION OF I-90/I-495 INTERCHANGE	Quantified		RTP project included in the statewide model
607981	SOMERVILLE- MCGRATH BOULEVARD CONSTRUCTION	Quantified	136,345	Quantified Decrease in Emissions from Complete Streets Project
608514	BEVERLY- BRIDGE REPLACEMENT, B-11-001, BRIDGE STREET OVER BASS RIVER (HALL-WHITAKER DRAWBRIDGE)	Qualitative		No assumed impact/negligible impact on emissions
609246	LYNN- REHABILITATION OF WESTERN AVENUE (ROUTE 107)	Quantified	902,708	Quantified Decrease in Emissions from Complete Streets Project
610650	BOSTON- GALLIVAN BOULEVARD (ROUTE 203) SAFETY IMPROVEMENTS, FROM WASHINGTON STREET TO GRANITE AVENUE	Qualitative		Qualitative Decrease in Emissions
610660	SUDBURY- WAYLAND- MASS CENTRAL RAIL TRAIL (MCRT)	Quantified	TBD	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
610932	BROOKLINE- REHABILITATION OF WASHINGTON STREET	Quantified	36,431	Quantified Decrease in Emissions from Complete Streets Project
611983	CHELSEA- PARK STREET & PEARL STREET RECONSTRUCTION	Quantified	10,214	Quantified Decrease in Emissions from Complete Streets Project
611987	CAMBRIDGE- BRIDGE REPLACEMENT, C-01-026, MEMORIAL DRIVE OVER BROOKLINE STREET	Qualitative		No assumed impact/negligible impact on emissions
612499	MEDFORD- SOUTH MEDFORD CONNECTOR BIKE PATH	Quantified	TBD	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
612519	BOSTON- BRIDGE REPLACEMENT, B-16-165, BLUE HILL AVENUE OVER RAILROAD	Qualitative		No assumed impact/negligible impact on emissions
612613	NEWTON- INTERSECTION IMPROVEMENTS AT ROUTE 16 AND QUINOBEQUIN ROAD	Qualitative		Qualitative Decrease in Emissions
612615	CANTON- MILTON- ROADWAY RECONSTRUCTION ON ROUTE 138, FROM ROYALL STREET TO DOLLAR LANE	Qualitative		Qualitative Decrease in Emissions
612616	MILTON- INTERSECTION IMPROVEMENTS AT ROUTE 138 AND BRADLEE ROAD	Qualitative		Qualitative Decrease in Emissions
613088	MALDEN- SPOT POND BROOK GREENWAY	Quantified	77,012	Quantified Decrease in Emissions from Bicycle and Pedestrian Infrastructure
613121	EVERETT- TARGETED MULTI-MODAL AND SAFETY IMPROVEMENTS ON ROUTE 16 (DESIGN ONLY)	Qualitative		Qualitative Decrease in Emissions
S12113	TRANSIT MODERNIZATION PROGRAM	Qualitative		No assumed impact/negligible impact on emissions
S12124	COMMUNITY CONNECTIONS PROGRAM	Qualitative		No assumed impact/negligible impact on emissions
S12820	BIKESHARE SUPPORT SET ASIDE	Not Applicable		No assumed impact/negligible impact on emissions

Table B-2
Greenhouse Gas Regional Transit Project Tracking: FFYs 2024-28 Programmed Projects
Regional Transit Authority	Project ID Number	Project Name	GHG Analysis Type	GHG CO2 Impact (kg/yr)	GHG Impact Description
Federal Fiscal Year 2024
CATA	RTD0010579	CATA - Preventive Maintenance	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010583	CATA - buy misc small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010584	CATA - acquire shop equip/small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010587	CATA - repave admin/ops facility parking lot	Qualitative		No assumed impact/negligible impact on emissions
CATA	T00073	CATA - Rehab/Renovation Administration & Operations Facility	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011103	MetroWest RTA - Operating Assistance - Non Fixed Route ADA Paratransit Service	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011104	MetroWest RTA - Acquisition of Bus Support / Facilities Equipment	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011105	MetroWest RTA - Technology Support/Capital Outreach	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011106	MetroWest RTA - Blandin Intermodal	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011107	MetroWest RTA - FCRS Intermodal - Framingham Commuter Rail Station (FCRS)	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011114	MetroWest RTA - 5339 STATEWIDE - Vehicle Replacements (16 cutaways)	Quantified	807,026	Quantified Decrease in Emissions from Bus Replacement
MWRTA	RTD0011123	MetroWest RTA - 5339 STATEWIDE - 2024 EV (Electric Vehicle) Migration	Qualitative		Qualitative Decrease in Emissions
MWRTA	RTD0011130	MetroWest RTA - 5339 DISCRETIONARY - Blandin Hub Projects	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	T00037	MetroWest RTA - CNG Dispensers (2) at the Compressed Natural Gas Fueling Facility	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	T00038	MetroWest RTA - Electronic Sign Board	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA011468	Columbus Ave. Bus Lane Ph. II	Quantified	98,855	Quantified Decrease in Emissions from Other Improvements
MBTA	MBTA011470	Jackson Sq. Station Access Impr.	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA011472	Rail Transformation - Early Action	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA015	5307 Revenue Vehicle Program	Quantified	29,791,730	Quantified Decrease in Emissions from Bus Replacement
MBTA	MBTA016	5307 Signals/Systems Upgrade Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA017	5307 Stations and Facilities Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA018	5337 Bridge & Tunnel Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA019	5337 Revenue Vehicle Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA020	5337 Signals/Systems Upgrade Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA021	5337 Stations and Facilities Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA022	5339 Bus Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA024	RRIF/TIFIA Financing Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA025	Lynn Station Improvements	Qualitative		No assumed impact/negligible impact on emissions
Federal Fiscal Year 2025
CATA	RTD0010579	CATA - Preventive Maintenance	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010583	CATA - buy misc small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010584	CATA - acquire shop equip/small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010591	CATA - Revenue Vehicle Replacement	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
CATA	T00073	CATA - Rehab/Renovation Administration & Operations Facility	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011109	MetroWest RTA - ACQUISITION OF BUS SUPPORT EQUIP/FACILITIES	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011110	MetroWest RTA - TECHNOLOGY SUPPORT/CAPITAL OUTREACH	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011111	MetroWest RTA - TERMINAL, INTERMODAL (TRANSIT) - BLANDIN	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011112	MetroWest RTA - OPERATING ASSISTANCE NON FIXED ROUTE ADA PARA SERV	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011115	MetroWest RTA - 5339 COMPETITIVE REVENUE VEHICLE REPLACEMENT - DISCRETIONARY	Quantified	807,026	Quantified Decrease in Emissions from Bus Replacement
MWRTA	RTD0011121	MetroWest RTA - TERMINAL, INTERMODAL (TRANSIT) - Framingham Commuter Rail Station (FCRS)	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011124	MetroWest RTA - 5339 COMPETITIVE 2025 ELECTRIC VEHICLE (EV) ADDTL ELECTRIFICATION COSTS - DISCRETIONARY	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011133	MetroWest RTA - AFC TRANSITION - MOBILE FARE COLL EQUIP	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011134	MetroWest RTA - PUBLIC RESTROOMS AT BLANDIN & FCRS HUBS - DISCRETIONARY	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011137	MetroWest RTA - VEHICLE REPLACEMENT - CUTAWAYS (8) #2 of 2	Quantified	432,335	Quantified Decrease in Emissions from Bus Replacement
MBTA	MBTA011474	Jackson Sq. Station Access Impr. (CMAQ)	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA027	5307 Bridge & Tunnel Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA028	5307 Revenue Vehicle Program	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
MBTA	MBTA029	5307 Signals/Systems Upgrade Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA030	5307 Stations and Facilities Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA031	5337 Bridge & Tunnel Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA032	5337 Revenue Vehicle Program	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
MBTA	MBTA033	5337 Signals/Systems Upgrade Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA034	5337 Stations and Facilities Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA035	5339 Bus Program	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
MBTA	MBTA036	RRIF Financing - PTC/ATC/Fiber	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA037	RRIF/TIFIA Financing Program	Qualitative		No assumed impact/negligible impact on emissions
Federal Fiscal Year 2026
CATA	RTD0010579	CATA - Preventive Maintenance	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010583	CATA - buy misc small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010584	CATA - acquire shop equip/small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010591	CATA - Revenue Vehicle Replacement	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
CATA	T00073	CATA - Rehab/Renovation Administration & Operations Facility	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011116	MetroWest RTA - OPERATING ASSISTANCE NON FIXED ROUTE ADA PARA SERV	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011117	MetroWest RTA - TERMINAL, INTERMODAL (TRANSIT) - BLANDIN	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011118	MetroWest RTA - TECHNOLOGY SUPPORT/CAPITAL OUTREACH	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011119	MetroWest RTA - ACQUISITION OF BUS SUPPORT EQUIP/FACILITIES	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011120	MetroWest RTA - TERMINAL, INTERMODAL (TRANSIT) - Framingham Commuter Rail Station	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011125	MetroWest RTA - 2026 ELECTRIC VEHICLE (EV) ADDTL ELECTRIFICATION COSTS	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011126	MetroWest RTA - 5339 COMPETITIVE REVENUE VEHICLE REPLACEMENT - DISCRETIONARY	Quantified	518,802	Quantified Decrease in Emissions from Bus Replacement
MWRTA	RTD0011138	MetroWest RTA - VEHICLE REPLACEMENT - CUTAWAYS (8) #2 of 2	Quantified	518,802	Quantified Decrease in Emissions from Bus Replacement
MBTA	MBTA040	5307 Bridge & Tunnel Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA041	5307 Revenue Vehicle Program	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
MBTA	MBTA042	5307 Signals/Systems Upgrade Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA043	5307 Stations and Facilities Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA044	5337 Bridge & Tunnel Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA045	5337 Revenue Vehicle Program	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
MBTA	MBTA046	5337 Signals/Systems Upgrade Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA047	5337 Stations and Facilities Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA048	5339 Bus Program	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
MBTA	MBTA049	RRIF Financing - PTC/ATC/Fiber	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA050	RRIF/TIFIA Financing Program	Qualitative		No assumed impact/negligible impact on emissions
Federal Fiscal Year 2027
CATA	RTD0010579	CATA - Preventive Maintenance	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010583	CATA - buy misc small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010584	CATA - acquire shop equip/small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	T00073	CATA - Rehab/Renovation Administration & Operations Facility	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011195	MetroWest RTA - OPERATING ASSISTANCE NON FIXED ROUTE ADA PARA SERV	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011196	MetroWest RTA - TERMINAL, INTERMODAL (TRANSIT) - BLANDIN	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011197	MetroWest RTA - TECHNOLOGY SUPPORT/CAPITAL OUTREACH	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011198	MetroWest RTA - ACQUISITION OF BUS SUPPORT EQUIP/FACILITIES	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011199	MetroWest RTA - TERMINAL, INTERMODAL (TRANSIT) - Framingham Commuter Rail Station	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011200	MetroWest RTA - 5339 COMPETITIVE REVENUE VEHICLE REPLACEMENT - DISCRETIONARY	Quantified	504,391	Quantified Decrease in Emissions from Bus Replacement
MWRTA	RTD0011201	MetroWest Regional Transit Authority - ELECTRIC VEHICLE (EV) ADDTL ELECTRIFICATION COSTS	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011202	MetroWest RTA - VEHICLE REPLACEMENT - Cutaways #2 of 2	Quantified	576,447	Quantified Decrease in Emissions from Bus Replacement
MWRTA	RTD0011267	MetroWest RTA - EV - Additional Electrification for Vehicles	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA053	5307 Bridge & Tunnel Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA054	5307 Revenue Vehicle Program	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
MBTA	MBTA055	5307 Signals/Systems Upgrade Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA056	5307 Stations and Facilities Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA057	5337 Bridge & Tunnel Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA058	5337 Revenue Vehicle Program	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
MBTA	MBTA059	5337 Signals/Systems Upgrade Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA060	5337 Stations and Facilities Program	Qualitative		No assumed impact/negligible impact on emissions
MBTA	MBTA061	5339 Bus Program	Quantified	TBD	Impact on emissions will be calculated when specific projects are chosen for funding through this program
MBTA	MBTA063	RRIF/TIFIA Financing Program	Qualitative		No assumed impact/negligible impact on emissions
Federal Fiscal Year 2028
CATA	RTD0010579	CATA - Preventive Maintenance	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010583	CATA - buy misc small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	RTD0010584	CATA - acquire shop equip/small capital	Qualitative		No assumed impact/negligible impact on emissions
CATA	T00073	CATA - Rehab/Renovation Administration & Operations Facility	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011195	MetroWest RTA - OPERATING ASSISTANCE NON FIXED ROUTE ADA PARA SERV	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011196	MetroWest RTA - TERMINAL, INTERMODAL (TRANSIT) - BLANDIN	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011197	MetroWest RTA - TECHNOLOGY SUPPORT/CAPITAL OUTREACH	Qualitative		No assumed impact/negligible impact on emissions
MWRTA	RTD0011198	MetroWest RTA - ACQUISITION OF BUS SUPPORT EQUIP/FACILITIES	Qualitative		No assumed impact/negligible impact on emissions

Transportation Improvement Program Federal Fiscal Years 2024–28
