FEDERAL REQUIREMENTS

Metropolitan areas with populations over 200,000—known as transportation management areas (TMAs)—since 1991 have been required by the federal government to have an ongoing Congestion Management Process (CMP). In TMAs that are designated as ozone or carbon monoxide nonattainment areas, transportation projects that add significant single-occupant-vehicle carrying capacity cannot be programmed for federal funding unless the need for the project is analyzed and demonstrated by the CMP. Since the EPA has designated the Boston region as a nonattainment area for ozone, the CMP is especially significant for the future of transportation in the region.1

THE BOSTON REGION MPO’S CONGESTION MANAGEMENT PROCESS

The Boston Region MPO has funded a Congestion Management Process (CMP) under various names. Initially the Boston Region MPO called it the Congestion Management System (CMS), a term used by the federal legislation, the Intermodal Surface Transportation Efficiency Act (ISTEA) of 1991. Then for several years the MPO referred to it as the Mobility Monitoring System (MMS). Since March 2009, based on the name convention used in SAFETEA-LU and more recently MAP-21(the current federal surface transportation legislation), the MPO has referred to it as the Congestion Management Process. Over the years, additional facilities and services have been included in the monitoring process, and methods for the collection and analysis of data have been improved. In addition, since 1995, this process has become increasingly integrated with the MPO’s planning processes and has become more Web-based.

The CMP is an ongoing program. Its purpose is to develop strategies for the management of congestion based on data acquired through system performance monitoring, and to move those strategies into the implementation stage by providing decision makers in the region with information on and recommendations for the improvement of transportation system performance. The recommendations of the CMP have an impact on the MPO’s Long-Range Transportation Plan (LRTP), the Unified Planning Work Program (UPWP), and the Transportation Improvement Program (TIP).

SOURCES OF CONGESTION

Congestion occurs when a transportation facility or service (for example, a roadway segment, intersection, interchange, or transit vehicle) experiences a demand in terms of vehicles or transit passengers that exceeds the space available. This results in problems such as a reduction in roadway capacity, travel speed, bus seats, standing space on buses or trains, and bicycle racks or parking spaces for motor vehicles at rapid transit or commuter rail parking lots. However, in transportation planning, the term “congestion” typically refers to roadways and is the result of a variety of causes, usually grouped in the following four categories:

• Bottlenecks that occur at intersections, interchanges, and other locations where processing capacity is reduced due to traffic signals; to traffic merging, diverging, or weaving across lanes; or to special events, such as sporting events, festivals, conventions, and concerts
• Weather events, such as snow storms
• Temporary capacity-reducing roadway conditions, such as work zones
• Crashes and other incidents that either partially block roadways or cause passing motorists to slow down

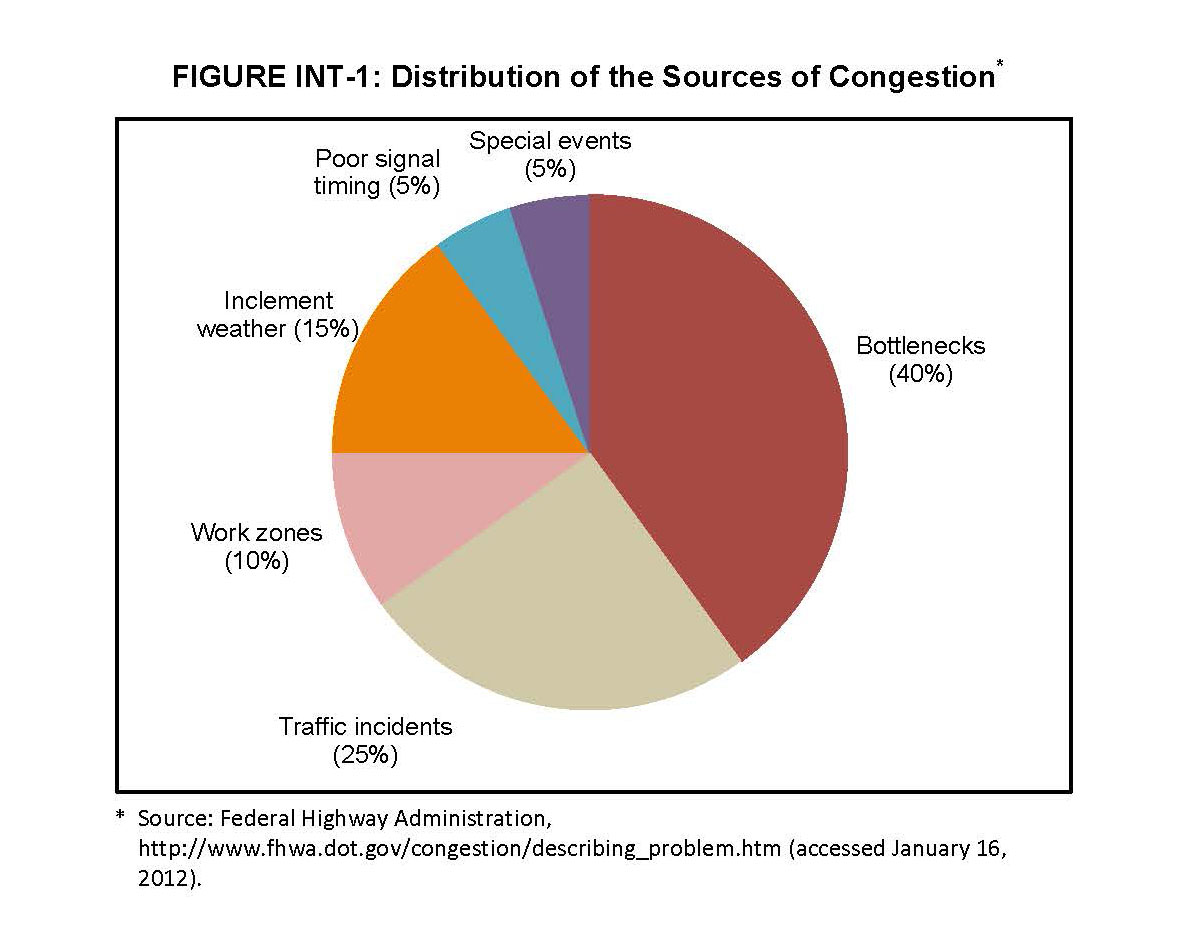

The national distribution of these causes, as reported by the FHWA, is shown in Figure INT-1. Nationally, 60% of all congestion is nonrecurring; it is caused by traffic incidents, bad weather, work zones, poor signal timing, and special events. The remaining 40% of congestion is recurring congestion, and is usually caused by bottlenecks.

FIGURE INT-1: Distribution of the Sources of Congestion2

Although it is not clear how the Boston region congestion pattern compares to the national pattern, it is useful to note several specific features that influence congestion management and the quantity and duration of congestion in this region:

• Boston has a higher density of destinations and population than most U.S. central cities, increasing the potential for congestion from roadway traffic approaching the center, although it also has a rich transit system that serves that area. In addition to radial travel toward Boston, the region experiences significant travel towards satellite high-employment centers, resulting in circumferential travel and reverse-commuting patterns, mostly done by automobile.
• The region is home to several large event venues, such as stadiums, that generate considerable traffic.
• The region is home to many tourist attractions, generating considerable visitor traffic in the public transit system and the pedestrian network, as well as on roadways.
• This region is a mature urban area, where many roadways follow patterns and designs that were laid out prior to the era of automobile use and in a time of much lower population density, making infrastructure changes impossible in many locations.
• Natural barriers in the region (for example, rivers, coastline, and some hills) present challenges to mobility.
• Snow and ice have a significant influence on the region’s roadways during the winter months.

However, the Boston region also has some strengths that present unique opportunities for the management of congestion:

• The region has an extensive and well-used public transit network, consisting of rapid transit, commuter rail, bus lines, and commuter ferries to transit stations.
• The region’s municipalities have a growing interest in bicycle accommodation, including lanes, multi-use paths, and streets that are retrofitted with bicycle lanes and “share the road” markings.
• The pedestrian-friendly old-city urban design, transit availability, and the high population and employment density of dense urban areas such as Boston, Cambridge, and Brookline make the urban core of the region very walkable at all times of the day.

COMPARING THE BOSTON REGION TO OTHER REGIONS

Boston is one of the older major cities in the United States, located along the Atlantic Ocean. The Boston region is also at the northern end of the Northeast Corridor, which extends southwest to Washington, D.C. The Northeast Corridor goes through several large, dense metropolitan areas along the East Coast that are connected by intercity rail and bus transit. According to the 2010 U.S. census, the total population for this region is over 44 million people. For a better understanding of congestion management issues in a broader context, it is useful to compare the Boston region to other large metropolitan regions in the United States.

Boston has characteristics similar to those of other East Coast cities. The Urban Core subregion is very dense, and many residents in this part of the region rely less on single-occupancy-vehicle travel than residents of other parts of the MPO region, due to the availability of convenient public transportation service. The Boston region also consists of some dense suburbs (inside of I-95). Further out, the Boston region has newer suburbs, which rely more on single-occupancy-vehicle commutes because of the lower densities these areas typically have. More commuters in those areas have circumferential work trips, which are often only feasible by automobile.

Roadway Congestion

INRIX, a company that provides traffic information, travel services, and applications and tools for traffic management, also periodically develops a National Traffic Scorecard.3 The current ScoreCard, published in April 2012, ranked the Boston region as having the tenth-highest roadway congestion in the nation over the previous 12 months. This ranking is slightly higher than Miami’s (12.8) and slightly lower than Chicago’s (13.3). Boston has a lower INRIX index than many other Northeasternurban areas, such as New York, Bridgeport, and Washington, D.C., but has a higher INRIX index than Philadelphia, Baltimore, and Providence.

According to the Texas Transportation Institute’s 2010 Urban Mobility Report, in terms of the total number of hours of travel delay experienced by auto commuters, the Boston region was ranked tenth in the nation (119 million hours in 2009)—worse than the Atlanta region (112 million hours) and better than the San Francisco-Oakland region (121 million hours).4

In terms of the total number of hours of truck delay, the Boston region was ranked twelfth in the nation (6.2 million hours in 2009). This is better than the San Francisco–Oakland region (6.8 million hours) and slightly worse than the Seattle region (6.2 million hours).

Public Transit 5

The Boston region’s public transit system is a key function of the region’s transportation network, and without it, automobile congestion would be significantly worse. The most recent available average numbers of weekday unlinked transit passenger trips taken are about 762,400 on the rapid transit system, 370,600 on the bus system, 133,300 on the commuter rail system, and 4,372 on commuter ferries.6  The entire MBTA system provides slightly over 1.2 million trips per weekday.

Comparison of Public Transit Services

According to the American Public Transit Association, public transit services in Boston compare to those of other metro regions as follows. The MBTA’s commuter rail system is the fifth busiest in the nation, with slightly higher ridership than Philadelphia’s system (SEPTA) and much lower ridership than Chicago’s main system (METRA) and the three systems in the greater New York City region (New Jersey Transit, Long Island Railroad, and MTA).

• Together, the Green Line and Mattapan High-Speed Line constitute by far the busiest light rail transit system in the United States, with an average of 232,000 weekday boardings. This ridership has 60,000 more weekday boardings than San Francisco’s Municipal Railway, which is the second-busiest light rail system in the United States.7
• The Blue, Orange, and Red lines, with an average of 530,400 weekday boardings for all three lines combined, constitute the fourth-busiest heavy rail rapid transit system in the United States, significantly more heavily used than the San Francisco Bay Area Rapid Transit (BART) system, and less heavily used than the rapid transit systems of New York, Washington, D.C., and Chicago.
• The MBTA bus system is the seventh-busiest system in the nation, with 370,600 weekday boardings, just behind that of Washington, D.C., and ahead of San Francisco’s Municipal Railway Service.

Other Modes

According to U.S. Census Bureau, for the years 2005 to 2009 an estimated 98,463 residents of the Boston Region MPO area commuted to work by walking, and 15,695 bicycled to work.8 These statistics do not include trips taken by foot and by bicycle for purposes other than commuting. Census estimates show that about 36% of workers in the MPO region commute by means other than driving alone.

When comparing the Boston region to other regions, Metropolitan Statistical Areas (MSAs), which are defined by the U.S. Office of Management and Budget and used by the U.S. Census Bureau and other U.S. government agencies for statistical purposes, provide a useful approximation of the boundary of the urban area. Although MSAs do not necessarily have the same boundaries as MPO regions, they are similar in that they cover an urban area that extends beyond city limits; in addition, data at the MSA level are readily available from the Census Bureau. Compared to other large MSAs with over one million workers, the Boston MSA, with a mode share of commuting by foot of 5.0%, ranks second only to the New York City MSA. In terms of the percentage of workers who commute by bicycle, the Boston MSA ranks sixth, with a mode share of 0.8%. This is a higher percentage than the New York City, Philadelphia, Washington, D.C., and Baltimore MSAs, but lower than the percentage in the MSAs of San Francisco, Seattle, Minneapolis, Phoenix, and Portland, Oregon. In terms of the percentage of workers who commute by carpooling, the Boston MSA ranks twenty-third among large MSAs (8.1% of workers carpool, slightly higher than the New York City MSA and lower than the Philadelphia, Baltimore, and Washington, D.C., MSAs).

THE CONGESTION MANAGEMENT PROCESS

The process model for congestion management recommended by the federal government provides an outline for an objectives-driven, performance-based approach consisting of eight actions:9

1. Develop regional objectives.
2. Define the CMP network.
3. Develop multimodal performance measures.
4. Collect data and monitor system performance.
5. Analyze congestion problems and needs.
6. Identify and assess strategies.
7. Program and implement strategies.
8. Evaluate strategy effectiveness.

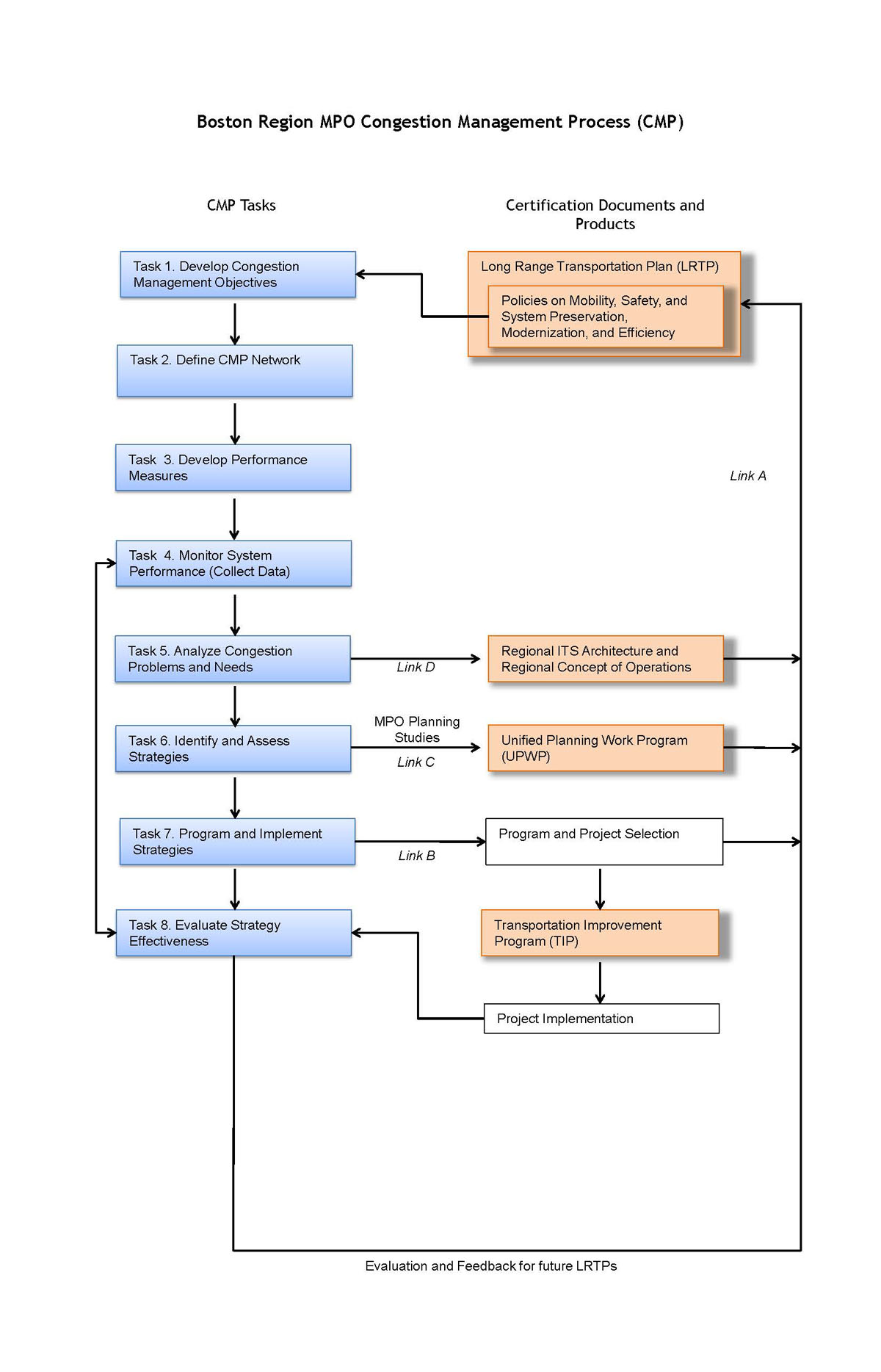

Figure INT-2 shows how this model is used by the Boston Region MPO, and also shows the connections between the CMP and other elements in the MPO’s transportation planning process.

FIGURE INT-2
Boston Region Congestion Management Process

Links between the CMP and Other Planning Elements

The CMP interacts with many elements of the transportation planning process. The essential functional elements of an MPO are indicated in orange in Figure INT-2, which shows how the Boston Region MPO views the integration of the CMP with the overall metropolitan planning process, as shown by Links A, B, C, and D. These linkages are described in detail below.

Links A, B, and C show that the CMP is integrated with the LRTP, TIP and UPWP

•  “Develop CMP Objectives,” “Define CMP Network,” “Identify and Assess Strategies,” and “Evaluate Strategy Effectiveness” are steps in the Congestion Management Process that relate directly to the following elements of the LRTP: visions and policies, application area, needs assessment, and strategy development and evaluation. CMP performance monitoring is used in the needs assessments for the LRTP.
•  The “Identify and Assess Strategies” section of this document identifies possible strategies that may be implemented. These strategies are mentioned in greater detail later in this document. This section also provides input into the UPWP for corridor studies and other planning studies, and, indirectly, into UPWP study recommendations for the LRTP. Some of the recommendations yielded by CMP monitoring of roadway, transit, and bicycle/pedestrian transportation studies for the UPWP have to do with:
• Pedestrian access to transit
• Bicycle and pedestrian access to community centers
• Safety and operations programs for signalized intersections
• Bottleneck studies
• Arterial coordination

The entire CMP program is funded through the UPWP. The latest CMP work program was updated to include monitoring of vehicle occupancy for future HOV system planning and transportation demand management, the evaluation of additional intersections for needs assessment for the LRTP, and the evaluation of projects and strategies evaluations for an improved objectives-driven, performance-based approach.

“Programming and Implementing Strategies” relates to the CMP influence in the selection of projects for funding in the TIP. Monitoring data from the CMP are used in the evaluation of potential TIP projects and their prioritization for funding.

“Evaluate Strategy Effectiveness“ evaluates the impacts or results of implementing the strategies in the Boston region. This step receives input from TIP projects that have been implemented in order to monitor their strategy effectiveness, which, in turn, feeds into management and operations and other CMP recommendations for future LRTPs. This step has not been implemented in its fullest, although the MPO has recently funded the study “TIP Project Impacts, Before –After Evaluations,” completed in October 2012.

The following section describes some of the CMP-recommended studies that resulted in evaluations of improvement strategies. Many of the recommendations from these studies are already in various stages of design, implementation, and construction.

Multimodal Subarea Studies

• The Lower North Shore Transportation Improvement Study, 2000
• MetroWest Subregional Area Study, 2000
• Traffic Congestion in the SouthWest Advisory Planning Subregion, 2002
• Transportation Improvement Study of Routes 1A, 114, and 107, and Other Major Roadways in Downtown Salem, 2005
• Mid–North Shore Subregional Transportation Study, 2006
• Belmont, Lexington, Waltham Subarea Study, 2009

Expressway Planning and Operations Studies

• Feasibility Analysis of Safety and Operational Improvements at 11 Route 128 Interchanges, 2003
• I-93/Southeast Expressway/Route 3 – Braintree Split, 2006
• Safety and Operational Improvements for the I-93/Route 24 Interchange, 2007
• Newton Corner Rotary Study – Phase II, 2009
• Alewife Traffic Operations and Access Study – Phase II, 2009
• Freeway Bottlenecks, 2009
• Freeway Bottlenecks, 2011

Corridor Planning and Operations Studies

• Route 138 Corridor Planning Study, 2001
• Route 53 Corridor Transportation Plan, 2003
• Route 28 Corridor Study, 2008
• Route 60 Mobility Study: Malden and Medford, 2009
• Route 126 Corridor Improvements Study, 2010

Arterial Intersections Traffic Operations Studies

• Signalized Intersection Study – North Suburban Planning Council, 2001
• Signalized Intersection Study – Minuteman Advisory Group on Interlocal Coordination, 2001
• Signalized Intersections Study – SouthWest Advisory Planning Committee, 2001
• Signalized Intersections Study – South Shore Coalition, 2001
• Signalized Intersections Study – MetroWest, 2001
• Congested Intersection Study – Three Rivers Interlocal Council, 2002
• Signalized and Unsignalized Intersections Study – North Shore Task Force, 2003
• Safety and Operational Improvements at Selected Intersections, 2008
• Arterial Traffic Signal Improvements and Coordination, 2010

Transit Planning and Operations

• MBTA Bus Route 66 Arterial Improvement Study, 2001
• MBTA Transit Signal Priority Study: Arborway Corridor, 2008
• MBTA Route 1 Transit Signal Priority Study, 2011
• Strategic Visioning for MBTA Bus Service, 2011

Studies for Various Modes of Travel

• MassHighway Park-and-Ride Lot Status and Recommendations, 2003
• Improving Pedestrian and Bicyclist Access to Selected Transit Stations, 2005

Link D: CMP Connections with Regional Concept of Transportation Operations and Boston Region Intelligent Transportation Systems (ITS) Architecture

The current LRTP, Paths to a Sustainable Region (endorsed in September 2011), includes management and operations (M&O) and ITS considerations by regional corridor.10 The M&O strategies are consistent with CMP findings and with the needs and strategies identified in the current LRTP. The following activities have been undertaken:

• The MPO’s Transportation Improvement Program (TIP) for federal fiscal years 2013–16 includes funding for ITS projects along I-95 and I‑495, including expansion of fiber-optic cable, CCTV (closed-circuit television), VMS (variable message signs), wireless sensor networks, and other communications infrastructure.
• The CMP has recommended several TSP (transit signal priority) studies in the region, and funding has been identified for them. Several TSP studies have already been performed, and the MBTA is considering recommendations for implementation. Data from CMP monitoring, and from the MBTA’s service planning forms the basis for a strategy assessment of bus transit-signal priority.
• The MPO staff has participated in a statewide effort to assess costs associated with maintaining and operating the existing Federal Aid Highway System in the Boston region.
• MPO staff and MPO member agency representatives have participated in ITS architecture updates since the first Metro Boston Early Deployment Plan for Intelligent Vehicle Highway System (IVHS) was completed in 1994. It is expected that MPO member agency representatives and staff will participate as stakeholders in MassDOT’s ITS Implementation Plan.
• MPO staff has participated in a survey, managed by MassDOT Office of Transportation Planning (OTP), of an electronic data-sharing program.
• MPO staff is participating in the City of Boston–led effort to integrate transportation data from a variety of sources, including CCTV and traffic detection systems, into a dynamic database system.
• CMP staff is making progress toward switching roadway speed monitoring to vendor-provided speed data collected from various digital sources.
• The UPWP has included studies on arterial and corridor traffic signal improvements, including arterial signal coordination.
• The TIP has called for technology and communications upgrades for the traffic control center of the City of Boston, which is a member of the MPO.
• In 2010, the MPO proposed that its Clean Air and Mobility program should fund a traffic-signal retiming program for the City of Newton.
• The LRTP’s visions and goals include support for ITS technology.
• CMP staff has recommended that the current LRTP incorporate ITS communication and technology needs and strategies from MassDOT’s draft report about the Metropolitan Boston 2010 Regional Transportation Operations Strategy.11
