Memorandum
Date January 17, 2013
To Boston Region Metropolitan Planning Organization
From Seth Asante and Efi Pagitsas
MPO Staff
Re Roundabout Installation Screening Tool
The design features of modern roundabouts encourage slower speeds, making them proven strategies for reducing severe-injury crashes. In addition, the yield-on-entry rule and one-way circulating flow of roundabouts reduce the number of conflicts points and cut down on angle crashes significantly. As a result of the safety and operational benefits of modern roundabouts, the demand for roundabouts throughout the Commonwealth has risen in the last decade.1 The Highway Division of the Massachusetts Department of Transportation (MassDOT) and the Boston Region Metropolitan Planning Organization (MPO) often respond to several roundabout requests from municipalities, and are interested in having a consistent tool that would point confidently to a modern roundabout as a viable alternative worthy of further analysis and design. This is especially important for state- and federal-aid-funded roundabout designs.
MPO staff, working in conjunction with an advisory task force, developed a screening tool for staff of these agencies and of MPO communities to use when they review roundabout proposals or consider alternatives for improving intersections (the tool is enclosed, along with accompanying exhibits). Participation from these agencies allowed the screening tool to reflect their experiences and meet their requirements for a comprehensive, effective, and useful tool.
The installation of a roundabout is beneficial only if the roundabout addresses a unique purpose for the location under study and is located in an environment appropriate for its use. Installing a roundabout for the wrong purpose or in an inappropriate environment may not help address the problems, and may even lead to adverse effects. Twenty-four factors for screening roundabout design were used to develop the tool. The tool addresses problems and project objectives in the following functional areas:
A brochure accompanying the screening tool includes a brief background of the purpose, needs, uses, and benefits of the tool. The Massachusetts Roundabout Installation Screening form comprises three sections: General Information; Resources: Data and Information Required for Assessment; and the following five steps for applying the screening tool to an intersection:
The outcome of the screening is a decision about whether or not a roundabout alternative is viable and worthy of advancing for additional analysis and design.
The objective of this study was to develop a roundabout screening tool for MassDOT, the Boston Region MPO, and municipal staff to use when they review proposals for the design and construction of roundabouts or consider alternatives and concepts for improving intersections. By extension, the tool could be used by other interested parties, including consultants. Another objective of the study was to formalize the roundabout screening process to encourage more roundabouts to be built in the commonwealth, while eliminating wasteful design resources spent on roundabout alternatives that are not viable.
MPO staff established an advisory task force to participate in the study. The task force comprised staff from the MassDOT Highway Division and Office of Transportation Planning, the Boston Region MPO, and the Metropolitan Area Planning Council (MAPC). Because these agencies will use the tool, it was important for their staffs to participate in the development of the tool so that it will reflect their experiences and meet their requirements. MPO staff convened two task force meetings to present the evaluation criteria and the screening tool for their review.
As roundabouts become popular in the United States because of their proven safety and operations advantages, many states have developed or are developing policies to guide their implementation. Arizona, California, Florida, Georgia, Kansas, Missouri, Minnesota, Maryland, New York, Oregon, Pennsylvania, Washington, and Wisconsin have guidelines for the installation of roundabouts. Some of those states, including New York, California, and Kansas, have adopted, as their roundabouts development guide, the National Cooperative Highway Research Project (NCHRP) Report 672, with some minor alterations and clarifications.2 Although a vast amount of literature exists on roundabout design in the United States, little exists on tools for assessing the feasibility of building a roundabout at a given intersection. Many of the states’ roundabout guidelines focus on the identification of appropriate and inappropriate locations for roundabouts, as well as on the design of roundabouts.
The City of Hamilton, in Ontario, developed a screening tool for quick assessment of the feasibility of a roundabout alternative and performance measures for comparing it to other forms of intersection traffic control.3 Iowa State University’s Center for Transportation Research has developed planning-level guidelines for screening and assessing the feasibility of roundabouts.4 Finally, the National Cooperative Highway Research Program (NCHRP) Report 672 provides planning steps, which include an outline of many of the considerations that project proponents (MassDOT and municipalities) need to investigate before they advance a roundabout proposal to the analysis and design phases. The NCHRP Report 672 is the latest information guide on modern roundabouts.
A list of factors for screening roundabouts was developed by MPO staff and sent to task force members for rating. The task force was asked to review each factor and specify whether it should be used for screening roundabout alternatives in Massachusetts by indicating “Yes,” or “No,” or “Other.” In addition, task force members were asked to add their own factors or modify any of the screening factors. Nine of the 11 task force members responded to the survey. The survey yielded 24 screening factors, all of which were included in the screening tool. Many of the 24 screening factors are documented in Chapter 3 of the NCHRP Report 672, and users are encouraged to reference it for more information on screening roundabout alternatives.
The first portion of the roundabout screening form contains general information about the study proponent and the intersection and roadway characteristics of the location where a roundabout alternative is being considered.
The resources required for screening a roundabout, such as data and information, are described after the section on general information. Roundabout screening analysis requires planning-level data to define existing problems, determine the number of lanes, assess space requirements, identify site constraints, and justify a roundabout as a potential alternative. The following are some of the common input data for screening roundabout alternatives.
Average daily traffic (ADT), truck traffic volumes, and the percentage of left-turning traffic dictate the size of the roundabout. Large trucks often dictate many of a roundabout’s dimensions, especially for single-lane roundabouts. It is very important, therefore, to determine estimates of the projected traffic volumes, turning movements, and design vehicle at the start of the screening process. In addition, pedestrian and bicycle volumes, including the number of people with visual impairments who would use the roundabout, are important design input and screening factors.
The crash experience at the intersection where a roundabout is being considered is essential for screening a roundabout alternative because of the proven safety benefits of roundabouts. Of particular importance are crashes involving fatalities or severe injuries and the manner of collision (angle, rear-end, sideswipe, head-on). Collision diagrams should be prepared to provide additional information on crash patterns and locations.
The feasibility of a roundabout alternative depends on space requirements and the environment in which it would operate. Therefore, in addition to the traffic and safety data, data on right-of-way and roadway features, such as sidewalks, crosswalks, on-street parking, transit stops, and existing landscaping, are useful. Information on systems and facilities near the intersection where a roundabout alternative is being considered, such as a coordinated traffic signal system, at-grade railroad crossings, and emergency driveways with preemption, require careful consideration before installing a roundabout.

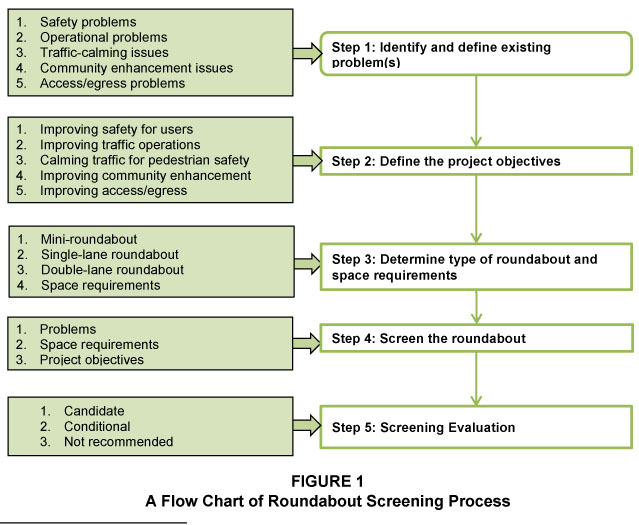

Figure 1 shows a flow chart of a five-step roundabout screening process.5
The existing problems at the intersection are identified and described. This is important because a good understanding of the existing problems helps to shape the project objectives and the selection of the appropriate intersection control types.
The project objectives are defined and are aligned with the problems identified in Step 1 at the beginning of the process assists decision makers in determining if a roundabout is an appropriate course of action or if additional information is needed. The objectives of the project may include one or more of the following perspectives:
The screening process involves evaluating an alternative for an intersection improvement of a properly sized roundabout. Two estimates required at this stage of screening are planning estimates of the following:
The cost of land acquisition and the impact on nearby properties could be reasons to dismiss a roundabout alternative. In estimating the space requirements, one needs to account for the number of lanes required, pedestrian and bicycle needs such as sidewalks and crosswalks, and landscaping and utility equipment (such as lighting and signal poles and cables).
A roundabout alternative is screened to determine whether the existing problems could be mitigated with a roundabout and whether the environment is appropriate for its use and would not cause adverse impacts. Each of the 24 screening factors was rephrased into a specific question for screening a roundabout alternative. The screening involves answering all of the 24 screening questions that were developed in conjunction with the task force. For each question, a “Yes,” “No,” or “Other” are the available answers. The questions are listed under the following factors:
Roundabout screening involves an assessment of the opportunities that a roundabout alternative may offer, such as:
Roundabout screening also involves an assessment of the impacts of a roundabout alternative, including the following:
In the roundabout screening process, potential opportunities for advancing a roundabout alternative are identified, and potential red flags for not recommending a roundabout alternative due to adverse impacts. The final outcome of the screening evaluation is a decision about whether or not a roundabout alternative is viable and worthy of advancing for additional analysis and design. Based on the answers to the questions, the analyst selects one of three decisions:
SAA/saa
Encl.: Roundabout Screening Tool
cc: N. Boudreau, State Traffic Engineer, MassDOT Highway Division
J. Danila, Assistant State Traffic Engineer, MassDOT Highway Division
P. Nelson, Manager of Corridor Planning, MassDOT Office of Transportation Planning
1 In this document, the word roundabout refers to modern roundabouts, which have a smaller central island and a tighter deflection angle to slow down vehicles entering the roundabout and vehicles in the circulatory lanes to speeds between 20 and 25 mph.
2 NCHRP Report 672, Roundabouts: Informational Guide, Second Edition, Transportation Research Board, Washington, D.C., 2010.
3 Ron Gallo, Use of Roundabouts in the City of Hamilton, Public Works Department, Region of Waterloo, Canada, June 2008.
4 Shauna Hallmark and Hillary Isebrands, Technical Memorandum, Planning-Level Guidelines for Modern Roundabouts, Iowa State University’s Center for Transportation Research, Sponsored by Iowa Department of Transportation, November 2008.
5 Chapter 3, section 3.2, of the NCHRP Report 672 discusses some of these processes in detail and readers are encouraged to review them for additional information.
